Model Image
Manufacturer

Electrolux

Model Number

MEF402WFW1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318175701 318175701 ANTI-TIP BRACKET
5303310527 5303310527 BACK-MAIN
5303310511 5303310511 BAR
316096900 316096900 BEZEL
318055500 318055500 BRACKET
5303304030 5303304030 BRACKET
5303304001 5303304001 BRACKET
5303304000 5303304000 BRACKET
5303284616 5303284616 CLIP-THERMO BULB
5303310526 5303310526 COVER
318406100 318406100 COVER, GLASS LITE
3202108 3202108 DRAWER,UTILITY
5303308449 5303308449 FASTENER
318381302 318381302 GLASS
5303310507 5303310507 GLASS-OVEN DOOR
5303310519 5303310519 INSULATION
318285013 318285013 INSULATION
5303304954 5303304954 KNOB-CONTROL
3204306 3204306 LATCH
5308006417 5308006417 LENS,INDICATOR LAMP ,RED ,(2)
3051539 3051539 LIGHT/LAMP-OVEN
5303212803 5303212803 NUT
5305151612 5305151612 NUT
5303280336 5303280336 PAN, SURFACE SM. (2)
318009101 318009101 PANEL
318009308 318009308 PANEL
5303310515 5303310515 PANEL
318057401 318057401 PANEL
5308012527 5308012527 PANEL
318005707 318005707 PANEL-CONTROL
5301315631 5301315631 PIN
3051658 3051658 PIN
318111800 318111800 PLATE
3204318 3204318 PLATE
5303311122 5303311122 PUSH-BUTTON
318018001 318018001 RAIL
318018000 318018000 RAIL
318328010 318328010 RECEPTACLE,HINGE
3051554 3051554 ROD
5303317975 5303317975 SCREW
5303307980 5303307980 SCREW
5303300195 5303300195 SCREW
5303323130 5303323130 SCREW
5303211311 5303211311 SCREW
5303311141 5303311141 SHIELD-HEAT
318014500 318014500 SPACER
5303310504 5303310504 SPACER
318141800 318141800 SPACER
5303304544 5303304544 SPACER
5308003107 5308003107 SPACER
5303307563 5303307563 SUPPORT-ELEMENT

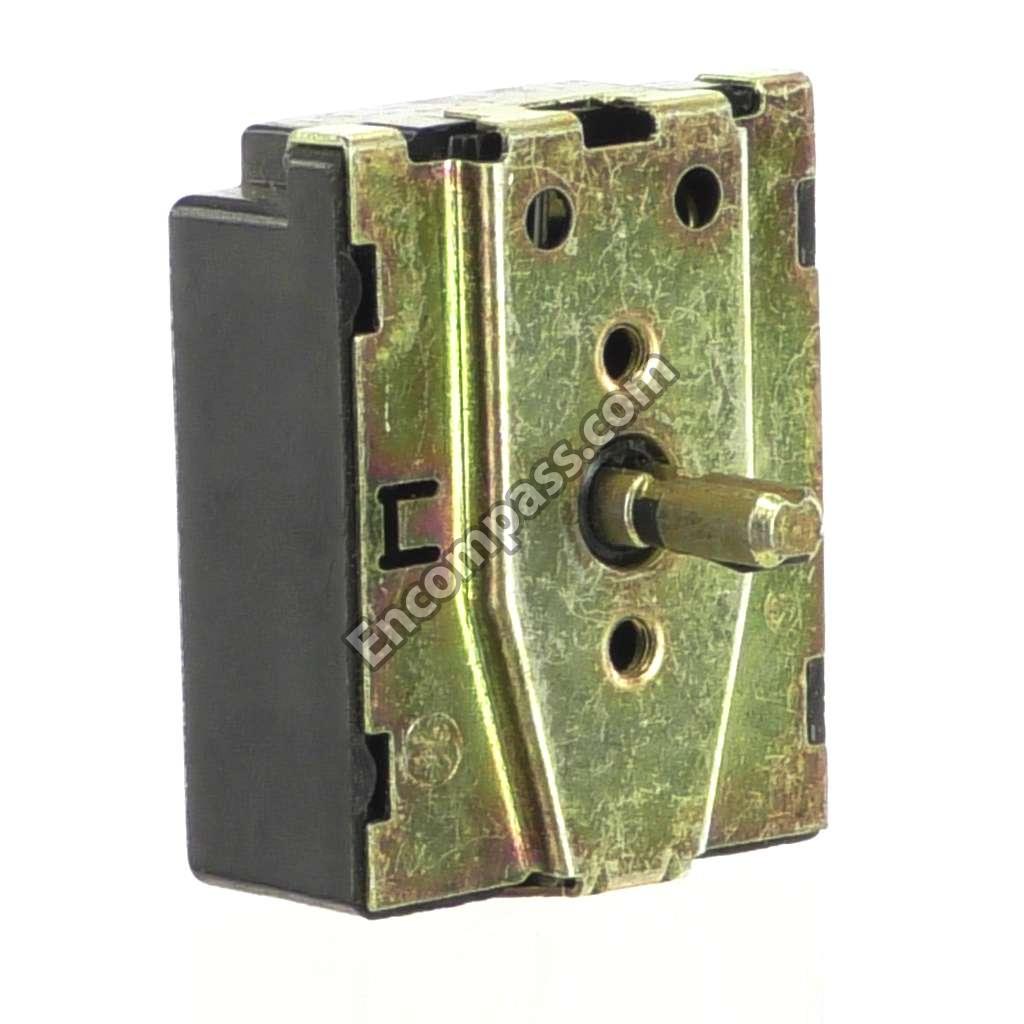

08015934 08015934 SWITCH-OVEN SELECT
318120500 318120500 SWITCH-SURFACE UNIT
5303323704 5303323704 TERMINAL-BLOCK
318107700 318107700 TOEPLATE
318051301 318051301 TRIM
5303304015 5303304015 WASHER
