Manufacturer
Electrolux
Model Number
MRS20HRAD2
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BASE-COMPRESSOR MTG |
|
|
BASKET-SLIDING |
|
|
BEARING, HINGE |
|
|
BLOCKEVAP COIL |
|
|
BOLT-ROLLER ADJ |
|
|
BRACKET-CONNECTOR |
|
|
CHANNEL-SHELF MTG |
|
|
CLAMP |
|
|
CLAMP |
|
|
CLAMP-WIRING HARNES |
|
|
CLIP, GRILLE, (2) |
|
|
CLIP-COND MTG |
|
|
CLIP-SHELF |
|
|
CLIPCOMPRESSOR MTG |
|
|
CONTAINER |
|
|
CONTAINER-ICE,34,FOR 178675-0 |
|
|
CONTROL BOX |
|
|
CORD-ELECTRIC POWER |
|
|
COVER-AIR DUCT |
|
|
COVER-DEFROST TIMER |
|
|
COVER-UPPER HINGE |
|
|
COVER-WIRING |
|
|
DAMPER, MEAT KEEPER |
|
|
DOOR STOP, REFR DOOR |
|
|
END CAP-SHELF,PROTECTOR ,FRZR SHELF |
|
|
EVAPORATOR |
|
|
FAN BLADE,RED ,EVAPORATOR FAN |
|
|
FERRULE-AIR |
|
|
FERRULE-INNER |
|
|

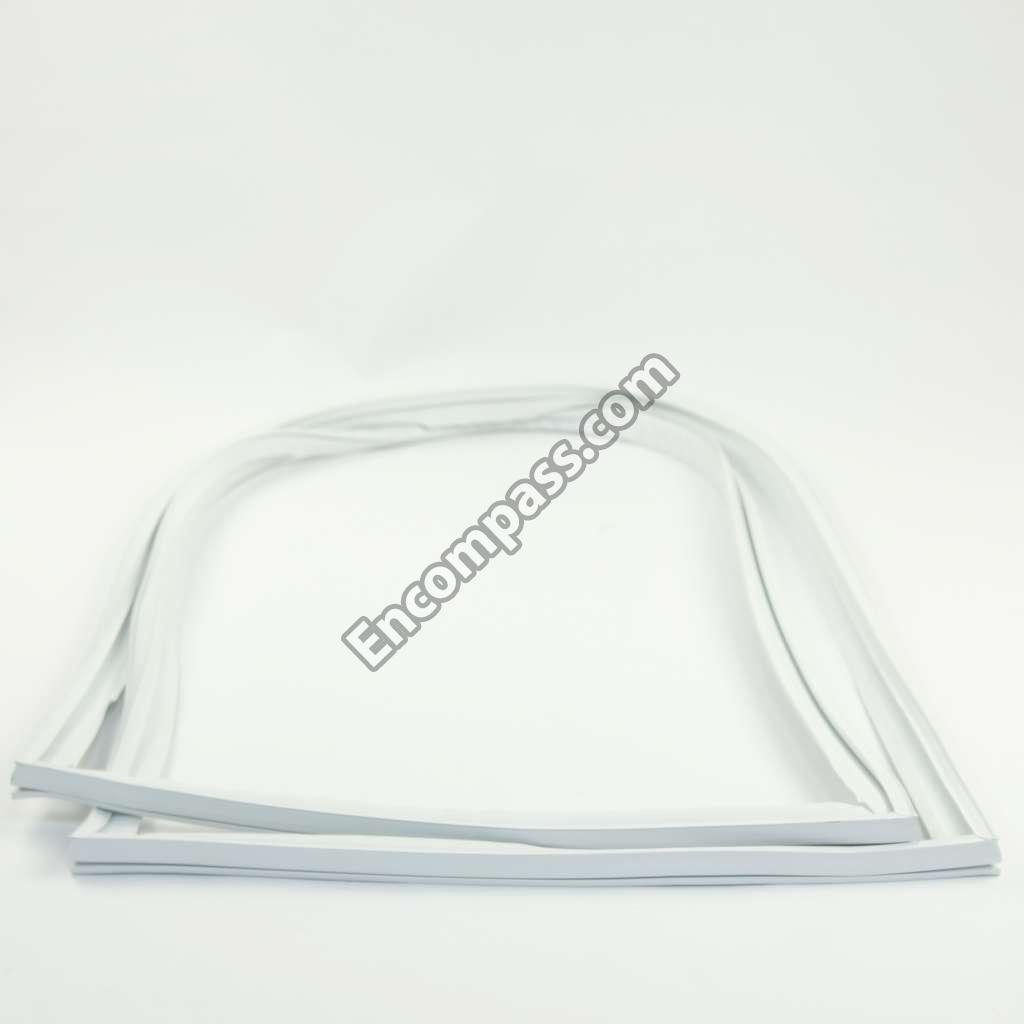

GASKET-FRZR DOOR, MAGNETIC, WHITE |
|
|
GASKET-REFR DOOR, MAGNETIC, WHITE |
|
|
GROMMET,SHELF MTG ,1.25`` ,LH ,(4) |
|
|
GROMMET-SHELF MOUNTING |
|
|
HANGER-BASKET, RH, (3) |
|
|
INSULATION-DOOR |
|
|
KNOBDAMPER CONTROL |
|
|
LOUVER |
|
|
N/L/A 07/13/09 |
|
|
NUT |
|
|
PAN-STORAGE |
|
|
PAN-STORAGE,LOWER |
|
|
PANEL-INNER DOOR |
|
|
PANEL-INNER DOOR |
|
|
PINCOMPRESSOR MTG |
|
|
PLUG-BUTTON |
|
|
PLUG-DECORATIVE |
|
|
PLUG-HOLE, FACTORRY TEST |
|
|
PLUGWTR INLET TUBE |
|
|
RACK-DOOR |
|
|
RACK-DOOR |
|
|
RAIL-COMPR SUPPORT |
|
|
RNG-FAN ORIFICE |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW,HEX WASHER HEAD ,8-15A X 0.500 |
|
|
SCREW,HEX WASHER HEAD ,8-15A X 0.625 , |
|
|
SCREW-HINGE MTG,HEX HD ,1/4-20 X 0.875 |
|
|
SCREW-ROLLER MTG |
|
|
SHIELD-DEFROST TIMR |
|
|
SHROUD |
|
|
SPACER |
|
|
SPACER |
|
|
SPACER-TUBE |
|
|
STRAP - EVAPORATOR/HEATER |
|
|
SUPPORT-AIR DUCT CV |
|
|
SUPPORT-COVER, CRISPER |
|
|
SUPPORT-DOOR RACK, ``2-LITER``, RH/LH |
|
|
SWITCH-LIGHT/LAMP |
|
|
TAPPING PLATE |
|
|
TIMER,WASHER ,5 OFF |
|
|
TUBE-INLET |
|
|
WASHER |
|
|
WASHER |
|
|
WASHER |
|
|
WASHER-NYLON |
|
|
WIREWAY |
