Manufacturer
Electrolux
Model Number
PCFG3078AFA
Description
Range/oven, Gas, Freestanding, 30 Inch
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AIR FRY TRAY |
|
|
ANTI TIP KIT, ASSY, W/TEMPLATE |
|
|
BACK, MAIN |
|
|
BAFFLE, BROILER |
|
|
BAFFLE, OVEN BURNER |
|
|
BRACE, OVEN TOP |
|
|
BRACKET, AIR DAM |
|
|
BRACKET, MIXER, BAKE |
|
|
BRACKET, MOTOR MTG. |
|
|
BRACKET, MOUNTING, LH, COOKTOP |
|
|
BRACKET, MOUNTING, RH, COOKTOP |
|
|
BRACKET, MOUNTING, TCO |
|
|
BRACKET, REGULATOR |
|
|
BRACKET, SUPPORT, BODY SIDE, (2) |
|
|
BRACKET, SUPPORT, REAR, CHASSIS |
|
|
BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY |
|
|
BUMPER, FRONT, MAIN |
|
|
BURNER SIMMER, OVAL, CENTER FRONT, 6K |
|
|
BURNER SIMMER, OVAL, CENTER REAR, 6K |
|
|
BURNER, BROILER |
|
|
BURNER, CROWN, LARGE, AFT |
|
|
BURNER, CROWN, MEDIUM, AFT |
|
|
BURNER, CROWN, SMALL, AFT |
|
|
BURNER, OVAL, CENTER |
|
|
BURNER, OVEN |
|
|
BUSHING, INSULATING |
|
|
CAP, 5K BURNER, MATTE, BLACK |
|
|
CAP, BURNER, LARGE, BLACK |
|
|
CAP, BURNER, MEDIUM, BLACK |
|
|
CAP, BURNER, SMALL, BLACK |
|
|
CAP, SIMMER BURNER, OUTER, (2) |
|
|
CLIP, BODYSIDE |
|
|
CLIP, WIRE |
|
|
CONTROL-FRIG PRO ASM GAS, 100 |
|
|
CORD, POWER, BLACK, 13A |
|
|
COVER, BROIL IGNITOR |
|
|
COVER, FAN |
|
|
COVER, TCO |
|
|
DEFLECTOR, MOISTURE, (2) |
|
|
DOOR, STAINLESS, W/BADGE |
|
|
DRAWER, WARMER |
|
|
DUCT ASSEMBLY, COOLING, TOGGLE LOCK |
|
|
DUCT, EXTERIOR |
|
|
DUCT, INLET AIR, FRONT |
|
|
DUCT, INLET AIR, REAR |
|
|
ELBOW, MIXER |
|
|
ELEMENT, CONVECTION, 900W |
|
|
FAN ASSEMBLY, COOLING |
|
|
FAN BLADE |
|
|
FLUEBOX, ASSEMBLY |
|
|
GASKET-FLUE |
|
|
GLASS, OVEN DOOR, BLACK, W/FOIL |
|
|
GLASS, OVEN DOOR, INNER |
|
|
GLIDE, WARMER DRAWER, 77, (2) |
|
|
GLIDE, WARMER, INNER LH |
|
|
GLIDE, WARMER, INNER RH |
|
|
GRATE, CENTER |
|
|
GRATE, LEFT |
|
|
GRATE, RIGHT |
|
|
GRIDDLE |
|
|
HANDLE, ASM |
|
|

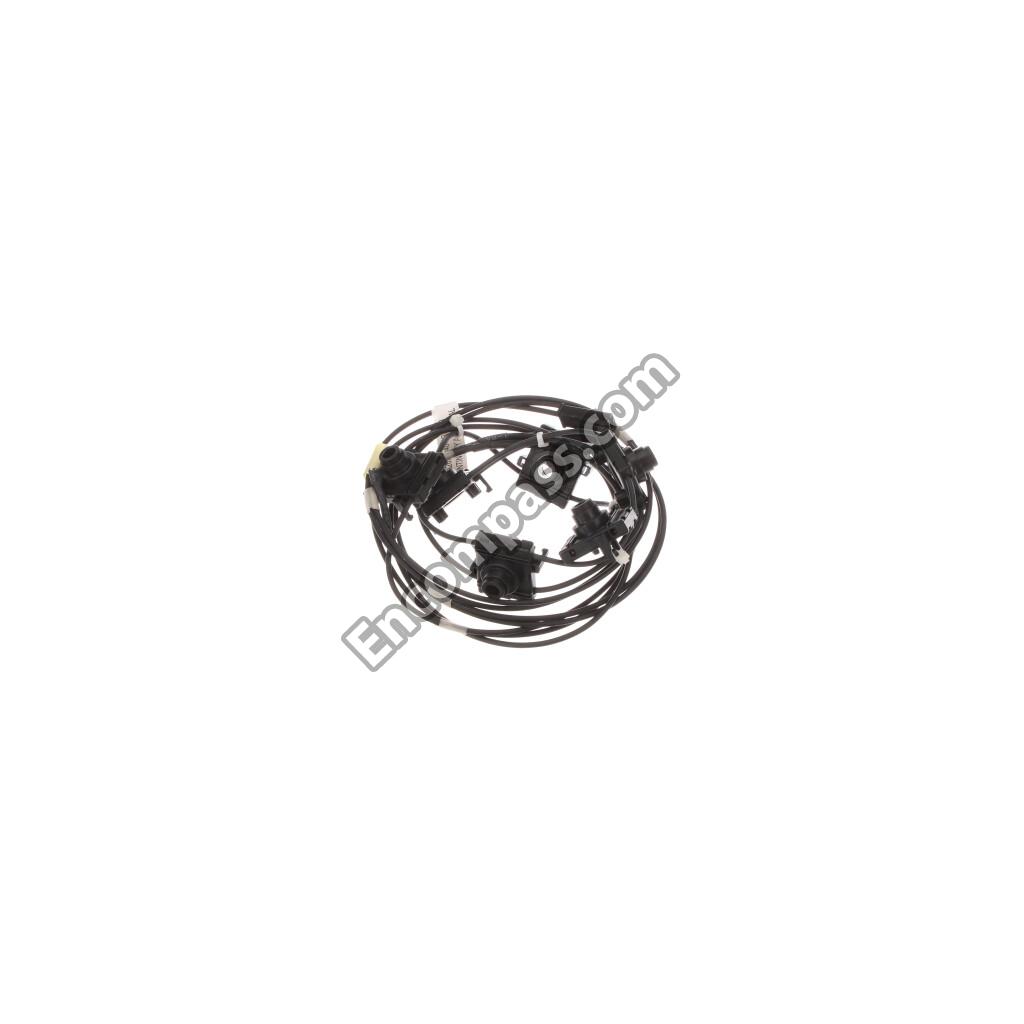

HARNESS, LOW VOLTAGE, GAS |
|
|
HARNESS, MAIN, GAS |
|
|
HARNESS, WIRING, OVEN CONTROL |
|
|
HARNESS-IGNITION, 3 # |
|
|
HINGE, DOOR, DUAL SPRING |
|
|
IGNITOR, BAKE |
|
|
IGNITOR, BROILER |
|
|
IGNITOR/ORIFICE ASSEMBLY, 14K, LEFT FRONT, ASSEMBLY |
|
|
IGNITOR/ORIFICE ASSEMBLY, 18K, RIGHT FRONT, ASSEMBLY |
|
|
IGNITOR/ORIFICE ASSEMBLY, 3K, CENTER, ASSEMBLY |
|
|
IGNITOR/ORIFICE ASSEMBLY, 5K, RIGHT REAR |
|
|
IGNITOR/ORIFICE ASSEMBLY, 6K, CENTER F/R |
|
|
IGNITOR/ORIFICE ASSEMBLY, 9.5K, LEFT REAR, ASSEMBLY |
|
|
INSULATION, MAIN FRONT |
|
|
INSULATION, OVEN BACK |
|
|
INSULATION, OVEN DOOR |
|
|
INSULATION, OVEN WRAPPER |
|
|
KNOB, SELECTOR, OVEN |
|
|
KNOB, TEMPERATURE, OVEN |
|
|
KNOB, TOP VALVE, STAINLESS |
|
|
LABEL, ANTI-TIP |
|
|
LAMP ASSEMBLY, HALOGEN |
|
|
LATCH ASSEMBLY, OVEN DOOR |
|
|
LENS-LIGHT/LAMP, INDICATOR, CLEAR |
|
|
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET & LEG |
|
|
LIGHT/LAMP, INDICATOR, BLUE, OVEN |
|
|
LIGHT/LAMP, INDICATOR, BLUE, PREHEAT |
|
|
LINER, DRAWER |
|
|
LINER, OVEN DOOR |
|
|
LP CONVERSION KIT, TB8 |
|
|
MAINTOP, STAINLESS |
|
|
MANIFOLD, PIPE |
|
|
MOTOR, LATCH |
|
|
MOTOR-FAN |
|
|
NUT, FAN RETAINER |
|
|
NUT, HEX HEAD SEMS |
|
|
NUT, HOUR GLASS, HANDLE MTG. |
|
|
NUT, LOCK, M4 X .70, THERMOSTAT |
|
|
NUT, MOUNTING |
|
|
PANEL, BODYSIDE, BLACK, LH |
|
|
PANEL, BODYSIDE, BLACK, RH |
|
|
PANEL, CONTROL, STAINLESS |
|
|
PANEL, DRAWER FRONT, STAINLESS |
|
|
PANEL, OVEN BOTTOM |
|
|
PC BOARD, ASSEMBLY, OVC3 |
|
|
PLATE, POWER CORD, MOUNT |
|
|
POTENTIOMETER, OVEN MODE |
|
|
POTENTIOMETER, OVEN TEMP |
|
|
PROBE, MEAT TEMP, RED |
|
|
PROBE, OVEN TEMP |
|
|
RACK ASSEMBLY, W/GLIDES |
|
|
RACK, GLIDE |
|
|
RACK,OVEN |
|
|
REAR FILLER KIT, FCFS RANGE, BLACK |
|
|
RECEPTACLE, PROBE |
|
|
RECEPTACLE,HINGE ,(2) |
|
|
REGULATOR,PRESSURE |
|
|
ROD, AUTO LATCH |
|
|
SCREW, 10-16 X .486 |
|
|
SCREW, 8-18 X 0.5, CHROME |
|
|
SCREW, 8-18 X 11/16, BLACK, (3) |
|
|
SCREW, BRACKET, STIFFENER, (4) |
|
|
SCREW, BURNER, HEAD MTG, (8) |
|
|
SCREW, CONCRETE, 1.75", ANTI-TIP BRKT |
|
|
SCREW, GROUNDING, 10-24 X 1.835, GREEN |
|
|
SCREW, HEX HD, #8-18 X 5/8 |
|
|
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK |
|
|
SCREW, HEX, 8-18 X 3/8, NICK, (3), REGULATOR BRKT |
|
|
SCREW, LEVELING, PLASTIC, REAR, (2) |
|
|
SCREW, SIMS LP, #8-32 X 5/16", BLACK |
|
|
SCREW, TR HD SQD AB, 8-18 X 0.25, (8) |
|
|
SCREW, TRUSS SQDR, 8-32 X 3/16, SWITCH MTG |
|
|
SCREW, TRUSS SQDR, 8A X 1", 62* |
|
|
SCREW, VALVE MTG., 1/4 - 20 |
|
|
SCREW, WAFER HD SQ DR, 8-18AB X 0.5 |
|
|
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK, 44* |
|
|
SCREW,HANDLE MTG. |
|
|
SCREW,W/WASHER ,8-18 |
|
|
SCREW-SHOULDER, W/SHOULDER, #8-18 X 1/2" |
|
|
SEAL, MAINTOP, SILICONE, REAR |
|
|
SEAL, OVEN DOOR |
|
|
SHIELD, BAKE |
|
|
SHIELD, BURNER, FRONT |
|
|
SHIELD, CHASSIS, LOWER |
|
|
SHIELD, FLUE |
|
|
SHIELD, HEAT, BODYSIDE, (2) |
|
|
SHIELD, MAIN, FRONT |
|
|
SHIELD, REAR WALL, UPPER |
|
|
SHIELD, WARMER DRAWER |
|
|
SHIELD, WARMER SIDE, LH |
|
|
SHIELD, WARMER SIDE, RH |
|
|
SHIELD, WIRE, REAR |
|
|
SHIELD, WIRE, SAFETY VALVE |
|
|
SHIELD, WOOL |
|
|
SHIELD,BODYSIDE |
|
|
SHIELD-FILLER DOOR SS, 53 |
|
|
SPACER, DOOR HANDLE, (2) |
|
|
SPACER, FOAM BLOCK, 2" X 1", W/ADHESIVE |
|
|
SPACER, GLASS |
|
|
SPACER, WIRE SHIELD, (2) |
|
|

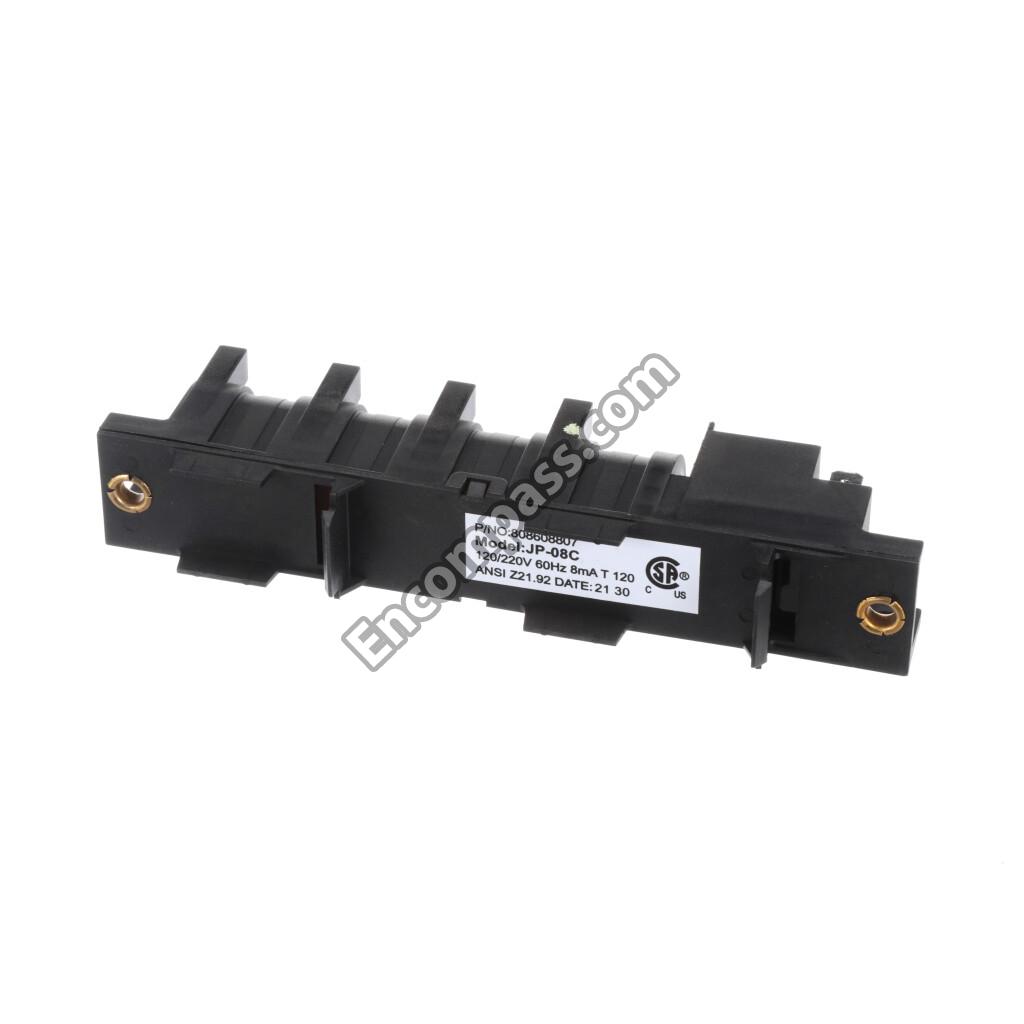

SPARK MODULE, IGNITOR |
|
|
SUPPORT, OVEN BOTTOM |
|
|
SWITCH, OVEN LIGHT, DOOR FRAME |
|
|
THERMOSTAT, SAFETY, 105C |
|
|
THERMOSTAT, THERMAL CUT-OFF, 110, AUTO RESET |
|
|
TRIM, REAR VENT, STAINLESS |
|
|
TUBE, BROIL BURNER |
|
|
TUBE, MANIFOLD SUPPLY |
|
|
TUBE, SAFETY VALVE |
|
|
TUBE, VALVE TO BAKE, W/MIXER |
|
|
VALVE, SAFETY |
|
|
VALVE, TOP BURNER, BLACK STEM, 500BTU |
|
|
VALVE, TOP BURNER, BLUE STEM, 1125BTU |
|
|
VALVE, TOP BURNER, CLEAR STEM, 2000BTU |
|
|
VALVE, TOP BURNER, GREEN STEM, 850BTU |
|
|
VALVE, TOP BURNER, RED STEM, 1800BTU |
|
|
WASHER, FLAT, MEAT PROBE |
