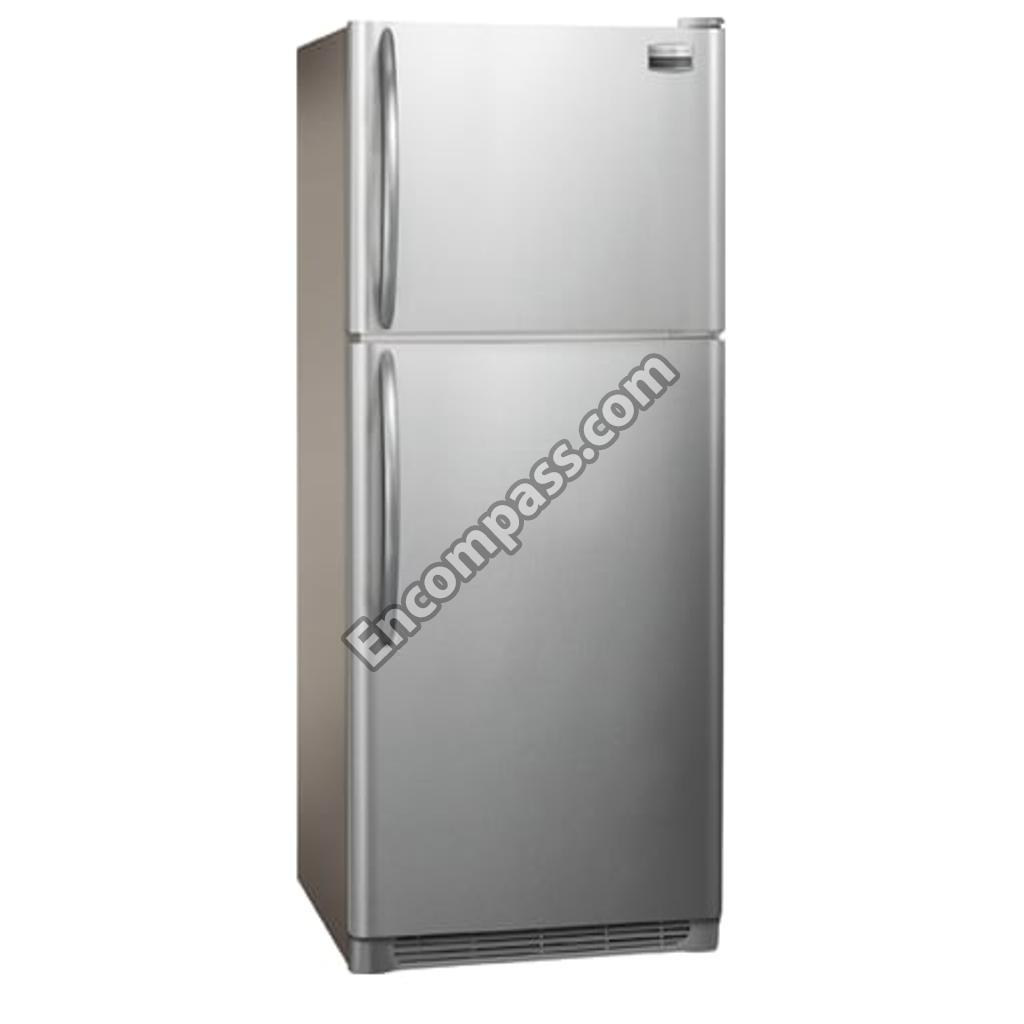

Model Image
Manufacturer

Electrolux

Model Number

PHT219JSM2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241602010 241602010 BASECOMPRESSOR
5304469386 5304469386 BEARING INLET
240527102 240527102 BEARING-HINGE
240495805 240495805 BIN-DOOR
240338202 240338202 BIN-DOOR
241801401 241801401 BINTILT OUT
241639501 241639501 BLADE
240335502 240335502 BOLT-ROLLER ADJ
240313802 240313802 BRACKET-CTR HINGE
5303292397 5303292397 BRACKET-MOTOR MTG
5303292396 5303292396 BRACKET-MOTOR MTG
240346501 240346501 BRACKET-SUPPORT
218721500 218721500 BRACKETLEVELING
241555401 241555401 BULB-LAMP
5304469402 5304469402 CAM
218233300 218233300 CHANNEL
241566901 241566901 CHANNEL-SHELF MTG
5304455846 5304455846 CLAMP
241650901 241650901 CLAMP
5304469383 5304469383 CLAMP
240396801 240396801 CLAMP-TUBE
240542601 240542601 CLIP-WIRING HARNESS
240385201 240385201 CONTAINER
241613501 241613501 CONTROL-HUMIDITY
241613502 241613502 CONTROL-HUMIDITY
241733907 241733907 COVER
240364718 240364718 COVER-CRISPER PAN
5304469385 5304469385 COVERICE MAKER
240354405 240354405 COVERUPPER HINGE
240367401 240367401 DAMPER-FAN COVER
240362601 240362601 DIFFUSER
240545901 240545901 DIFFUSER-AIR
240338101 240338101 DOOR BIN SHELF
240312405 240312405 DOOR STOP
240312406 240312406 DOOR STOP
240450364 240450364 DSP DOOR-COMPLETE
240450473 240450473 DSP DOOR-COMPLETE
5304469384 5304469384 EJECTORICE
241868026 241868026 ENERGY GUIDE
5303918274 5303918274 EVAPORATOR KIT
5308000010 5308000010 FAN BLADE
241872505 241872505 GASKET-FRZR-DOOR
5304469403 5304469403 GEAR
241839409 241839409 GRILLE/KICKPLATE
240405201 240405201 GROMMET
5304500407 5304500407 GROMMET
240346601 240346601 GROMMET-BRACKET
241566801 241566801 HARNESS-WIRING
241593901 241593901 HARNESS-WIRING
5304469390 5304469390 HARNESSWIRING
5303918330 5303918330 HEAT EXCHANGER KIT
5304421289 5304421289 HOT TUBE REPAIR KIT
5304469379 5304469379 HOUSING
5304469378 5304469378 ICE STRIPPER
241551902 241551902 INSULATION BLOCK
5304469406 5304469406 INSULATOR
240360801 240360801 KNOB
240367001 240367001 KNOB-DAMPER CONTROL
241808801 241808801 LABEL
5304469382 5304469382 LEVER ARM
241560701 241560701 LIGHT BULB
241552802 241552802 LIGHT BULB
241779601 241779601 LINER
5304469413 5304469413 MOLDICE MAKER
241854501 241854501 MOTOREVAP FAN
5304469407 5304469407 MOTORICE MAKER SVO
5304469399 5304469399 MOUNTING PLATE
5304469398 5304469398 MOUNTING PLATE
5303212803 5303212803 NUT
240343803 240343803 PAN
240516502 240516502 PIN-LOWER HINGE
5304469400 5304469400 PLATEVALVE SWITCH
215774920 215774920 PLUG BUTTON
5303208309 5303208309 PLUG-HOLE
241657702 241657702 RACK
5304455655 5304455655 RIVET
5304418225 5304418225 ROLLER
240335006 240335006 ROLLER ASSEMBLY
5304455649 5304455649 SCREW
5304455650 5304455650 SCREW
218252201 218252201 SCREW
240433204 240433204 SCREW
241500303 241500303 SCREW
241710601 241710601 SCREW
218362501 218362501 SCREW
215005101 215005101 SCREW
240433203 240433203 SCREW
5304469395 5304469395 SCREW
5304469410 5304469410 SCREW
5304469393 5304469393 SCREW
5304469391 5304469391 SCREW
5304469392 5304469392 SCREW
240442708 240442708 SCREW#1032 X 3/4
5304456287 5304456287 SCREW,HEX WASHER HEAD,8-15A X
240555002 240555002 SCREW-#8-32 X 3/8
240491503 240491503 SCREW-COMPRESSOR MT
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
218755402 218755402 SCREW-SET
218755504 218755504 SCREW-SHOULDER
218709101 218709101 SCREWHDL MTG
5304469408 5304469408 SCREWTIMING ADJ
240568606 240568606 SEAL-COIL COVER
240355228 240355228 SHELF-SPILL-SAFE
240350119 240350119 SHELF-SPILL-SAFE
241562101 241562101 SHIELD-HEAT
241562202 241562202 SHIELD-LIGHT MID LE
240354302 240354302 SHIELDLIGHT
5304469377 5304469377 SHUTOFF ARM
241507803 241507803 SOCKET-LIGHT
240364201 240364201 SOCKET-LIGHT/LAMP
240409302 240409302 SPACER-COND TUBE
240336802 240336802 SPACER-HINGE
5304469404 5304469404 SPACERHOLD SWITCH
5304469401 5304469401 SPRING,TIMING ADJUST
5304469396 5304469396 SPRINGSHUTOFF ARM
241707701 241707701 STARTER
5308000110 5308000110 STRAP-EVAP/HEATER
240505801 240505801 SWITCH
241554901 241554901 SWITCH-LIGHT/LAMP
5304469388 5304469388 SWITCHMICRO
5304469405 5304469405 SWITCHMICRO
240346701 240346701 TAPE-FOAM SEAL
5304469387 5304469387 THERMOSTAT ASSEMBLY
240365401 240365401 TRACK
240356501 240356501 TRACK
240337614 240337614 TRIMCABINET CORNER
241801301 241801301 TROUGH-DRAIN
241844801 241844801 TUBE- CONNECTOR
240311303 240311303 WASHER
215474201 215474201 WASHER
5304469381 5304469381 WASHER
5304467131 5304467131 WRENCH
