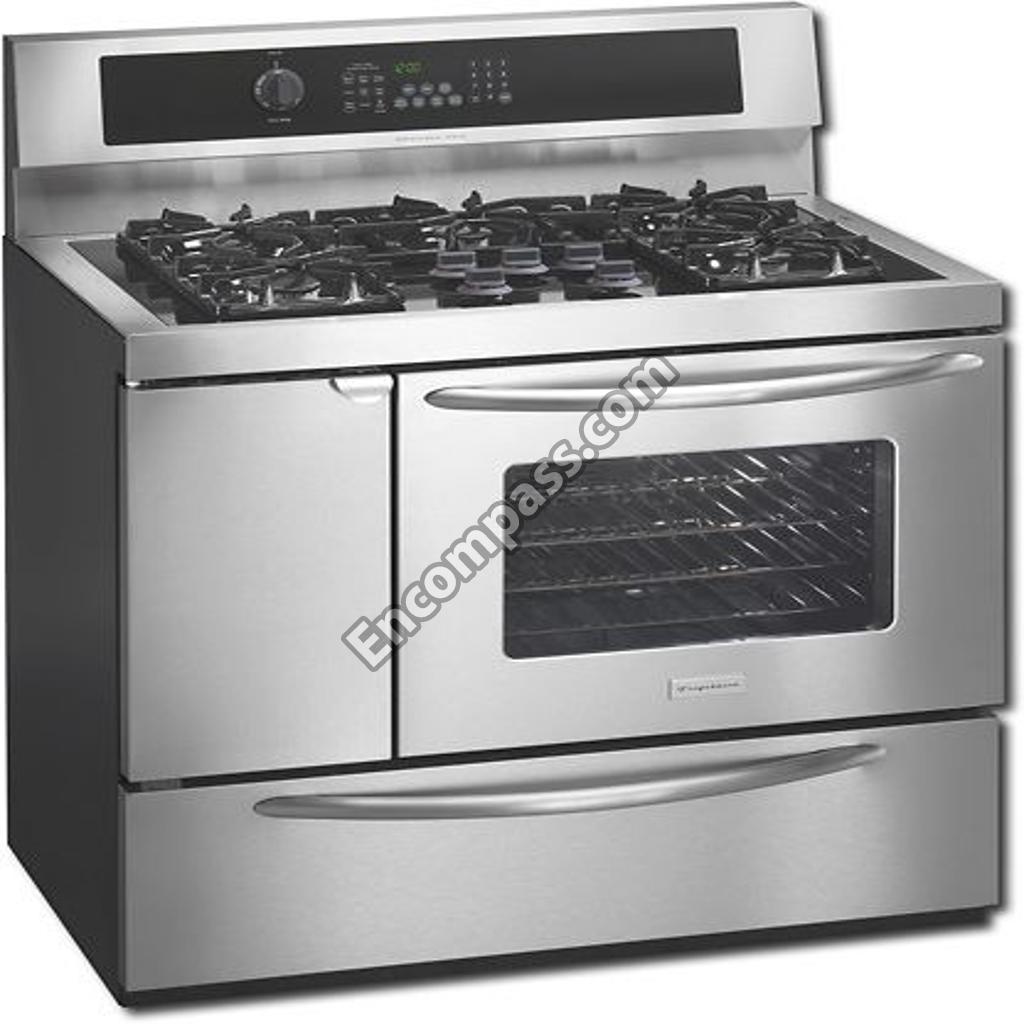

Model Image
Manufacturer

Electrolux

Model Number

PLCF489ACB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318120711 318120711 + SWITCH
5303310511 5303310511 BAR
5303311203 5303311203 BLADE
318161901 318161901 BRACKET
318112000 318112000 BRACKET
318112010 318112010 BRACKET
318180900 318180900 BRACKET
318055500 318055500 BRACKET
5304405241 5304405241 BRACKET
5303304030 5303304030 BRACKET
318147420 318147420 BUMPER
318148001 318148001 BURNER
903163-9010 903163-9010 CAP-BURNER,BLACK
318076400 318076400 CAP-BURNER,BLACK
5304400195 5304400195 CLIP
318148800 318148800 CLIP
5303205904 5303205904 CLIP
5303284616 5303284616 CLIP-THERMOSTAT
318054507 318054507 CONNECTOR
5303318711 5303318711 COVER
5303310526 5303310526 COVER
318406100 318406100 COVER, GLASS LITE
318123901 318123901 DEFLECTOR
3202108 3202108 DRAWER,UTILITY
318190695 318190695 END CAP,LH
318053103 318053103 GASKET
318053901 318053901 GASKET,BURNER PAN
5303310533 5303310533 GLASS
318221523 318221523 GRATE
318251801 318251801 GUSSET
318024508 318024508 HINGE
318024509 318024509 HINGE
318148700 318148700 IGNITOR
807080401 807080401 INSULATION
318133706 318133706 INSULATION
318017800 318017800 KNOB
318099100 318099100 KNOB-CONTROL BLACK
318148002 318148002 LARGE BURNER
318090310 318090310 LATCH
5303310536 5303310536 LATCH
318044829 318044829 LIGHT
318089200 318089200 LINER
318048211 318048211 LINER
5303320621 5303320621 LINER
318186800 318186800 LP CONVERSION KIT
318177200 318177200 MANIFOLD
318167801 318167801 MIXING TUBE
318079001 318079001 MODULE,SPARK
5303311202 5303311202 MOTOR,CONVECTION
318095956 318095956 MOTOR,LATCH ASSY ,W/BRKT & SWITCH
318168124 318168124 PAN-BURNER,BLACK
318168104 318168104 PAN-BURNER,BLACK
318168114 318168114 PAN-BURNER,BLACK
318192902 318192902 PANEL
318193101 318193101 PANEL
318133000 318133000 PANEL
318066007 318066007 PANEL
318066008 318066008 PANEL
5303310515 5303310515 PANEL
318071900 318071900 PANEL
318055701 318055701 PANEL
316042300 316042300 PLATE
318111800 318111800 PLATE
5303320846 5303320846 PLATE
5303321106 5303321106 PLUG
318345205 318345205 RACK,OVEN
318345206 318345206 RACK,SHELF ,SMALL OVEN
318328010 318328010 RECEPTACLE,HINGE
318122700 318122700 REGULATOR-PRESSURE
5303311160 5303311160 ROD
5303323134 5303323134 SCREW
5303211311 5303211311 SCREW
5303323141 5303323141 SCREW
318175503 318175503 SCREW
5303307980 5303307980 SCREW
5303323137 5303323137 SCREW
5304400794 5304400794 SCREW
5303300265 5303300265 SCREW,8-18 X 0.500 ,CHROME ,(3)
318053300 318053300 SEAL
316080600 316080600 SHAFT,PUSH BUTTON ,BLACK ,(11) ,CLOCK/TIMER/EOC
318086900 318086900 SHIELD
318175302 318175302 SHIM
318148000 318148000 SMALL BURNER
5303304544 5303304544 SPACER
318141800 318141800 SPACER
318139000 318139000 SPACER
318192400 318192400 SPRING
5303311164 5303311164 SPRING
318090220 318090220 STRIKE
5304403015 5304403015 SUPPORT
318171400 318171400 SUPPORT
318005201 318005201 SWITCH
316032002 316032002 SWITCH,IGNITOR
5301314211 5301314211 SWITCH-LIGHT (NOT ILLUSTRATED)
318183000 318183000 THERMOSTAT
318003600 318003600 THERMOSTAT
318107700 318107700 TOEPLATE
318167800 318167800 TUBE
318167706 318167706 TUBE
318167712 318167712 TUBE
318167713 318167713 TUBE
318167715 318167715 TUBE
318167716 318167716 TUBE
318072521 318072521 TUBE
318549821 318549821 TUBE
5303311207 5303311207 TUBE
318087001 318087001 VALVE
318087040 318087040 VALVE
5303935042 5303935042 VALVE-TOP BURNER/VALVE BRULEUR
