Model Image
Manufacturer

Electrolux

Model Number

PLEFZ398ECC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316091900 316091900 BASE
316411102 316411102 BASE
5303321321 5303321321 BLACK TOUCHUP PAINT
316442101 316442101 BOARD

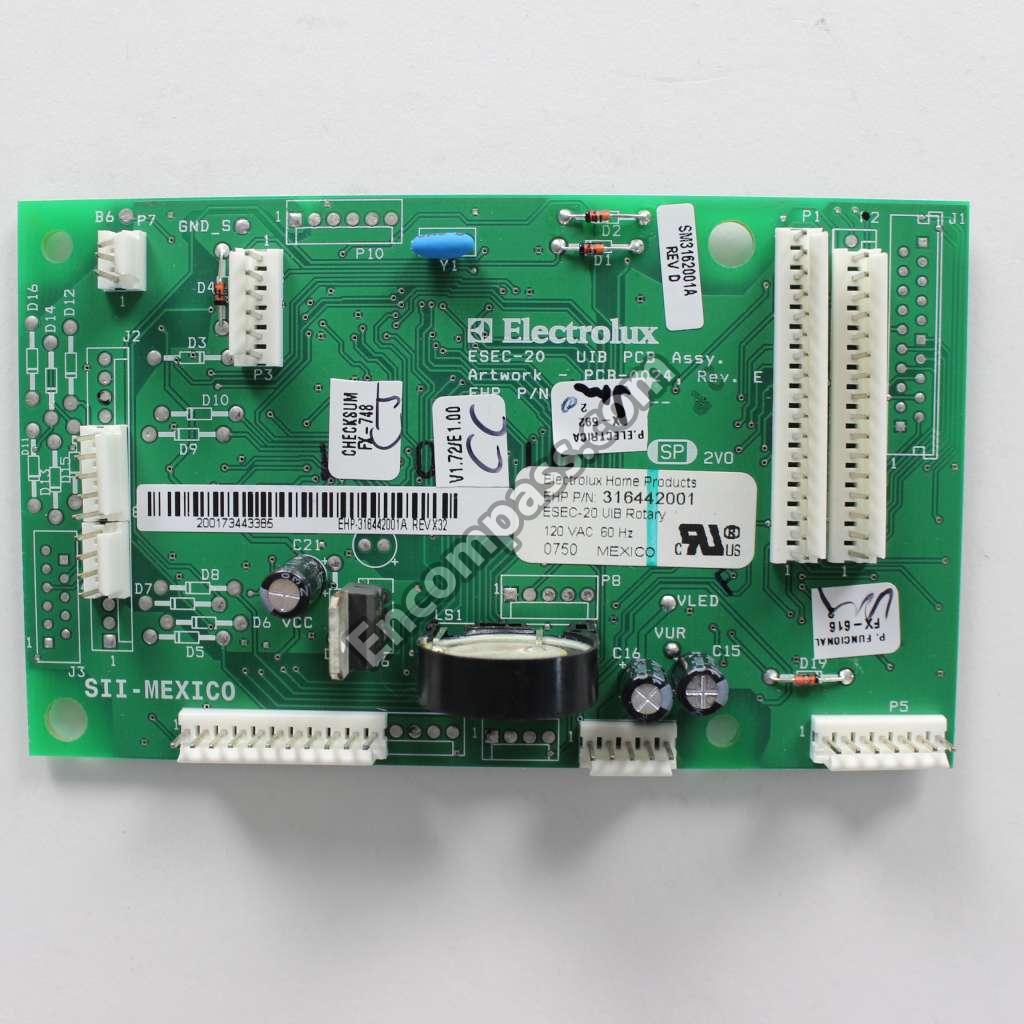

316442001 316442001 BOARD
316408300 316408300 BRACKET
316093200 316093200 BRACKET
316214202 316214202 BRACKET
316404100 316404100 BRACKET
316081200 316081200 BRACKET
5303013071 5303013071 BULB/LAMP
316247300 316247300 CATALYST
316427603 316427603 CHANNEL
316468100 316468100 CLEANER
316095800 316095800 CLIP
316122000 316122000 CLIP
316461700 316461700 CLIP
316408000 316408000 CLIP

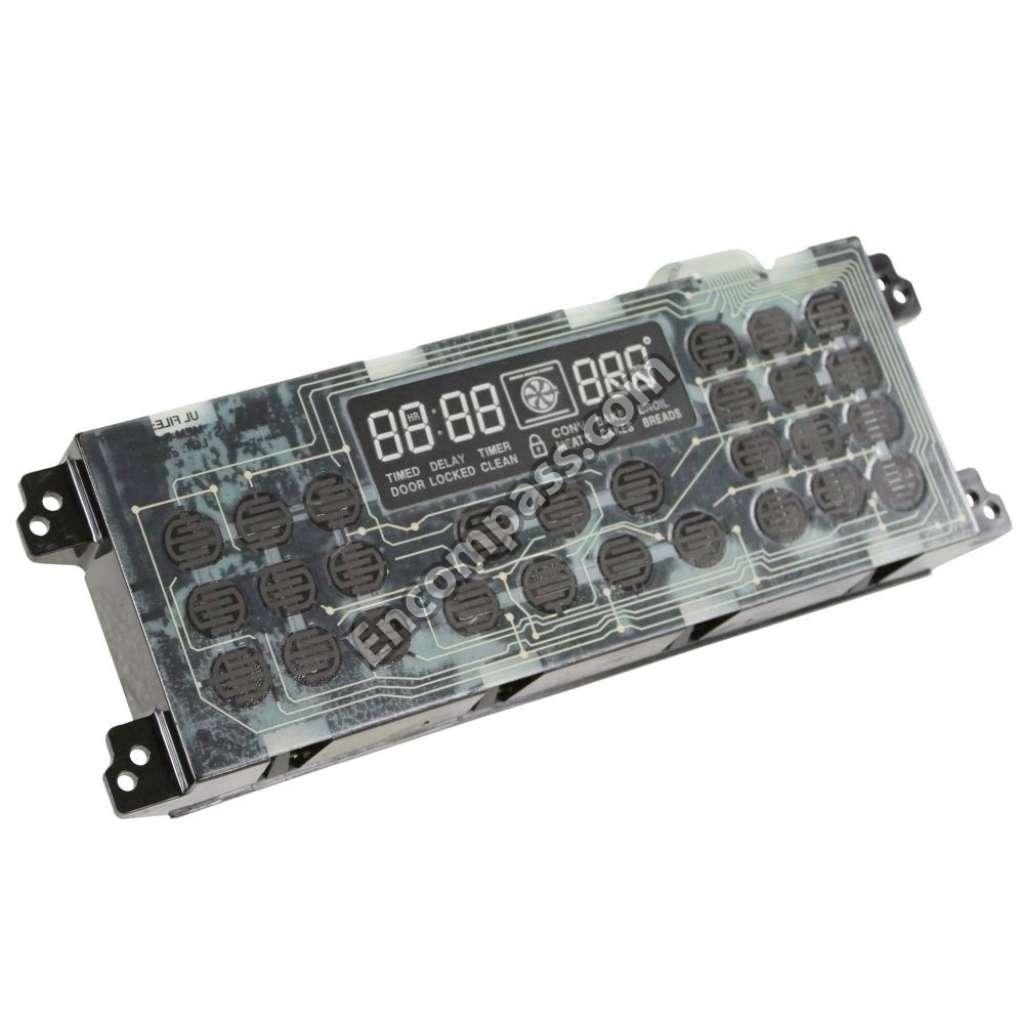

316418700 316418700 CLOCK/TIMER
316026701 316026701 COVER
316408901 316408901 DRAWER
316419902 316419902 ELEMENT
316437300 316437300 ELEMENT
316430900 316430900 ELEMENT
316415900 316415900 ELEMENT
316211603 316211603 ELEMENT
316452700 316452700 GLASS
316117500 316117500 GLASS
316415002 316415002 GLIDE
316415001 316415001 GLIDE
316456700 316456700 GLIDE
316246100 316246100 HANDLE
316001917 316001917 HARNESS
316416923 316416923 HARNESS
316416916 316416916 HARNESS
316466717 316466717 HARNESS-WIRING
316456304 316456304 HINGE
316436600 316436600 HINGE BRACKET
316082000 316082000 INSERT
316405600 316405600 INSULATION
316403801 316403801 INSULATION
316406500 316406500 INSULATION
316085600 316085600 INSULATOR
316223002 316223002 KNOB
316223019 316223019 KNOB
316433603 316433603 LABEL
316405800 316405800 LATCH ASSEMBLY
316448000 316448000 LENS
316022500 316022500 LIGHT/LAMP
316423701 316423701 LINER
316403303 316403303 LINER
316456263 316456263 MAIN TOP
316136600 316136600 NUT
316205500 316205500 NUT
316247700 316247700 NUT
316419700 316419700 OVERLAY
316081900 316081900 PAN

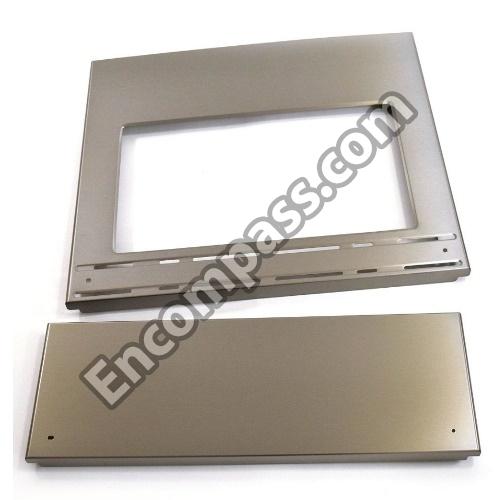

5304491620 5304491620 PANEL
316401800 316401800 PANEL
316424130 316424130 PANEL
316278800 316278800 PLATE
316425900 316425900 RACK
316496207 316496207 RACK
316425400 316425400 RACK
316116400 316116400 RECEPTACLE
316441300 316441300 RECEPTACLE
316087500 316087500 RETAINER
316203500 316203500 ROD
316418900 316418900 SCREW
316001002 316001002 SCREW
316003802 316003802 SCREW
316089500 316089500 SCREW
5303285179 5303285179 SCREW
5303271648 5303271648 SCREW
316116000 316116000 SCREW
316272900 316272900 SCREW
316418901 316418901 SCREW
316021132 316021132 SCREW
5303289910 5303289910 SCREW
316021110 316021110 SCREW
316021109 316021109 SCREW
316021105 316021105 SCREW
5308014215 5308014215 SCREW
316405000 316405000 SEAL
316408201 316408201 SHIELD
316093300 316093300 SHIELD
316402100 316402100 SHIELD
316404600 316404600 SHIELD
316409000 316409000 SHIELD
316422304 316422304 SHIELD
316234100 316234100 SHIELD
316400702 316400702 SHIELD
316234013 316234013 SHIELD
316408600 316408600 SPACER
316402403 316402403 SPACER
316246501 316246501 SPACER
316114100 316114100 SPACER
316247900 316247900 SPACER
316429100 316429100 SUPPORT
316411405 316411405 SUPPORT
316411404 316411404 SUPPORT
316445500 316445500 SWITCH
316112500 316112500 TEMPLATE
316093501 316093501 THERMO DISC
316208304 316208304 TUBE
316208201 316208201 TUBE
316008401 316008401 WASHER
316136500 316136500 WASHER
316247800 316247800 WASHER
316443000 316443000 WIRING HARNESS
