Electrolux

Model Number

PLES389ACD

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318120711 318120711 + SWITCH
5304405244 5304405244 ANTI-TIP & ACCESSOR
5303310511 5303310511 BAR
318015042 318015042 BRACKET
318015043 318015043 BRACKET
318055601 318055601 BRACKET
5303304030 5303304030 BRACKET
5303013071 5303013071 BULB/LAMP,OVEN LIGHT
5304400795 5304400795 BUSHING
5303325174 5303325174 CAP
5304400195 5304400195 CLIP
316095800 316095800 CLIP
318183620 318183620 CLOCK/TIMER,ELECTRONIC ,BLACK
5303318711 5303318711 COVER
5303310526 5303310526 COVER
318143702 318143702 COVER
318406100 318406100 COVER, GLASS LITE
318123901 318123901 DEFLECTOR
318143335 318143335 DEFLECTOR
5303918455 5303918455 DOOR STOP,BLACK ,FRZR
318142500 318142500 DRAWER
318255301 318255301 ELEMENT
316098202 316098202 ELEMENT-WARMER,100W
318398302 318398302 FAN BLADE
318124100 318124100 FRONT
318053103 318053103 GASKET
318041603 318041603 GLASS-OVEN DOOR, HEAT BARRIER
316246100 316246100 HANDLE,DOOR/DRAWER ,STAINLESS
318024741 318024741 HINGE,OVEN DOOR ,(2)
807080401 807080401 INSULATION
5303917276 5303917276 INSULATION-DOOR
318196634 318196634 KNOB (EACH)
318196631 318196631 KNOB,DUAL CONTROL ,BLACK
5303310536 5303310536 LATCH
318250801 318250801 LENS
5304462665 5304462665 LENS-INDICATOR LIGHT
318044827 318044827 LIGHT,INDICATOR ,CLEAR
5303051533 5303051533 LIGHT-INDICATOR
318089609 318089609 LINER
318108025 318108025 LINER
318157011 318157011 LINER
316234601 316234601 MOTOR,FAN
318095957 318095957 MOTOR,LATCH ASSY ,W/BRKT & SWITCH
5303323144 5303323144 NUT
316136600 316136600 NUT-FAN RETAINER
318159800 318159800 PANEL
318160004 318160004 PANEL
318070910 318070910 PANEL
318160005 318160005 PANEL
5303310515 5303310515 PANEL
318111803 318111803 PLATE
318175100 318175100 PLATE
5303320846 5303320846 PLATE
807328301 807328301 RACK
318365800 318365800 RACK,BROILER PAN
318345205 318345205 RACK,OVEN
318328010 318328010 RECEPTACLE,HINGE
5303161307 5303161307 RETAINING RING
5303161223 5303161223 RETAINING RING (2)
318118904 318118904 ROD
5303323134 5303323134 SCREW
318175503 318175503 SCREW
5303211311 5303211311 SCREW
5303307980 5303307980 SCREW
5303317179 5303317179 SCREW
5303323139 5303323139 SCREW
5303311174 5303311174 SCREW,10-24 X 3/8
5303300265 5303300265 SCREW,8-18 X 0.500 ,CHROME ,(3)
5303279394 5303279394 SEAL ASSY,TUB ,TRANSMISSION
318179108 318179108 SHIELD
318108600 318108600 SHIELD
5303317178 5303317178 SPACER
131784400 131784400 SPACER,BEARING BLOCK ,TRANSMISSION
318192400 318192400 SPRING
5303311164 5303311164 SPRING
5303317177 5303317177 SPRING
318172902 318172902 STIFFENER
131206800 131206800 STUD,AGITATOR CAP
5304403015 5304403015 SUPPORT
5303311142 5303311142 SUPPORT
318111103 318111103 SUPPORT
318005201 318005201 SWITCH

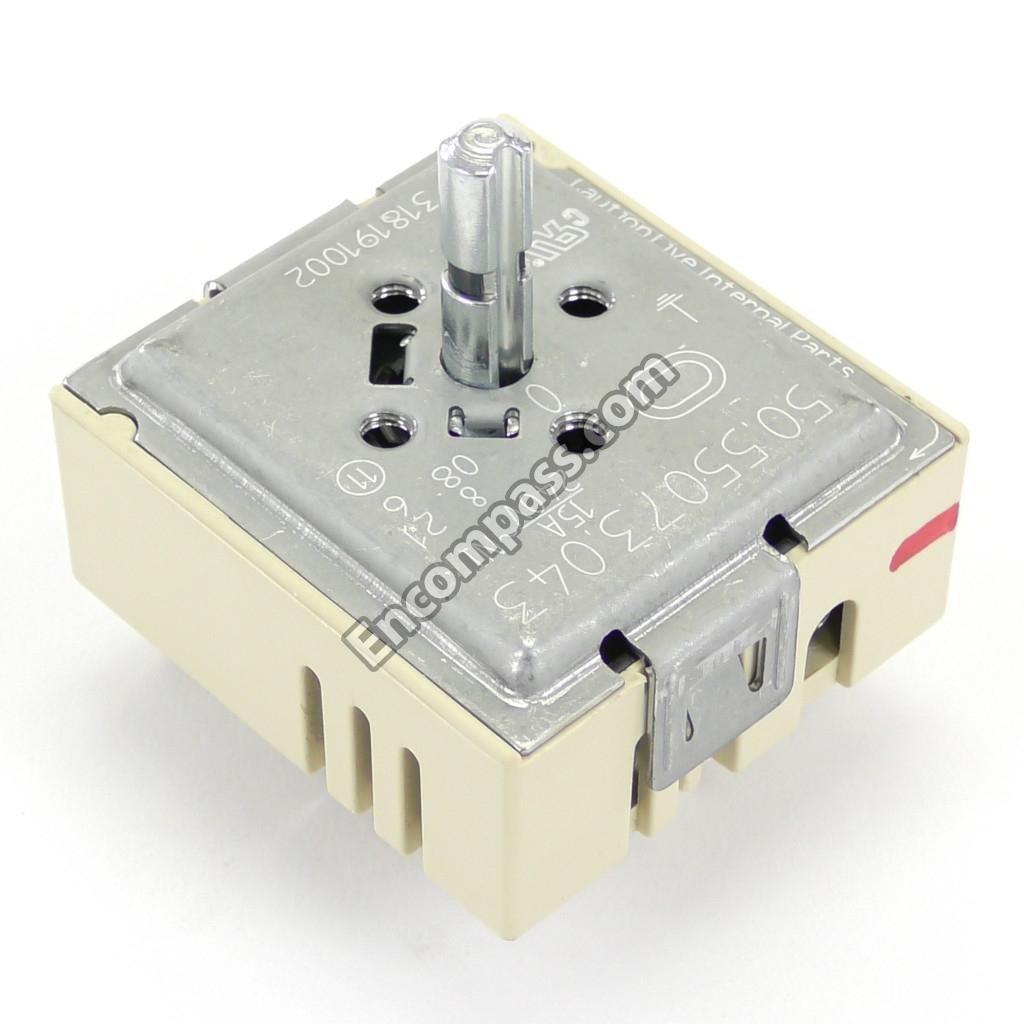

318191002 318191002 SWITCH,INFINITE ,DUAL
318003400 318003400 THERMOSTAT
318005103 318005103 THERMOSTAT
318003606 318003606 THERMOSTAT,SAFETY
318027810 318027810 TRIM
318106927 318106927 TRIM
318002611 318002611 TRIM
5303311207 5303311207 TUBE
318255501 318255501 USE 318255501
316136500 316136500 WASHER,FAN MOTOR
