Model Image
Manufacturer

Electrolux

Model Number

PLFU1778ES8

Description

Freezer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
216939300 216939300 BASKET
216970800 216970800 BEARING
297006800 297006800 BEARING-HINGE
241639501 241639501 BLADE
216968501 216968501 BRACKETTIMER
297200100 297200100 BREAKER KIT W/CORNE
297200600 297200600 BREAKER KIT W/CORNE
241513001 241513001 CHANNEL-SHELF MTG
216823500 216823500 CLAMP
297315800 297315800 CLIP
5303313703 5303313703 CLIP
5304406520 5304406520 CLIP
216273000 216273000 CLIP
216327800 216327800 CLIP
216954300 216954300 CLIP
5304472186 5304472186 CLIP
297049500 297049500 CLIPSLIDE
297152200 297152200 CONDENSER
216954216 216954216 CONTROLCOMPRESSOR
297169900 297169900 CORDPOWER
216893800 216893800 COVER
216967200 216967200 COVER COLD CONTROL
297099253 297099253 COVEREVAPORATOR
297164401 297164401 COVERUPPER HINGE
297164200 297164200 DIVIDER
297194700 297194700 DIVIDER
297257002 297257002 DOOR STOP
5308005500 5308005500 DRAIN
216513900 216513900 END CAP
216514000 216514000 END CAP
297259600 297259600 FAN BLADE
297050600 297050600 FRAME-SHELF
297007600 297007600 FRAME-SHELF
216524201 216524201 GASKET

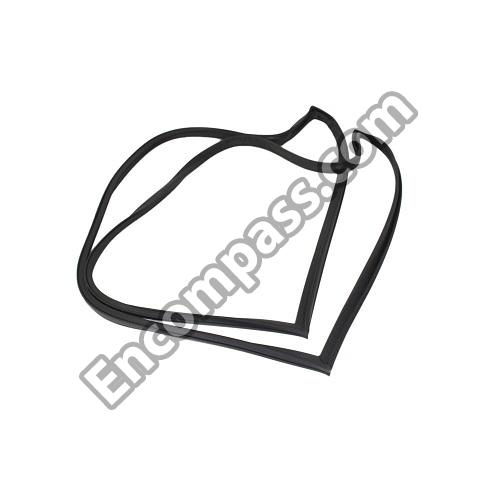

216522311 216522311 GASKET-DOOR
216204902 216204902 GASKETEVAP COVER
297007700 297007700 GLASS-SHELF
216983101 216983101 GLASS-SHELF
297036901 297036901 GRILLE/KICKPLATE
240405201 240405201 GROMMET
297207900 297207900 GUARD
240536818 240536818 HANDLE
297171700 297171700 HARNESSMAIN
297217900 297217900 HEAT EXCHANGER
297283800 297283800 HINGE-UPPER
297283901 297283901 HINGEBOTTOM
216901700 216901700 INSTALLATION INSTRU
297013100 297013100 INSTRUCTIONS
297001704 297001704 INSULATION
297078801 297078801 INSULATOREVAP
297078701 297078701 INSULATOREVAP
216707200 216707200 KNOB
240558802 240558802 LABEL-NAMEPLATE
297053200 297053200 LENS
297048600 297048600 LIGHT BULB/LAMP
297250000 297250000 MOTOR
240537301 240537301 NUT-ANCHOR
297165800 297165800 PANDRAIN
216527813 216527813 PANEL-INNER DOOR
297316525 297316525 PANELOUTER DOOR
240494001 240494001 PLUG
241586701 241586701 PLUG-FOAM-WTR-INLET
297014702 297014702 PLUG-SUCTION LINE
216403700 216403700 PLUGBUTTON
216806100 216806100 RACKDOOR
297248200 297248200 RAMP
216503100 216503100 SCREENDRAIN
08016582 08016582 SCREW
5304460601 5304460601 SCREW
5304460604 5304460604 SCREW
297174300 297174300 SCREW
5304460608 5304460608 SCREW
297048000 297048000 SCREW
216912401 216912401 SCREW
216036601 216036601 SCREW
216337701 216337701 SCREW
240555002 240555002 SCREW-#8-32 X 3/8
240491503 240491503 SCREW-COMPRESSOR MT
240578902 240578902 SCREW-HINGE MTG
216396900 216396900 SCREW-LEG
218755402 218755402 SCREW-SET
218755504 218755504 SCREW-SHOULDER
216514100 216514100 SHELF
297165400 297165400 SHIELD
297053102 297053102 SHIELDLIGHT
216979500 216979500 SHIELDLIGHT
297164000 297164000 SHROUDFAN ORFICE
216502500 216502500 SLEEVE
297013500 297013500 SLIDE
297054201 297054201 SLIDE-BASKET
297054200 297054200 SLIDE-BASKET
297139501 297139501 SOCKET
241507803 241507803 SOCKET-LIGHT
5308000110 5308000110 STRAP-EVAP/HEATER
297244700 297244700 SUPPORT
297216600 297216600 THERMOSTAT
297007900 297007900 TRIM-SHELF
297007800 297007800 TRIM-SHELF
297050800 297050800 TRIM-SHELF
297050700 297050700 TRIM-SHELF
216983601 216983601 TRIM-SHELF
297273901 297273901 TRIMCABINET CORNER
5303916855 5303916855 TUBE
297280401 297280401 VALVE
297109500 297109500 WASHER
297053000 297053000 WIRE
