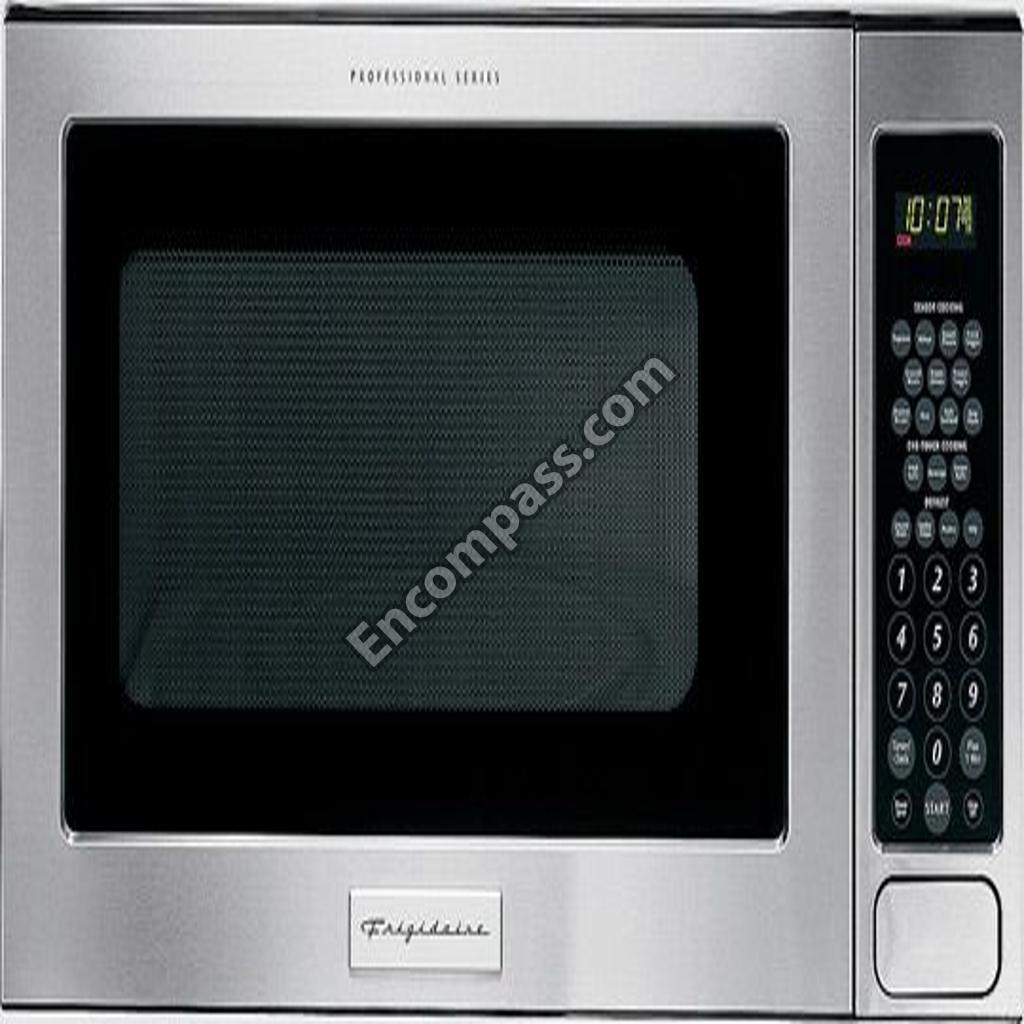

Model Image
Manufacturer

Electrolux

Model Number

PLMB209DCA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5304440814 5304440814 BASE
5304440839 5304440839 BRACKET
5304440836 5304440836 BRACKET
5304440288 5304440288 BUSHING
5304440832 5304440832 CONNECTOR
5304440820 5304440820 CONTROL BOARD,PRINTED CIRCUIT
5304440845 5304440845 COVER,WAVEGUIDE
5304441909 5304441909 CUSHION
5304441910 5304441910 CUSHION
5304442145 5304442145 DOOR STOP
5304440862 5304440862 DOOR STOP
5304490394 5304490394 DUCT
5304440844 5304440844 DUCT
5304440843 5304440843 FAN BLADE
5304440821 5304440821 FRAME
5304440861 5304440861 FRAME
5304440780 5304440780 FUSE
5304440333 5304440333 LABEL
5304440334 5304440334 LABEL
5304440779 5304440779 LAMP ASSEMBLY
5304440835 5304440835 LCD
5304440834 5304440834 LED SHEET
5304485407 5304485407 LEVER,DOOR RELEASE
5304440781 5304440781 MAGNETRON
5304440863 5304440863 PANEL
5304440833 5304440833 PANEL
5304440857 5304440857 PANEL
5304440784 5304440784 POWER CORD
5304448833 5304448833 PUSH BUTTON
5304468869 5304468869 RECTIFIER,HIGH VOLTAGE
5304440026 5304440026 RELAY/SWITCH ASSY,SEC. INTERLOCK ,DOOR SENSE SW.
5304450253 5304450253 SCREW
5304440873 5304440873 SCREW
5304462315 5304462315 SCREW
5303319633 5303319633 SCREW
5303319636 5303319636 SCREW
5303319641 5303319641 SCREW
5304456930 5304456930 SCREW
5304440866 5304440866 SCREW
5304440860 5304440860 SEAL
5304440785 5304440785 SENSOR
5304440316 5304440316 SPRING
5304440831 5304440831 SPRING
5304467717 5304467717 SUPPORT ASSY,TURNTABLE
5304468224 5304468224 SWITCH KIT,MONITOR ,WITH CT FUSE
5304440868 5304440868 TRAY,TURNTABLE ,GLASS
5304440870 5304440870 WIRE
5304440867 5304440867 WIRING HARNESS
