Model Image
Manufacturer

Electrolux

Model Number

PLT219WJSM1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241553605 241553605 ACTUATORWATER
241602010 241602010 BASECOMPRESSOR
5304456671 5304456671 BEARING & INLET
240328404 240328404 BEARING-HINGE
240527102 240527102 BEARING-HINGE
240495805 240495805 BIN-DOOR
240338202 240338202 BIN-DOOR
241801401 241801401 BINTILT OUT
240335502 240335502 BOLT-ROLLER ADJ
240313802 240313802 BRACKET-CTR HINGE
241625005 241625005 BRACKET-LOWER HINGE
5303292397 5303292397 BRACKET-MOTOR MTG
5303292396 5303292396 BRACKET-MOTOR MTG
241555401 241555401 BULB-LAMP
218233300 218233300 CHANNEL
241566901 241566901 CHANNEL-SHELF MTG
5304455846 5304455846 CLAMP
240396801 240396801 CLAMP-TUBE
218515401 218515401 CLIP
218990901 218990901 CLIP-WIRE
240542601 240542601 CLIP-WIRING HARNESS
218515403 218515403 CLIPGRILLE
241606201 241606201 CONDUIT
241806601 241806601 CONNECTOR-WATER
240385201 240385201 CONTAINER
241613501 241613501 CONTROL-HUMIDITY
241613502 241613502 CONTROL-HUMIDITY
241733907 241733907 COVER
241572509 241572509 COVER-CRISPER PAN
241555001 241555001 COVER-WATER FILTER
241553405 241553405 COVERMODULE
240354405 240354405 COVERUPPER HINGE
240434401 240434401 CUP
241523701 241523701 DAMPER-FAN COVER
240362601 240362601 DIFFUSER
240545901 240545901 DIFFUSER-AIR
240338101 240338101 DOOR BIN SHELF
240312405 240312405 DOOR STOP
240312406 240312406 DOOR STOP
241553305 241553305 DRIP TRAY
240450389 240450389 DSP DOORFRZR
240545201 240545201 ELBOW-WATER TUBE
241615465 241615465 ENERGY GUIDE
5303918274 5303918274 EVAPORATOR KIT
5308000010 5308000010 FAN BLADE
241872505 241872505 GASKET-FRZR-DOOR
5303918401 5303918401 GRILLE/KICKPLATE
240405201 240405201 GROMMET
5304500407 5304500407 GROMMET
218513300 218513300 GROMMET-COMPR MTG
241609901 241609901 HARNESS-ELECTRICAL
241623001 241623001 HARNESS-ELECTRICAL
5304456875 5304456875 HARNESS-WIRING
241566801 241566801 HARNESS-WIRING
241593901 241593901 HARNESS-WIRING
241649501 241649501 HARNESS-WIRING
5303918330 5303918330 HEAT EXCHANGER KIT
5304421289 5304421289 HOT TUBE REPAIR KIT
240434301 240434301 HOUSING
5304456672 5304456672 ICE STRIPPER
241551902 241551902 INSULATION BLOCK
5304469406 5304469406 INSULATOR
240360801 240360801 KNOB
240367001 240367001 KNOB-DAMPER CONTROL
5304456690 5304456690 LABEL
241808801 241808801 LABEL
5304456675 5304456675 LEVER ARM
241560701 241560701 LIGHT BULB
241552802 241552802 LIGHT BULB
241779601 241779601 LINER
5304456657 5304456657 NAMEPLATE
5304456693 5304456693 NUT
5303212803 5303212803 NUT
218904301 218904301 O-RING
240343803 240343803 PAN
5304456659 5304456659 PLATE-MOUNTING
5304456681 5304456681 PLATE-VALVE SWITCH
215774920 215774920 PLUG BUTTON
5303208309 5303208309 PLUG-HOLE
241657702 241657702 RACK
5304455655 5304455655 RIVET
5304418225 5304418225 ROLLER
240335006 240335006 ROLLER ASSEMBLY
5304455680 5304455680 SCREW
5304456666 5304456666 SCREW
5304456678 5304456678 SCREW
5304456674 5304456674 SCREW
5304456691 5304456691 SCREW
5304456676 5304456676 SCREW
5304456660 5304456660 SCREW
5304456684 5304456684 SCREW
5304456677 5304456677 SCREW
5304455649 5304455649 SCREW
5304455650 5304455650 SCREW
218252201 218252201 SCREW
218362501 218362501 SCREW
241500303 241500303 SCREW
241710601 241710601 SCREW
240433204 240433204 SCREW
215005101 215005101 SCREW
218897004 218897004 SCREW
240442708 240442708 SCREW#1032 X 3/4
5304455677 5304455677 SCREW,8-32 X 3/8
5304456287 5304456287 SCREW,HEX WASHER HEAD,8-15A X
240363402 240363402 SCREW-#8-18 X 1/2
240555002 240555002 SCREW-#8-32 X 3/8
240491503 240491503 SCREW-COMPRESSOR MT
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
5304456687 5304456687 SCREW-IM BRKT MTG
218755402 218755402 SCREW-SET
218755504 218755504 SCREW-SHOULDER
5304456679 5304456679 SCREW-TIMING ADJ
218709101 218709101 SCREWHDL MTG
240363602 240363602 SCREWSHOULDER
240568606 240568606 SEAL-COIL COVER
240355228 240355228 SHELF-SPILL-SAFE
240350119 240350119 SHELF-SPILL-SAFE
241562101 241562101 SHIELD-HEAT
241562202 241562202 SHIELD-LIGHT MID LE
240354302 240354302 SHIELDLIGHT
241507803 241507803 SOCKET-LIGHT
240364201 240364201 SOCKET-LIGHT/LAMP
240336802 240336802 SPACER-HINGE
5304456661 5304456661 SPACER-HOLD SWITCH
5304456682 5304456682 SPRING
5304445223 5304445223 SPRING BEAM
5308000110 5308000110 STRAP-EVAP/HEATER
5304456668 5304456668 SUPPORT
241610101 241610101 SWITCH
240505801 240505801 SWITCH

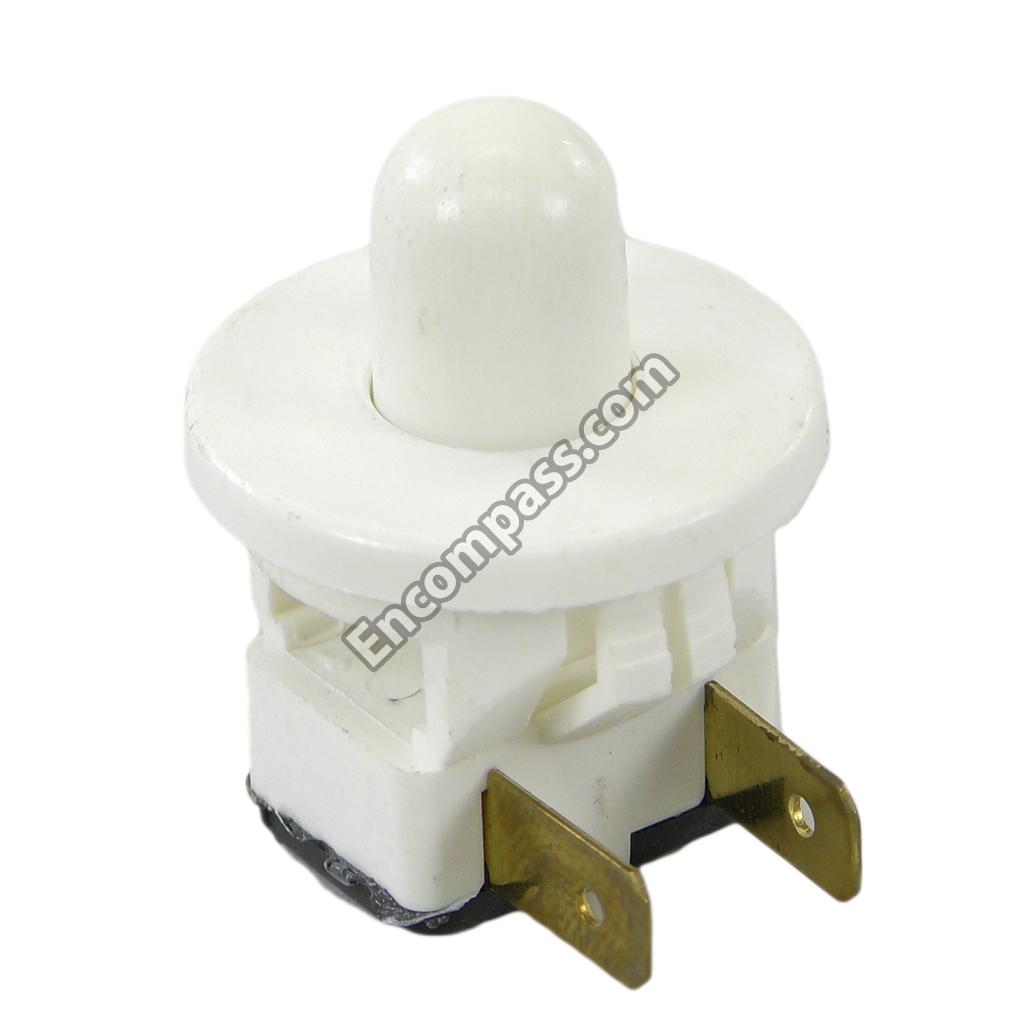

241554901 241554901 SWITCH-LIGHT/LAMP
5304456667 5304456667 SWITCH-MICRO
241611104 241611104 SWITCHROCKER
240346701 240346701 TAPE-FOAM SEAL
5304456688 5304456688 TERMINAL
5304456665 5304456665 THERMOSTAT
240356501 240356501 TRACK
240365401 240365401 TRACK
240337614 240337614 TRIMCABINET CORNER
241801301 241801301 TROUGH-DRAIN
240493101 240493101 TUBE-CONNECTOR
241565107 241565107 TUBE-WATER INLET
241565108 241565108 TUBE-WATER INLET
241603401 241603401 VALVE-CHECK
5304456692 5304456692 WASHER
5304456689 5304456689 WASHER
5304456737 5304456737 WASHER
240311303 240311303 WASHER
215474201 215474201 WASHER
241555701 241555701 WASHER-NYLON
241537701 241537701 WIRING HARNESS
5304467131 5304467131 WRENCH
218710300 218710300 WRENCH-FILTER
