Manufacturer
Electrolux
Model Number
PRFC2383AF1
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACTUATOR |
|
|
AIR TOWER W/ GASKET |
|
|
BADGE, FRIGIDAIRE PRO |
|
|
BAR, TIMING, GRAY |
|
|
BAR-DRIVE |
|
|
BASE ASSEMBLY, COMPRESSOR, W/ROLLERS |
|
|
BASKET, FREEZER, LOWER |
|
|
BASKET-UPPER BASKET CD GALL & |
|
|
BEAM, SUPPORT, DELI |
|
|
BEAM, SUPPORT, DIVIDER, LOWER BASKET |
|
|
BEARING, HINGE, TOP, LH DOOR |
|
|
BEARING, HINGE, TOP, RH DOOR |
|
|
BLADE, CONDENSER FAN |
|
|
BLADE, EVAPORATOR FAN |
|
|
BRACKET, DEFROST HEATER |
|
|
BRACKET, FAN MOTOR MTG. |
|
|
BRACKET, FREEZER DRAWER, (2) |
|
|
BRACKET, ICE MAKER BLOCK, WHITE, FREEZER |
|
|
BUFFER, SHELF AIR |
|
|
BUMPER, DOOR, BOTTOM |
|
|
BUMPER, RUBBER, WHITE, UPPER BASKET |
|
|
BUSHING, MOTOR MOUNTING |
|
|
CAP, SCREW |
|
|
CAP-THERMISTOR |
|
|
CHANNEL, SHELF MTG., CENTER |
|
|
CHANNEL, SHELF MTG., LH |
|
|
CHANNEL, SHELF MTG., SIDE, RH |
|
|
CHANNEL-SHELF MTG, CENTER, ICEMAKER SHELF |
|
|
CLAMP, TUBE/WIRING, 1/2", NYLON, BLACK/NATURAL |
|
|
CLAMP, WATER TUBE |
|
|
CLAMP-WIRING HARNESS,STRAIN RELIEF ,GALV STEEL |
|
|
CLIP, FREEZER BASKET |
|
|
CLIP, GRILLE/TUBE, & HINGE |
|
|
CLIP, HEATER/TUBING |
|
|
CLIP, TUBING, 90 DEG ELBOW |
|
|
CLIP-SPRING |
|
|
CLIP-TUBE, DRAIN |
|
|
COMPRESSOR, ASSEMBLY, W/GROMMENTS, INVERTER |
|
|
CONDENSER, ASSEMBLY, W/GROMMETS-CLIP |
|
|
CONNECTOR, HARNESS, EVAP COVER |
|
|
CONNECTOR-WATER,STRAIGHT |
|
|
CONTAINER, ICE, FREEZER |
|
|

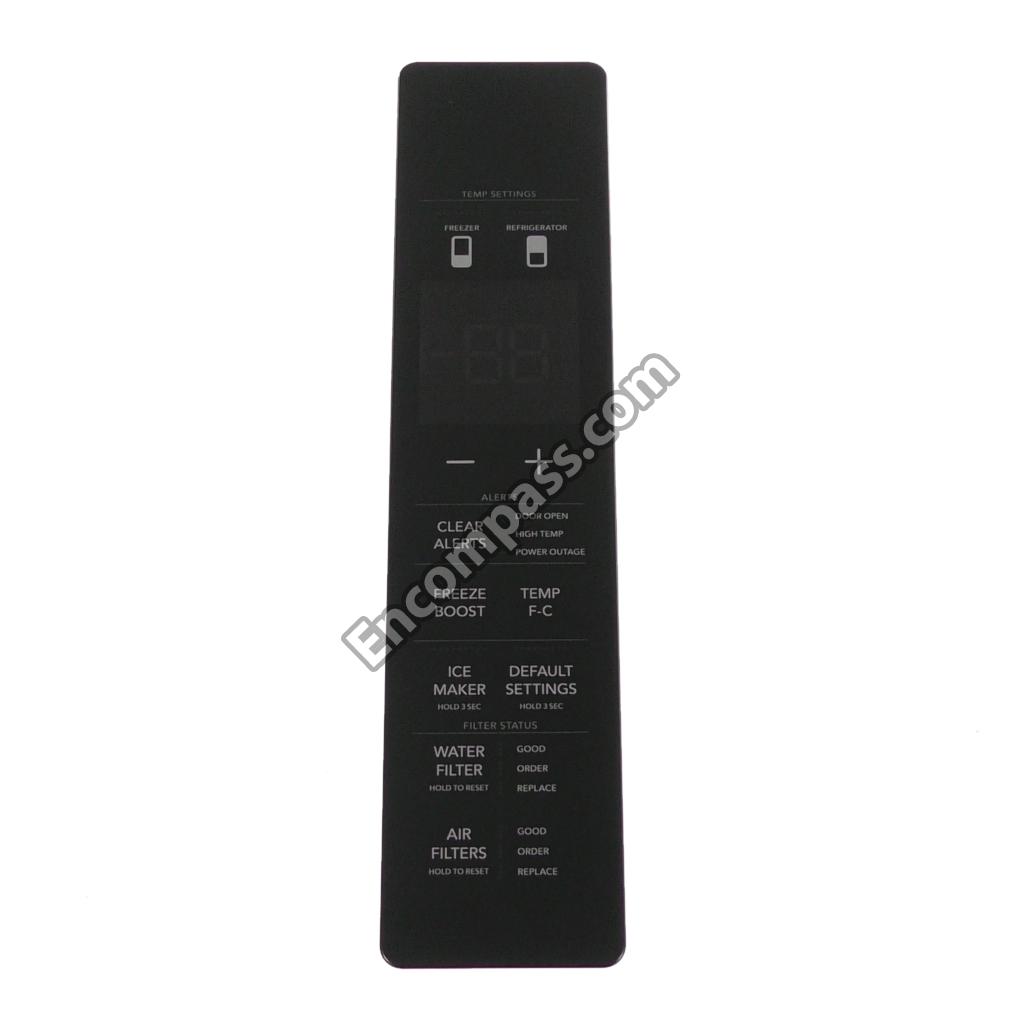

CONTROL ASSEMBLY, USER INTERFACE, DOOR SIDE |
|
|
CONTROL BOARD, ASSEMBLY, LED POWER |
|
|
CONTROL BOARD, ASSEMBLY, MAIN |
|
|
CORD, SERVICE |
|
|
COVER |
|
|
COVER ASMY |
|
|
COVER ASMY |
|
|
COVER ASSEMBLY, ACCESS, METAL |
|
|
COVER BRACKET |
|
|
COVER, EVAPORATOR COIL, LOWER |
|
|
COVER, EVAPORATOR FAN |
|
|
COVER, FILTER FACIA |
|
|
COVER, THERMISTOR |
|
|
COVER, UPPER HINGE, GRAY, RH |
|
|
COVER, WATER TUBES, REAR |
|
|
COVER, WIRING |
|
|
CRISPER PAN |
|
|
DEFLECTOR, AIR, CONDENSER, W/FOAM TAPE |
|
|
DELI PAN ASMY |
|
|
DISPLAY ASSEMBLY, USE INTERFACE, W/PC BOARD |
|
|
DIVIDER, LOWER BASKET, FREEZER |
|
|
DOOR ALIGNMENT KIT |
|
|
DOOR ASSEMBLY, FRESH FOOD, STAINLESS, LH |
|
|
DOOR BIN |
|
|
DOOR BIN, DAIRY |
|
|
DOOR BIN, GALLON DISP, LH DOOR |
|
|
DOOR BIN, SLIM DISP, LH DOOR |
|
|
DOOR BIN, STANDARD, RH |
|
|
DOOR FOAMED FF RH, 15 |
|
|
DOOR LOWER BIN (STRAP) |
|
|
DOOR STOP, ASSEMBLY, LH, W/BUSHING |
|
|
DOOR STOP, ASSEMBLY, RH, W/BUSHING |
|
|
DRAWER PANEL, OUTER, STAINLESS, FREEZER |
|
|
DRIER-FILTER,R12 & R134A |
|
|
DUCT-AIR, FREEZER |
|
|
EVAPORATOR |
|
|
EVAPORATOR ASSEMBLY, COMPLETE, FF ICE MAKER |
|
|
FACIA, WATER FILTER |
|
|
FAN & GASKET KIT US . |
|
|
FILTER, WATER, WF-1, FRIG PUREPOUR |
|
|
FRIG FRESHNESS BOOSTER REFILL |
|
|
FRIG PUREAIR AF2 AIR FILTER C6 |
|
|
GASKET |
|
|
GASKET |
|
|
GASKET |
|
|
GASKET, AIR DUCT, BOTTOM |
|
|
GASKET, CENTER SUPPORT, CRISPER |
|
|
GASKET, CLOSED CELL |
|
|
GASKET, CLOSED CELL, FAN COVER |
|
|
GASKET-COIL COVER |
|
|
GASKET-COIL COVER |
|
|
GASKET-DR, MAGNETIC FF WH 36" |
|
|
GLASS, BASKET, UPPER |
|
|
GROMMET, COMPRESSOR |
|
|
GROMMET, FAN |
|
|
GROMMET-COND MTG |
|
|
GROMMET-COND MTG |
|
|
GUIDE, FLIPPER MULLION |
|
|
GUIDE, WATER TUBE, DISPENSER |
|
|
HANDLE ASMY |
|
|
HARNESS |
|
|
HARNESS, WIRING, AIR HANDLER, W/EVAP THERMISTOR |
|
|
HARNESS, WIRING, DRAWER, TEMP CONTROL |
|
|
HARNESS, WIRING, JUMPER, W/REED SWITCH |
|
|
HARNESS, WIRING, LED BOARD |
|
|
HARNESS, WIRING, MACHINE COMPT. |
|
|
HARNESS, WIRING, WATER FILTER |
|
|
HARNESS-DISPENSER, GROUNDING |
|
|
HEATER, DEFROST, EVAPORATOR |
|
|
HINGE ASSEMBLY, LOWER, LH, W/ADJ SCREW |
|
|
HINGE ASSEMBLY, LOWER, RH, W/ADJ SCREW |
|
|
HINGE BRACKET, LH, UPPER |
|
|
HINGE BRACKET, RH, UPPER |
|
|
HINGE-MULLION, UPPER/LOWER, FLIPPER |
|
|
HOUSING ASSEMBLY, AIR FILTER |
|
|
HOUSING ASSEMBLY, ICE MAKER, WHITE, FRESH FOOD |
|
|
HOUSING, AIR HANDLER |
|
|
HOUSING, WATER FILTER |
|
|
ICE CONTAINER, ASSEMBLY, W/MOVING PARTS |
|
|
ICE MAKER, ASSEMBLY, FREEZER, TWIST TRAY |
|
|
ICE MAKER, ASSEMBLY, FRESH FOOD, 115 V, TWIST TRAY |
|
|
INSULATION, WATER LINE |
|
|
INVERTER, COMPRESSOR, FLEX 2.2 TKD91 |
|
|
LH DOOR CLOSER W/O INNER WASHR |
|
|
LIGHT ASSEMBLY, LED, 1X, W/LENS, PCB, HARN |
|
|
LIGHT ASSEMBLY, LED, 2X UPPER, W/LENS, PCB |
|
|
LIGHT ASSEMBLY, LED, 3X, W/LENS, PCB, HARN |
|
|
LIGHT ASSEMBLY, LED, DOUBLE, W/LENS |
|
|
LIGHT ASSEMBLY, LED, SINGLE, W/LENS |
|
|
LOCK WASHER, EXTERNAL TOOTH, #8 |
|
|
MANIFOLD |
|
|
MODULE ASSEMBLY, ICE & WATER, GRAY, COMPLETE |
|
|
MOTOR, AUGER |
|
|
MOTOR, CONDENSER FAN |
|
|
MOTOR, EVAPORATOR FAN, W/HARNESS |
|
|
MULLION ASSEMBLY, FLIPPER, GRAY, 85 #, W/HEATER |
|
|
PAN-DEFROST, 26 |
|
|
PIN-ANTI TWIST BKT GEN II IM |
|
|
PINION, GEAR |
|
|
RH DOOR CLOSER W/O INNER WASHR |
|
|
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN |
|
|
ROLLER ASSY, DELI PAN |
|
|
ROLLER, COMPRESSOR BASE, REAR |
|
|
ROLLER, CRISPER PAN |
|
|
SCREW, #8 TRUSS HD, 10-32CA X 0.500 |
|
|
SCREW, 10-16AB X 0.50 |
|
|
SCREW, 10-32 X 1/2 |
|
|
SCREW, 8-18 X .500 |
|
|
SCREW, 8-18 X 1/2 |
|
|
SCREW, 8-18 X 3/8 |
|
|
SCREW, DRILLING, 10-24 X 3/4 |
|
|
SCREW, HEX HD, #8-18 X 5/8 |
|
|
SCREW, HEX HEAD, 1/4-20 X 5/8 |
|
|
SCREW, HEX HEAD, 10-32 X 0.500 |
|
|
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG |
|
|
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PROFILE |
|
|
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 |
|
|
SCREW, HILO PHIL PN, 8-18 X 3/8 |
|
|
SCREW, QUAD HILO, #8-18 X 0.380 |
|
|
SCREW, QUADREX, #10-16 HILO |
|
|
SCREW, SER HEX WASH HD, 1/4-20 X 5/8, (4) |
|
|
SCREW, SHOULDER, #10-16 TYPE AB, LOWER SLIDES, W/WASHER |
|
|
SCREW, SHOULDER, #10-16 TYPE AB, UPPER SLIDES, W/WASHER |
|
|
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING |
|
|
SCREW, TRUSS HD QUAD, #10-16 X .500, WHITE |
|
|
SCREW, TRUSS HD QUAD, #10-16 X .750, ZINC |
|
|
SCREW,8-32 X 0.437 ,(4) |
|
|
SCREW,CONTROL MTG. |
|
|
SCREW,HEX WASHER HEAD ,10-32 X 0.375 ,GROUND |
|
|
SCREW,KIT FOUR SCREWS |
|
|
SCREW-#8-32 X 3/8 |
|
|
SCREW-FAN SHROUD, (2) |
|
|
SCREW-NO.10-32 X 3/4,WHITE |
|
|
SCREW-SET,10-32 X 0.650 |
|
|
SCREW-SHOULDER |
|
|
SEAL, DOUGHNUT |
|
|
SEAL, FAN COVER, TOP |
|
|
SENSOR, TEMPERATURE, 10K, NTC |
|
|
SHELF ASSEMBLY, FIXED, 1/2 WIDTH, W/TRIM-GLASS |
|
|
SHELF ASSEMBLY, SLIDE UNDER, 1/2 WIDTH, W/TRIM-GLASS |
|
|
SHELF ASSEMBLY, SLIDE UNDER, 1/4 WIDTH, W/TRIM-GLASS |
|
|
SHIELD, SWITCH |
|
|
SHROUD, ASSEMBLY, EVAP FAN, W/GASKETS |
|
|
SHROUD-COND FAN |
|
|
SLIDE ASSEMBLY, BASKET LOWER, LH, W/PINION |
|
|
SLIDE ASSEMBLY, BASKET LOWER, RH, W/PINION |
|
|
SLIDE ASSEMBLY, BASKET, LH UPPER |
|
|
SLIDE ASSEMBLY, BASKET, RH UPPER |
|
|
SOLENOID, ASSEMBLY |
|
|
SPACER-COND TUBE, BLACK |
|
|
SPRING, PADDLE ASSEMBLY |
|
|
STABILIZER, ASSEMBLY, LH FRONT, W/ROLLER-FOOT |
|
|
STABILIZER, ASSEMBLY, RH FRONT, W/ROLLER-FOOT |
|
|
SUPPORT ASSEMBLY, DELI, RH, W/ROLLER |
|
|
SUPPORT, CRISPER, WHITE, LH |
|
|
SUPPORT, CRISPER, WHITE, RH |
|
|
SUPPORT, CRISPERS, CENTER |
|
|
SUPPORT, DELI, LH |
|
|
SUPPORT, EVAPORATOR FAN |
|
|
SUPPORT, HOUSING, MAIN BOARD |
|
|
SUPPORT, WATER FILTER |
|
|
SWITCH, DISP PADDLE |
|
|
SWITCH, DOOR/LIGHT, WHITE |
|
|
SWITCH-LIGHT, 93 # |
|
|
TAPE, 3" X 1", FOIL |
|
|
TAPE, FOAM SEAL, SHROUD |
|
|
THERMISTOR KIT, EVAPORATOR, W/CONNECTOR |
|
|
THERMISTOR KIT, TEMPERATURE, NTC, W/CONNECTORS |
|
|
TRIM-CABINET CORNER, GRAY |
|
|
TROUGH-DRAIN |
|
|
TUBE, CONNECTOR, SUCTION |
|
|
TUBE, WATER, 23.62", YELLOW, VALVE, TO DOOR |
|
|
TUBE, WATER, 32.09", BLUE, VALVE, TO ICE MAKER |
|
|
TUBE, WATER, 32.09", GREEN, VALVE, TO ICE MAKER |
|
|
TUBE, WATER, 44.89", BROWN, VALVE, TO FILTER INLET |
|
|
TUBE, WATER, 47.24", NATURAL, FILTER OUTLET, TO VALVE |
|
|
TUBE, WATER, DOOR |
|
|
TUBE-DRAIN |
|
|
TUBE-PROCESS |
|
|
USER INTERFACE, ASSEMBLY, DRAWER, TEMP CONTROL |
|
|
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT |
|
|
WASHER-COMPR MTG |
|
|
WATER VALVE, QUAD, SOLENOID |
|
|
WRENCH, ALLEN, SET SCREW |
