Model Image
Manufacturer

Electrolux

Model Number

RT196MCD1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5308009761 5308009761 BOLT-ROLLER ADJ
5308009762 5308009762 BOLT-ROLLER MTG
5308000107 5308000107 BRACKET-CONNECTOR
5303202834 5303202834 BRACKET-HINGE LOWER
5308012843 5308012843 BRACKET-HINGE TOP
5308000302 5308000302 CHANNEL-SHELF MTG
5308000133 5308000133 CLAMP
5303001199 5303001199 CLAMP-WIRING HARNES
5308003596 5308003596 CLIP-COMPRESSOR MTG
5303001546 5303001546 COVER-AIR DEFLECTOR

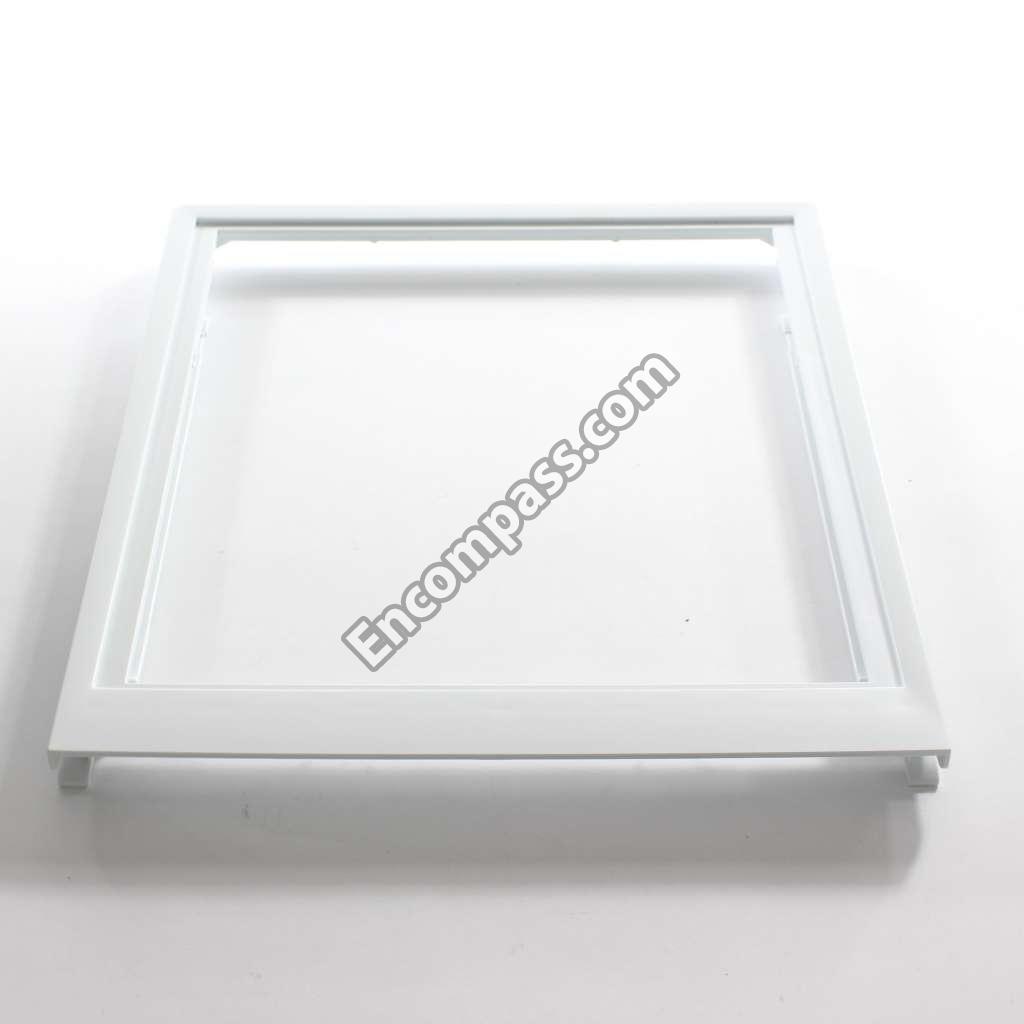

240354602 240354602 COVER-CRISPER PAN,LOWER
5304469385 5304469385 COVER-ICE MAKER,36,MID-SOUTH
5308012933 5308012933 COVER-UPPER HINGE
5303001197 5303001197 COVER-WIRING
5303001331 5303001331 DAMPER-FAN COVER
5308000255 5308000255 DOOR STOP
3205266 3205266 EDGE PROTECTOR
5304469384 5304469384 EJECTOR-ICE,18,MID-SOUTH ELEC
3201150 3201150 END CAP-SHELF,PROTECTOR ,FRZR SHELF
5308000010 5308000010 FAN BLADE,RED ,EVAPORATOR FAN
5300158289 5300158289 FAN-MOTOR
5303001286 5303001286 FERRULE-INNER
5303018791 5303018791 GASKET-FRZR DOOR,WHITE ,MAGNETIC
5304469403 5304469403 GEAR
5304500407 5304500407 GROMMET,SHELF MTG ,1.25`` ,LH ,(4)
5303001609 5303001609 GROMMET-SHELF MOUNTING
5300177143 5300177143 HANDLE END-BOTTOM
5300177142 5300177142 HANDLE END-TOP
3206349 3206349 HARNESS-WIRING-INTERNAL IM-W/ PLUG
5317842502 5317842502 HEATER DEFROST
5300189383 5300189383 HOT TUBE REPAIR KIT
5304469378 5304469378 ICE STRIPPER,21,MID-SOUTH ELE
5308017227 5308017227 INSULATION BLOCK
5308013648 5308013648 INSULATION BLOCK
5316651102 5316651102 INSULATOR PLASTIC
5303286386 5303286386 L.P. CONVERSION KIT
5304456675 5304456675 LEVER ARM,24,MID-SOUTH ELEC
241798201 241798201 MOLD-ICE MAKER,RADIUS CUBE ,WITH HEATER
5303918277 5303918277 MOTOR ASSY
5303200370 5303200370 MULLION
5308003584 5308003584 NUT
5303209814 5303209814 NUT
5303001348 5303001348 NUT
5303916001 5303916001 PAN RETAINER, KIT, SERVICE
5308000184 5308000184 PIN CENTER HINGE
5303001321 5303001321 PIN, LOWER HINGE
5303001361 5303001361 PIN-MOUNTING
5308013663 5308013663 PLATE-COMPR MTG
5308016571 5308016571 PLUG-BUTTON
240494004 240494004 PLUG-BUTTON
5303001308 5303001308 PLUG-BUTTON
5303001389 5303001389 PLUG-BUTTON
5303208309 5303208309 PLUG-HOLE, FACTORRY TEST
5303007173 5303007173 RELAY-ORIGINAL
5308000124 5308000124 RNG-FAN ORIFICE
5308011745 5308011745 SCREW
5303001380 5303001380 SCREW
5308000039 5308000039 SCREW
5304455651 5304455651 SCREW,HEX WASHER HEAD ,8-15A X 0.500
5304455650 5304455650 SCREW,HEX WASHER HEAD ,8-15A X 0.625 ,
5303001260 5303001260 SCREW-CONTROL MTG
241710601 241710601 SCREW-HINGE MTG,HEX HD ,1/4-20 X 0.875
5308012258 5308012258 SCREW-HINGE/MULLION
5303207353 5303207353 SEAL RING
3206189 3206189 SHELF-FLIP UP
5303001037 5303001037 SHIM -UPPER HINGE
5303001323 5303001323 SHIM-HINGE LOWER
5308009790 5308009790 SPRING-ROLLER ADJ
5308000110 5308000110 STRAP - EVAPORATOR/HEATER
5303006412 5303006412 STRAP-COVER MTG
5303205987 5303205987 SUPPORT, CRISPER COVER, ADJUSTABLE
3206166 3206166 SUPPORT-DOOR RACK, EXTENDS 1.06``, LH
3206165 3206165 SUPPORT-DOOR RACK, EXTENDS 1.06``, RH
5303206517 5303206517 SUPPORT-DOOR RACK, LH
5303206516 5303206516 SUPPORT-DOOR RACK, RH
5309918806 5309918806 SWITCH-LIGHT/ LAMP
5308012296 5308012296 TAPPING PLATE
3206319 3206319 THERMAL CUTOFF ASSEMBLY
3206322 3206322 THERMOSTAT ASSY-ICE MAKER
134237200 134237200 TIMER,WASHER ,5 OFF
5303210377 5303210377 TUBE-DRAIN
218832401 218832401 VALVE-WATER,DUAL SOLENOID ,115 V ,W/NUT
218859701 218859701 VALVE-WATER,SINGLE SOLENOID ,115 V ,W/NUT
5308009617 5308009617 WASHER
5308011326 5308011326 WASHER
5308000186 5308000186 WASHER , .34 X .62 X .10, NYLON
5308003633 5308003633 WASHER-COMPR MTG
