Model Image
Manufacturer

Electrolux

Model Number

TGF320DWC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316109902 316109902 BASE
316263501 316263501 BRACKET
316263500 316263500 BRACKET
3131438 3131438 BRACKET
3018603 3018603 BRACKET
5303013071 5303013071 BULB/LAMP
316114300 316114300 BURNER
316067210 316067210 BURNER BOX
316110201 316110201 CARRIAGE
316233400 316233400 COVER
316233500 316233500 COVER
316104500 316104500 COVER
316263403 316263403 END CAP
316263402 316263402 END CAP
316137003 316137003 END CAP
5303289684 5303289684 FASTENER
316129100 316129100 FASTENER
316204401 316204401 FLUE
316088600 316088600 GLASS
316050309 316050309 GLASS
316111501 316111501 GLIDE
316111502 316111502 GLIDE
316111600 316111600 GLIDE
316277801 316277801 GRATE
316019511 316019511 HANDLE
316020204 316020204 HANDLE
316253308 316253308 HARNESS
316081705 316081705 IGNITOR
316082000 316082000 INSERT
3017142 3017142 INSULATION
316054202 316054202 INSULATION
316236801 316236801 INSULATION
316009008 316009008 KNOB
316433600 316433600 LABEL
316236401 316236401 LINER
316230622 316230622 LINER
316273001 316273001 MAIN TOP
316135700 316135700 MODULE
5303013272 5303013272 NUT

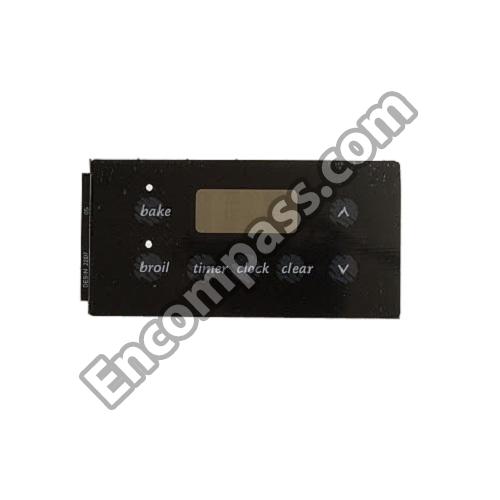

316220705 316220705 OVERLAY
316081900 316081900 PAN
316458036 316458036 PANEL
316029415 316029415 PANEL
316231211 316231211 PANEL
316202701 316202701 PANEL
316269100 316269100 PIPE
316435800 316435800 PLATE
3018607 3018607 PLATE
316067902 316067902 RACK
316115600 316115600 RACK
316116400 316116400 RECEPTACLE
316091711 316091711 REGULATOR,PRESSURE
3016993 3016993 RETAINER
316066900 316066900 ROD
316021105 316021105 SCREW
316021108 316021108 SCREW
316021110 316021110 SCREW
316215600 316215600 SCREW
316021104 316021104 SCREW
5303271648 5303271648 SCREW
316272900 316272900 SCREW
316116000 316116000 SCREW
5303285179 5303285179 SCREW
316089500 316089500 SCREW
3131732 3131732 SCREW
316021120 316021120 SCREW
316001009 316001009 SCREW
316245600 316245600 SEAL
316239700 316239700 SEAL
5303289640 5303289640 SHIELD
316055600 316055600 SHIELD
316110000 316110000 SHIELD
316541500 316541500 SHIELD
316237600 316237600 SHIELD
316222709 316222709 SHIELD
316064600 316064600 SUPPORT
316448700 316448700 SWITCH
316112500 316112500 TEMPLATE
316065004 316065004 TUBE-FORMED 3/8
5303935237 5303935237 VALVE
3203459 3203459 VALVE
316008401 316008401 WASHER
5303321319 5303321319 WHITE TOUCHUP PAINT
316219008 316219008 WIRING HARNESS
