Model Image
Manufacturer

Electrolux

Model Number

TGF605WFW7

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3203676 3203676 BAFFLE
240335502 240335502 BOLT-ROLLER ADJ,HEX WASHER HEAD ,1/4-20 X 4.020,(2) ,SPECIAL
5303210471 5303210471 BRACKET
5303210472 5303210472 BRACKET
3131069 3131069 BRACKET
6743 6743 BRACKET
5303292397 5303292397 BRACKET, MOTOR MTG, REAR
240313802 240313802 BRACKET-CTR HINGE,WHITE
240314011 240314011 BRACKET-LOWER HINGE
240313703 240313703 BRACKET-UPPER HINGE
5303202752 5303202752 BURNER
5303311552 5303311552 BURNER
5303131080 5303131080 BURNER ASSY-TOP,FRONT
5303131079 5303131079 BURNER ASSY-TOP,REAR
318136701 318136701 CHANNEL
318136700 318136700 CHANNEL
5303284616 5303284616 CLIP-THERMOSTAT

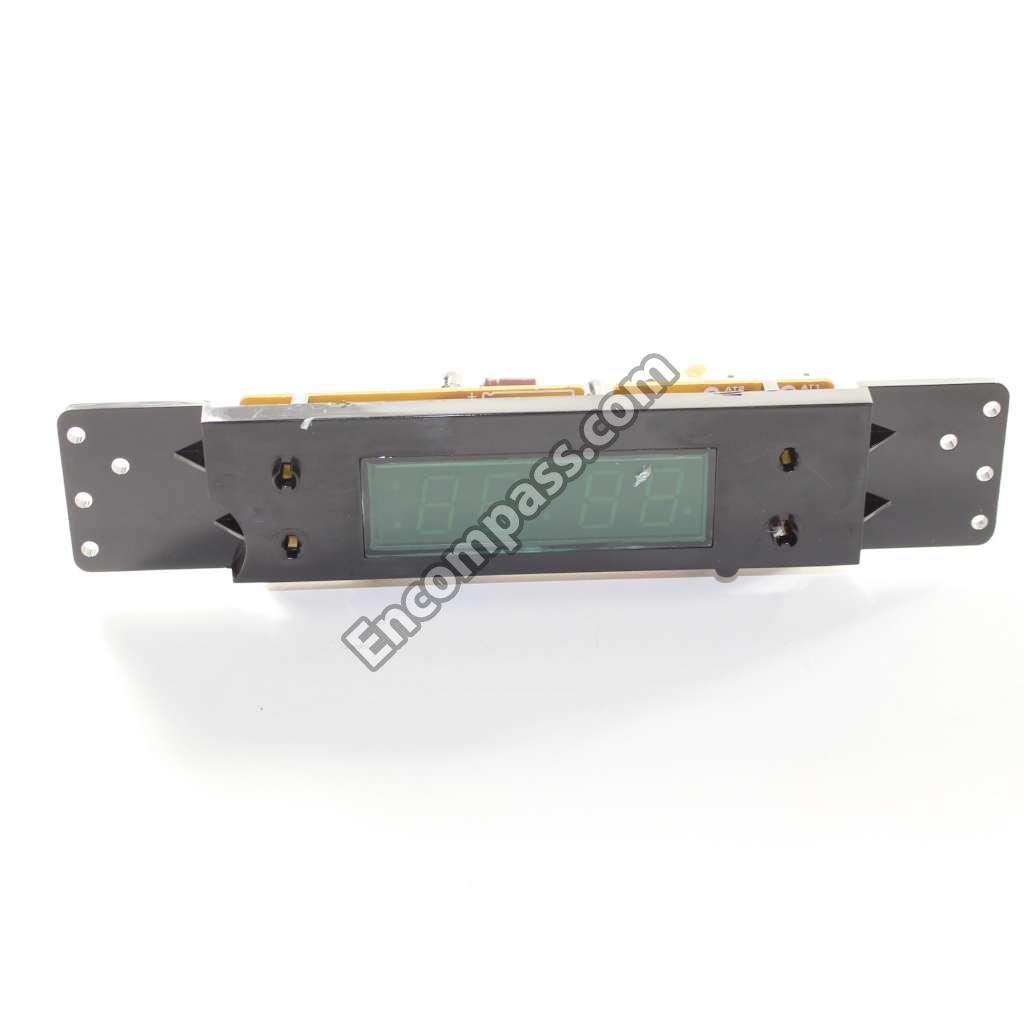

318184800 318184800 CLOCK-TIMER
3131088 3131088 COVER
5308013949 5308013949 COVER-GRIDDLE
240354401 240354401 COVER-UPPER HINGE,WHITE
240367401 240367401 DAMPER-FAN COVER
5308008022 5308008022 DOOR SEAL
318107000 318107000 DRAWER
5303051140 5303051140 ELEMENT,BROIL ,2950 W
5308000010 5308000010 FAN BLADE,RED ,EVAPORATOR FAN
5303272274 5303272274 GRATE
318102600 318102600 GRIDDLE
241839405 241839405 GRILLE/KICKPLATE,WHITE
5304500407 5304500407 GROMMET,SHELF MTG ,1.25`` ,LH ,(4)
5303001609 5303001609 GROMMET-SHELF MOUNTING
318024401 318024401 HINGE
318024400 318024400 HINGE
318348801 318348801 HINGE,OVEN DOOR ,LH
318348800 318348800 HINGE,OVEN DOOR ,RH
5303210548 5303210548 IGNITOR
5303935066 5303935066 IGNITOR,OVEN KIT ,W/NUT & INSTR
3017184 3017184 INSULATION
318016209 318016209 KNOB
316223003 316223003 KNOB,CONTROL ,BISQUE
240367001 240367001 KNOB-DAMPER CONTROL
316022503 316022503 LIGHT-INDICATOR ,250 V
316022500 316022500 LIGHT/LAMP,WARMER,INDICATOR ,
318113000 318113000 LINER
318135100 318135100 LINER
318134800 318134800 LINER
5303324119 5303324119 LINER
318134600 318134600 LINER
5308014034 5308014034 MAIN TOP
318177400 318177400 MANIFOLD
316220840 316220840 OVERLAY,CLOCK ,BISQUE
318126200 318126200 PAN
5308011431 5308011431 PAN,BURNER ,(4)
318005300 318005300 PANEL
5303281361 5303281361 PANEL-DRAWER
240516502 240516502 PIN-LOWER HINGE
3018339 3018339 PLATE
5303208309 5303208309 PLUG-HOLE, FACTORRY TEST
5308007974 5308007974 REGULATOR,PRESSURE
5303311554 5303311554 RETAINER
5303311555 5303311555 RETAINER
5303316859 5303316859 RIVET,FLAT HEAD `1/4 OD X 1-3/4 `ROLLER PIN
3051554 3051554 ROD
240335006 240335006 ROLLER ASSY,FRONT ,(2)
5304418225 5304418225 ROLLER,COMPRESSOR BASE ,REAR ,(2)
5303323141 5303323141 SCREW
3051050 3051050 SCREW
318175503 318175503 SCREW
3051009 3051009 SCREW
134477400 134477400 SCREW
5303311528 5303311528 SCREW
5303311333 5303311333 SCREW
5303310510 5303310510 SCREW
218252201 218252201 SCREW, NO.8 TRUSS HD, 10-32CA X 0.500
5304455651 5304455651 SCREW,HEX WASHER HEAD ,8-15A X 0.500
5304455650 5304455650 SCREW,HEX WASHER HEAD ,8-15A X 0.625 ,
316021110 316021110 SCREW,SEMI GIMLET ,8-18 X 0.500 ,BLACK
241710601 241710601 SCREW-HINGE MTG,HEX HD ,1/4-20 X 0.875
240578902 240578902 SCREW-HINGE MTG,HEX HEAD ,1/4-20 X 0.75
240442702 240442702 SCREW-NO.10-32 X 3/4,WHITE
5303131053 5303131053 SHIELD
5303131054 5303131054 SHIELD
5303286741 5303286741 SHIELD
240354302 240354302 SHIELD-LIGHT,FRZR
5303310504 5303310504 SPACER
5303300414 5303300414 SPACER
5303912606 5303912606 SPARK MODULE
318088300 318088300 SPRING
3201437 3201437 STRAIN RELIEF
3051096 3051096 SUPPORT
3131041 3131041 SUPPORT
3131038 3131038 SUPPORT
318163000 318163000 SUPPORT
5303286692 5303286692 SUPPORT
5308013296 5308013296 SUPPORT
5308015487 5308015487 SWITCH
316032000 316032000 SWITCH-IGNITOR,(4)
316436000 316436000 SWITCH-INFINITE, 6`` ELEMENT
5303935086 5303935086 SWITCH-INFINITE, 8`` ELEMENT
5309918806 5309918806 SWITCH-LIGHT/ LAMP
318059203 318059203 THERMOSTAT
318148504 318148504 TOP BURNER IGNITOR (LEFT)
5303317082 5303317082 TRIM
240337608 240337608 TRIM-CABINET CORNER,WHITE ,(2)
5303323849 5303323849 TUBE
318087200 318087200 VALVE
318087100 318087100 VALVE,TOP BURNER
5303131099 5303131099 VALVE-SHUT OFF
