Model Image
Manufacturer

Goodman

Model Number

ACVM970803BN

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
0161M00003P 0161M00003P AMANA NAMEPLATE
0121F00314 0121F00314 ANGLE, DECK
0121F00313 0121F00313 ANGLE, SIDE
0270F03139 0270F03139 BAG ASSY CF
0163F00017 0163F00017 BECKETT BURNER
0271F00159 0271F00159 BLOWER SHELL WHEEL ASSY
0121F00389 0121F00389 BRACKET, DOOR SWITCH
0121F00454 0121F00454 BRACKET-BURNER 4
M0570808 M0570808 BUTTON PLUG
M0570807 M0570807 BUTTON PLUG
M0570806 M0570806 BUTTON PLUG
M0310345 M0310345 BUTTON PLUG
A1781105 A1781105 CAP-VINYL .500
0270F03514 0270F03514 CF DRAIN TUBE ASSY
0270F03125 0270F03125 CF DRAIN TUBE ASSY
0163M00049 0163M00049 CLAMP HOSE
0259F00040 0259F00040 CONTROL HARNESS
0121F00094 0121F00094 CONTROL MOUNT PANEL
0161F00037 0161F00037 COUPLING
0161F00014 0161F00014 COVER, CONTROL BOARD
0161F00031 0161F00031 COVER, FRONT
0121F00317 0121F00317 COVER, REAR
0130F00390 0130F00390 DATA, FURNACE PCB
0154F00020 0154F00020 DECK GASKET
0121F00425 0121F00425 DECK-BLOWER, 17.5-INCH CF
0121F00337LG 0121F00337LG DOOR, ACCESS 17.5-INCH PNT
0121F00340LG 0121F00340LG DOOR, BLOWER 17.5-INCH PNT
0270F03141 0270F03141 DRAIN PART BAG ASSY CF
0161F00046 0161F00046 DRAIN TRAP
0164F00003 0164F00003 ELBOW-FLUE, 17.5-INCH CFLOW
0130F00010 0130F00010 FLAME SENSOR
0151M00024 0151M00024 GAS VALVE
0154F00025 0154F00025 GASKET
0154F00024 0154F00024 GASKET
0154F00015 0154F00015 GASKET
0154F00014 0154F00014 GASKET
0154F00011 0154F00011 GASKET, FRONT
0154F00037 0154F00037 GASKET, REAR CVR
20179309 20179309 GASKET-FA
0159F00050 0159F00050 HARNESS-WIRING
0257F00355 0257F00355 HEAT EXCHANGER ASSY
0164M00019 0164M00019 HOSE-PRESSURE SW 6-INCH
0130F00008 0130F00008 IGNITOR-SINI 17 SEC
0160F00015 0160F00015 INSULATION, HT EXCHANGER 17.5-INCH
0160F00018 0160F00018 INSULATION, SIDE
0160F00012 0160F00012 INSULATION-BACK 17.5-INCH
0130M00243 0130M00243 INTERLOCK SWITCH
0161F00043 0161F00043 JUNCTION BOX LID
0161F00042 0161F00042 JUNCTION BOX PLA
B1393800 B1393800 LOCKNUT, NYLON, INSERT 1/4, 20
B1393323 B1393323 MACHINE SCREW HWH 1/4-20 X 1-1/2 BZ
0163F00014 0163F00014 MANIFOLD
10123529 10123529 MANUAL RESET LIMIT-GREEN
B1376857 B1376857 MOTOR MOUNT ARM
0121M00038 0121M00038 MOTOR MOUNT BAND
0131M00270 0131M00270 MOTOR, 1/2 HP, SERIAL ECM

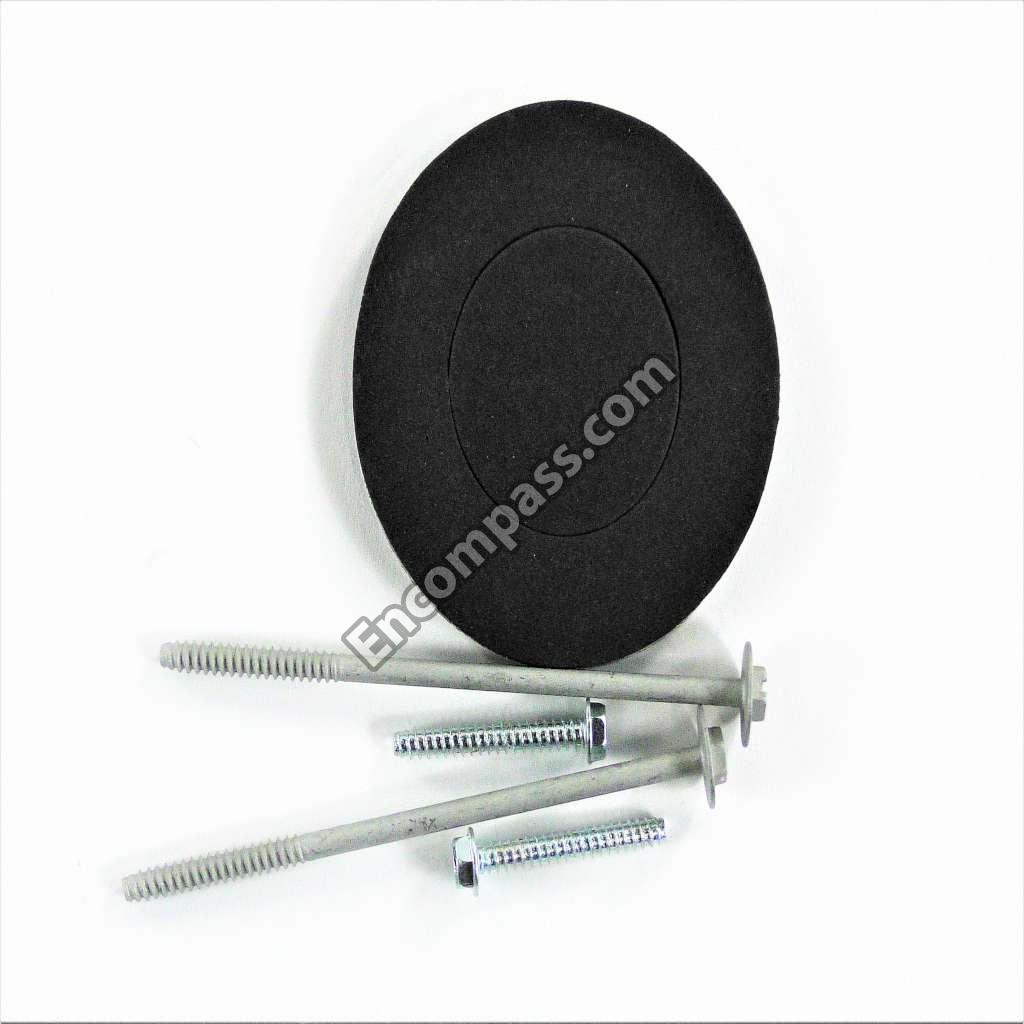

0171M00003 0171M00003 MOTOR-ID, BLOWER
0163F00004 0163F00004 ORIFICE
0121F00457 0121F00457 ORIFICE BRACKET-BURNER 4
0121F00427DG 0121F00427DG PAINTED BASEPAN-17.5-INCH CF
PCBKF202 PCBKF202 PCB, FURNACE CONTROL
M0501301 M0501301 PIPE GROMMET
0161F00064 0161F00064 PIPE, STRAIGHT CF
B1392021 B1392021 PLASTIC PLUG, 1-INCH 2713-BLK
0161M00027 0161M00027 PLUG, HOLE
0259F00041 0259F00041 POWER HARNESS HIGH VOLTAGE
0164M00012 0164M00012 PRESSURE SWITCH HOSE
0130F00482 0130F00482 PRESSURE, SWITCH
0130F00038 0130F00038 PRIMARY LIMIT - LT BLUE 120 AUX
0121F00439 0121F00439 PRIMARY LIMIT-HEAT SHIELD
20162904 20162904 PRIMARY LIMIT-TEMPERATURE CONTROL
M0209730 M0209730 SCREW-DECORATIVE
0121F00355 0121F00355 SHIELD, COIL
0130F00481 0130F00481 SWITCH, PRESSURE
M0250565 M0250565 TC SCREW 1.25-INCH
0121F00426DG 0121F00426DG TOP, PAINTED FURNACE 17.5-INCH CF
0130M00140 0130M00140 TRANSFORMER 120V TO 24V, 40VA
M0326804 M0326804 TUBE PLUG
B1392104 B1392104 UNIVERSAL BUSHING UB 875
B1392139 B1392139 VIEW PORT BUSHING-BLOWER DOOR
B1392918 B1392918 WASHER, FLAT 1/4 ID X 1 OD
0259F00024 0259F00024 WIRE HARNESS-BLOWER
