Manufacturer
Goodman

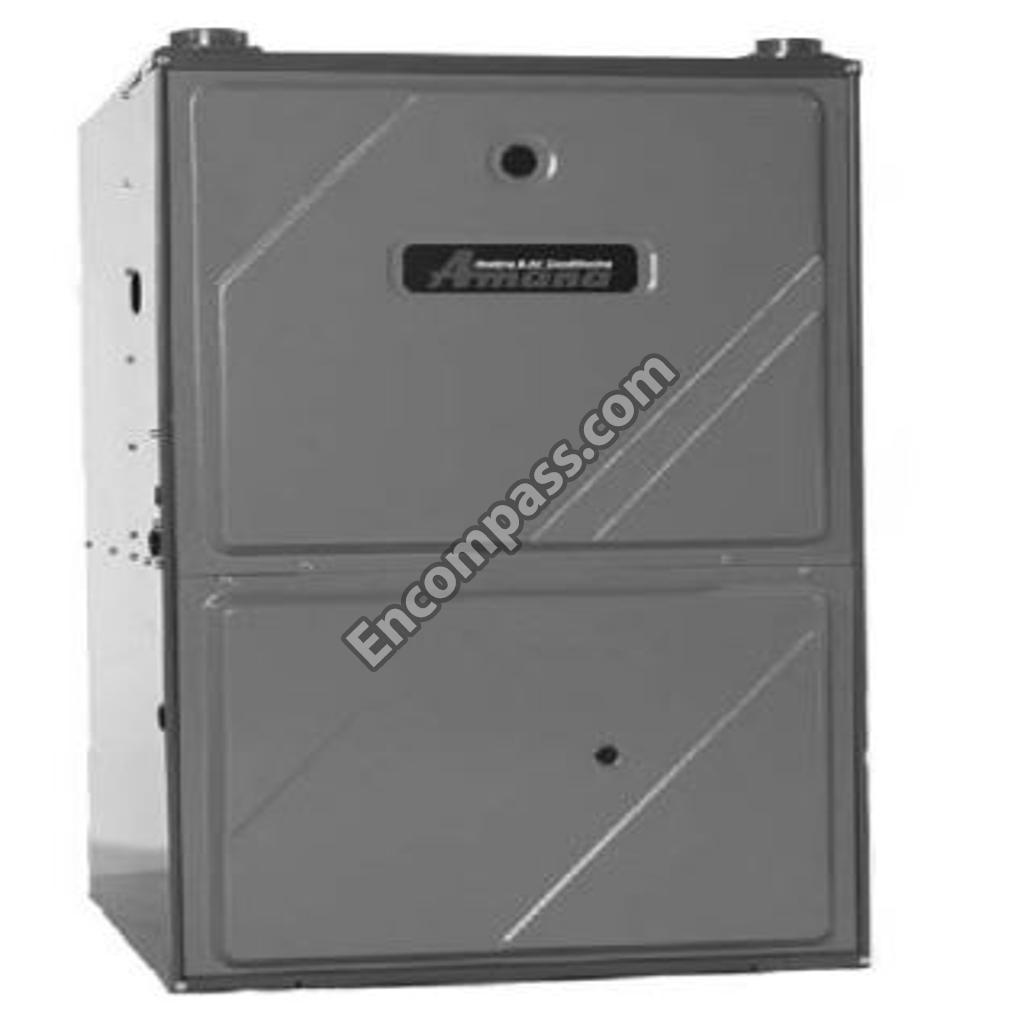

Model Number
AMS90905DXA
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
2-INCH MESH INSERT |
|
|
3-INCH MESH INSERT |
|
|
ACCESS DOOR |
|
|
AMANA NAMEPLATE |
|
|
AUXILIARY LIMIT BRACKET |
|
|
BACK PANEL |
|
|
BASE PAN |
|
|
BECKETT BURNER |
|
|
BLOWER CUT-OFF |
|
|
BLOWER DECK |
|
|
BLOWER DOOR |
|
|
BLOWER HOUSING ASSY 11 X 10 |
|
|
BLOWER MOTOR 3/4 HP, 4 SP, 8 PL |
|
|
BLOWER WHEEL |
|
|
BOX-HIGH VOLT |
|
|
BURNER BRACKET 4B |
|
|
BUSHING-SNAP |
|
|
BUTTON PLUG |
|
|
BUTTON PLUG |
|
|
BUTTON PLUG |
|
|
CAPACITOR 15/370V BLOWER |
|
|
CLAMP-HOSE RED |
|
|
COIL GASKET |
|
|
COUPLING-FA |
|
|
COUPLING-RUBBER |
|
|
COVER-HV BOX |
|
|
DECK GASKET |
|
|
DRAIN ANGLE |
|
|
DRAIN TRAP |
|
|
DRAIN TUBE |
|
|
ELBOW |
|
|
FILLER PLATE |
|
|
FLAME SENSOR |
|
|
FLUE PIPE |
|
|
FRONT COVER |
|
|
GAS VALVE 36G |
|
|
GASKET |
|
|
GASKET |
|
|
GASKET |
|
|
GASKET-FA |
|
|
GROMMET |
|
|
GROMMET |
|
|
HEAT EXCHANGER ASSY 4B |
|
|
HOSE CLAMP |
|
|
HOSE CLAMP |
|
|
HOSE-DRAIN |
|
|
HOSE-DRAIN |
|
|
ID BLOWER |
|
|
IGNITION BOARD, HSI INTEGRATED |
|
|
IGNITOR-SINI |
|
|
INSTALL INSTRUCTIONS |
|
|
INSTALLATION INSTRUCTIONS |
|
|
INSTALLATION INSTRUCTIONS-HUMIDIFIER |
|
|
INSUL-HT EX |
|
|
INSULATION |
|
|
INSULATION SIDE |
|
|
INTERLOCK SWITCH |
|
|
KEPS NUT |
|
|
LIMIT-RESET MAN AUXILIARY |
|
|
MACHINE SCREW |
|
|
MANIFOLD |
|
|
MANUAL RESET LIMIT-YELLOW |
|
|
MOTOR MOUNT ARM |
|
|
MOTOR MOUNT BAND |
|
|
ORIFICE |
|
|
ORIFICE SHIELD |
|
|
PANEL-SIDE LH UF PNT |
|
|
PANEL-SIDE RH UF PNT |
|
|
PIPE GROMMET |
|
|
PRESSURE SWITCH-LIGHT BLUE |
|
|
PRIMARY LIMIT - BLUE |
|
|
RAIL-BLWR SIDE |
|
|
RAIL-DECK |
|
|
REPAIR PARTS MANUAL |
|
|
SEALER-PLASTIC |
|
|
SHIELD ID BLWR |
|
|
SIDE RAIL |
|
|
SNAP-BUSHING CLR |
|
|
STANDPIPE BAG ASSY |
|
|
TC SCREW |
|
|
TOP COVER ASSY |
|
|
TRANSFORMER 120V TO 24V, 40 VA |
|
|
TUBE PLUG |
|
|
UNIVERSAL BUSHING UB 875 |
|
|
USERS MANUAL |
|
|
VIEW PORT BUSHING-BLOWER DOOR |
|
|
WIRING HARNESS |
