Manufacturer
Goodman
Model Number
APG10240451A
Description

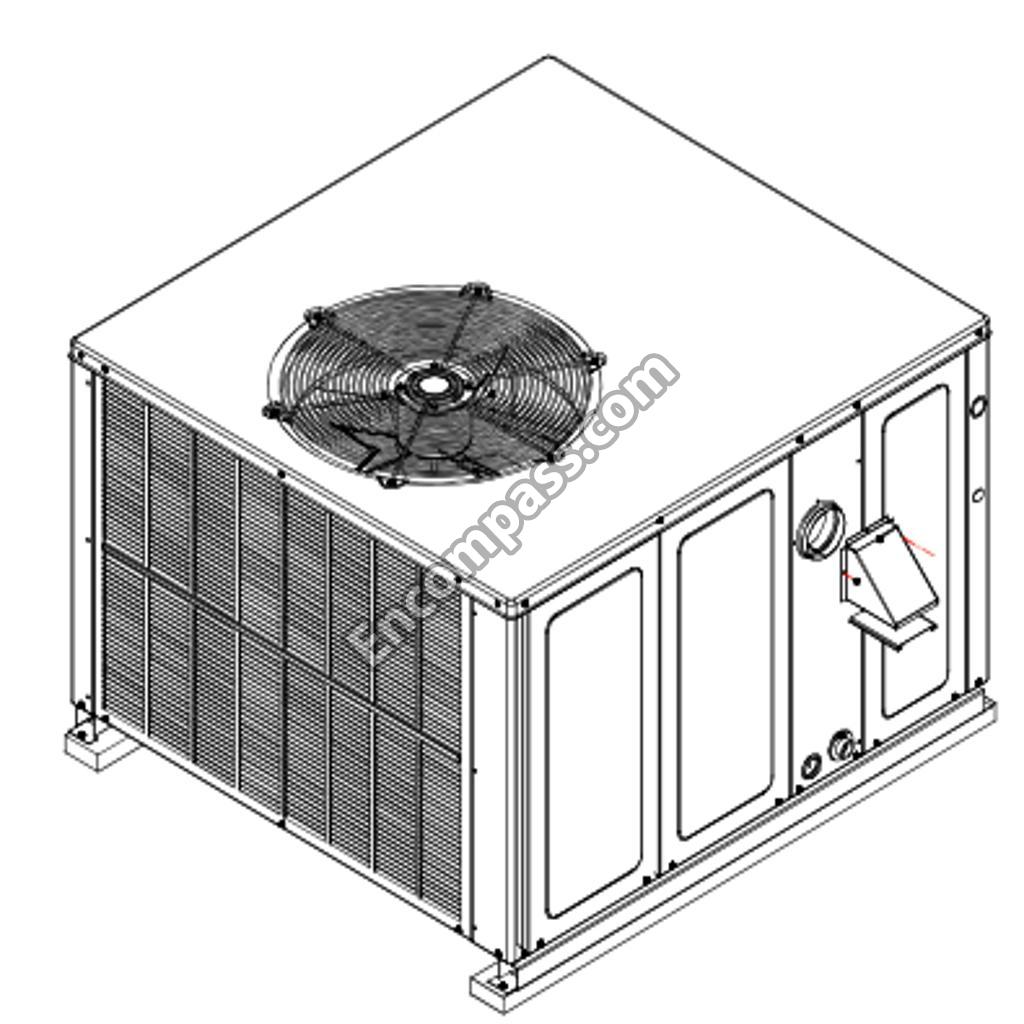

Gas And Electric Packaged Unit
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
18-INCH FAN BLADE 3BLADE 29PITCH |
|
|
3/8-INCH SERVICE VALVE |
|
|
ACORN NUT 5/16 HEX YELLOW ZINC |
|
|
AUXILIARY LIMIT, AUTO RESET |
|
|
BACK DUCT COVER 27-INCH 32-INCH |
|
|
BASEPAN |
|
|
BASEPAN RAIL |
|
|
BECKETT BURNER |
|
|
BLOWER BLOCK-OFF 10 X 8 |
|
|
BLOWER HOUSING 10 X 8 |
|
|
BLOWER MOTOR |
|
|
BLOWER WHEEL 10 X 8 |
|
|
BURNER BRACKET 2B |
|
|
CAPACITOR BOOT |
|
|
CAPACITOR DUAL SECTION, 30 MFD, 5 MFD, 370 VAC |
|
|
CAPACITOR STRAP |
|
|
CAPACTIOR, BLOWER 15U/370V |
|
|
COMPRESSOR |
|
|
COMPRESSOR BOLT |
|
|
COMPRESSOR GROMMET |
|
|
CONTACTOR, 25 FLA, 125 LRA, 1 POLE |
|
|
CONTROL BOX COVER W/PAINT |
|
|
CORNER-POST COMPRESSOR END W/PAINT 27-INCH |
|
|
CORNER-POST HAIRPIN END W/PAINT 27-INCH |
|
|
COVER-DUCT DOWN BOTTOM |
|
|
COVER-DUCT DOWN TOP |
|
|
CRATED SERVICE COND. COIL W/DRIER |
|
|
CRATED SERVICE EVAP COIL W/DRIER |
|
|
DIVIDER, EVAP/HT. EXCH. |
|
|
DIVIDER-BLOWER 28-INCH |
|
|
DOOR-BLOWER, W/PAINT 27-INCH |
|
|
DOOR-COMPRESSOR, W/PAINT 27-INCH |
|
|
DOOR-CONDENSOR, W/PAINT 27-INCH NON-LOUVERED |
|
|
DOOR-EVAP/CONTROL, W/PAINT 27-INCH |
|
|
DOOR-HEAT EXCHANGER, W/PAINT 27-INCH |
|
|
DRAIN CHANNEL, SUCTION TUBE |
|
|
DRAIN, TUBE 27-INCH |
|
|
DRIP PAN, EVAP COIL |
|
|
DUCT, PANEL W/PAINT 27-INCH |
|
|
EVAP DRAIN FITTING |
|
|
FAN BLADE 22-INCH |
|
|
FAN GRILLE GUARD, LRG |
|
|
FAN PARTITION SHELF |
|
|
FLOW CHECK PISTON KIT .057 |
|
|
FLUE ELBOW LEFT |
|
|
FLUE ELBOW RIGHT |
|
|
GAS LINE GROMMET |
|
|
GAS VALVE 36G |
|
|
GROUND LUG |
|
|
HEAT DEFLECTOR |
|
|
HEAT EXCHANGER 2 CELL SML |
|
|
ID BLOWER |
|
|
ID BLOWER PLATE GASKET SML |
|
|
ID BLOWER PLATE SML 2 BRNR |
|
|
IGNITOR |
|
|
INSERT-MESH TUBES, 5 CELL |
|
|
INSTALLATION AND OPERATING MANUAL |
|
|
INSUL-BLOCK EVAP/BPAN 27-INCH |
|
|
INTEGRATED DSI MODULE |
|
|
LIMIT SWITCH |
|
|
MACHINE SCREW, 1/4-20 TYPE F SLOTTED |
|
|
MANIFOLD, 2 CELL SML |
|
|
MANUAL RESET LIMIT - ROS |
|
|
MOTOR, COND. FAN, 1/6 HP, 230V, 1075 |
|
|
ORIFICE |
|
|
ORIFICE SHIELD 2 CELL |
|
|
PANEL-COND, LOUVERED W/PAINT 27-INCH |
|
|
PANEL-FILLER, HT. EXCH. |
|
|
PARTITION PANEL 28-INCH |
|
|
POST-PANEL SUPPORT 28-INCH QTY 2 |
|
|
PRESSURE SWITCH |
|
|
PRODUCT DATA BULLETIN/SPEC SHEET |
|
|
REPAIR PARTS MANUAL |
|
|
ROLLOUT SWITCH BRACKET |
|
|
SENSOR-FLAME |
|
|
SHIELD, HEAT EXCHANGER TUBES |
|
|
SINGLE-FLOW FILTER DRIER, STEEL |
|
|
SURROUND-FAN |
|
|
TOP PANEL |
|
|
TRANSFORMER 208/230, 24V |
|
|
UTILITY PANEL, W/PAINT 27-INCH |
|
|
WASHER, SPLIT LOCK 1/4 BZ |
|
|
WASHERS, FLAT |
