Manufacturer
Goodman
Model Number
APG10360903A
Description
Gas And Electric Packaged Unit

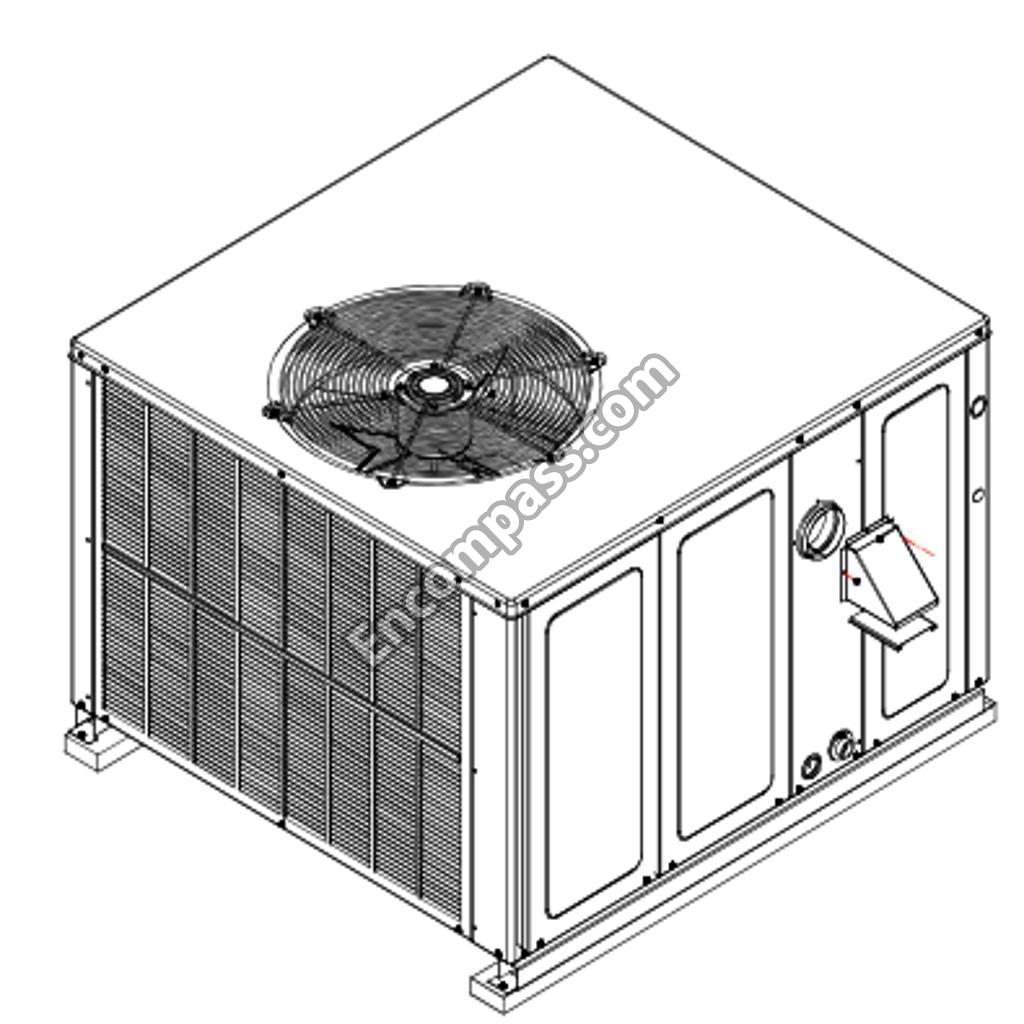

Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
18-INCH FAN BLADE 3BLADE 29PITCH |
|
|
3/8-INCH SERVICE VALVE |
|
|
ACORN NUT 5/16 HEX YELLOW ZINC |
|
|
AUXILIARY LIMIT, AUTO RESET |
|
|
BACK DUCT COVER 40-INCH |
|
|
BASEPAN |
|
|
BASEPAN RAIL |
|
|
BECKETT BURNER |
|
|
BLOWER CUT-OFF |
|
|
BLOWER DIVIDER |
|
|
BLOWER DOOR 40-INCH |
|
|
BLOWER HOUSING ASSY 11 X 10 |
|
|
BLOWER WHEEL 11 X 10 |
|
|
BURNER BRACKET 4B |
|
|
CAPACITOR BOOT |
|
|
CAPACITOR STRAP |
|
|
CAPACITOR, BLOWER 5U/370V |
|
|
CAPACTIOR, BLOWER 15U/370V |
|
|
COMPRESSOR 34900, 208/230/60/3 |
|
|
COMPRESSOR BOLT |
|
|
COMPRESSOR DOOR 40-INCH |
|
|
COMPRESSOR GROMMET |
|
|
CONTACTOR, 25 AMP, 24V, 3 POLE |
|
|
CONTROL BOX COVER W/PAINT |
|
|
CORNER POST-COMP END 40-INCH |
|
|
CORNER POST-HAIRPIN END 40-INCH |
|
|
COVER-DUCT DOWN BOTTOM |
|
|
COVER-DUCT DOWN TOP |
|
|
CRATED SERVICE COND. COIL W/DRIER |
|
|
CRATED SERVICE EVAP COIL W/DRIER |
|
|
DOOR-EVAP/CONTROL 40 W/PAINT |
|
|
DOOR-HEAT EXCHANGER, W/PAINT 40-INCH |
|
|
DRAIN CHANNEL, SUCTION TUBE |
|
|
DRAIN TUBE 40-INCH |
|
|
DRIP PAN, EVAP COIL |
|
|
DUCT PANEL 40-INCH |
|
|
EVAP DRAIN FITTING |
|
|
EVAP/BASEPAN BLOCK 40-INCH |
|
|
EVAP/HEAT EXCHANGER DIVIDER 38-INCH |
|
|
FAN BLADE 22-INCH, 3 BLADE, 24 |
|
|
FAN GRILLE GUARD, LRG |
|
|
FAN PARTITION SHELF |
|
|
FAN SURROUND 40-INCH |
|
|
FILLER PANEL, HEAT EXCHANGER 40-INCH |
|
|
FLOW CHECK PISTON KIT .071 |
|
|
FLUE ELBOW LEFT |
|
|
FLUE ELBOW RIGHT |
|
|
GAS LINE GROMMET |
|
|
GAS VALVE 36G |
|
|
GROUND LUG |
|
|
HEAT DEFLECTOR |
|
|
HEAT EXCHANGER 4 CELL LRG |
|
|
ID BLOWER |
|
|
ID BLOWER PLATE GASKET LRG |
|
|
ID BLOWER PLATE LRG 4 BRNR |
|
|
IGNITOR |
|
|
INSERT-MESH TUBES, 5 CELL |
|
|
INSTALLATION AND OPERATING MANUAL |
|
|
INTEGRATED DSI MODULE |
|
|
LIMIT SWITCH |
|
|
LOUVERED PANEL, COND SIDE 40-INCH |
|
|
LOUVERED PANEL, COND SIDE 40-INCH |
|
|
MACHINE SCREW, 1/4-20 TYPE F SLOTTED |
|
|
MANIFOLD - 4 BRNR |
|
|
MANUAL RESET LIMIT-GREEN |
|
|
MOTOR MOUNT ARM |
|
|
MOTOR MOUNT BAND |
|
|
MOTOR, COND. FAN, 1/4 HP, 230V, 1075 |
|
|
MOTOR-EVAP, 3/4 HP, 4 SPEED |
|
|
ORIFICE |
|
|
ORIFICE SHIELD 4 CELL |
|
|
PARTITION PANEL 38-INCH |
|
|
POST-PANEL SUPPORT 38-INCH |
|
|
PRESSURE SWITCH |
|
|
PRODUCT DATA BULLETIN/SPEC SHEET |
|
|
REPAIR PARTS MANUAL |
|
|
ROLLOUT SWITCH BRACKET |
|
|
SENSOR-FLAME |
|
|
SHIELD, HEAT EXCHANGER TUBES |
|
|
SINGLE-FLOW FILTER DRIER, STEEL |
|
|
TOP PANEL |
|
|
TRANSFORMER 208/230, 24V |
|
|
UTILITY PANEL 40-INCH |
|
|
WASHER, FLAT 1/4 ID X 1 OD |
|
|
WASHER, SPLIT LOCK 1/4 BZ |
|
|
WASHERS, FLAT |
