Manufacturer
Goodman

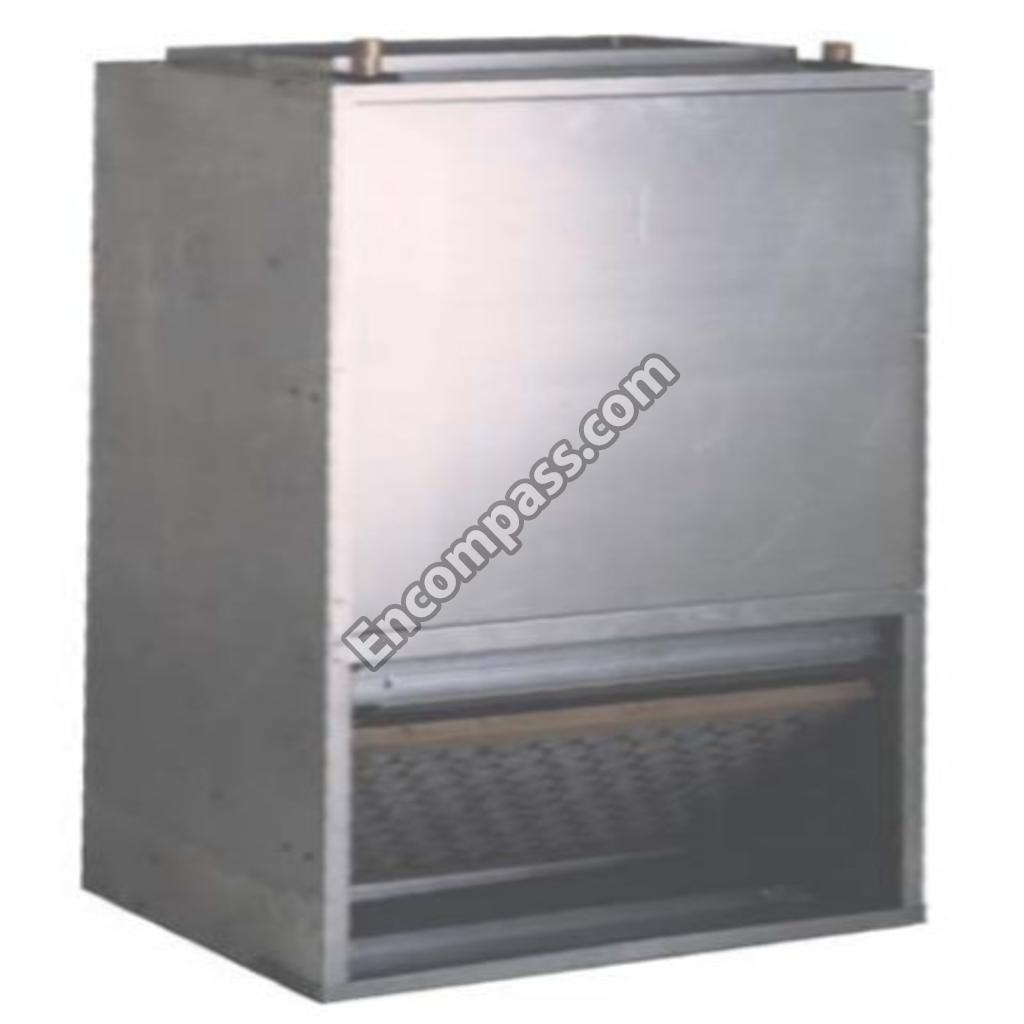

Model Number
AWB2405C
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSEMBLY; FRONT ACCESS PANEL W/ INSULATION |
|
|
ASSY; WRAPPER TOP W/ INSULATION |
|
|
ASSY; WRAPPER W/ INSULATION |
|
|
BLOWER ANGLE 6.063-INCH |
|
|
BLOWER ANGLE 9-INCH |
|
|
BLOWER DECK |
|
|
BLOWER DECK |
|
|
BLOWER HOUSING ASSY |
|
|
BLOWER WHEEL,, 9-INCH X 6-INCH |
|
|
BRACKET, OFFSET |
|
|
CAPACITOR, 5/370 |
|
|
CENTER TIE PLATE SML |
|
|
CIRCUIT BREAKER 60 AMP WITH CLIP |
|
|
COIL SUPPORT LEFT |
|
|
COIL SUPPORT RIGHT |
|
|
COLLAR, HEATER |
|
|
DRAIN PAN SML |
|
|
ELECTRICAL JUNCTION BOX |
|
|
FILTER SUPPORT SML |
|
|
FLOWRATOR, .059, MED |
|
|
HANGING BRACKET SML |
|
|
HANGING BRACKET, FIELD |
|
|
HEATER ELEMENT, 4.8 KW |
|
|
HEATER MOUNTING PANEL |
|
|
INSTALLATION INSTRUCTIONS |
|
|
INSULATED ASSY, BOTTOM TIE PANEL |
|
|
INSULATED ASSY, DRAIN ACCESS PANEL |
|
|
INSULATED ASSY, FRONT ACCESS PANEL |
|
|
INSULATED ASSY, LOWER FRONT PANEL |
|
|
INSULATED ASSY, TOP PANEL |
|
|
INSULATED ASSY, WRAPPER |
|
|
MOTOR, 1/5 HP, 2 SPEED, 230 VOLT |
|
|
PANEL; HEATER MOUNTING |
|
|
PRIMARY THERMAL OVERLOAD |
|
|
REPAIR PARTS MANUAL |
|
|
SECONDARY THERMAL OVERLOAD |
|
|
SEQUENCER, 8-10KW |
|
|
TIME DELAY RELAY |
|
|
TRANSFORMER, 208/230V TO 24V |
|
|
TUBING ASSY, EVAP COIL |
