Manufacturer
Goodman
Model Number

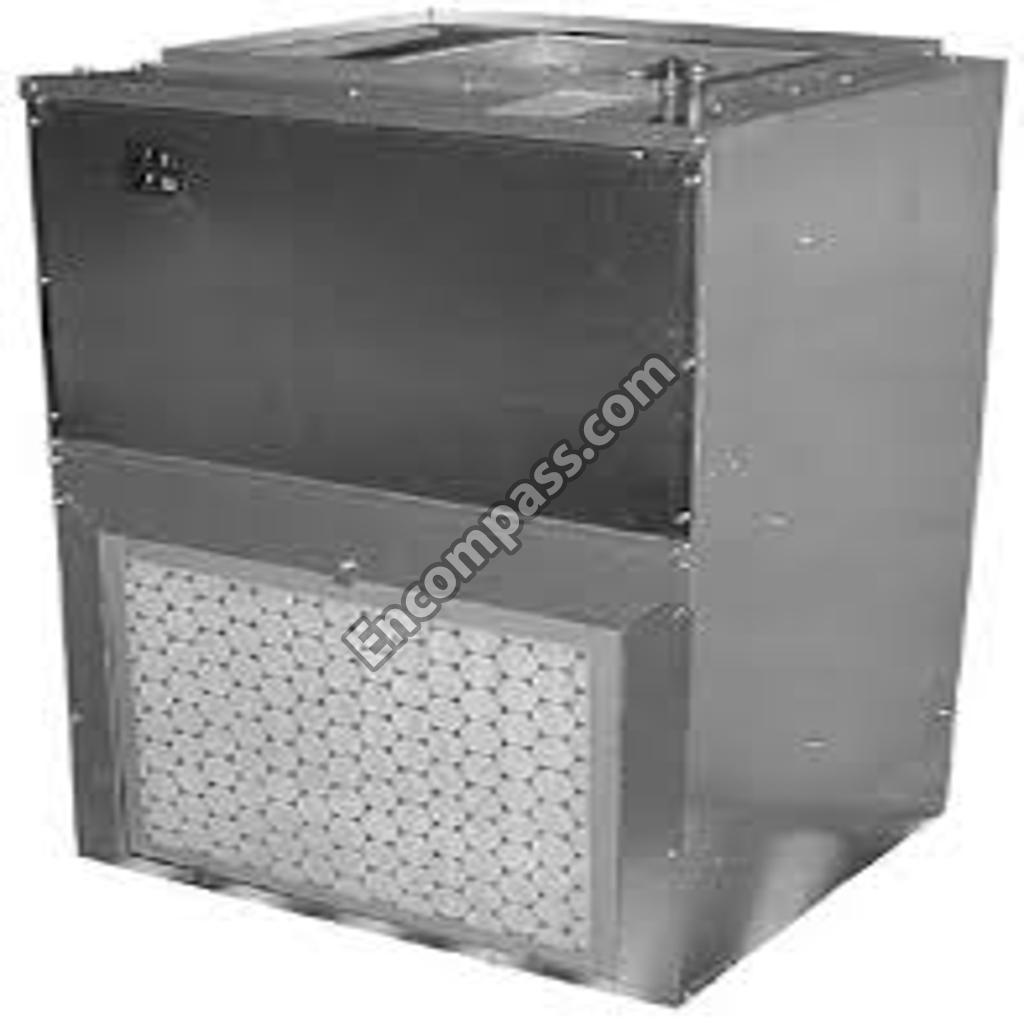

AWB3005CD
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY, 5 KW HEATER SML |
|
|
BLOWER ANGLE 6.063-INCH |
|
|
BLOWER ANGLE 9-INCH |
|
|
BLOWER DECK |
|
|
BLOWER HOUSING ASSY |
|
|
BLOWER MOTOR, 1/3HP, 2SP, 6PL |
|
|
BLOWER WHEEL 10 X 6 |
|
|
BRACKET, OFFSET |
|
|
CAPACITOR, 7.5/370 |
|
|
CENTER TIE PLATE SML |
|
|
CIRCUIT BREAKER 60 AMP WITH CLIP |
|
|
DRAIN PAN SML |
|
|
ELECTRICAL JUNCTION BOX |
|
|
FILTER OFFSET BRACKET SML |
|
|
FLOWRATOR .010 |
|
|
GUTTER RAIL, LEFT SML |
|
|
GUTTER RAIL, RIGHT SML |
|
|
HANGING BRACKET SML |
|
|
HANGING BRACKET, FIELD |
|
|
HEATER COLLAR |
|
|
HEATER ELEMENT, 4.8 KW |
|
|
HEATER MOUNTING PANEL |
|
|
INSTALLATION INSTRUCTIONS |
|
|
INSULATED ASSY, BOTTOM TIE PANEL |
|
|
INSULATED ASSY, DRAIN ACCESS PANEL |
|
|
INSULATED ASSY, FRONT ACCESS PANEL |
|
|
INSULATED ASSY, LOWER FRONT PANEL |
|
|
INSULATED ASSY, TOP PANEL |
|
|
INSULATED ASSY, WRAPPER |
|
|
PRIMARY LIMIT |
|
|
REPAIR PARTS MANUAL |
|
|
SECONDARY THERMAL OVERLOAD |
|
|
SEQUENCER, 5KW |
|
|
SMALL DRAIN PAN ASSY |
|
|
THERMAL LIMIT |
|
|
TIME DELAY RELAY |
|
|
TRANSFORMER, 208/230V TO 24V |
|
|
TUBING ASSY, EVAP COIL |
|
|
WARRANTY |
