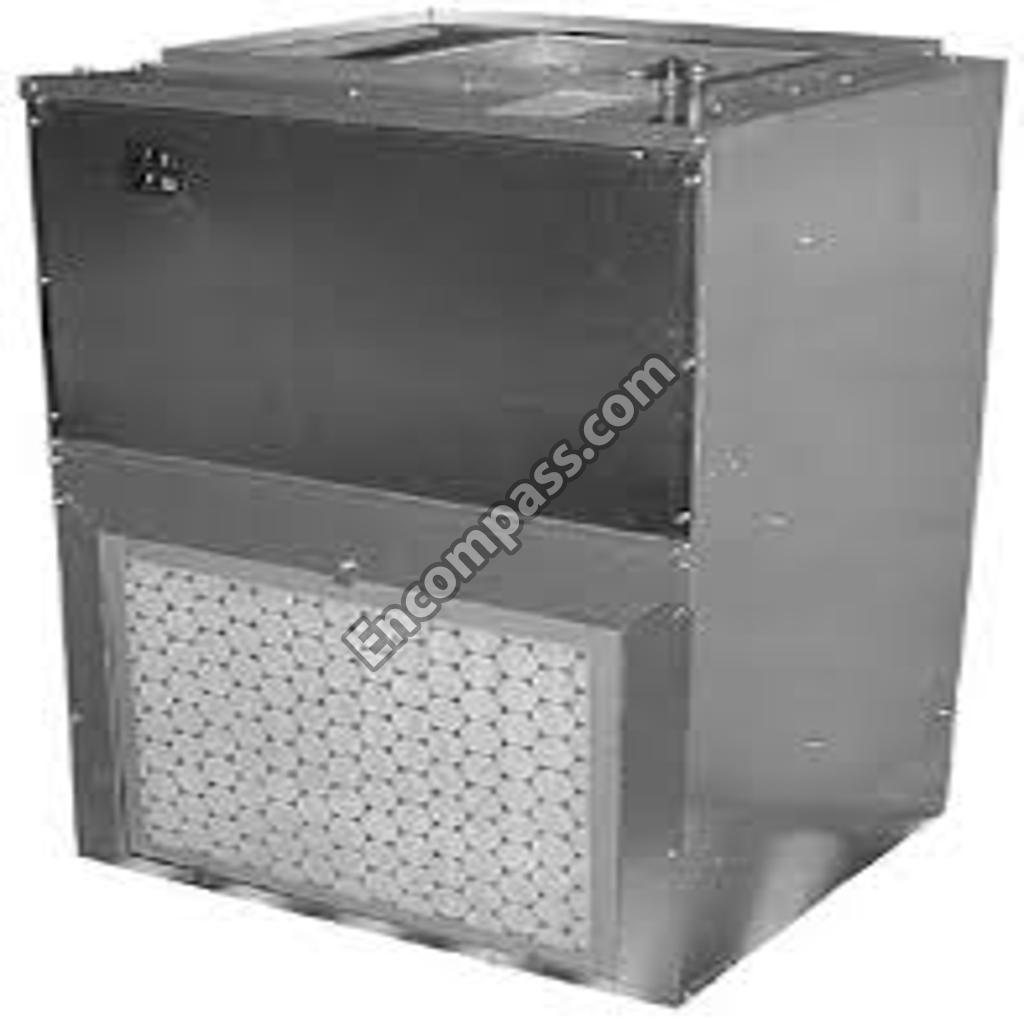

Model Image
Manufacturer

Goodman

Model Number

AWB3608CB

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
B1370738 B1370738 24V TIME DELAY RELAY
BT1420028 BT1420028 ASM, HEATER SMALL 3KW
3702705 3702705 BLOWER ANGLE 10-INCH
3702702 3702702 BLOWER ANGLE 6.063-INCH
3702701 3702701 BLOWER ANGLE 8.531-INCH
3702700 3702700 BLOWER ANGLE 9-INCH
3701004 3701004 BLOWER DECK
3701005 3701005 BLOWER DECK
3760202S 3760202S BLOWER HOUSING
3760200S 3760200S BLOWER HOUSING ASSY
BT1340031S BT1340031S BLOWER MOTOR 1/3 HP, 2 SP, 6 PL
BT1340030 BT1340030 BLOWER MOTOR 1/5 HP, 2 SP, 6 PL
BT1368008 BT1368008 BLOWER WHEEL 10 X 6
B1368036S B1368036S BLOWER WHEEL 9 X 8
3701805 3701805 BRACKET, OFFSET
CAP075000370VAS CAP075000370VAS CAPACITOR BLOWER
BT9458003 BT9458003 CAPACITOR, 7.5/370
3702300 3702300 CENTER TIE PLATE
3702302 3702302 CENTER TIE PLATE SML
CBK2PD240VA060S CBK2PD240VA060S CIRCUIT BREAKER 60 AMP ITE
BT1753508 BT1753508 CIRCUIT BREAKER 60 AMP WITH CLIP
3770028 3770028 DRAIN PAN LARGE
BT3076501 BT3076501 DRAIN PAN LRG
BT3076500 BT3076500 DRAIN PAN SML
3700806 3700806 ELECTRICAL JUNCTION BOX
3700808 3700808 ELECTRICAL JUNCTION BOX
3701803 3701803 FILTER OFFSET BRACKET
3701802 3701802 FILTER OFFSET BRACKET SML
3701202 3701202 FILTER SUPPORT QTY 2
BT1369009 BT1369009 FLOWRATOR .009
BT1369011 BT1369011 FLOWRATOR .011
3701232 3701232 GUTTER RAIL, LEFT LRG
3701225 3701225 GUTTER RAIL, LEFT SML
3701231 3701231 GUTTER RAIL, RIGHT LRG
3701224 3701224 GUTTER RAIL, RIGHT SML
3702500 3702500 HANGING BRACKET LRG
3702501 3702501 HANGING BRACKET SML
3702800 3702800 HANGING BRACKET, FIELD
3701522 3701522 HEATER COLLAR
3701507 3701507 HEATER COLLAR
BT1420019 BT1420019 HEATER ELEMENT, 7.3 KW
3700805 3700805 HEATER MOUNTING PANEL
3700807 3700807 HEATER MOUNTING PANEL
IO-177D IO-177D INSTALLATION INSTRUCTIONS
3770017 3770017 INSULATED ASSY, BOTTOM TIE PANEL
3770018 3770018 INSULATED ASSY, BOTTOM TIE PANEL
3770021 3770021 INSULATED ASSY, DRAIN ACCESS PANEL
3770022 3770022 INSULATED ASSY, DRAIN ACCESS PANEL
3770015 3770015 INSULATED ASSY, FRONT ACCESS PANEL
3770016 3770016 INSULATED ASSY, FRONT ACCESS PANEL
3770019 3770019 INSULATED ASSY, LOWER FRONT PANEL
3770020 3770020 INSULATED ASSY, LOWER FRONT PANEL
3770013 3770013 INSULATED ASSY, TOP PANEL
3770014 3770014 INSULATED ASSY, TOP PANEL
3770011 3770011 INSULATED ASSY, WRAPPER
3770012 3770012 INSULATED ASSY, WRAPPER
BT1243744 BT1243744 PRIMARY THERMAL OVERLOAD
RP-305A RP-305A REPAIR PARTS MANUAL
RP-305B RP-305B REPAIR PARTS MANUAL
BT1243745 BT1243745 SECONDARY THERMAL OVERLOAD
3770027 3770027 SMALL DRAIN PAN ASSY
BT1243753 BT1243753 THERMAL LIMIT
BT1370700 BT1370700 TIME DELAY RELAY
B1141643 B1141643 TRANSFORMER 208/230, 24V
BT1141601 BT1141601 TRANSFORMER, 208/230V TO 24V
3796009S 3796009S TUBING ASSY, EVAP COIL
