Manufacturer
Goodman
Model Number
CKL301G
Description

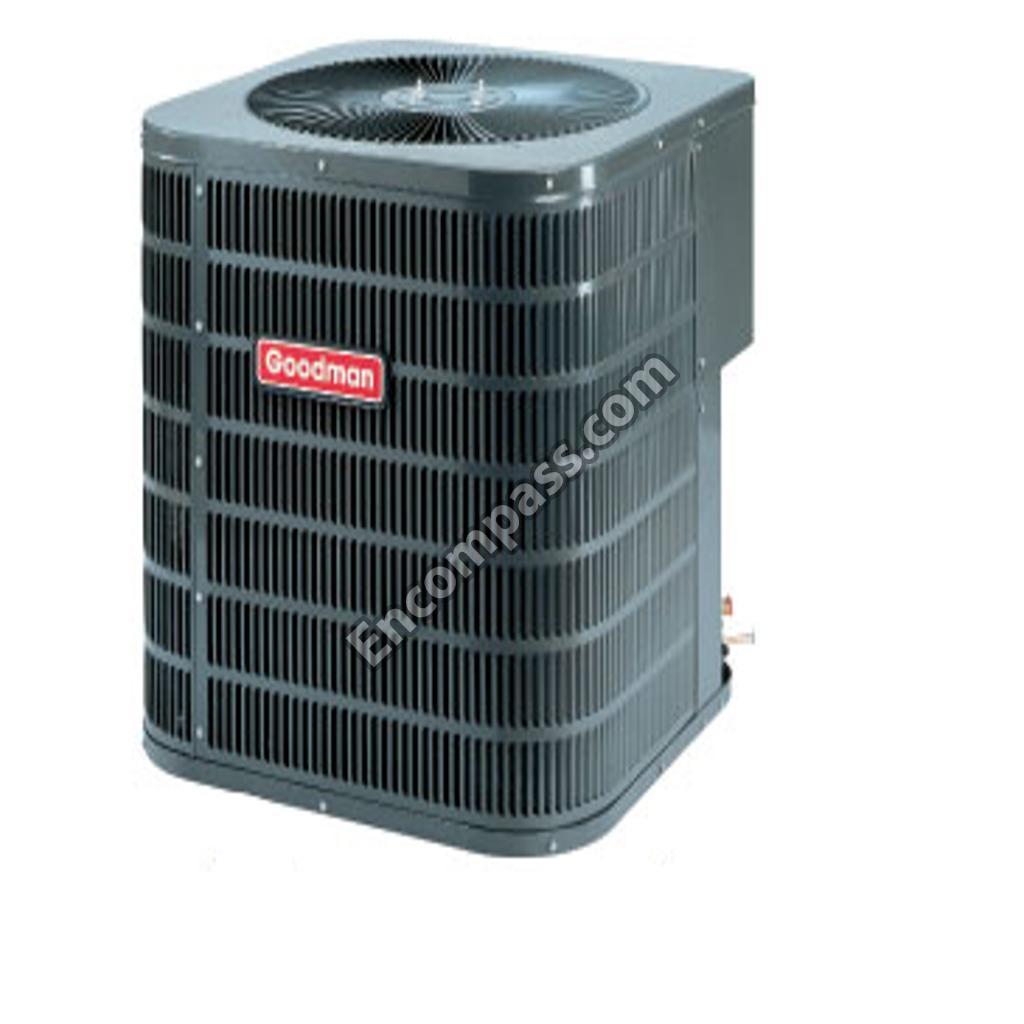

Air Conditioner Condenser
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
3/8 SERVICE VALVE |
|
|
ACCESS PANEL 22.5-INCH |
|
|
BASE PAN |
|
|
CAPACITOR 35U/5U/370V |
|
|
CAPACITOR STRAP |
|
|

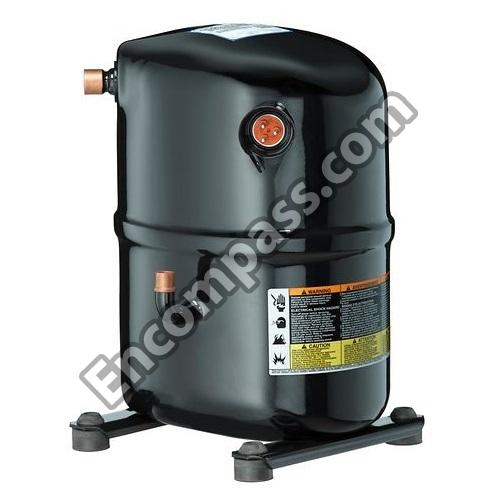

COMPRESSOR 28200, 208/230/60/1 |
|
|
COMPRESSOR BOLT SLEEVE ASSY |
|
|
COMPRESSOR GROMMET |
|
|
CONTACTOR 25 AMP, 1P, 24V |
|
|
CONTROL BOX COVER |
|
|
CRATED SERVICE COIL W/FILTER DRIER |
|
|
FAN BLADE 18-INCH X-SERIES |
|
|
INSTALLATION INSTRUCTIONS |
|
|
LOUVERED PANEL, 22.5-INCH SINGLE PIECE |
|
|
MOTOR, 1/6 HP, 230V, 1.3 FLA |
|
|
NAME PLATE |
|
|
REPAIR PARTS MANUAL |
|
|
SINGLE-FLOW FILTER DRIER, STEEL |
|
|
TOP PANEL |
|
|
VALVE, SERVICE 3/4-INCH OPEN |
