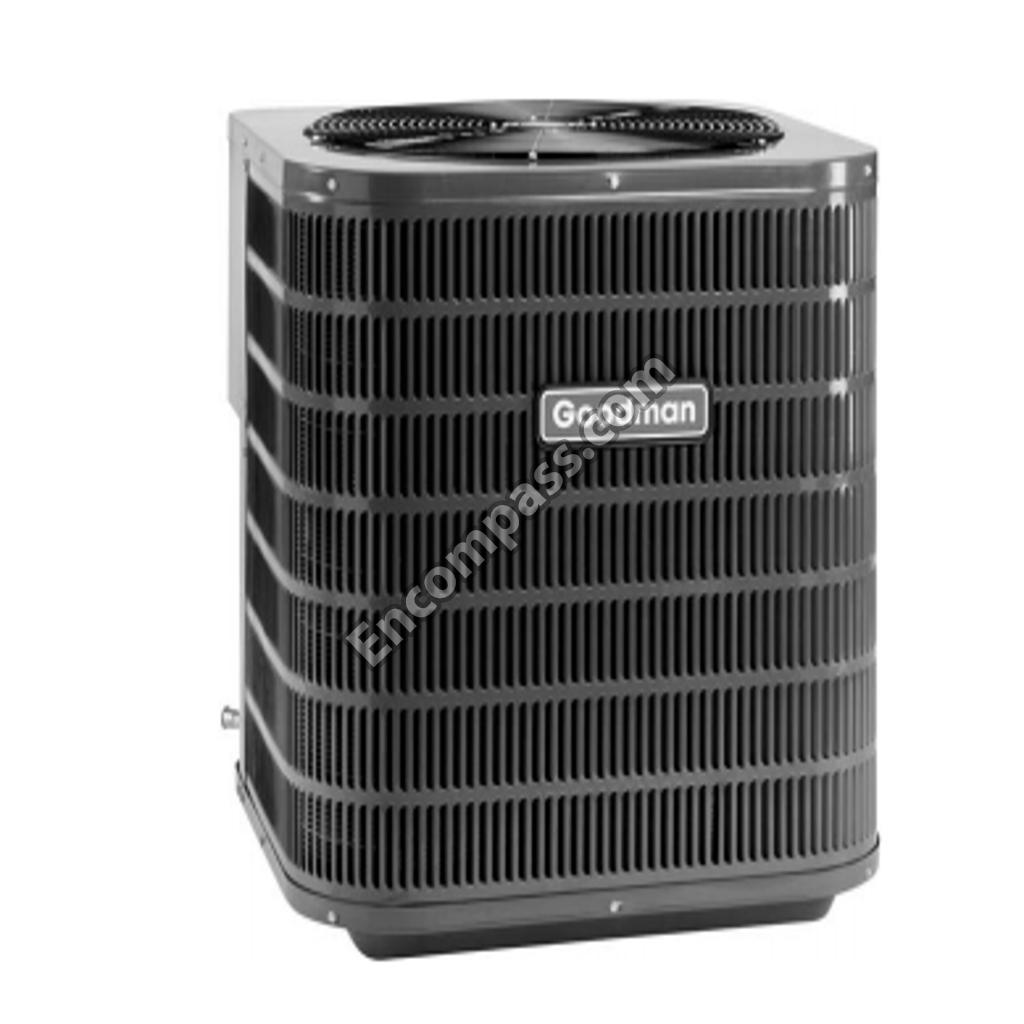

Manufacturer
Goodman
Model Number
CLT241
Description
Air Conditioner Condenser
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
30-120F AUTO LIMIT SWITCH |
|
|
350F M/R SPST ROLLOUT SWITCH |
|
|
ACCESS PANEL 25-INCH |
|
|
BASE VALVE, LIQUID LINE 3/8-INCH X 5/16-INCH |
|
|
BOTTOM PAN LARGE |
|
|
CAPACITOR 35U/5U/370V |
|
|
CAPACITOR DUAL SECTION, 25 MFD, 5 MFD, 370 VAC |
|
|
COMPRESSOR BOLT |
|
|
COMPRESSOR GROMMET |
|
|
COMPRESSOR H29B24UABCA |
|
|
COMPRESSOR SOUND BLANKET |
|
|
CONTACTOR, 25 FLA, 125 LRA, 1 POLE |
|
|
CONTROL BOX COVER |
|
|
CONTROL PANEL |
|
|
CRATED COND. SERVICE COIL W/ FILTER DRIER |
|
|
FAN BLADE TYPE 2 |
|
|
FAN MOTOR 208/230-60V-1, 1 SPEED, 840 RPM, 1/6 HP |
|
|
INSTALLTION AND OPERATION MANUAL |
|
|
LOUVER PANEL, 25.0-INCH HAIRPIN SIDE |
|
|
LOUVERED PANEL, RETURN SIDE |
|
|
PRODUCT WARRANTY |
|
|
SINGLE-FLOW FILTER DRIER, STEEL |
|
|
SPECIFICATION SHEET |
|
|
SPRAY PAINT HIGH GLOSS BAHAMA BEIGE |
|
|
START ASSIST |
|
|
TOP PANEL, LOUVERED |
|
|
VALVE CORE |
|
|
VALVE, SERVICE 3/4-INCH |
