Manufacturer

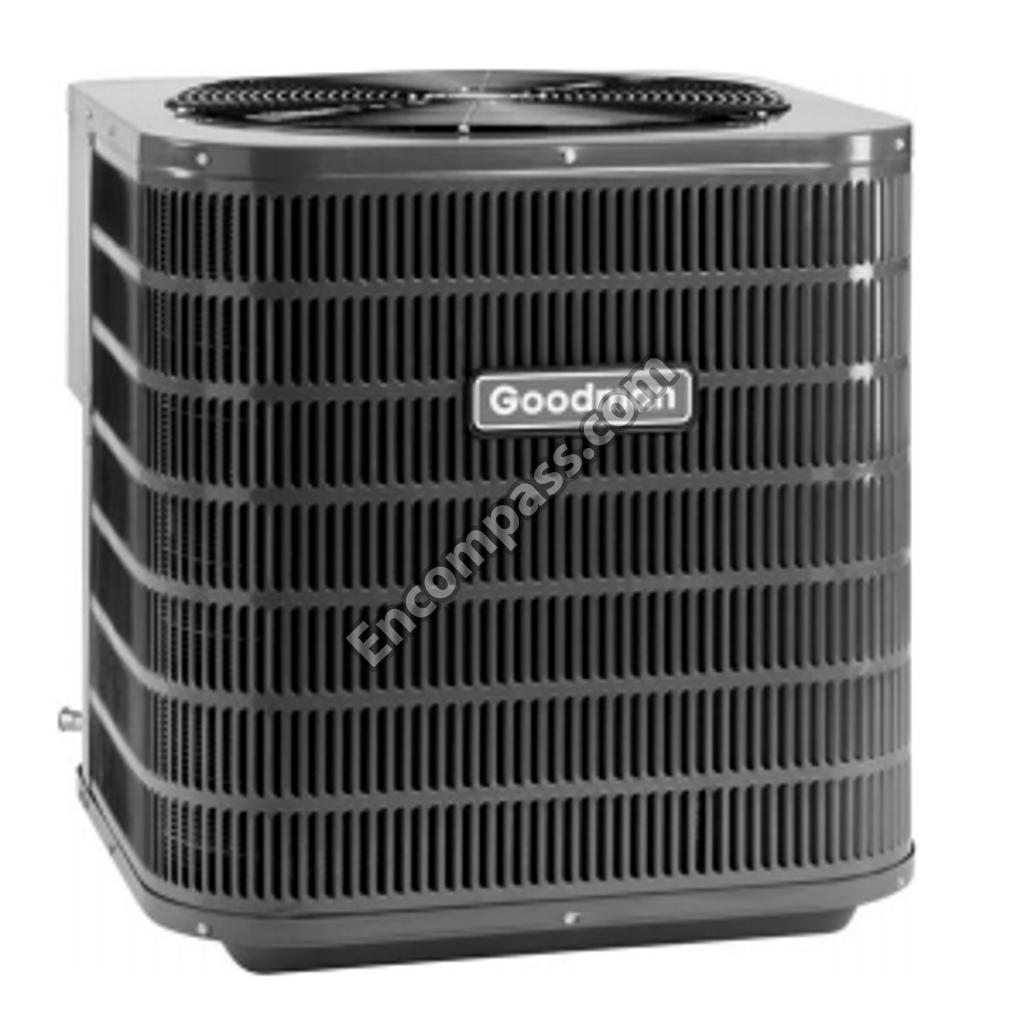

Goodman
Model Number
CLT361B
Description
Split-system Condensing Unit
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
3/8 SERVICE VALVE |
|
|
ACCESS PANEL, 30.0-INCH UNIT |
|
|
BASE PAN |
|
|
CAPACITOR DUAL SECTION, 45 MFD, 5 MFD, 370 VAC |
|
|
CAPACITOR STRAP |
|
|
COMPRESSOR 32600, 208/230/60/1 |
|
|
COMPRESSOR BOLT |
|
|
COMPRESSOR GROMMET |
|
|
COMPRESSOR SOUND BLANKET |
|
|
CONTACTOR, 25 FLA, 125 LRA, 1 POLE |
|
|
CONTROL BOX COVER |
|
|
CONTROL PANEL |
|
|
CRATED COND. SERVICE COIL W/ FILTER DRIER |
|
|
FAN BLADE TYPE 3 |
|
|
FAN GRILL GUARD, LARGE |
|
|
FAN MOTOR 208/230-60V-1, 1 SPEED, 830 RPM, 1/4 HP CCW |
|
|
INSTALLTION AND OPERATION MANUAL |
|
|
LOUVERED PANEL, HAIRPIN SIDE |
|
|
LOUVERED PANEL, RETURN SIDE |
|
|
MANUAL, REPAIR PARTS |
|
|
PRODUCT WARRANTY |
|
|
SINGLE-FLOW FILTER DRIER, STEEL |
|
|
SPECIFICATION SHEET |
|
|
SPRAY TOUCH-UP PAINT, ARCH. GRAY DARK |
|
|
SUCTION BASE VALVE 3/4-INCH X 3/4-INCH |
|
|
TOP PANEL, 29-INCH |
|
|
VALVE CORE |
