Manufacturer
Goodman
Model Number
CLT601
Description

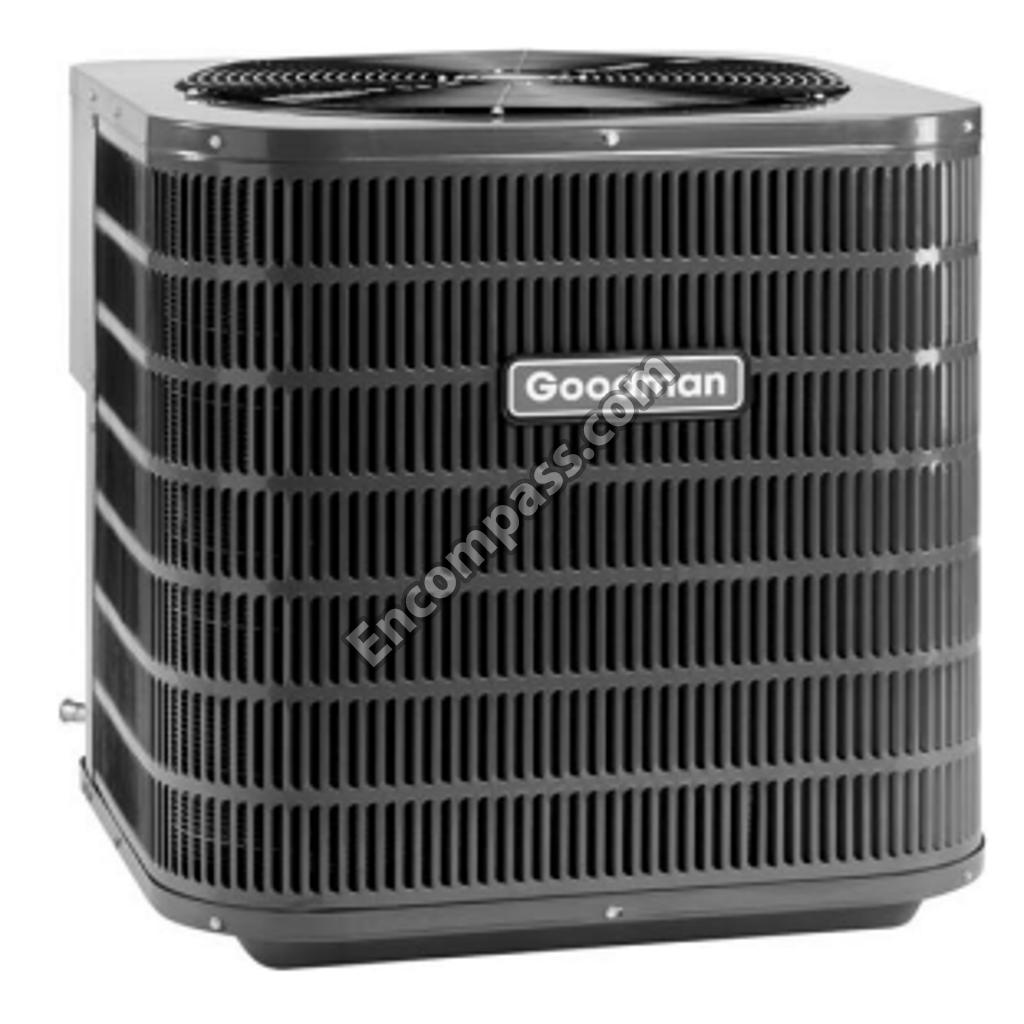

Air Conditioner Condenser
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

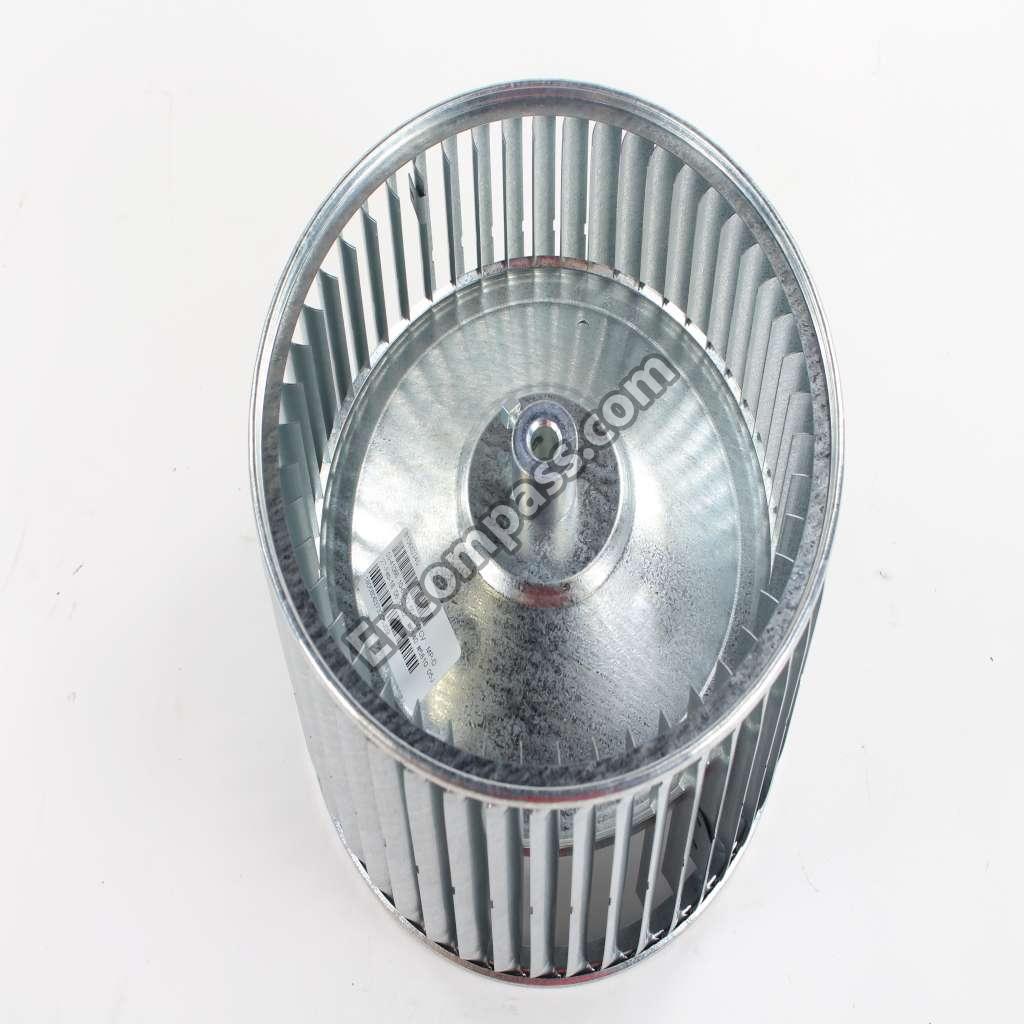

10-INCH X 6-INCH BLOWER WHEEL CW |
|
|
7/8 SERVICE VALVE |
|
|
ACCESS PANEL 40-INCH |
|
|
BASE VALVE, LIQUID LINE 3/8-INCH X 5/16-INCH |
|
|
BOTTOM PAN LARGE |
|
|
CAPACITOR 60/5/440 |
|
|
COMPRESSOR 49800, 208/230/60/1 |
|
|
COMPRESSOR BOLT |
|
|
COMPRESSOR GROMMET |
|
|
COMPRESSOR SOUND BLANKET |
|
|
CONTACTOR, 40 AMP, 24V, 2 POLE |
|
|
CONTROL BOX COVER |
|
|
CONTROL PANEL |
|
|
CRATED COND. SERVICE COIL W/ FILTER DRIER |
|
|
FAN BLADE TYPE 3 |
|
|
FAN GRILLE GUARD, LRG |
|
|
FAN MOTOR 208/230-60V-1, 1 SPEED, 830 RPM, 1/4 HP CCW |
|
|
INSTALLTION AND OPERATION MANUAL |
|
|
LOUVER PANEL, 40.0-INCH RETURN SIDE |
|
|
LOUVERED PANEL, HAIRPIN SIDE |
|
|
PRODUCT WARRANTY |
|
|
SINGLE-FLOW FILTER DRIER, STEEL |
|
|
SPECIFICATION SHEET |
|
|
SPRAY PAINT HIGH GLOSS BAHAMA BEIGE |
|
|
TOP PANEL |
|
|
VALVE CORE |
