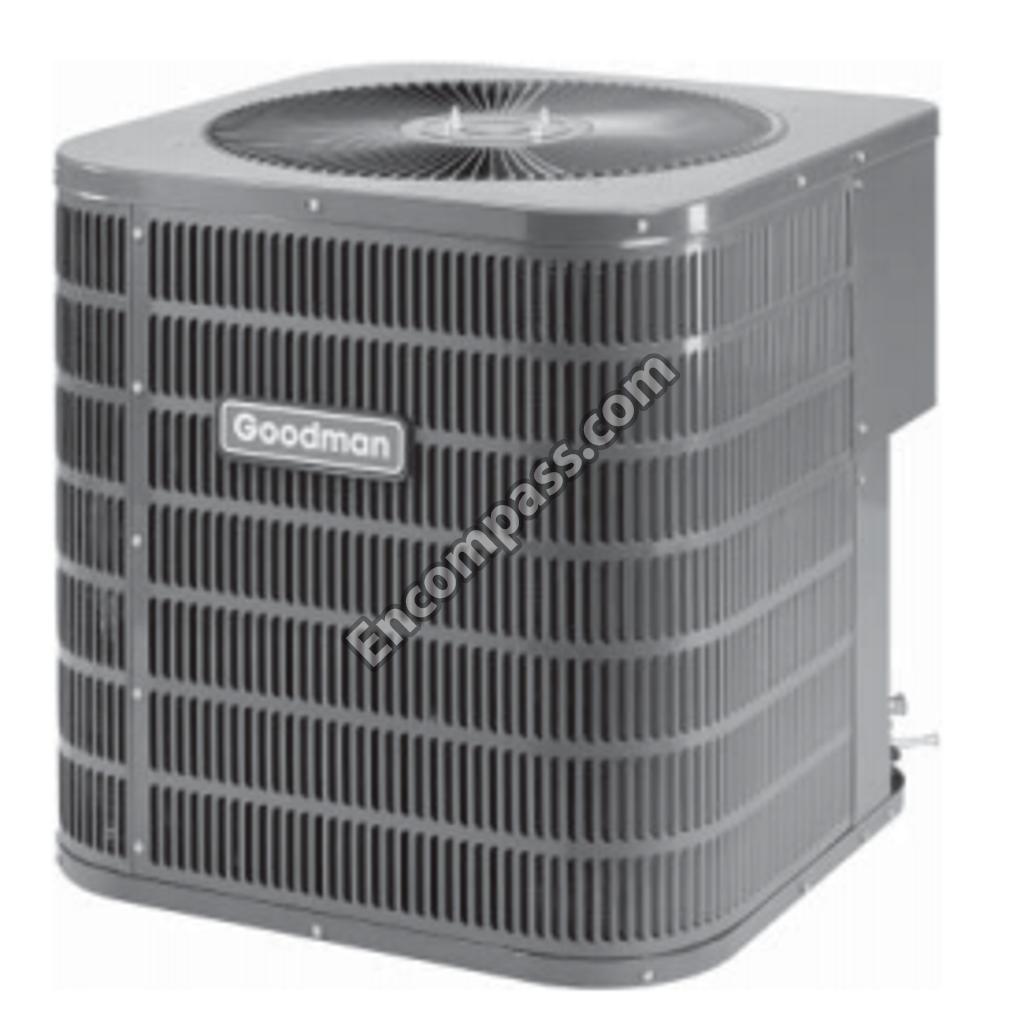

Manufacturer
Goodman
Model Number
CPLJ241B
Description
Heat Pump
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
3/8 SERVICE VALVE |
|
|
ACCESS PANEL 27.5-INCH |
|
|
ACCUMULATOR |
|
|
BASE PAN |
|
|
BI-FLOW FILTER DRIER |
|
|
CAPACITOR DUAL SECTION, 30 MFD, 5 MFD, 370 VAC |
|
|
COMPRESSOR GROMMET |
|
|
COMPRESSOR H25B20QABCA |
|
|
CONTACTOR, 25 FLA, 125 LRA, 1 POLE |
|
|
CONTROL BOX COVER |
|
|
CONTROL PANEL |
|
|
CRATED SERVICE COIL W/FILTER DRIER |
|
|
CUT-OUT SWITCH, LOW PRESSURE |
|
|
DEFROST CONTROL W/RELAY |
|
|
DEFROST THERMOSTAT |
|
|
FAN BLADE 22-INCH, 3 BLADE, 24 |
|
|
FAN MOTOR 208/230-60V-1, 1 SPEED, 840 RPM, 1/6 HP |
|
|
FLOW CHECK PISTON KIT .059 |
|
|
FLOWRATOR .043 |
|
|
INSTALLATION OWNERS MANUAL |
|
|
LOUVERED PANEL, HAIRPIN SIDE |
|
|
LOUVERED PANEL, RETURN SIDE |
|
|
MUFFLER, 3/8-INCH X 3/8-INCH |
|
|
PANEL, TOP |
|
|
REPAIR PARTS MANUAL |
|
|
REVERSING VALVE |
|
|
SOLENOID COIL CORD W/1/4-INCHTERMINAL |
|
|
SPRAY TOUCH-UP PAINT, ARCH. GRAY DARK |
|
|
SUCTION BASE VALVE 3/4-INCH X 3/4-INCH |
|
|
VALVE CORE |
