Manufacturer
Goodman
Model Number
DHS80453AXA
Description

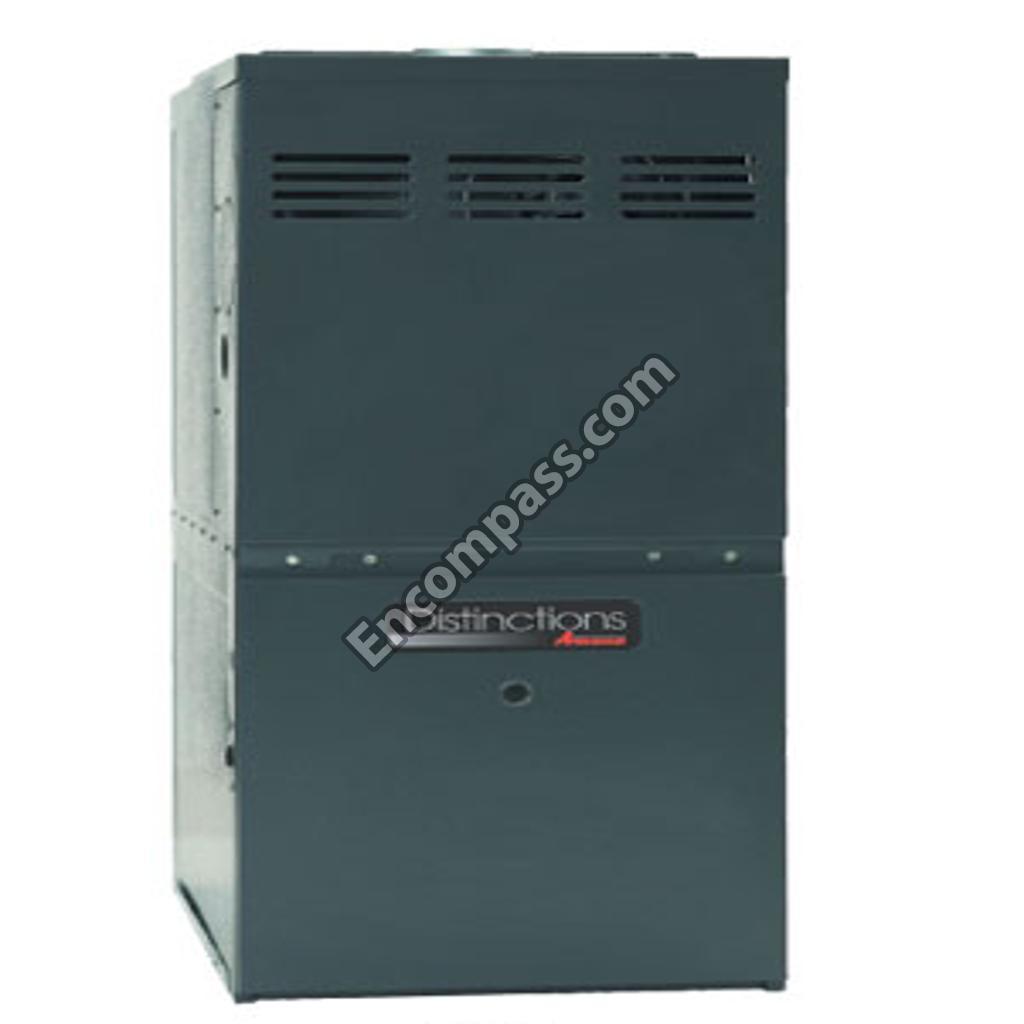

Gas Furnace
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACCESS DOOR 14-INCH |
|
|
AUXILIARY LIMIT SWITCH 120 F |
|
|
BLOWER CUT-OFF 10 X 6 |
|
|
BLOWER DOOR ASSY 14-INCH |
|
|
BLOWER SHELL ASSY 10 X 6 |
|
|
BLOWER WHEEL 10 X 6 |
|
|
BURNER BOX TOP 2 CELL |
|
|
BURNER RACK 2 CELL |
|
|
CAPACITOR, 20/370 MFD |
|
|
CHIMNEY ASSEMBLY |
|
|
CONTROL MOUNT PANEL |
|
|
FLAME SENSOR |
|
|
FLUE COLLECTOR BOX 14.0-INCH, 1.500 MOD A |
|
|
GAS MANIFOLD 2 CELL |
|
|
GAS VALVE |
|
|
GROMMET, 26TAL F/TORSIN FLEX |
|
|
H.S.I. BOARD, 12-PIN |
|
|
HOMEOWNER'S INSTRUCTIONS |
|
|
IGNITOR |
|
|
INSERT-MESH TUBES, 5 CELL |
|
|
INSHOT BURNER ASSY 3-INCH |
|
|
INSTALLATION AND OPERATION MANUAL |
|
|
J-BOX COVER |
|
|
JUNCTION BOX |
|
|
MACHINE SCREW, 1/4-20 TYPE F SLOTTED |
|
|
MOTOR, DIRECT DRIVE 1/2 HP |
|
|
ORIFICE |
|
|
ORIFICE SHIELD 2 CELL |
|
|
PRESSURE SWITCH 0.60-INCH WC |
|
|
PRESSURE SWITCH HOSE |
|
|
PRIMARY LIMIT SWITCH 190 F |
|
|
PRODUCT WARRANTY |
|
|
REPAIR PARTS LIST |
|
|
ROLLOUT SWITCH BRACKET |
|
|
ROLLOUT SWITCH, 300 W/O BRACKET |
|
|
SIDE PLATE, BURNER BOX |
|
|
SPECIFICATION SHEET |
|
|
SPRAY TOUCH-UP PAINT, ARCH. GRAY DARK |
|
|
SPRAY TOUCH-UP PAINT, EXEC. GRAY LIGHT |
|
|
SUB-ASSY, HEAT EXCHANGER 2 CELL, 14.0-INCH |
|
|
TECHNICAL MANUAL |
|
|
TOP, PAINTED, 14-INCH |
|
|
TRANSFORMER 120V TO 24V, 40 VA |
|
|
VENT MOTOR 80 |
|
|
VENT MOTOR GASKET 14-INCH |
|
|
VIEW PORT BUSHING-BLOWER DOOR |
|
|
WRAPPER/INSULATION ASM.,14-INCH |
