Manufacturer
Goodman
Model Number
GDT1155
Description

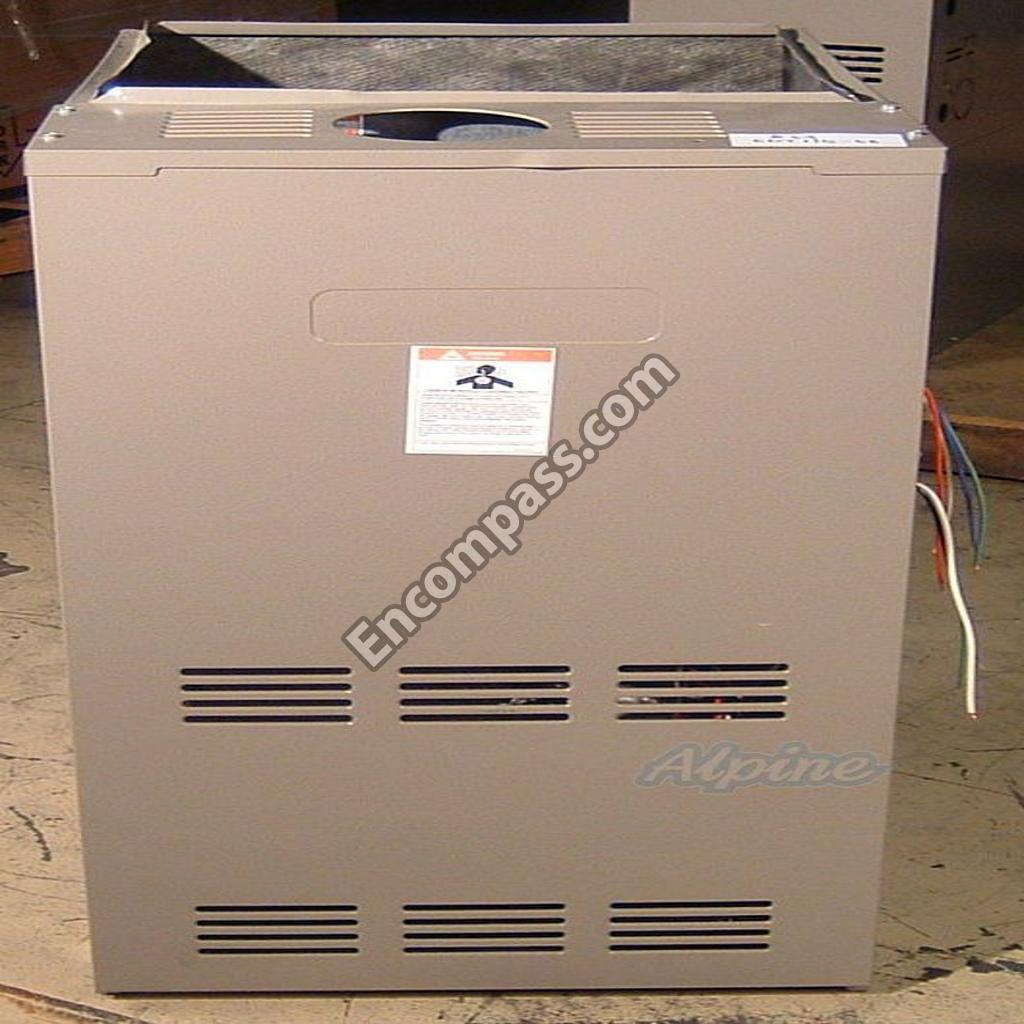

Gas Furnace
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
16 PIN LOW VOLT WIRE HARNESS |
|
|

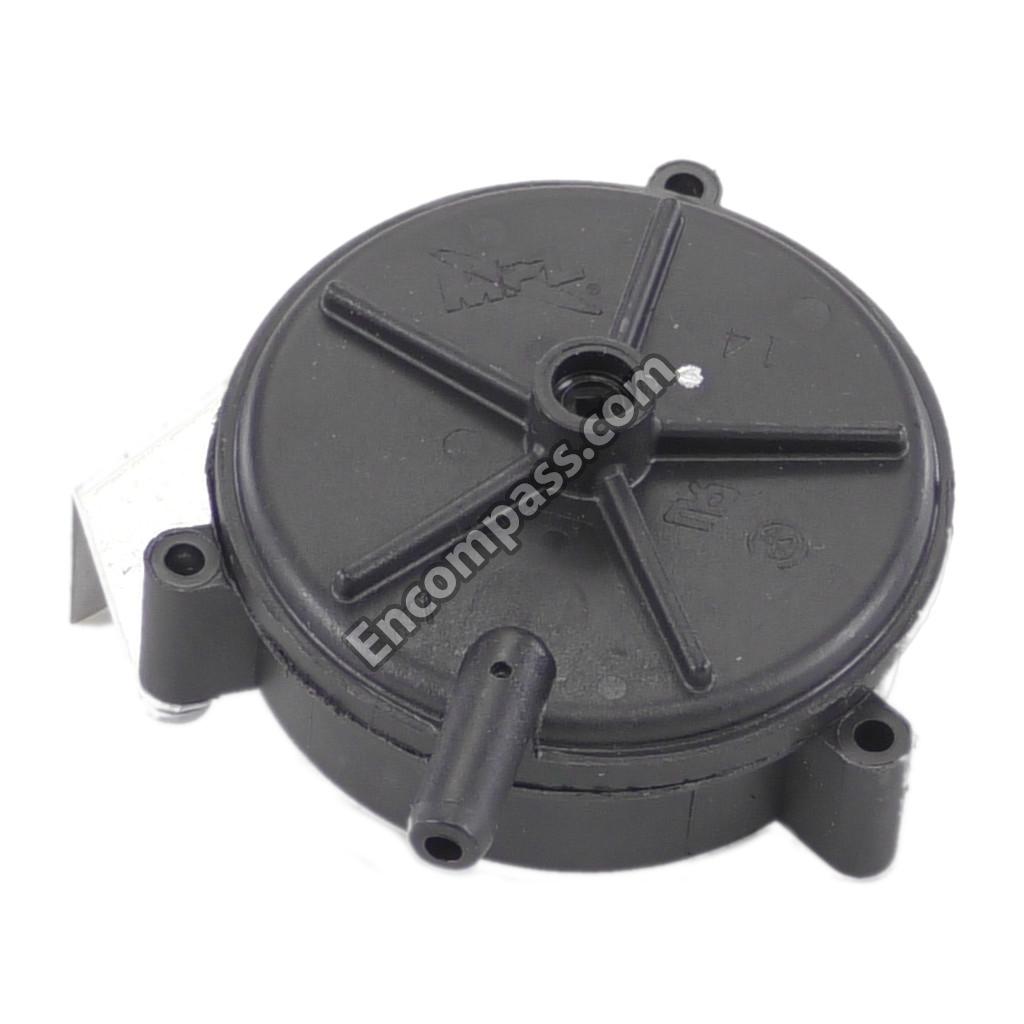

AIR PRESSURE SWITCH, .85-INCH WC |
|
|
ASSY, FLUE COLLECTOR BOX 21-INCH 2.00-INCH |
|
|
AUXILIARY LIMIT SWITCH 120 F |
|
|
BLOWER BLOCK-OFF 10 X 10 |
|
|
BLOWER MOTOR 1/2 HP, DIRECT DRIVE |
|
|
BLOWER SHELL ASSY 10 X 10 |
|
|
BLOWER WHEEL 10 X 10 |
|
|
BURNER BOX TOP, 5 CL QTY 2 |
|
|
BURNER RACK 5 CELL |
|
|
CAPACITOR 10/370V BLOWER |
|
|
CAPACITOR STRAP |
|
|
CHIMNEY TRANSITION TOP |
|
|
CONTROL ACCESS DOOR DOWNFLOW 21-INCH |
|
|
COVER PLATE |
|
|
DOOR SWITCH |
|
|
FLAME SENSOR |
|
|
GAS MANIFOLD, 5 CL |
|
|
GAS ORIFICE, #43 |
|
|
GAS VALVE 36G |
|
|
GOODMAN B1401012 BURNER - IGNITOR |
|
|
GOODMAN NAMEPLATE |
|
|
HIGH VOLTAGE WIRE HARNESS |
|
|
HOMEOWNER INSTRUCTIONS ALL MO |
|
|
HSI BOARD W/9-PIN CONNECTOR |
|
|
IGNITOR |
|
|
INNER BLOWER DOOR 21-INCH |
|
|
INSHOT BURNER ASSY 3-INCH |
|
|
INSTALLATION INSTRUCTIONS |
|
|
J-BOX COVER |
|
|
JUNCTION BOX |
|
|
LIGHTING INSTRUCTIONS, W/36G |
|
|
MOTOR MOUNT BAND |
|
|
MOTOR MOUNTING ARM |
|
|
ORIFICE |
|
|
ORIFICE SHIELD 5 CELL |
|
|
PRESSURE SWITCH HOSE |
|
|
PRIMARY LIMIT SWITCH 220 F |
|
|
ROLLOUT SWITCH BRACKET |
|
|
ROLLOUT SWITCH, 300 W/O BRACKET |
|
|
SEAL STRIP, 1/8 X 1/2 X 21 |
|
|
SEAL STRIP, RED, 1/8 X 1/2 X 100 |
|
|
SIDE PLATE, BURNER BOX |
|
|
SPECIAL INSTR., 36G VALVE |
|
|
SUB-ASSY, HEAT EXCHANGER 5 CELL 21-INCH |
|
|
SUPPLEMENT |
|
|
TOP 21-INCH |
|
|
TRANSFORMER 120V TO 24V, 40 VA |
|
|
VENT MOTOR |
|
|
WIRE HARNESS, BLOWER |
|
|
WIRE HARNESS, HEAT EXCHANGER |
|
|
WIRE HARNESS, HSI CONNECT |
|
|
WIRE HARNESS, HSI MODULE |
|
|
WRAPPER/ INSULATION ASSY 21-INCH |
