Manufacturer
Goodman
Model Number
GMES800804CXAA
Description

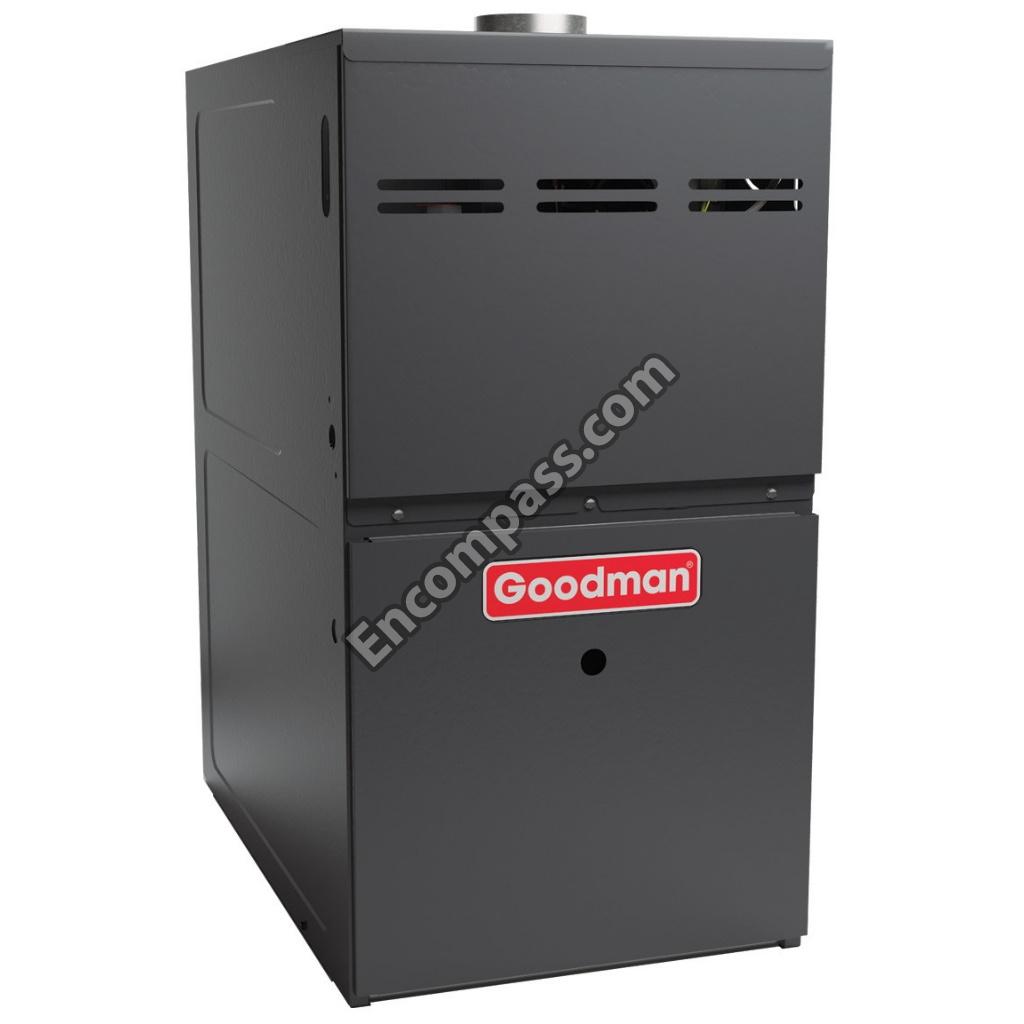

Gmes 80% High Efficient Furnace
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
21" COLLECTOR BOX 1.75" DIA |
|
|
AUX LIMIT - LT BLUE 120 |
|
|
BLOWER BLOCK-OFF 10 X 10 |
|
|
BLOWER HOUSING 10 X 10 |
|
|
BURNER RACK, 4 CELL |
|
|
CHIMNEY TRANSITION BOTTOM |
|
|
CHIMNEY TRANSITION TOP |
|
|
CIRCUIT BOARD |
|
|
CNTRL MT PNL |
|
|
COVER, J-BOX |
|
|
DOOR CTRL ACCESS, 21"-PAINTED |
|
|
DOOR, BLOWER, 21"-PAINTED |
|
|
FLAME SENSOR |
|
|
GAS VALVE |
|
|
GASKET-21 INCH |
|
|
HARNESS, WIRE ASSY 12 PIN (80% |
|
|
HEAT EXCHANGER ASSY |
|
|
HEX HEAD ALL THREAD TAP BOLT |
|
|
INSHOT BURNER ASSY 3" (QTY 2) |
|
|
INTERLOCK SWITCH |
|
|
J-BOX |
|
|
LIMIT |
|
|
LOCKNUT NYLON INSERT 1/4,20 |
|
|
MANIFOLD |
|
|
MANUAL RESET R.O.S. LIMIT (QTY 2) |
|
|
MOTOR X-13, BLOWER 3/4 H.P. |
|
|
MOTOR, PROGRAM-X13 |
|
|
MOTOR, VENT 80+ |
|
|
MOUNT ARM, MOTOR (HEAVY DUTY) (QTY 3) |
|
|
MOUNT BAND, MOTOR (HEAVY DUTY) |
|
|
NAMEPLATE, GOODMAN |
|
|
ORIFICE (QTY 2) |
|
|
ORIFICE PLATE, 4 CELL |
|
|
SCREW-TC 1.25" (QTY 3) |
|
|
SIDE PLATE BURNER BOX (QTY 2) |
|
|
SINI IGNITOR |
|
|
SWITCH, PRESSURE |
|
|
TOP, BURNER BOX 4 CELL |
|
|
TOP, FURNACE 21"-PAINTED |
|
|
TRANSFORMER,(120V TO 24V,40VA) |
|
|
UNIVERSAL BUSHING WITH SLICE |
|
|
VENT MOTOR CAPACITOR |
|
|
VIEW PORT BUSHING-BLOWER DOOR |
|
|
WASHER FLAT 1/4 ID X 1OD (QTY 3) |
|
|
WHEEL, BLOWER (10 X 10) |
|
|
WIRE HARNESS ASSY, IGNITOR |
|
|
WIRE KIT ASSY. |
|
|
WIRING HARNESS |
