Manufacturer
Goodman
Model Number
GMPE0753
Description

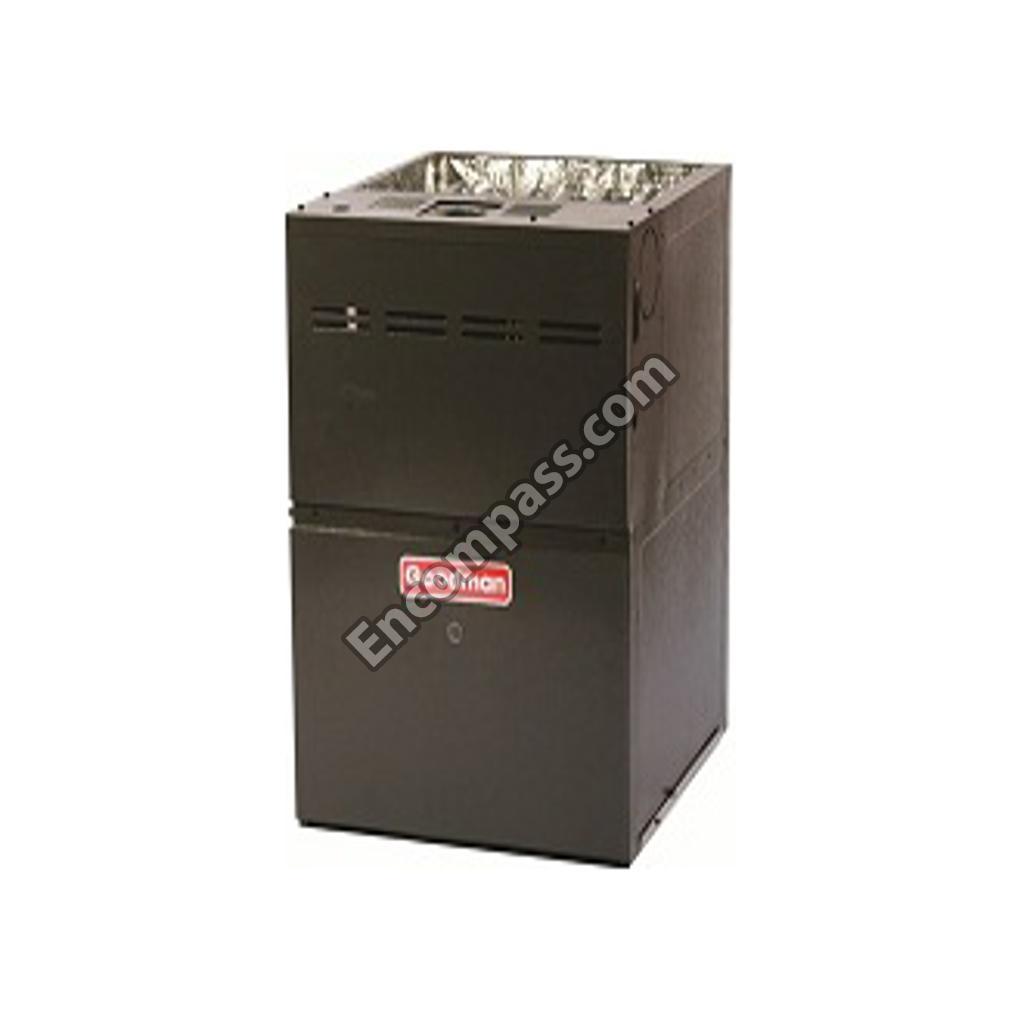

Gas Furnace
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
160F-40F AUTO SPST LIMIT |
|
|
2-PIN WIRE HARNESS ASSY-GMPN |
|
|
24V RELAY |
|
|
24V SWITCHING RELAY |
|
|
42 ORIFICE |
|
|
AUXILIARY LIMIT AUTO RESET |
|
|
AUXILIARY LIMIT SWITCH 120 F |
|
|
BLOWER ACCESS DOOR 17.5-INCH |
|
|
BLOWER MOTOR 1/2 HP |
|
|
BLOWER SHELL ASSY 10 X 8 |
|
|
BLOWER WHEEL 10 X 8 |
|
|
BURNER BOX TOP 3 CELL |
|
|
BURNER RACK 3 CELL |
|
|
BURNER RACK ASSY 3 CELL |
|
|
CHIMNEY ASSEMBLY |
|
|
CONTROL ACCESS DOOR 17.5-INCH 50 HZ |
|
|
CONTROL MOUNT PANEL |
|
|
DOOR CATCH |
|
|
DOOR STRIKE |
|
|
DOOR SWITCH |
|
|
DUCT ANGLE 17.5-INCH |
|
|
ECM MTR POWER HARNESS |
|
|
END BELL ASSY |
|
|
EVAPORATOR DRAIN FITTING |
|
|
FLAME SENSOR |
|
|
FLUE COLLECTOR BOX 17.5-INCH |
|
|
FLUE RESTRICTOR PLATE 1.688 DIA |
|
|
GAS VALVE - WHITE-RODGERS 2-STAGE |
|
|
HEAT EXCH. SUB ASM. 3 CELL |
|
|
HSI BOARD W/9-PIN CONNECTOR |
|
|
IGNITOR |
|
|
INSHOT BURNER ASSY 3-INCH |
|
|
INSTALLATION INTRUCTIONS |
|
|
J-BOX COVER |
|
|
J-BOX OBSOLETE |
|
|
LIGHTING INSTRUCTIONS, W/36G |
|
|
MANIFOLD - 3 BRNR |
|
|
MANUAL RESET LIMIT HEAT EXCHANGER |
|
|
MANUAL RESET LIMIT-GREEN |
|
|
MOTOR MOUNT ARM |
|
|
MOTOR MOUNT BAND |
|
|
PRESSURE SWITCH |
|
|
PRESSURE SWITCH HOSE |
|
|
PRIMARY LIMIT SWITCH 170 F |
|
|
REPAIR PARTS MANUAL |
|
|
ROLL OUT SWITCH, 350 W/O BRKT. |
|
|
SIDE PLATE, BURNER BOX |
|
|
SPECIAL INSTR., 36G VALVE |
|
|
SPECIAL INSTRUCTIONS-GMPE |
|
|
TERMINAL BOARD |
|
|
TOP PANEL 17.5-INCH |
|
|
TRANSFORMER 120V TO 24V, 40 VA |
|
|
USERS MANUAL |
|
|
VENT MOTOR HOUSING GMP |
|
|
VIEW PORT BUSHING-BLOWER DOOR |
|
|
WIRE HARNESS KIT |
|
|
WIRE HARNESS, HIGH VOLTAGE |
|
|
WIRE HARNESS,GMPE GV-3PIN |
|
|
WRAPPER 17.5-INCH |
