Manufacturer
Goodman
Model Number
GMPN0603
Description

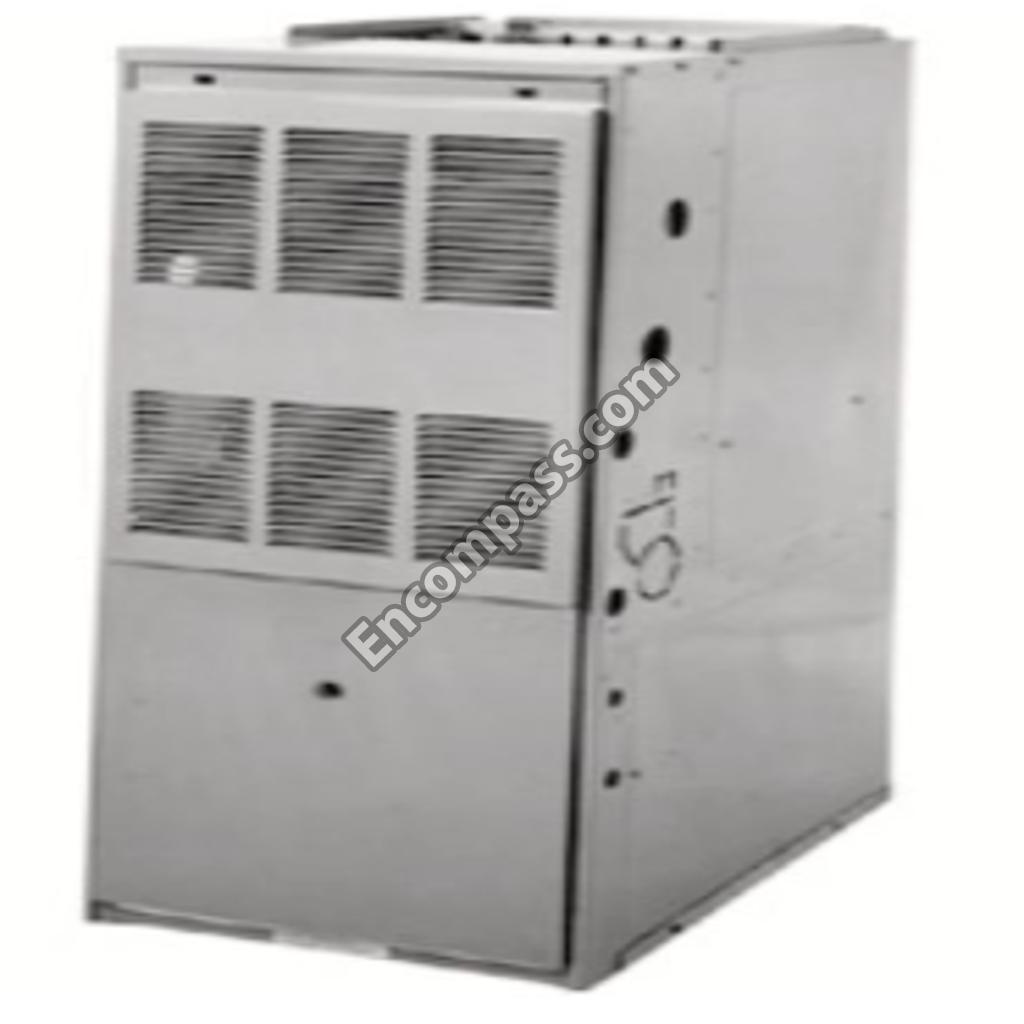

Gas Furnace
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
0.85-INCHPF SPST PRESSURE SWITCH |
|
|
1/3HP DIRDRIVE115V1050RPM 3SP |
|
|
115V 1/2HP 1075RPM 3SPD MOTOR |
|
|
115V 3/4HP 1075RPM MOTOR |
|
|
140-170F AUTO LIMIT SWITCH |
|
|
3-CELL BURNER KIT |
|
|
4-CELL MANIFOLD |
|
|
45 ORIFICE |
|
|
6-CELL BURNER KIT |
|
|
ATTACHMENT GASKET, 3 CELL |
|
|
AUXILIARY LIMIT BRACKET |
|
|
BLOWER ACCESS DOOR 14-INCH |
|
|
BLOWER CUT-OFF 10 X 6 |
|
|
BLOWER HOUSING 10 X 6 |
|
|

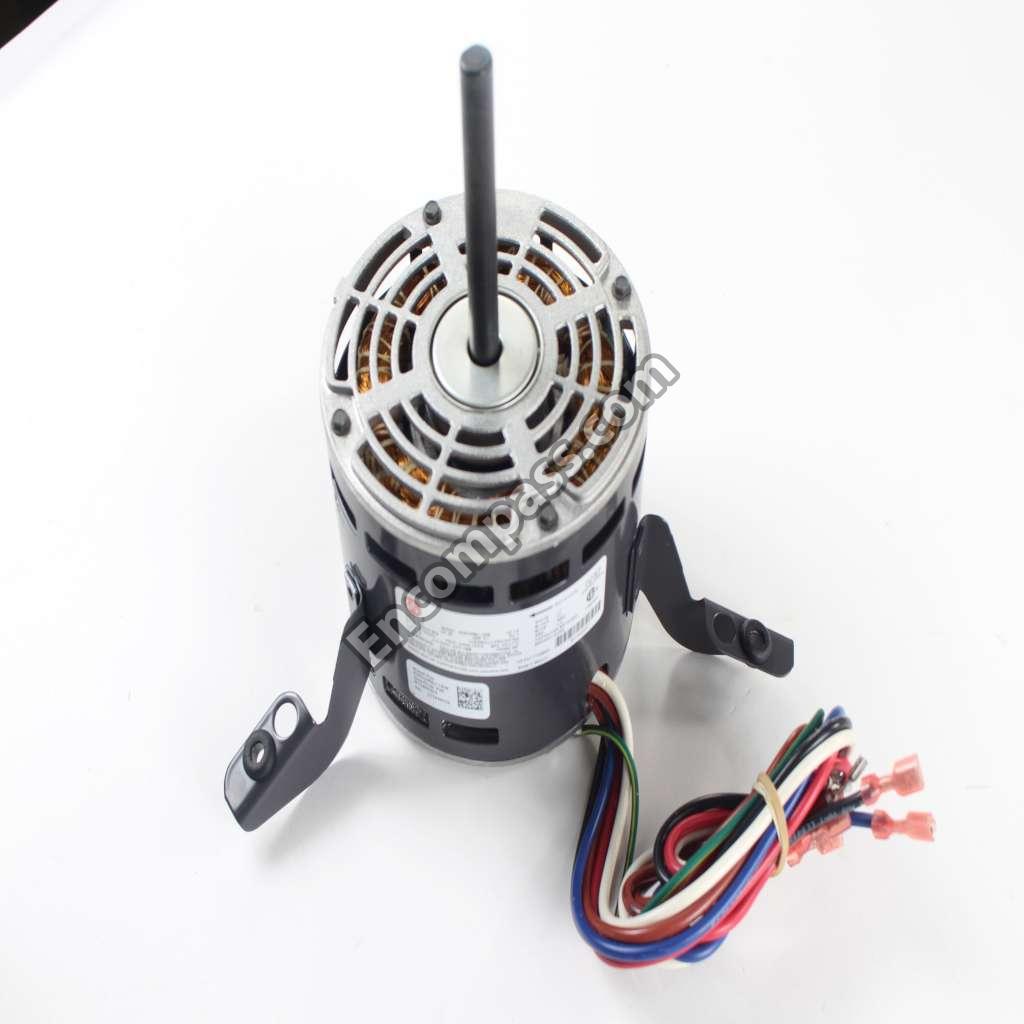

BLOWER MOTOR 1/3 HP, DIRECT DRIVE |
|
|
BLOWER WHEEL 10 X 6 |
|
|
BURNER BOX TOP 3 CELL |
|
|
BURNER RACK 3 CELL |
|
|
BURNER RACK, 3 CELL |
|
|
CAP, 12.5 MFD/370V/ RD |
|
|
COIL/LOWER INNER FRONT GASKET |
|
|
COLLECTOR BOX ASSY |
|
|
CONTROL ACCESS DOOR 14-INCH |
|
|
CONTROL MOUNT PANEL |
|
|
DOOR CATCH |
|
|
DOOR STRIKE |
|
|
DOOR SWITCH |
|
|
DRAIN TRAP ASSY |
|
|
DRAIN TRAP HOSE KIT 14-INCH |
|
|
DUCT ANGLE 14-INCH OBSOLETE |
|
|
FLAME SENSOR |
|
|
FLAME SENSOR |
|
|
FLAME SENSOR |
|
|
FLUE COLLECTOR BOX |
|
|
FLUE COLLECTOR BOX |
|
|
FLUE COLLECTOR BOX, 14-INCH, GMN |
|
|
FLUE COLLECTOR GASKET |
|
|
FLUE COLLECTOR GASKET 14-INCH |
|
|
FLUE RESTRICTOR PLATE |
|
|
FLUE RESTRICTOR PLATE 1.252 DIA |
|
|
GAS VALVE |
|
|
GOODMAN 2820006S FLUE COLLECTOR BOX 21-INCH |
|
|
GOODMAN 4022702S BURN.RACK ASM.4 CELL,SERVICE |
|
|
HEAT EXCH. SUB ASM. 3 CELL |
|
|
HOMEOWNER INSTRUCTIONS ALL MO |
|
|
HOT SURFACE IGNITOR |
|
|
HSI BOARD W/9-PIN CONNECTOR |
|
|
INSHOT BURNER ASSY 3-INCH |
|
|
INST OPER INSTRUCTION, GMPN |
|
|
J-BOX COVER |
|
|
J-BOX OBSOLETE |
|
|
L160-30F AUTO LIMIT SWITCH |
|
|
LIGHTING INSTRUCTIONS, W/36G |
|
|
LOWER INNER FRONT, 3 CELL |
|
|
MANIFOLD - 3 BRNR |
|
|
MOTOR MOUNT ARM |
|
|
O RING 2.25 X .156 |
|
|
PRESSURE SWITCH |
|
|
PRESSURE SWITCH HOSE |
|
|
PRIMARY HEAT EXCHANGER |
|
|
PRIMARY LIMIT SWITCH 160 F |
|
|
ROLL OUT SWITCH, 350 W/O BRKT. |
|
|
SECONDARY HEAT EXCHANGER |
|
|
SECONDARY HEAT EXCHANGER |
|
|
SECONDARY HEAT EXCHANGER COIL 14-INCH |
|
|
SIDE PLATE, BURNER BOX |
|
|
SPECIAL INSTR., 36G VALVE |
|
|
STACK OVERTEMP SWITCH |
|
|
TOP PANEL DOWNFLOW 14-INCH |
|
|
TRANSFORMER 120V TO 24V, 40VA |
|
|
VENT MOTOR |
|
|
VIEW PORT BUSHING-BLOWER DOOR |
|
|
WIRE KIT, GMPN DIRECT |
|
|
WRAPPER TOGGLE-LOC ASM., PAINT |
