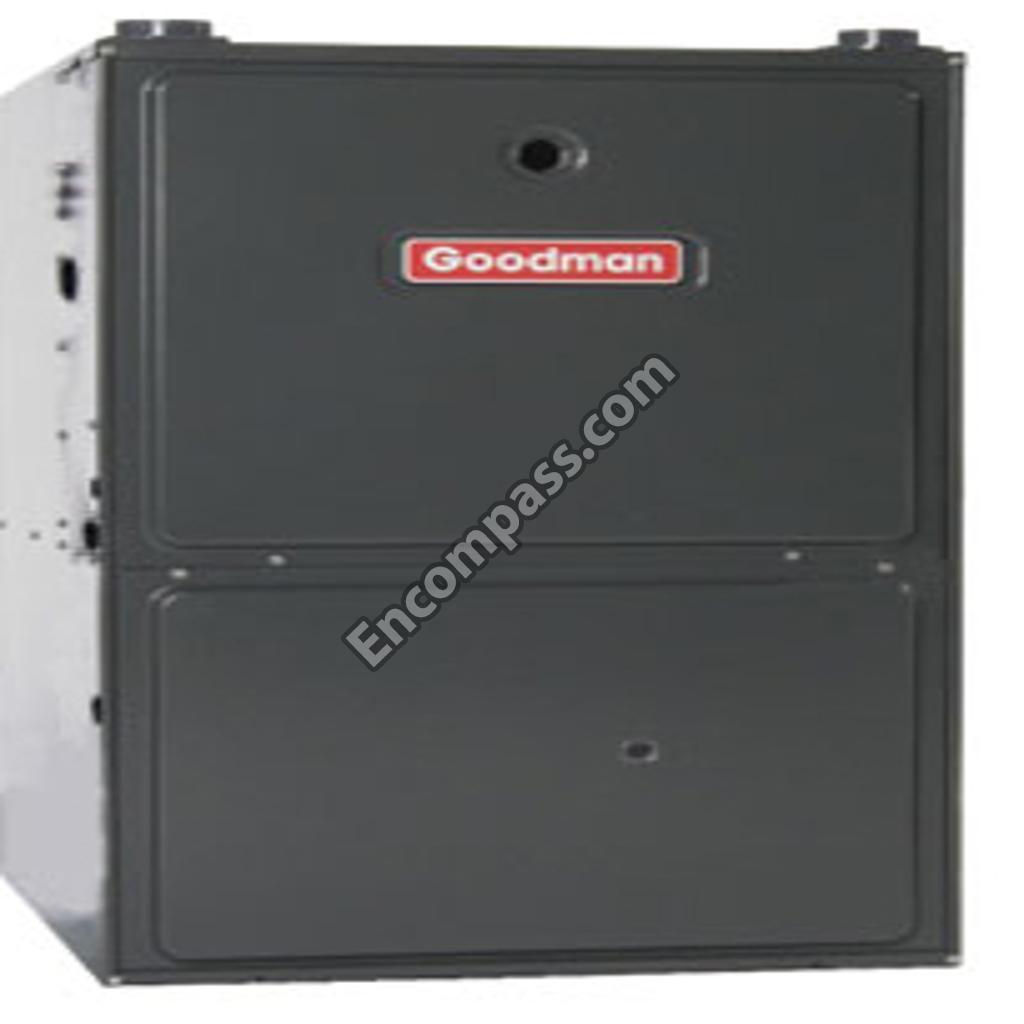

Model Image
Manufacturer

Goodman

Model Number

GMS950703BXA

Description

Gas Furnace

Interactive Exploded View

Parts List

Part Number Description
B2810816 B2810816 2-INCH MESH INSERT
B2810814 B2810814 3-INCH MESH INSERT
10861101 10861101 AUXILIARY LIMIT BRACKET
20273208 20273208 BACK PANEL
20273407 20273407 BASEPAN
10735102 10735102 BECKETT BURNER
764740F 764740F BLOWER BLOCK-OFF 10 X 8
0271F00000P 0271F00000P BLOWER HOUSING ASSY 10 X 8
B1368058 B1368058 BLOWER WHEEL 10 X 8
10736102 10736102 BOX-HIGH VOLT
20190411 20190411 BURNER BRACKET 3B
A4554801 A4554801 BUSHING-SNAP
M0571002 M0571002 BUSHING-SNAP
M0310345 M0310345 BUTTON PLUG
M0570806 M0570806 BUTTON PLUG
M0570807 M0570807 BUTTON PLUG
M0570808 M0570808 BUTTON PLUG
D6879756 D6879756 CAPACITOR
M0119205 M0119205 CLAMP-HOSE GREEN
M0119207 M0119207 CLAMP-HOSE RED
0154F00000P 0154F00000P COIL GASKET
0121F00025P 0121F00025P CONTROL BRACKET
20049701 20049701 COUPLING-FA
10254303 10254303 COUPLING-RUBBER
20170806A 20170806A COVER-FRONT
10736201 10736201 COVER-HV BOX
22320001 22320001 DECK GASKET
0121F00018P 0121F00018P DECK RAIL
0121F00014P 0121F00014P DECK, BLOWER
20523902 20523902 DOOR-ACCESS
20524002 20524002 DOOR-BLOWER
20214203 20214203 DRAIN ANGLE
20171701 20171701 DRAIN TRAP
20171802 20171802 ELBOW
20523801 20523801 FILLER PLATE
22309501 22309501 FLUE PIPE
0151M00013S 0151M00013S GAS VALVE 36G
20179308 20179308 GASKET
20194605 20194605 GASKET
20194607 20194607 GASKET
A4691701 A4691701 GROMMET
B1392143 B1392143 GROMMET, 26TAL F/TORSIN FLEX
0257F00051P 0257F00051P HEAT EXCHANGER ASSY 3B
C6415910 C6415910 HEAT EXCHANGER INSULATION
HI-115 HI-115 HOMEOWNER'S INSTRUCTIONS
A3326002 A3326002 HOSE CLAMP
M0119206 M0119206 HOSE CLAMP
22323706 22323706 HOSE, PRESSURE SWITCH 12-INCH SQUARE
20201901 20201901 HOSE-DRAIN
20201902 20201902 HOSE-DRAIN
B1809926 B1809926 HSI BOARD, 12-PIN
22307501 22307501 ID BLOWER
20165703S 20165703S IGNITOR
IO-277A IO-277A INSTALLATION INSTRUCTIONS
22323501 22323501 INSTALLATION-HUMIDIFIER
20006601 20006601 INSULATION
20243503 20243503 INSULATION SIDE
10690402 10690402 INTERLOCK SWITCH
10123535 10123535 LIMIT-RESET MAN AUXILIARY
M0219916 M0219916 MACHINE SCREW
20196402 20196402 MANIFOLD
10123533 10123533 MANUAL RESET LIMIT-YELLOW
B1340025 B1340025 MOTOR, DIRECT DRIVE 1/3 HP
91000301 91000301 NUT-U SPEED

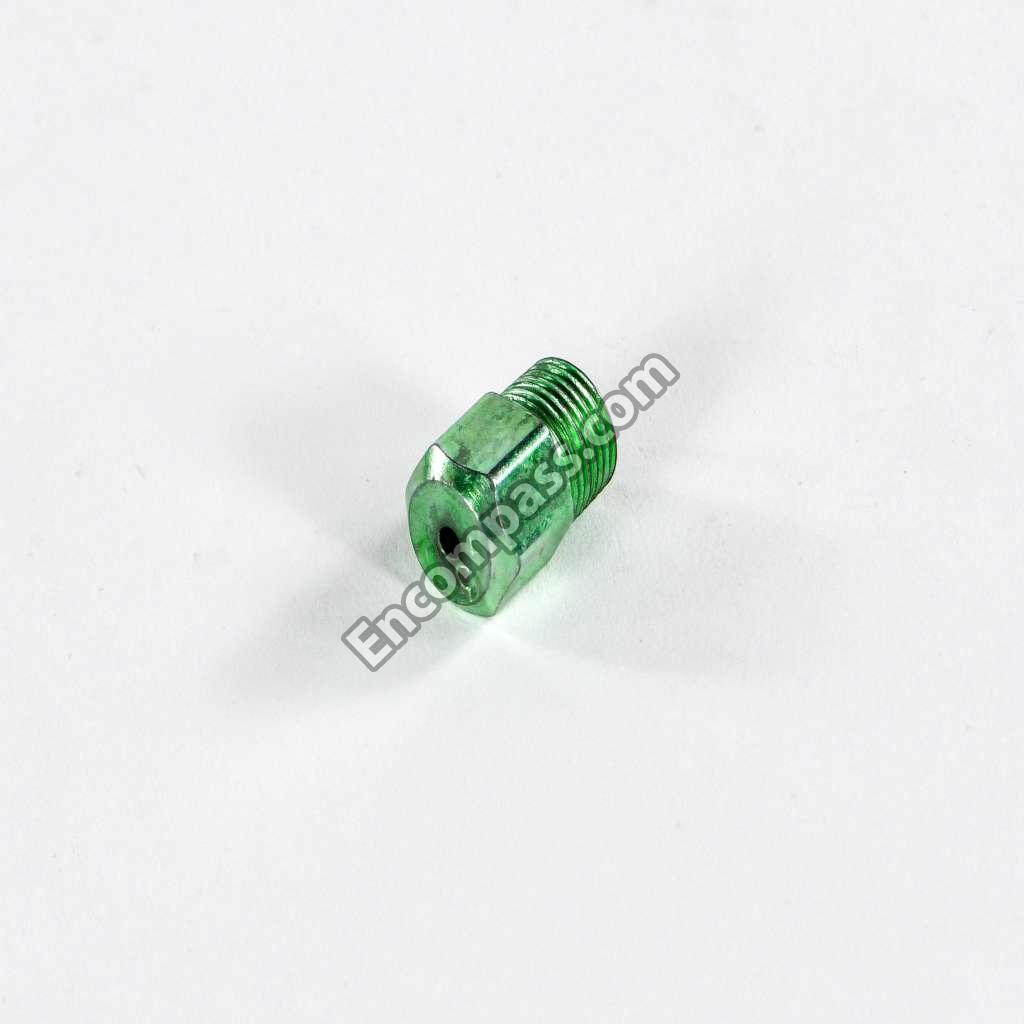

0163F00018 0163F00018 ORIFICE
11072202 11072202 ORIFICE SHIELD
20191402 20191402 PANEL, PART, 3B
0121F00035PDG 0121F00035PDG PANEL-SIDE LH
0121F00033PDG 0121F00033PDG PANEL-SIDE RH
M0501301 M0501301 PIPE GROMMET
B1392021 B1392021 PLASTIC PLUG, 1-INCH 2713-BLK
B9139949 B9139949 PLUG, PLASTIC
20197312 20197312 PRESSURE SWITCH-LIGHT BLUE
0130F00002P 0130F00002P PRESSURE SWITCH-OLIVE
20162903 20162903 PRIMARY LIMIT - BLUE
RP-366 RP-366 REPAIR PARTS MANUAL
M0273904 M0273904 RETAINER-SCREW
B1393509 B1393509 SCREW,HWH,10X3/4,AB,BZ,SLOT
M0204317 M0204317 SCREW-MACHINE
M0211216 M0211216 SCREW-SM
M0219918 M0219918 SCREW-SM 8-5/8
M0211020 M0211020 SCREW-SM 8-7/8
M0227803 M0227803 SCREW-TC
M0275521 M0275521 SEALER-PLASTIC
20488501 20488501 SENSOR-FLAME
11165107 11165107 SHIELD ID BLWR
20191602 20191602 SIDE RAIL
11104002 11104002 SNAP-BUSHING CLR
10195517Q 10195517Q STANDPIPE BAG ASSY
B1393802 B1393802 SUPPORT, 2-WING BOARD, .187 MT
B1393803 B1393803 SUPPORT, SINGLE-WING BOARD .1
M0250558 M0250558 TC SCREW
M0321202 M0321202 TIE-ELEC LG, QTY AR
0270F00100P 0270F00100P TOP COVER ASSY
B1141605 B1141605 TRANSFORMER 120V TO 24V, 40 VA
M0326804 M0326804 TUBE PLUG
B1392139 B1392139 VIEW PORT BUSHING-BLOWER DOOR
20276016 20276016 WIRING HARNESS
