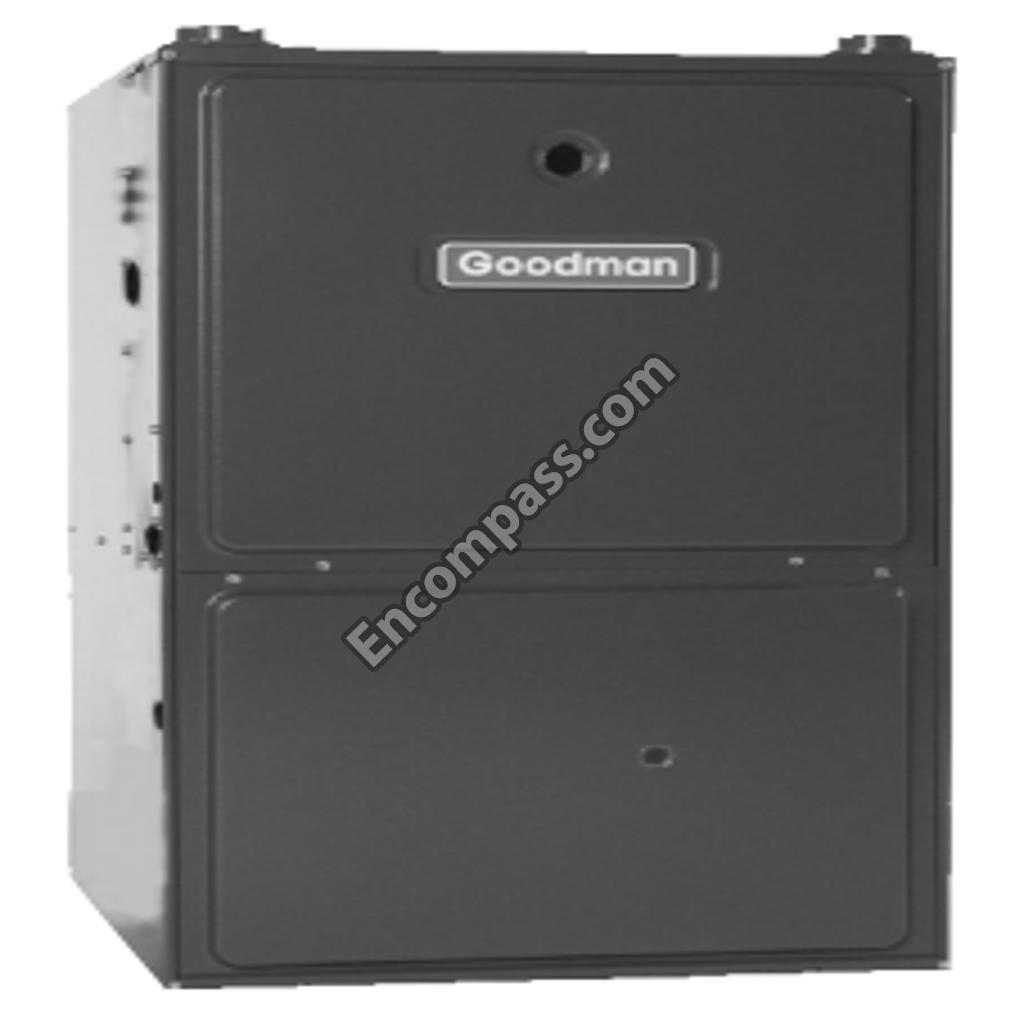

Model Image
Manufacturer

Goodman

Model Number

GMV90704CXA

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
B2810816 B2810816 2-INCH MESH INSERT
B2810814 B2810814 3-INCH MESH INSERT
11185818 11185818 ASSY, BLOWER HOUSING
20494532 20494532 ASSY, HEAT EXCHANGER 3B
20273210 20273210 BACK PANEL
20273409 20273409 BASEPAN
10735102 10735102 BECKETT BURNER
C6121807 C6121807 BLOWER CUT-OFF
20190232 20190232 BLOWER DECK
A4002702 A4002702 BLOWER MOTOR GROMMET
B1368047 B1368047 BLOWER WHEEL 10 X 10
20245903 20245903 BLOWER-I.D.
B1809927S B1809927S BOARD, HSI, 2-STAGE MINI
10736102 10736102 BOX-HIGH VOLT
20191201 20191201 BRACKET-COIL FUR
20190411 20190411 BURNER BRACKET 3B
A4554801 A4554801 BUSHING-SNAP
M0570808 M0570808 BUTTON PLUG
M0570807 M0570807 BUTTON PLUG
M0570806 M0570806 BUTTON PLUG
M0119205 M0119205 CLAMP-HOSE GREEN
M0119207 M0119207 CLAMP-HOSE RED
0154F00001P 0154F00001P COIL GASKET
20218901 20218901 COIL-INDUCTOR
0121F00025P 0121F00025P CONTROL BRACKET
20049701 20049701 COUPLING-FA
10254303 10254303 COUPLING-RUBBER
20170903A 20170903A COVER-FRONT
10736201 10736201 COVER-HV BOX
22320002 22320002 DECK GASKET
20191305 20191305 DECK RAIL
20523904 20523904 DOOR-ACCESS
20524004 20524004 DOOR-BLOWER
20214203 20214203 DRAIN ANGLE
20171701 20171701 DRAIN TRAP
20201802 20201802 DRAIN TUBE
20171802 20171802 ELBOW
20510125 20510125 END BELL
20523802 20523802 FILLER PLATE
22309501 22309501 FLUE PIPE
0151F00000P 0151F00000P GAS VALVE - WHITE-RODGERS 2-STAGE
20194606 20194606 GASKET
20179308 20179308 GASKET
20179310 20179310 GASKET-FA
0161F00000P 0161F00000P GOODMAN NAMEPLATE
A4691701 A4691701 GROMMET
C6415911 C6415911 HEAT EXCHANGER INSULATION
HI-115 HI-115 HOMEOWNER'S INSTRUCTIONS
M0119206 M0119206 HOSE CLAMP
A3326002 A3326002 HOSE CLAMP
22323706 22323706 HOSE, PRESSURE SWITCH 12-INCH SQUARE
20201902 20201902 HOSE-DRAIN
20201901 20201901 HOSE-DRAIN
22323713 22323713 HOSE-PRESSURE SWITCH
20165703 20165703 IGNITOR
IO-271 IO-271 INSTALLATION INSTRUCTIONS
IO-243E IO-243E INSTALLATION INSTRUCTIONS
20006602 20006602 INSULATION
20243503 20243503 INSULATION SIDE
10690402 10690402 INTERLOCK SWITCH
10123537 10123537 LIMIT-RESET ROLLOUT
20196402 20196402 MANIFOLD

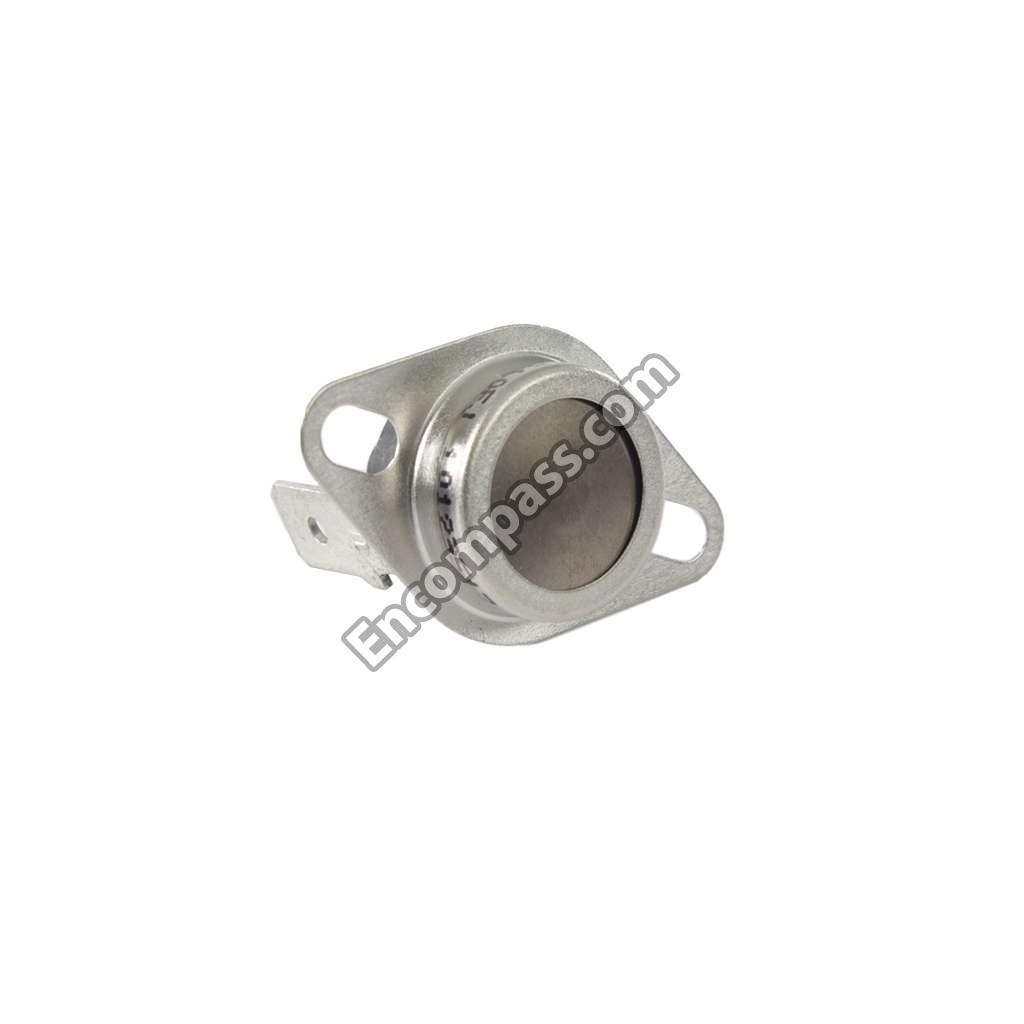

10123517 10123517 MANUAL RESET LIMIT
C9443702 C9443702 MOTOR MOUNT BRACKET
20509425 20509425 MOTOR-3/4 HP PROGRAMMED
91000301 91000301 NUT-U SPEED
10716003 10716003 ORIFICE
11072202 11072202 ORIFICE SHIELD
0121F00035PDG 0121F00035PDG PANEL-SIDE LH
0121F00033PDG 0121F00033PDG PANEL-SIDE RH
M0501301 M0501301 PIPE GROMMET
20197308 20197308 PRESSURE SWITCH-YELLOW
20162905 20162905 PRIMARY LIMIT-YELLOW
20175101 20175101 RAIL-BLWR SIDE
M0275521 M0275521 SEALER-PLASTIC
20488501 20488501 SENSOR-FLAME
11165107 11165107 SHIELD ID BLWR
20191603 20191603 SIDE RAIL
11104002 11104002 SNAP-BUSHING CLR
11177113 11177113 SWITCH-PRESSURE ID BLOWER
0270F00101P 0270F00101P TOP COVER ASSY
B1141605 B1141605 TRANSFORMER 120V TO 24V, 40 VA
M0326804 M0326804 TUBE PLUG
B1392139 B1392139 VIEW PORT BUSHING-BLOWER DOOR
20276015 20276015 WIRING HARNESS
20275905 20275905 WIRING HARNESS 5-PIN
11118705 11118705 WIRING HARNESS ECM INTERFACE 16 PIN CONNECTOR
