Manufacturer
Goodman
Model Number
GPH1342H21A
Description

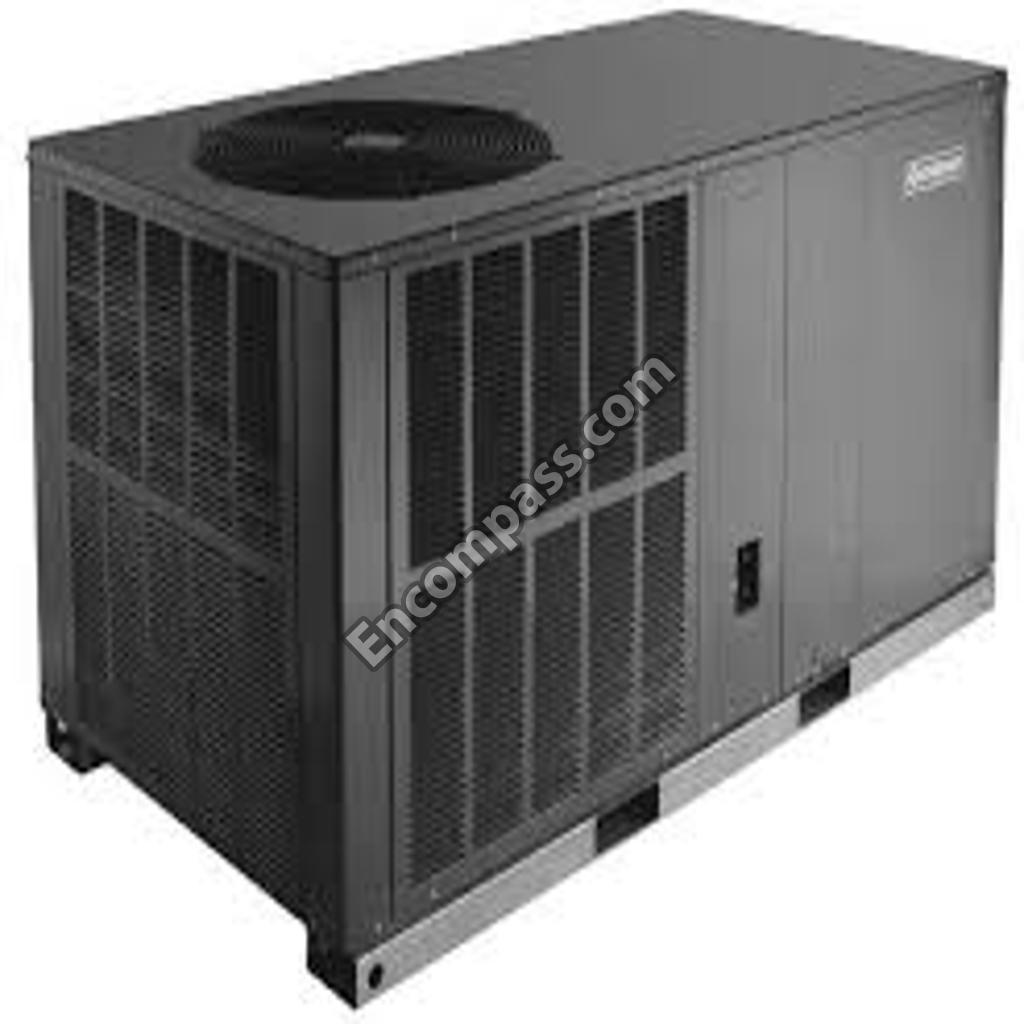

Packaged Unit Heat Pump
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACCESS FITTING |
|
|
ACCESS FITTING BOX |
|
|
ACCUMULATOR .875 |
|
|
ACORN NUT 5/16 HEX BLACK |
|
|
BASEPAN RAIL |
|
|
BI-FLOW FILTER DRIER |
|
|
BLOWER CUT-OFF |
|
|
BLOWER HOUSING 10 X 8 |
|
|
BLOWER MOTOR 1/2 HP, 3 SP, 8 PL |
|
|
BLOWER MOUNT 10 X 8 |
|
|
BLOWER SUPPORT |
|
|
BLOWER TIME DELAY |
|
|
BLOWER WHEEL 10 X 8 |
|
|
CAP W/O-RING |
|
|
CAPACITOR 15/370V BLOWER |
|
|
CAPACITOR 5/50/440V |
|
|
CAPACITOR BOOT |
|
|
CAPACITOR STRAP |
|
|

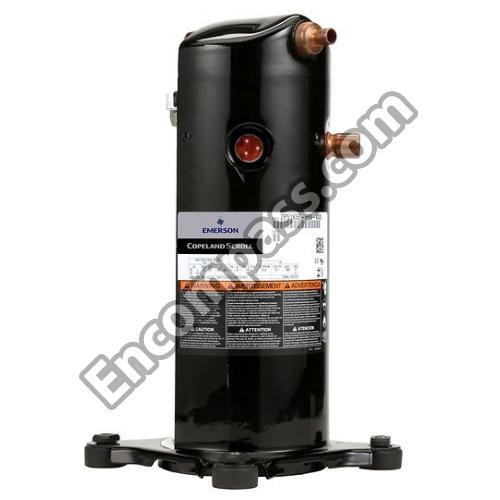

COMPRESSOR 36900, 208/230/60/1 |
|
|
COMPRESSOR GROMMET |
|
|
COMPRESSOR PANEL 8.75-INCH X 32.50-INCH |
|
|
COND MOTOR 1/4 HP, 1 SP, 6 PL |
|
|
CONTACTOR 30 AMP, 2P, 24V |
|
|
CORNER POST 32.5-INCH |
|
|
CUT-OUT SWITCH, LOW PRESSURE OPEN 7 , CLOSE 25 |
|
|
DEFROST CONTROL BOARD |
|
|
DEFROST THERMOSTAT OPEN 75 , CLOSE 31 |
|
|
DRAIN PAN ASSY |
|
|
EVAP DRIP SHIELD |
|
|
EXTERNAL CONTROL BOX PANEL |
|
|
FAN BLADE |
|
|
FAN GRILLE |
|
|
FASTEST FITTING NUT |
|
|
FLOWRATOR .072 EVAP |
|
|
FLOWRATOR .080 EVAP |
|
|
GOODMAN LABEL |
|
|
GROMMET / HS .62 - .45 |
|
|
HEATER KIT COVER |
|
|
INSULATED ASSY, BASEPAN |
|
|
INSULATED ASSY, BLOWER DOOR 32.5-INCH |
|
|
INSULATED ASSY, CORNER PANEL 32.5-INCH |
|
|
INSULATED ASSY, DUCT PANEL 32.5-INCH |
|
|
INSULATED ASSY, EVAP PANEL 32.5-INCH |
|
|
INSULATED ASSY, PARTITION PANEL 32.5-INCH |
|
|
INSULATED ASSY, TOP PANEL |
|
|
LOUVERED PANEL 4 BANK 32.5-INCH |
|
|
LOUVERED PANEL 5 BANK 32.5-INCH |
|
|
POST 32.5-INCH |
|
|
PROCESS TUBE ASSY-LIQUID |
|
|
PROCESS TUBE ASSY-SUCTION |
|
|
PVC CONDUIT 8.25-INCH |
|
|
REPAIR PARTS MANUAL |
|
|
REVERSING VALVE |
|
|
SOLENOID COIL |
|
|
SUPPLEMENTAL INSERT EBTDR |
|
|
TC SCREW |
|
|
TF SHOULDER SCREW |
|
|
TRANSFORMER 208/230, 24V |
|
|
TRANSITION DUCT ASSY |
|
|
TUBING ASSY, COND COIL |
|
|
TUBING ASSY, EVAP COIL |
|
|
WIRE HARNESS, ELECTRIC HEAT |
