Model Image
Manufacturer

Haier

Model Number

AAC182STA

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AC-0200-03 AC-0200-03 BAR-VERT LOUVER GANG
AC-0320-01 AC-0320-01 BATTERY
AC-0750-03 AC-0750-03 BOLT
AC-0750-07 AC-0750-07 BOLT
AC-0750-06 AC-0750-06 BOLT-COMPRESSOR
AC-0750-04 AC-0750-04 BOLT-COMPRESSOR
AC-0800-16 AC-0800-16 BOX-ELECTRIC
AC-0840-08 AC-0840-08 BRACE-ANGLE
AC-0840-10 AC-0840-10 BRACE-TRIANGLE [LEFT
AC-1400-47 AC-1400-47 CAPACITOR-FAN MOTOR
AC-1650-04 AC-1650-04 CLIP-CAPACITOR
AC-1650-08 AC-1650-08 CLIP-FRONT GRILL
AC-1650-11 AC-1650-11 CLIP-FRONT PANEL
AC-1750-12 AC-1750-12 COMPRESSOR
AC-1800-09 AC-1800-09 CONDENSER
AC-1950-14 AC-1950-14 COVER-TERMINAL
AC-2015-33 AC-2015-33 CUSHION
AC-2015-31 AC-2015-31 CUSHION
AC-2015-26 AC-2015-26 CUSHION
AC-2015-27 AC-2015-27 CUSHION
AC-2015-29 AC-2015-29 CUSHION-RUBBER
AC-2050-08 AC-2050-08 DECAL-CONTROL PANEL
AC-2300-06 AC-2300-06 DOOR-VENT
AC-2650-10 AC-2650-10 EVAPORATOR-[ASSY]
AC-2750-09 AC-2750-09 FAN-CENTRIFUGAL [ASS
AC-2800-09 AC-2800-09 FILTER
AC-2950-07 AC-2950-07 FRAME-ACCORDIAN
AC-3100-28 AC-3100-28 GASKET-SASH
AC-3100-35 AC-3100-35 GASKET-SEAL
AC-3100-29 AC-3100-29 GASKET-TOP GUIDE
AC-3150-03 AC-3150-03 GRILL
AC-3300-13 AC-3300-13 GUIDE-TOP
AC-4440-20 AC-4440-20 LOUVER-ASSEMBLY
AC-4440-08 AC-4440-08 LOUVER-HORIZONTAL
AC-9999-07 AC-9999-07 MANUAL - USE & CARE
AC-4550-15 AC-4550-15 MOTOR-SYNCHRO
AC-5150-07 AC-5150-07 PAN-DRAIN
AC-5200-29 AC-5200-29 PANEL-BACK
AC-5200-30 AC-5200-30 PANEL-EVAPORATOR PAR
AC-5200-46 AC-5200-46 PANEL-FRONT
AC-5250-01 AC-5250-01 PIN-PIVOT
AC-5255-50 AC-5255-50 PIPE-EVAP DISTRIB AS
AC-5255-51 AC-5255-51 PIPE-EVAP LIQUID OU
AC-5255-46 AC-5255-46 PIPE-OVERCOLD
AC-5255-43 AC-5255-43 PIPE-SUCTION
AC-5255-44 AC-5255-44 PIPE-VENT [1]
AC-5300-19 AC-5300-19 PLATE-COVER
AC-5310-04 AC-5310-04 PLUG-BASEPAN
AC-5310-03 AC-5310-03 PLUG-BASEPAN
AC-5550-04 AC-5550-04 RAIL-BOTTOM
AC-5550-09 AC-5550-09 RAIL-BOTTOM RIGHT
AC-5950-07 AC-5950-07 ROD-CONNECTING
AC-5950-06 AC-5950-06 ROD-CONNECTING
AC-6150-03 AC-6150-03 SCREW
AC-6150-11 AC-6150-11 SCREW
AC-6150-21 AC-6150-21 SCREW
AC-6150-09 AC-6150-09 SCREW
AC-6150-14 AC-6150-14 SCREW-10MM
AC-6150-15 AC-6150-15 SCREW-25MM WOOD
AC-0750-35 AC-0750-35 SCREW-BRACE
AC-6899-02 AC-6899-02 STOP
AC-7000-11 AC-7000-11 SUPPORT-MOTOR [1]
AC-7000-12 AC-7000-12 SUPPORT-MOTOR [2]
AC-7460-01 AC-7460-01 TRACK-CURTAIN [L]

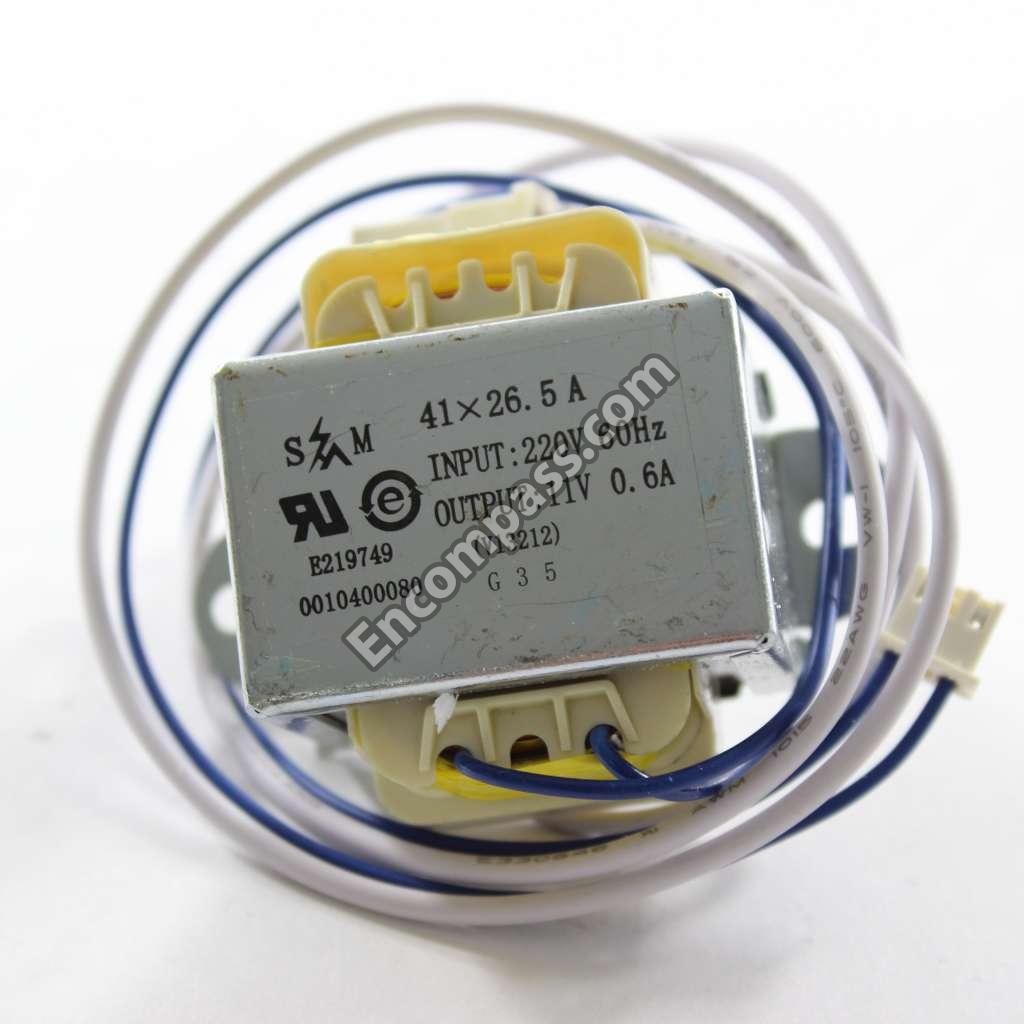

WJ27X22872 WJ27X22872 TRANSFORMER
