Model Image
Manufacturer

Haier

Model Number

AC083F

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AC-0010-24 AC-0010-24 ACCESSORIES-HARDWARE
AC-0155-05 AC-0155-05 BAG-PLASTIC
WJ01X23601 WJ01X23601 BAG-SCREW
AC-0255-04 AC-0255-04 BASEPAN
AC-0668-10 AC-0668-10 BOARD-CORRUGATED
AC-0750-04 AC-0750-04 BOLT-COMPRESSOR
AC-0800-26 AC-0800-26 BOX-ELECTRIC
AC-0840-08 AC-0840-08 BRACE-ANGLE
AC-1400-10 AC-1400-10 CAPACITOR-COMPRESSOR
AC-1400-236 AC-1400-236 CAPACITOR-FAN MOTOR
AC-1415-02 AC-1415-02 CARD
AC-1470-11 AC-1470-11 CASE-SCROLL
AC-1650-12 AC-1650-12 CLIP-CAPACITOR
AC-1750-24 AC-1750-24 COMPRESSOR
AC-1800-27 AC-1800-27 CONDENSER
AC-1900-05 AC-1900-05 CORD-POWER
AC-1950-27 AC-1950-27 COVER-ELEC BOX (BOTT
AC-1950-36 AC-1950-36 COVER-TERMINAL
AC-2015-143 AC-2015-143 CUSHION-REAR
AC-2015-144 AC-2015-144 CUSHION-SIDE
AC-2480-03 AC-2480-03 ELBOW-DRAIN
AC-0600-23 AC-0600-23 FAN-BLOWER WHEEL
AC-2850-18 AC-2850-18 FLAP-VERTICAL

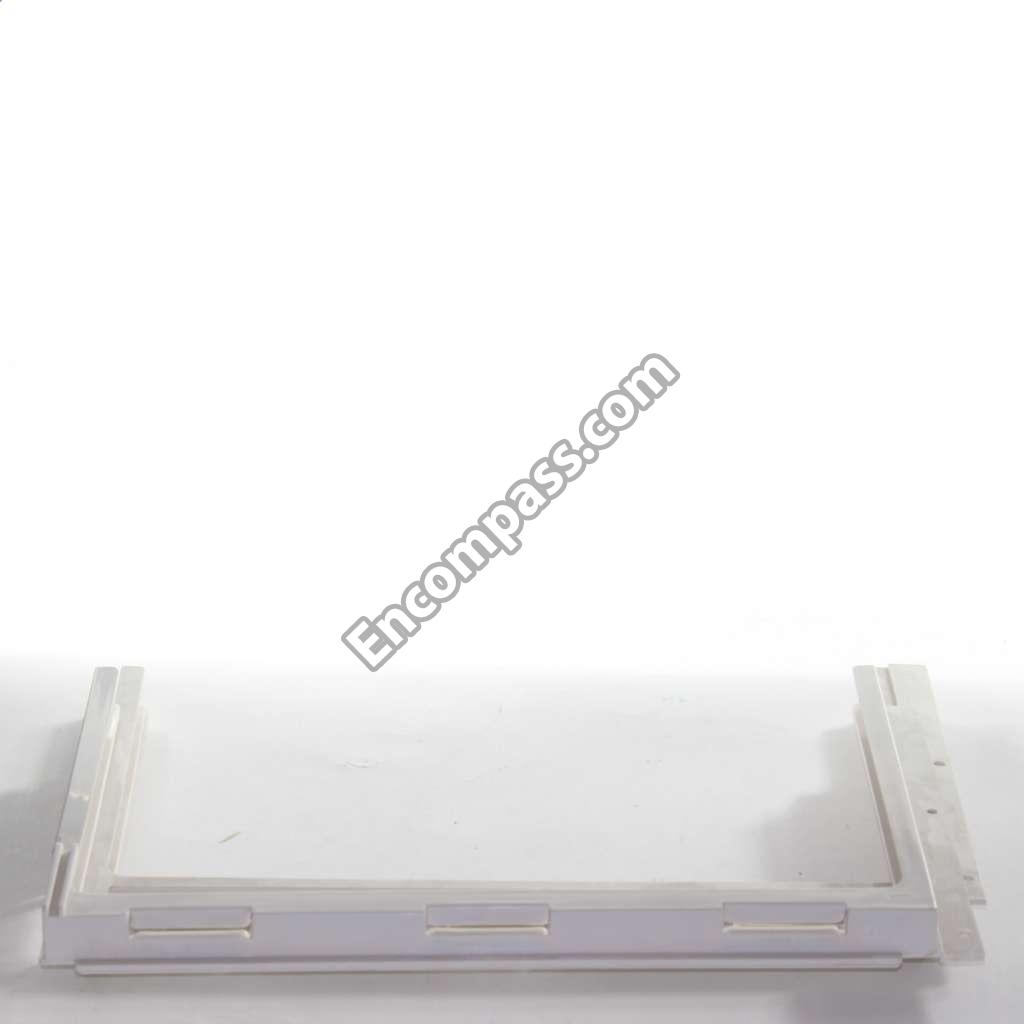

WJ86X23980 WJ86X23980 FRAME-ACCORDIAN SCRE
AC-3100-28 AC-3100-28 GASKET-SASH
AC-3100-35 AC-3100-35 GASKET-SEAL
AC-3100-34 AC-3100-34 GASKET-SILL
AC-3300-15 AC-3300-15 GUIDE-POSITION
AC-3300-16 AC-3300-16 GUIDE-UPPER

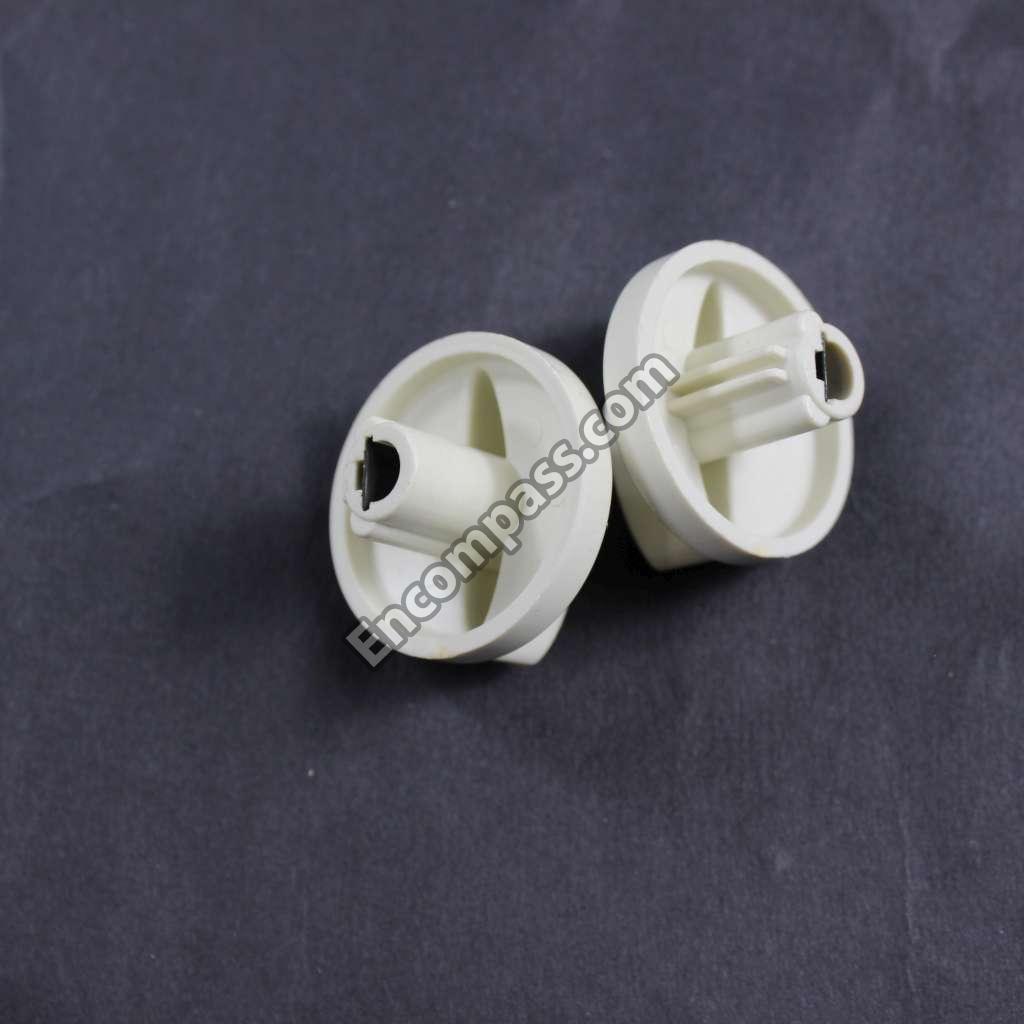

AC-4000-24 AC-4000-24 KNOB
AC-4720-06 AC-4720-06 NUT
AC-5150-01 AC-5150-01 PAN-DRAIN
AC-5200-101 AC-5200-101 PANEL-CONTROL
AC-5200-135 AC-5200-135 PANEL-FRONT
AC-5200-111 AC-5200-111 PANEL-FRONT PARTITIO
AC-5200-132 AC-5200-132 PANEL-PARTITION
AC-5200-14 AC-5200-14 PANEL-PARTITION (REA
AC-5255-140 AC-5255-140 PIPE-CAPILLARY
AC-5255-113 AC-5255-113 PIPE-LINK
AC-5255-115 AC-5255-115 PIPE-LIQUID CHARGE
AC-5255-114 AC-5255-114 PIPE-LIQUID CHARGE
AC-5255-116 AC-5255-116 PIPE-SUCTION ASSY
AC-5255-125 AC-5255-125 PIPE-SUPER-COOLING
AC-5255-126 AC-5255-126 PIPE-VENT
AC-5310-02 AC-5310-02 PLUG-BASEPAN
AC-5950-24 AC-5950-24 ROD-CONNECTING
AC-6100-43 AC-6100-43 SCREEN-ACCORDIAN ASS
AC-6150-25 AC-6150-25 SCREW
AC-6150-20 AC-6150-20 SCREW
AC-6150-51 AC-6150-51 SCREW
AC-6150-10 AC-6150-10 SCREW
AC-6150-21 AC-6150-21 SCREW
AC-6150-15 AC-6150-15 SCREW-25MM WOOD
AC-0750-35 AC-0750-35 SCREW-BRACE
WJ27X23600 WJ27X23600 SWITCH-MODE SELECTIO
WJ26X23602 WJ26X23602 THERMOSTAT
