Model Image
Manufacturer

GE

Model Number

ACA057F

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WJ86X23969 WJ86X23969 ACCORDIAN LEFT FRAME ONLY
WJ86X23981 WJ86X23981 ACCORDIAN RIGHT FRAME ONLY
WJ01X23601 WJ01X23601 BAG-SCREW
AC-0800-97 AC-0800-97 BOX-ELECTRICAL
AC-0255-14 AC-0255-14 BRACE-ANGLE

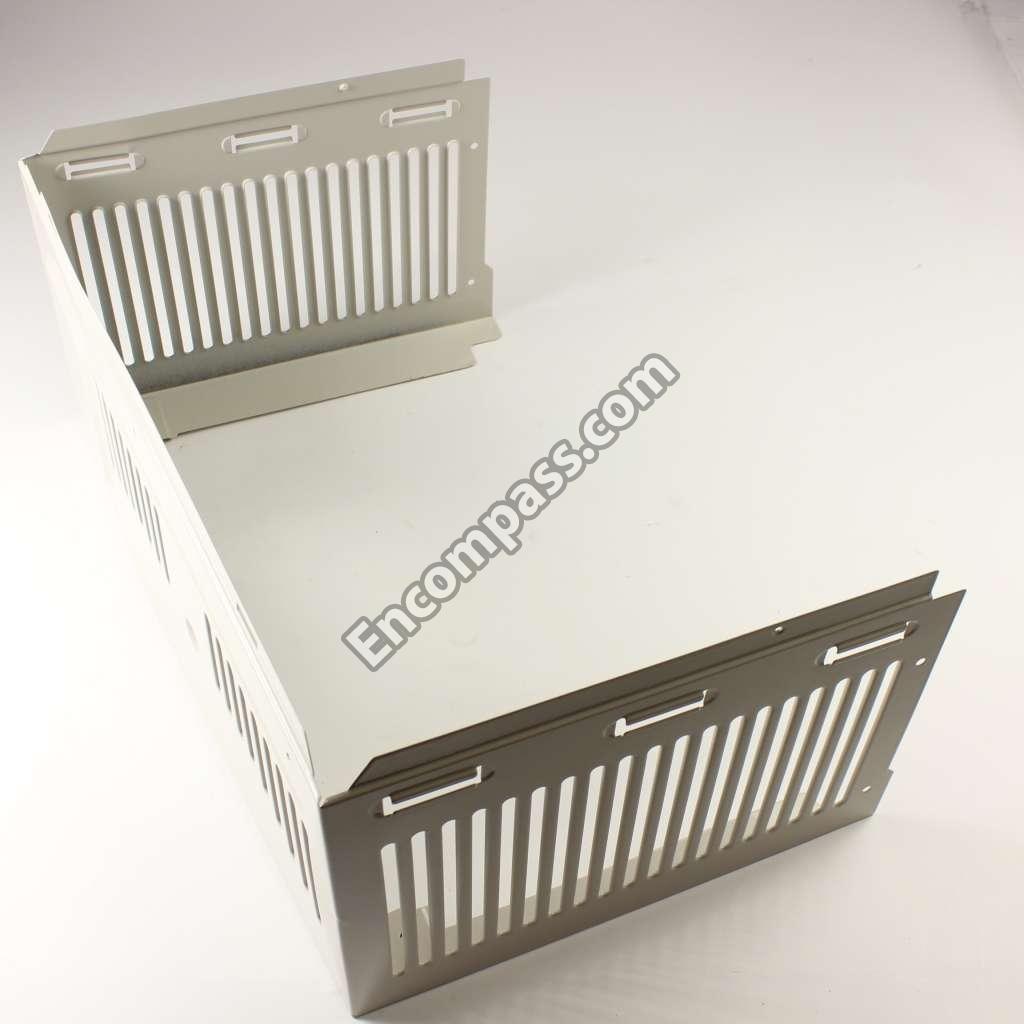

AC-1300-43 AC-1300-43 CABINET
WJ20X10192 WJ20X10192 CAPACITOR-COMPRESSOR
AC-1470-43 AC-1470-43 CASE-SCROLL (LOWER)
AC-1470-42 AC-1470-42 CASE-SCROLL (UPPER)
AC-1620-11 AC-1620-11 CHASSIS-ASSY
AC-1750-25 AC-1750-25 COMPRESSOR
WJ73X10209 WJ73X10209 FAN-CENTRIFUGAL
AC-2950-45 AC-2950-45 FRAME-ACCORDIAN SCRE

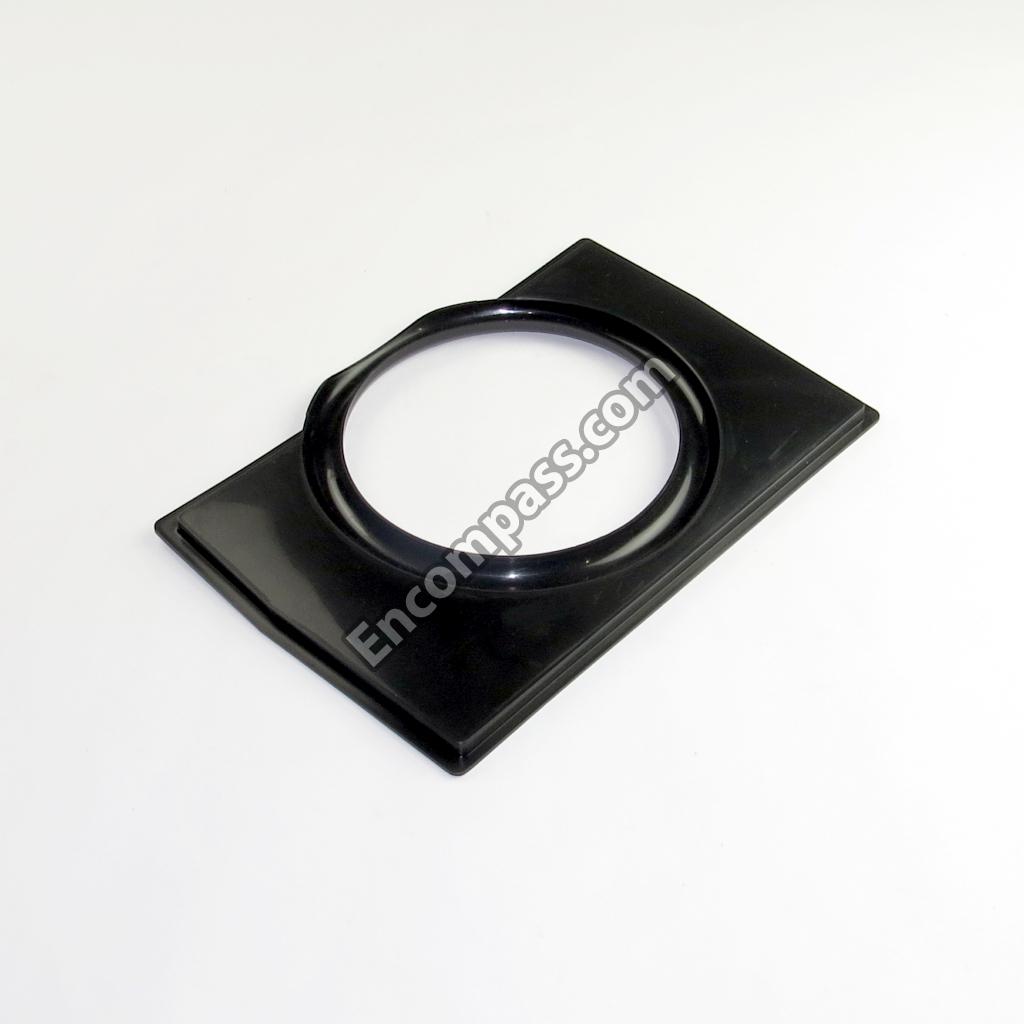

WJ43X22906 WJ43X22906 GASKET
WJ86X23967 WJ86X23967 GUIDE-UPPER
AC-4000-26 AC-4000-26 KNOB
AC-4550-146 AC-4550-146 MOTOR
AC-5200-262 AC-5200-262 PANEL-CONTROL
AC-5200-251 AC-5200-251 PANEL-EVAP. PARTITIO
AC-5200-250 AC-5200-250 PANEL-FRONT
WJ71X23984 WJ71X23984 PANEL-FRONT
AC-5200-252 AC-5200-252 PANEL-REAR PARTITION
AC-5950-28 AC-5950-28 ROD-CONNECTING
AC-6150-15 AC-6150-15 SCREW-25MM WOOD
AC-6150-53 AC-6150-53 SCREW-W/WASHER
WR09X29313 WR09X29313 SWITCH
WR09X29314 WR09X29314 THERMOSTAT
