Model Image
Manufacturer

Haier

Model Number

BCD509WD

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
RF-0150-01 RF-0150-01 BAFFLE-MOTOR CONDENS
RF-0200-56 RF-0200-56 BAR - BOTTLE
RF-0595-10 RF-0595-10 BLOCK-AIR-PROOF
WR14X29896 WR14X29896 BRACKET-EVAP FAN [A]
WR14X29891 WR14X29891 BRACKET-EVAP FAN [B]
RF-1050-26 RF-1050-26 BULB-40W
RF-1302-45 RF-1302-45 CABLE - THERMOSTAT
RF-1450-92 RF-1450-92 CARTON
RF-1628-03 RF-1628-03 CHUTE-SUCTION
RF-1640-14 RF-1640-14 CLAMP-CORD
WR01X29897 WR01X29897 CLIP
RF-1650-11 RF-1650-11 CLIP
RF-1650-09 RF-1650-09 CLIP-CONDENSER
RF-1750-77 RF-1750-77 COMPRESSOR-W/ACCESSO
RF-1800-41 RF-1800-41 CONDENSER
RF-1950-237 RF-1950-237 COVER-DAIRY SHELF
RF-1950-239 RF-1950-239 COVER-EGG TRAY
RF-1950-240 RF-1950-240 COVER-EVAPORATOR
RF-1950-241 RF-1950-241 COVER-HANDLE
RF-1950-B4 RF-1950-B4 COVER-SCREW
RF-1950-243 RF-1950-243 COVER-SUCTION PIPE
RF-1950-123 RF-1950-123 COVER-TOP HINGE
RF-2260-03 RF-2260-03 DIVIDER-SHELF PARTIT
RF-2350-04 RF-2350-04 DRAIN
RF-2400-26 RF-2400-26 DRIER
RF-2950-24 RF-2950-24 FRAME-EGG TRAY
WR14X29858 WR14X29858 GASKET - FREEZER DOO

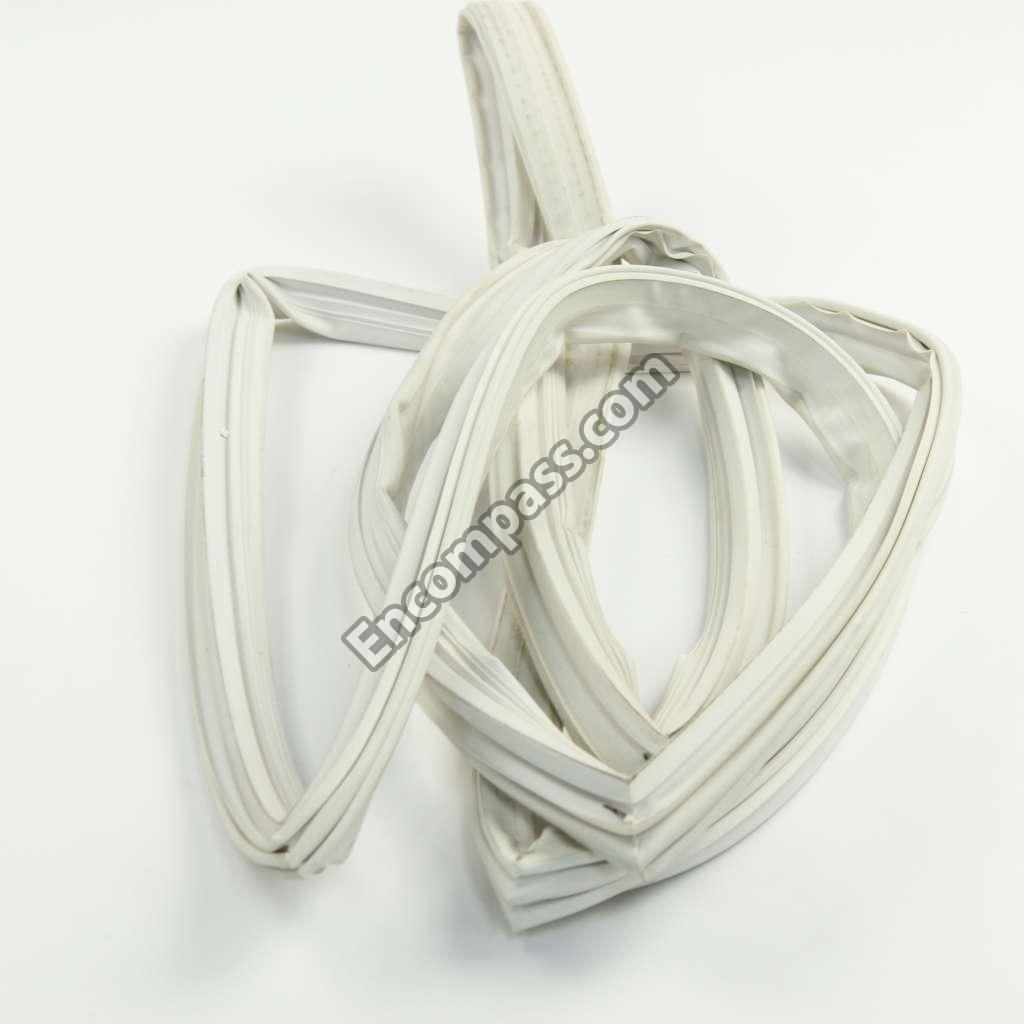

RF-3100-100 RF-3100-100 GASKET-DOOR
RF-3300-04 RF-3300-04 GUIDE-VENT CONTROLLE
RF-3350-59 RF-3350-59 HANDLE
RF-3450-161 RF-3450-161 HINGE-BOTTOM
RF-4050-18 RF-4050-18 LABEL-DATA
WR01X27675 WR01X27675 LEG - ADJUSTABLE [0.
RF-4440-02 RF-4440-02 LOUVER-VENT
RF-9999-169 RF-9999-169 MANUAL - USE & CARE
RF-5300-05 RF-5300-05 PLATE - THERMOSTAT H
RF-5800-03 RF-5800-03 RING-BULB
RF-6050-05 RF-6050-05 RUBBER-ISOLATION BUS
RF-6050-09 RF-6050-09 RUBBER-VIBRATION
RF-6050-06 RF-6050-06 RUBBER-VIBRATION
RF-6150-90 RF-6150-90 SCREW
RF-6150-68 RF-6150-68 SCREW
RF-6150-222 RF-6150-222 SCREW
WR01X29729 WR01X29729 SCREW
WR01X27682 WR01X27682 SCREW
RF-6150-93 RF-6150-93 SCREW
RF-6150-77 RF-6150-77 SCREW
RF-6150-62 RF-6150-62 SCREW
WR01X28375 WR01X28375 SCREW
RF-6150-72 RF-6150-72 SCREW
RF-6150-74 RF-6150-74 SCREW
RF-6150-78 RF-6150-78 SCREW
RF-6150-20 RF-6150-20 SCREW-HINGE [PHILLIP
RF-6150-13 RF-6150-13 SCREW-PHILLIPS TAPPI
WR01X29890 WR01X29890 SHIM
RF-6420-16 RF-6420-16 SHIM - 2.5MM
WR13X27290 WR13X27290 SHIM-CENTER
RF-6957-09 RF-6957-09 STRIP-FREEZER SHELF
WR23X27351 WR23X27351 SWITCH
RF-7253-02 RF-7253-02 TAPE-FOIL
WR09X29877 WR09X29877 THERMOSTAT
WR09X27353 WR09X27353 THERMOSTAT - DEFROST
RF-7400-15 RF-7400-15 TIMER-DEFROST
RF-7600-100 RF-7600-100 TRAY - EGG
RF-7600-99 RF-7600-99 TRAY - ICE
RF-7600-86 RF-7600-86 TRAY-COMPRESSOR DRIP
RF-7950-32 RF-7950-32 WASHER
RF-7950-37 RF-7950-37 WASHER-RUBBER
RF-7950-35 RF-7950-35 WASHER-RUBBER
WR01X29890 WR01X29890 WASHERS
