Model Image
Manufacturer

Haier

Model Number

BWC40

Description

Bwc40:b&d 40 Bottle Wine Cella

Interactive Exploded View

Parts List

Part Number Description
RF-0140-30 RF-0140-30 AXLE-BOTTOM HINGE

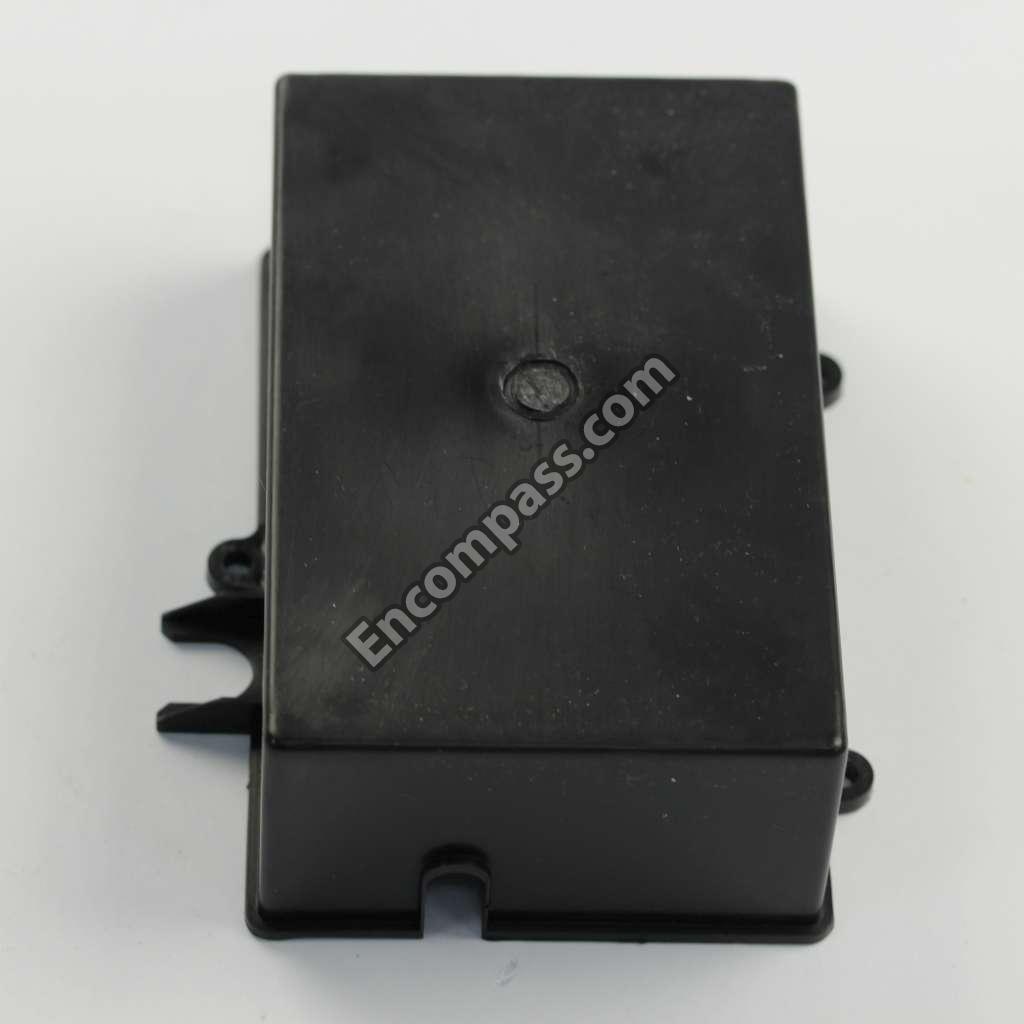

RF-0800-81 RF-0800-81 BOX-CONTROL BOARD
RF-0850-191 RF-0850-191 BRACKET
RF-0850-192 RF-0850-192 BRACKET-DISPLAY PANE
RF-1300-341 RF-1300-341 CABINET
RF-1900-107 RF-1900-107 CORD-POWER
RF-1950-628 RF-1950-628 COVER-HEAT SENSOR
RF-1950-624 RF-1950-624 COVER-LIGHT
RF-1950-515 RF-1950-515 COVER-TOP HINGE
RF-2300-646 RF-2300-646 DOOR
RF-2400-59 RF-2400-59 DRIER-FILTER
RF-2650-166 RF-2650-166 EVAPORATOR
RF-3100-233 RF-3100-233 GASKET-DOOR
RF-3450-316 RF-3450-316 HINGE-BOTTOM
RF-3450-317 RF-3450-317 HINGE-TOP
WR01X29962 WR01X29962 LEG-ADJUSTABLE
RF-5200-170 RF-5200-170 PANEL-DISPLAY
RF-5200-169 RF-5200-169 PANEL-LIGHT
RF-5300-104 RF-5300-104 PLATE - COMPRESSOR
RF-6150-421 RF-6150-421 SCREW
RF-6350-428 RF-6350-428 SHELF-GLASS
RF-6350-430 RF-6350-430 SHELF-LEVEL 3 (WIRE)
RF-6350-431 RF-6350-431 SHELF-LEVEL 4 (WIRE)
RF-6350-429 RF-6350-429 SHELF-LEVEL 5 (WIRE)
RF-6420-23 RF-6420-23 SHIM
RF-6899-16 RF-6899-16 STOP-DOOR
RF-7550-05 RF-7550-05 TRANSFORMER
