Model Image
Manufacturer

Haier

Model Number

C113

Description

C113: 5.7 Cu.ft. Built-in All

Interactive Exploded View

Parts List

Part Number Description

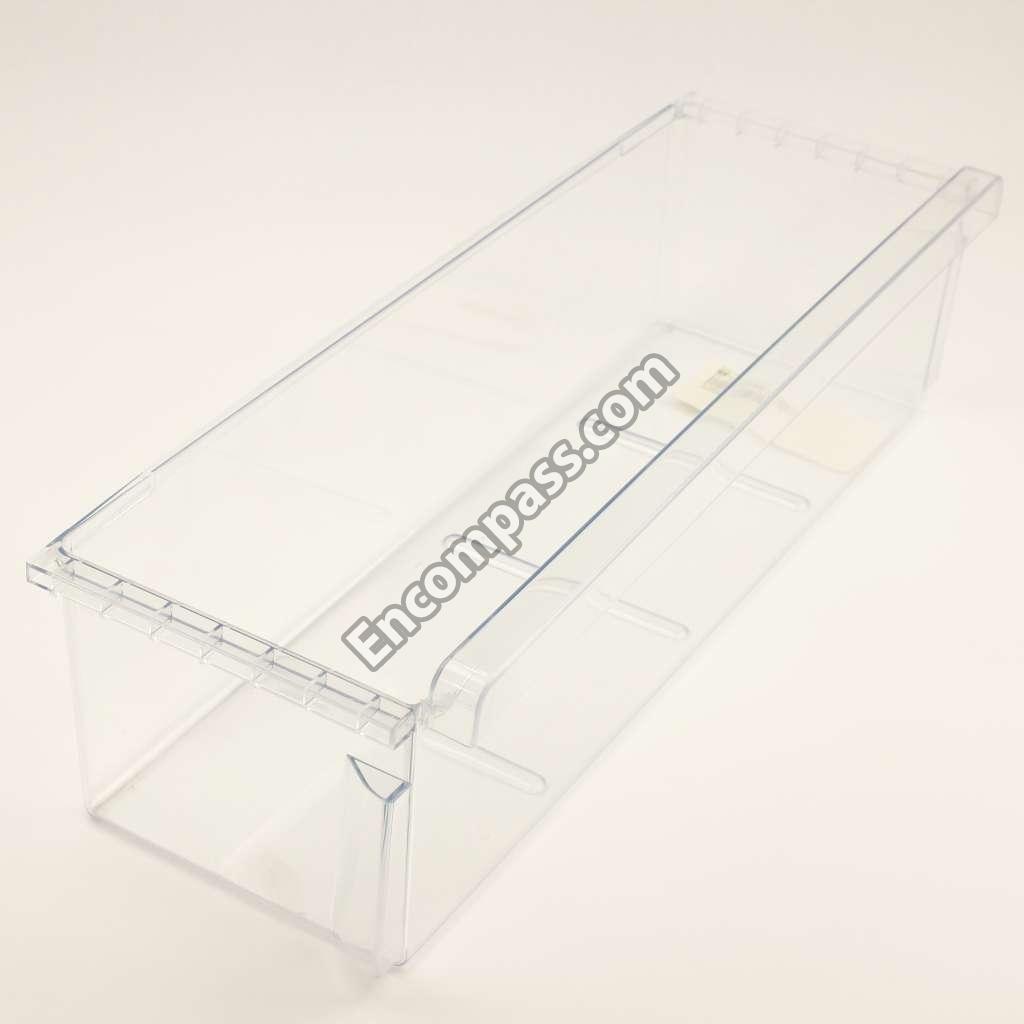

RF-0500-114 RF-0500-114 BIN-CRISPER
RF-0500-115 RF-0500-115 BIN-DOOR
RF-0500-116 RF-0500-116 BIN-DOOR BOTTOM
RF-0595-26 RF-0595-26 BLOCK-EVOPARATOR
RF-0800-80 RF-0800-80 BOX-CONTROL BOARD
RF-0850-190 RF-0850-190 BRACKET-SHELF
RF-1300-340 RF-1300-340 CABINET
WR01X28217 WR01X28217 CLIP-DRIP TRAY
RF-1750-232 RF-1750-232 COMPRESSOR-W/ACCESSO
RF-1800-101 RF-1800-101 CONDENSER
RF-1900-107 RF-1900-107 CORD-POWER
RF-1950-627 RF-1950-627 COVER-COMPRESSOR
RF-1950-625 RF-1950-625 COVER-DISPLAY PANEL
RF-1950-626 RF-1950-626 COVER-HEAT SENSOR
RF-1950-624 RF-1950-624 COVER-LIGHT
RF-1950-622 RF-1950-622 COVER-TOP HINGE
RF-2300-645 RF-2300-645 DOOR
RF-2400-58 RF-2400-58 DRIER-FILTER
RF-2650-165 RF-2650-165 EVAPORATOR
RF-2750-54 RF-2750-54 FAN-CONDENSER
RF-3100-232 RF-3100-232 GASKET-DOOR
RF-3150-33 RF-3150-33 GRILL-TOEKICK
RF-3300-19 RF-3300-19 GUIDE-CRISPER BIN (L
RF-3300-20 RF-3300-20 GUIDE-CRISPER BIN (R
RF-3350-124 RF-3350-124 HANDLE-DOOR
RF-3450-315 RF-3450-315 HINGE-BOTTOM
RF-3450-277 RF-3450-277 HINGE-TOP
RF-3600-61 RF-3600-61 HOUSING - WIRE (TOP)
RF-4050-35 RF-4050-35 LABEL-DISPLAY PANEL
RF-4150-61 RF-4150-61 LEG-ADJUSTABLE
RF-4720-64 RF-4720-64 NUT
RF-4720-60 RF-4720-60 NUT
RF-4720-62 RF-4720-62 NUT-WIRE
RF-5210-84 RF-5210-84 P.C.B.
RF-5200-168 RF-5200-168 PANEL-DISPLAY
RF-5200-169 RF-5200-169 PANEL-LIGHT
RF-5255-41 RF-5255-41 PIPE-COPPER
RF-5300-122 RF-5300-122 PLATE-FRONT FEET
RF-5310-59 RF-5310-59 PLUG-DOOR
RF-5310-71 RF-5310-71 PLUG-VENT
RF-6150-417 RF-6150-417 SCREW
RF-6150-415 RF-6150-415 SCREW
RF-6150-364 RF-6150-364 SCREW
RF-6150-412 RF-6150-412 SCREW
RF-6150-411 RF-6150-411 SCREW
RF-6150-418 RF-6150-418 SCREW
RF-6150-420 RF-6150-420 SCREW
RF-6150-392 RF-6150-392 SCREW
RF-6150-362 RF-6150-362 SCREW
RF-6150-413 RF-6150-413 SCREW
RF-6150-410 RF-6150-410 SCREW
RF-6150-419 RF-6150-419 SCREW
RF-6150-416 RF-6150-416 SCREW
RF-6150-414 RF-6150-414 SCREW
RF-6150-379 RF-6150-379 SCREW - BULB BOX
RF-6190-07 RF-6190-07 SEAL
RF-6190-08 RF-6190-08 SEAL
RF-6350-426 RF-6350-426 SHELF-GLASS BIG
RF-6350-427 RF-6350-427 SHELF-GLASS SMALL
RF-6900-10 RF-6900-10 STOPPER-DOOR
RF-7000-57 RF-7000-57 SUPPORT-COMPRESSOR
RF-7100-61 RF-7100-61 SWITCH

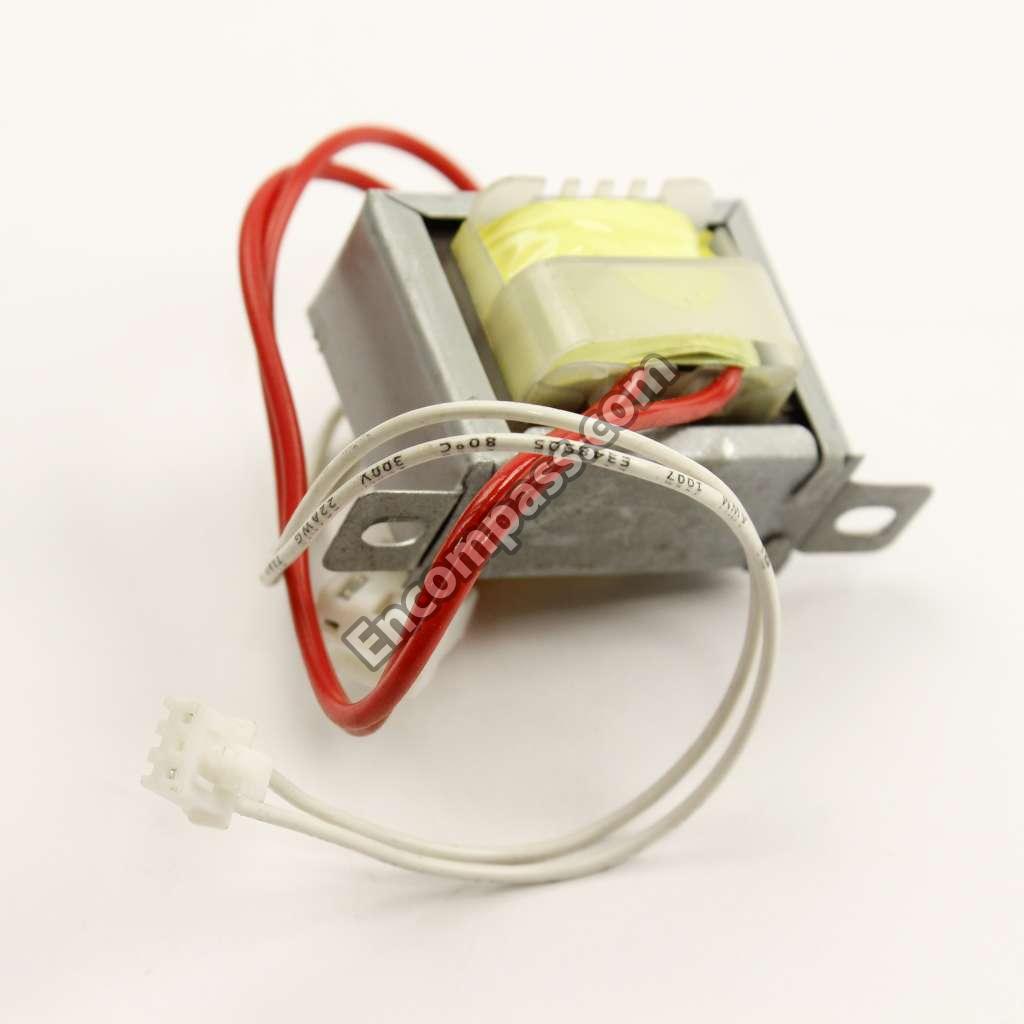

RF-7550-05 RF-7550-05 TRANSFORMER
RF-7600-205 RF-7600-205 TRAY-DRIP
RF-7950-109 RF-7950-109 WASHER
RF-7950-108 RF-7950-108 WASHER - LOCK
RF-8070-48 RF-8070-48 WIRE-COMPRESSOR
RF-8070-38 RF-8070-38 WIRE-COMPRESSOR EART
