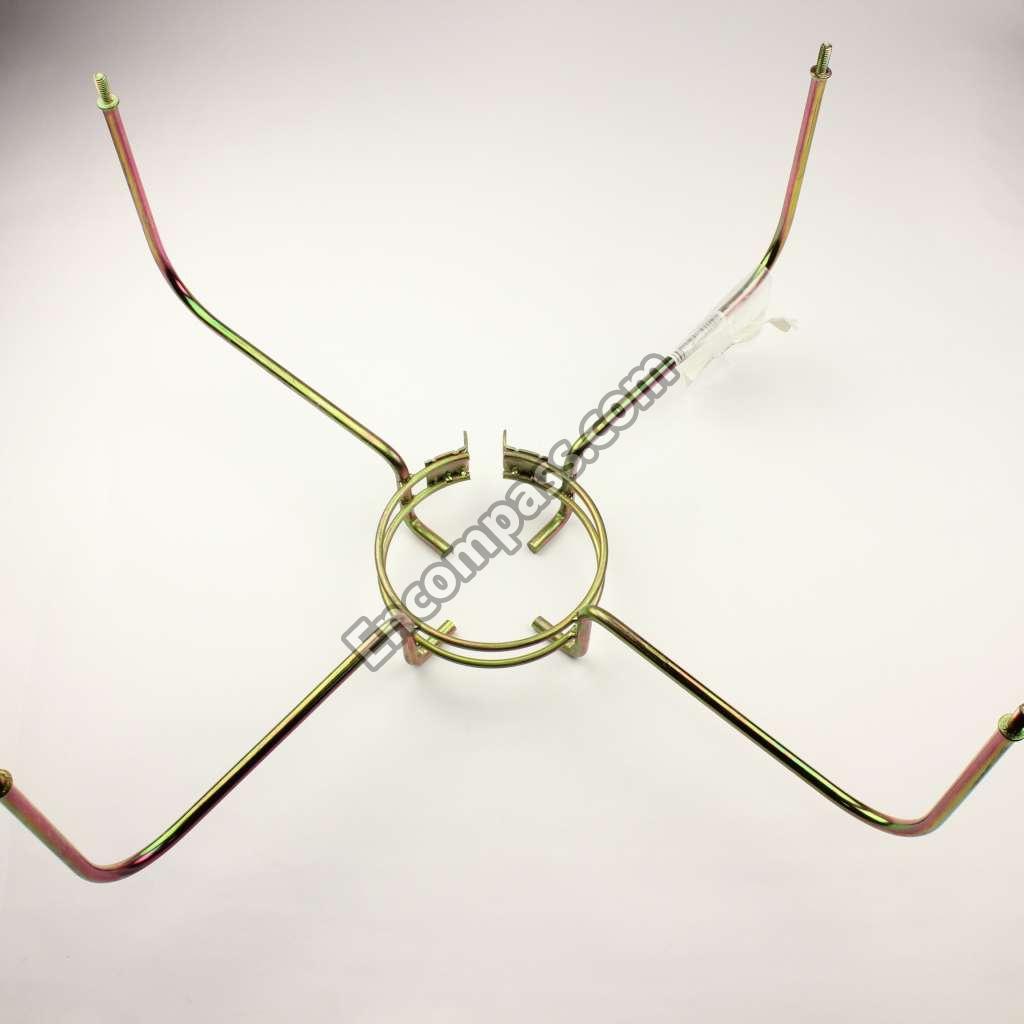

Model Image
Manufacturer

Haier

Model Number

C13301VAR

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AC-0668-92 AC-0668-92 Haier BOARD
WJ26X24065 WJ26X24065 GE BOARD-3-MIN DELAY
AC-0850-98 AC-0850-98 Haier BRACKET
AC-0850-76 AC-0850-76 Haier BRACKET
AC-0850-46 AC-0850-46 Haier BRACKET-HEAT EXCHANG
AC-0850-38 AC-0850-38 Haier BRACKET-HEAT EXCHANG
WJ20X23829 WJ20X23829 GE CAPACITOR-RUNNING
AC-1650-43 AC-1650-43 Haier CLIP-CAPACITOR
AC-1650-36 AC-1650-36 Haier CLIP-WIRE
WJ98X24070 WJ98X24070 GE COMPRESSOR-(H20J213A
AC-1858-01 AC-1858-01 Haier CONTACTOR-AC
AC-1950-77 AC-1950-77 Haier COVER-CONTROL BOX
AC-1950-227 AC-1950-227 Haier COVER-TOP
AC-2015-187 AC-2015-187 Haier CUSHION-#1
AC-2015-186 AC-2015-186 Haier CUSHION-#2
AC-2400-02 AC-2400-02 Haier DRIER
AC-2750-89 AC-2750-89 Haier FAN
AC-3150-74 AC-3150-74 Haier GRILL
AC-3200-10 AC-3200-10 Haier GROMMET
AC-3200-08 AC-3200-08 Haier GROMMET-#3
AC-3363-08 AC-3363-08 Haier HARNESS
AC-5150-77 AC-5150-77 Haier PAN-BOTTOM
AC-5200-139 AC-5200-139 Haier PANEL-ACCESS
AC-5255-301 AC-5255-301 Haier PIPE-AIR SUCTION
AC-5255-293 AC-5255-293 Haier PIPE-CONNECTING
AC-5270-02 AC-5270-02 Haier PISTON
AC-5310-07 AC-5310-07 Haier PLUG
AC-6150-52 AC-6150-52 Haier SCREW
AC-7800-49 AC-7800-49 Haier VALVE-PIPE STOP
AC-7800-17 AC-7800-17 Haier VALVE-STOP LIQUID
