Model Image
Manufacturer

Haier

Model Number

CGDE560BW

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WD-4150-08 WD-4150-08 ADJUSTABLE FOOT
0180200167 0180200167 AIRPROOF COVER
0180300028 0180300028 AIRPROOF FELT
WE01X28020 WE01X28020 AIRPROOF GASKET

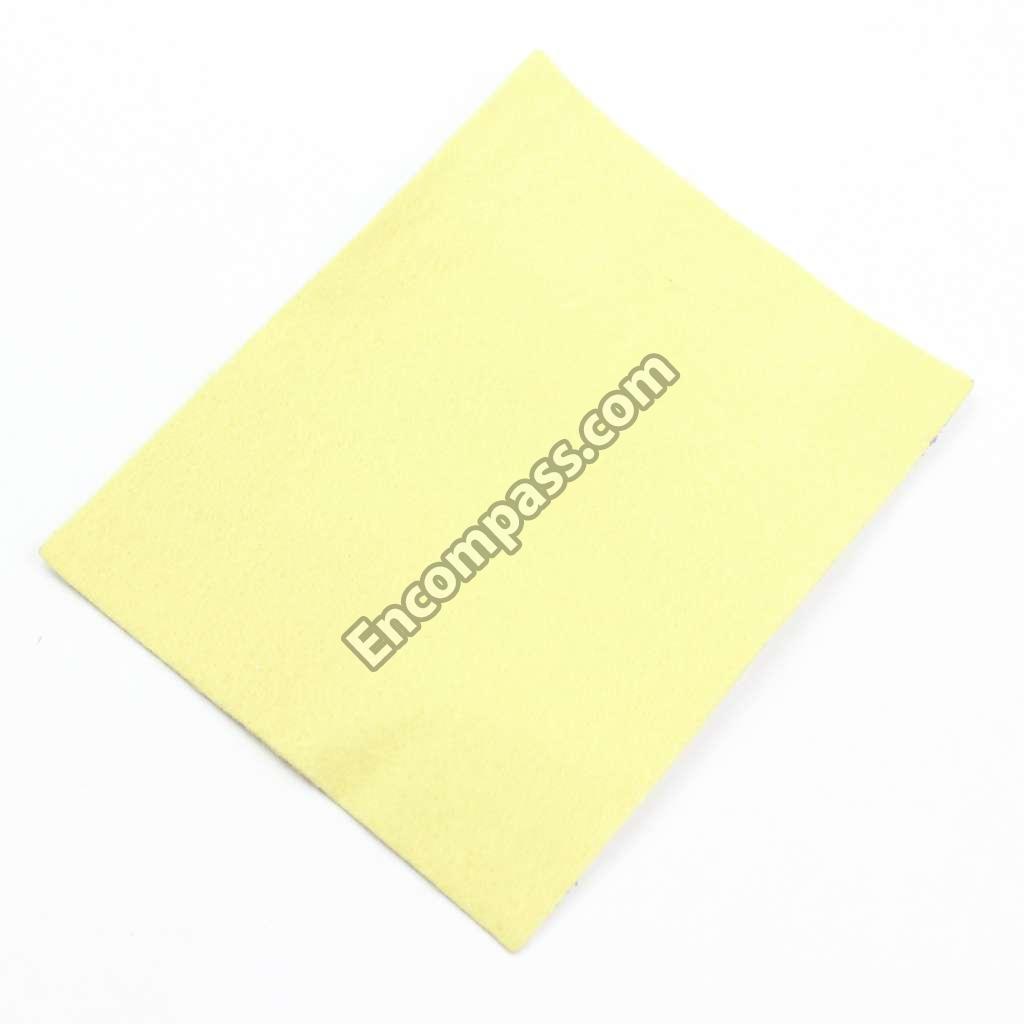

00330208001A 00330208001A AIRPROOF SPONGE
0180100056 0180100056 BACK COVER PLATE
WE04X27360 WE04X27360 BACK-UP THERMOSTAT(164.2 DEGREES C -177.8 DEGREES C )
WE04X27367 WE04X27367 BACK-UP THERMOSTAT(66.5 DEGREES C -75.5 DEGREES C )
0030800477F 0030800477F BARREL ROLL
WE12X27366 WE12X27366 BELT
WD-6150-229 WD-6150-229 BOLT
WD-6150-146 WD-6150-146 BOLT
WD-6150-95 WD-6150-95 BOLT
WD-6150-145 WD-6150-145 BOLT
WD-6150-135 WD-6150-135 BOLT
WE01X27976 WE01X27976 BRACKET
WE11X26350 WE11X26350 BULB HOLDER
0030507624 0030507624 CARD

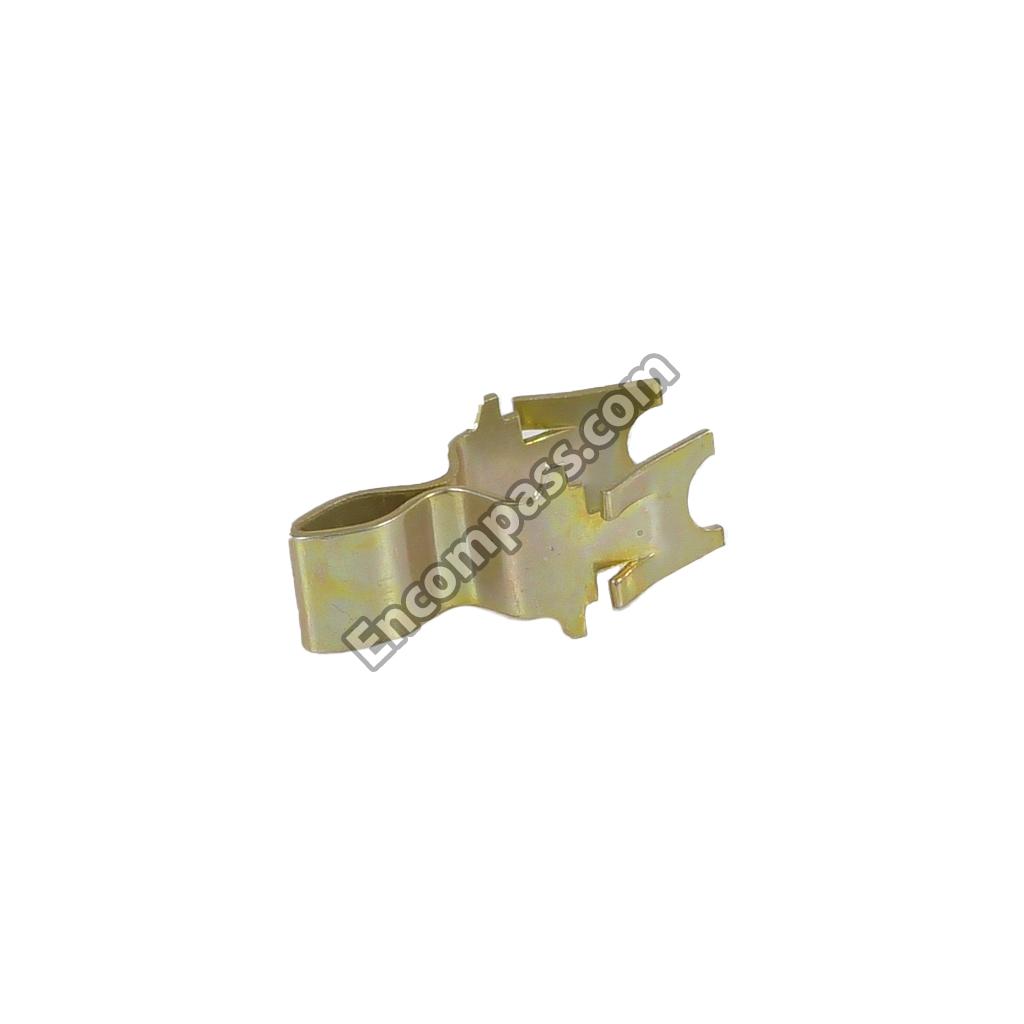

WE01X27977 WE01X27977 CLAMP
WD-1650-13 WD-1650-13 CLAMP
WE01X26586 WE01X26586 CLAMPING NUT
0180100064 0180100064 CLAPBOARD
WE10X27377 WE10X27377 CLAPING SLICE
WE19X27370 WE19X27370 COMPUTER SEQUENCER
WH18X27364 WH18X27364 COMPUTER SEQUENCER
WD-5300-82 WD-5300-82 CONNECT PLATE

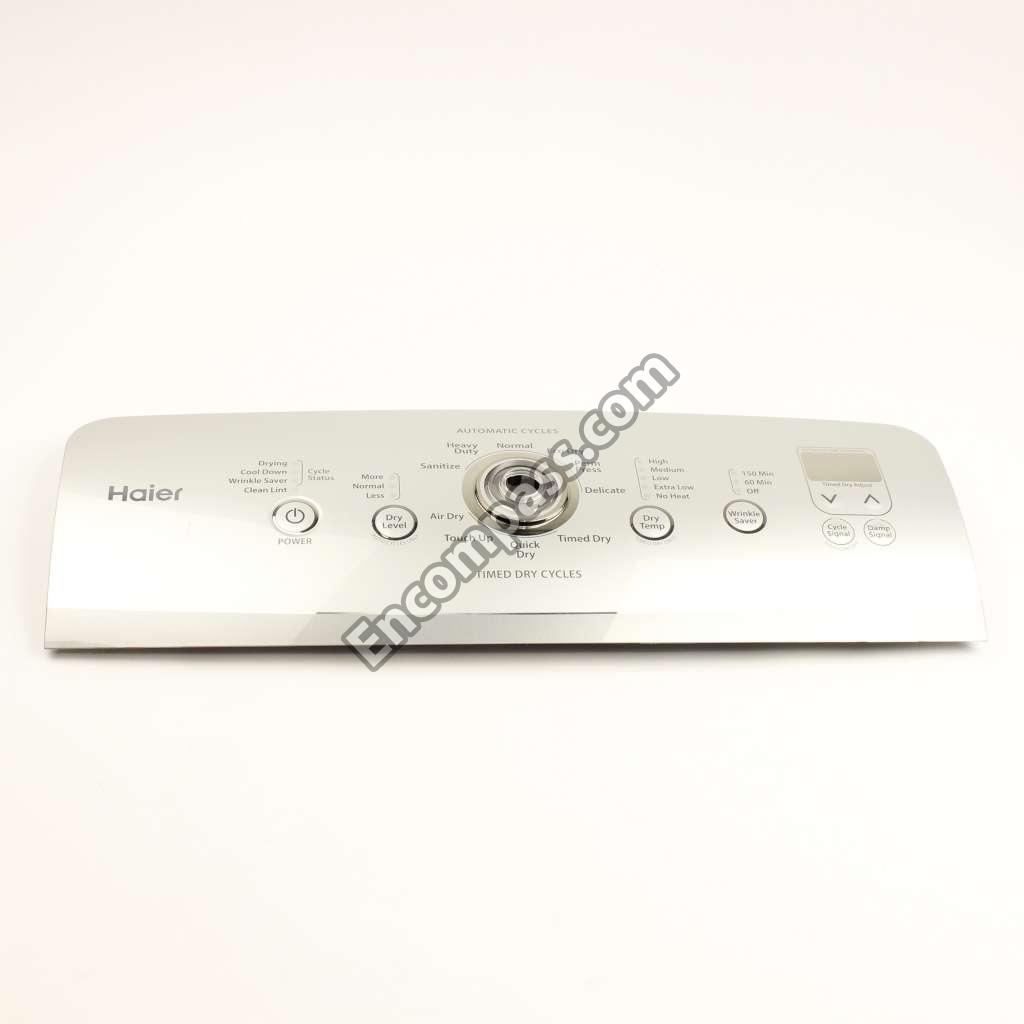

0030206182 0030206182 CONTROL PANEL
0180500316 0180500316 CONTROL PANEL FILM
WD-5200-133 WD-5200-133 CONTROL PANNEL SEAT
WE10X27374 WE10X27374 DOOR SWITCH
0180800270A 0180800270A EXAUST PIPE

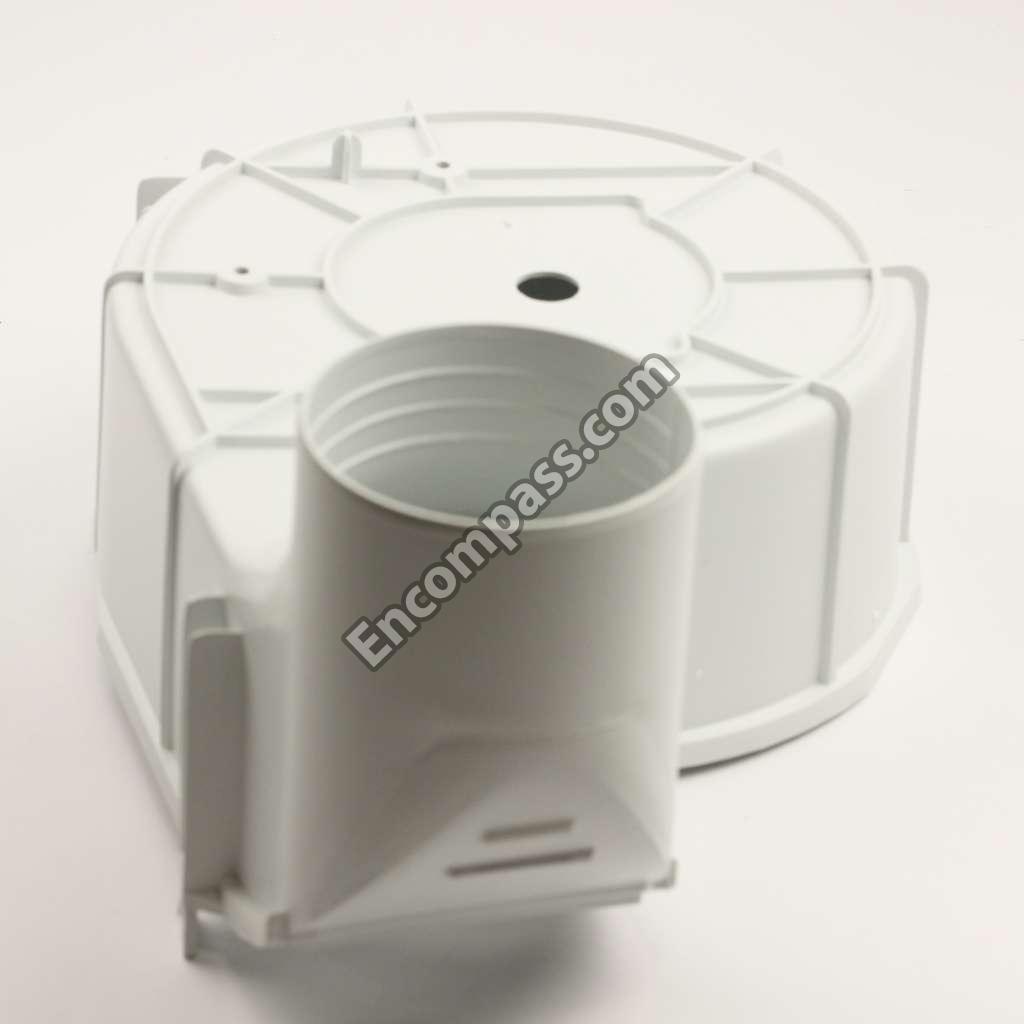

WD-5255-73 WD-5255-73 EXHAUST CANISTER
WD-6150-49 WD-6150-49 FASTEN BOLT
WD-0850-23 WD-0850-23 FASTEN BUTTON
WE02X27388 WE02X27388 FASTEN WHEEL PARTS
0180100079 0180100079 FLAMEPROOF PLATE
0180100078 0180100078 FLAMEPROOF PLATE
0180100105 0180100105 FLAMEPROOF PLATE
0030100579A 0030100579A FLAMEPROOF PLATE
0180100106 0180100106 FLAMEPROOF PLATE
WE01X27988 WE01X27988 FLANGE PLATE
WE01X27974 WE01X27974 FLANGE SEAT
WD-7950-16 WD-7950-16 FLAT GASKET
WE01X27379 WE01X27379 FRICTION ICE
WD-2950-54 WD-2950-54 FRONT DOOR FRAME
0030805182L 0030805182L FRONT PLATE
WD-3100-34 WD-3100-34 GASKET
WD-1945-04 WD-1945-04 GASKET
WD-3210-01 WD-3210-01 GROUNDING SLICE
0180400010A 0180400010A GUIDE CORD COMPONENT
WE01X27975 WE01X27975 HANDLE
WE01X27975 WE01X27975 HANDLE
WE01X28009 WE01X28009 HEAT LOOP
WE11X27362 WE11X27362 HEAT THREAD COMPONENT
00330308068C 00330308068C HEATER PLATE
WE01X27990 WE01X27990 HINGE LEFT
WE01X28017 WE01X28017 HINGE REGHT
WE01X27980 WE01X27980 IMPELLER
WE01X27980 WE01X27980 IMPELLER
WD-8070-25 WD-8070-25 INNER EARTHING WIRE
0030810811 0030810811 KNOB COMPONENT
0030202867 0030202867 LAMP COVER
0030202866 0030202866 LAMP RACK
WE01X27982 WE01X27982 LINT FILTER
WE01X27982 WE01X27982 LINT FILTER
WE01X27985 WE01X27985 LINT FILTER SUPPORT
WE01X27985 WE01X27985 LINT FILTER SURPORT
WE10X27373 WE10X27373 LOCK BODY
WH07X27710 WH07X27710 LOCKING BAND

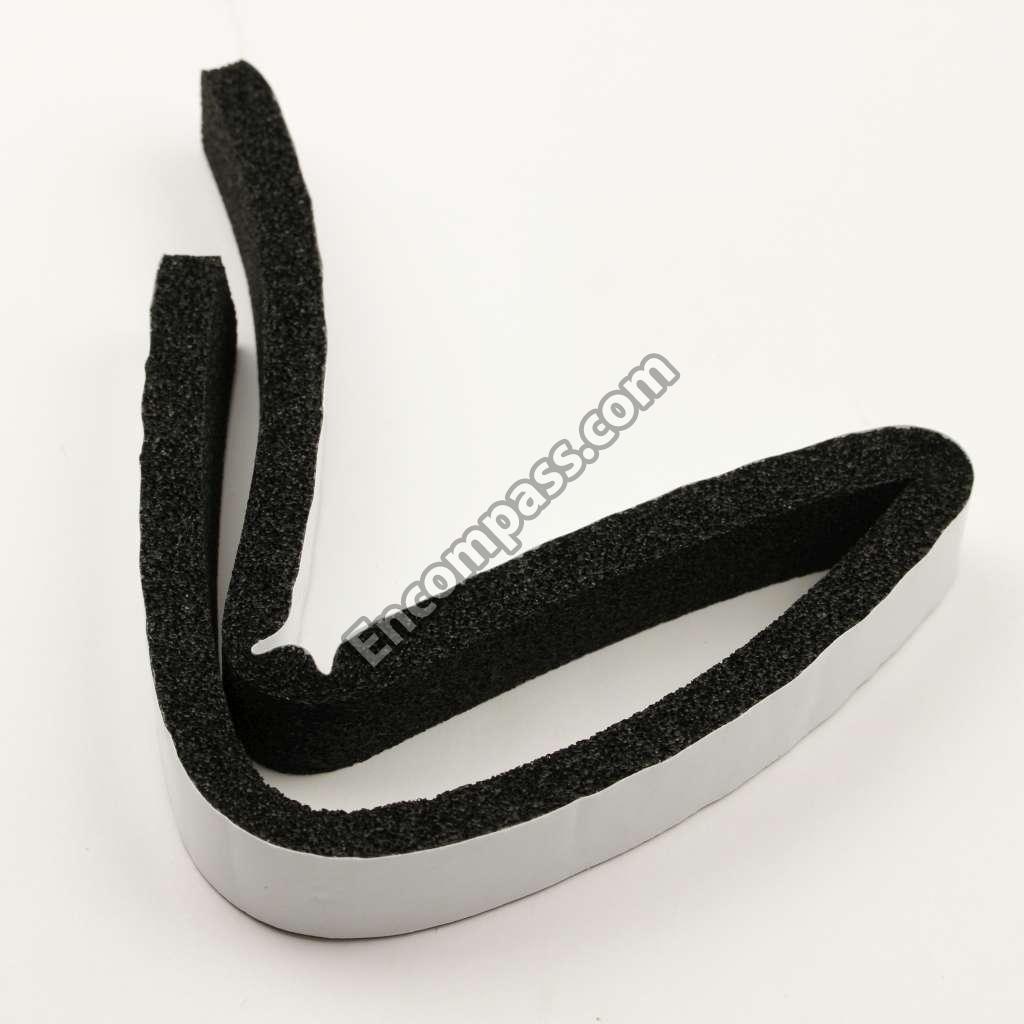

WE09X27688 WE09X27688 LONGSEALGASKET
0180800442 0180800442 MANUAL
WD-0850-68 WD-0850-68 MOTOR BRACKET
WD-4550-095 WD-4550-095 MOTOR COMPONENT

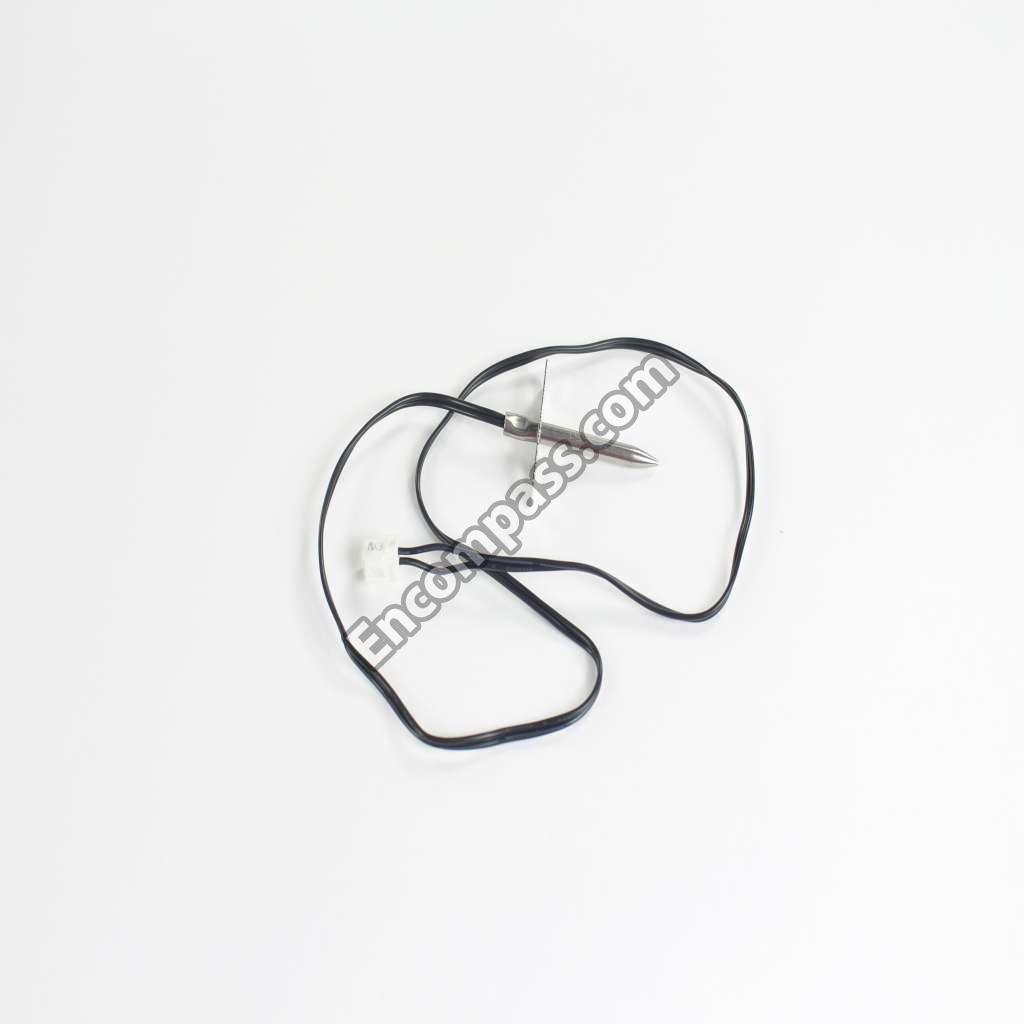

WE04X26348 WE04X26348 NTC
WD-3200-03 WD-3200-03 NTC
WD-4720-19 WD-4720-19 NUT
WE02X26366 WE02X26366 NUT
WE01X28010 WE01X28010 ORIENTATION BOLT
WD-5300-06 WD-5300-06 ORIENTATION PLATE
WD-7950-05 WD-7950-05 OUTER DENTATE GASKET
0030508411C 0030508411C PACKING BOX
WD-2300-09 WD-2300-09 PLATE FRONT
0030500489 0030500489 PRODUCT PACK BAG
0030508588J 0030508588J SAFEGUARD BAG
WD-6150-244 WD-6150-244 SCREW
WH02X26267 WH02X26267 SCREW
WE04X26384 WE04X26384 SENSOR HUMIDITY
WD-6150-43 WD-6150-43 SINKING TAPPING SCREW
WE01X27979 WE01X27979 SPRING
WD-7950-15 WD-7950-15 SPRING GASKET

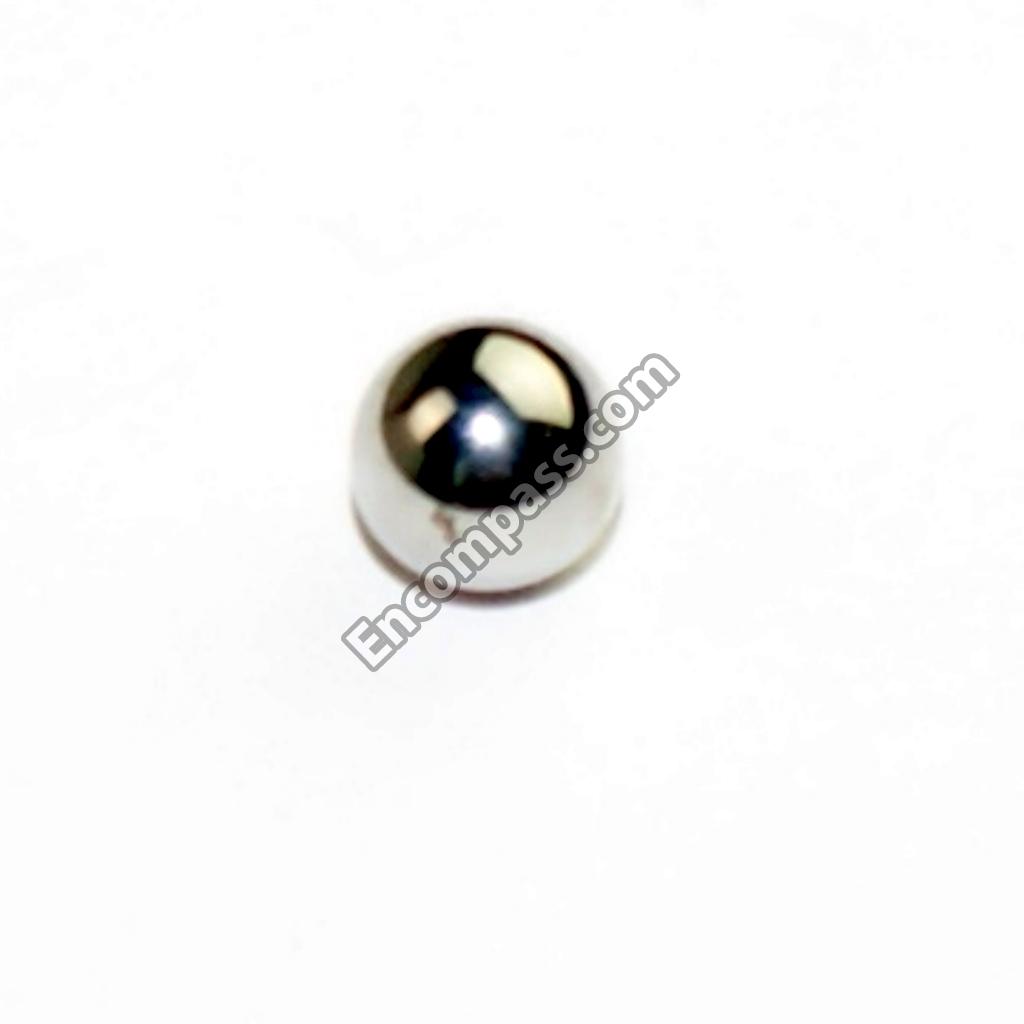

WE01X27992 WE01X27992 STEEL BALL
WE01X27974 WE01X27974 SUPPORT A
WE01X27978 WE01X27978 SUPPORT BLOCK
WH02X26927 WH02X26927 TAPPING SCREW
WH02X26188 WH02X26188 TAPPING SCREW
WH02X26924 WH02X26924 TAPPINGSCREW
WD-6150-210 WD-6150-210 TAPPINGSCREW
WE02X26576 WE02X26576 TAPPINGSCREW
WH01X27834 WH01X27834 TAPPINGSCREW (ALSO USED FOR LOCATION 108,117,139)
WH02X27685 WH02X27685 TAPPINGSCREW (ALSO USED FOR LOCATION 55)
WE04X27365 WE04X27365 TEMPERATURE LIMITED SWITCH
WE01X28019 WE01X28019 TEMPERATURE SENSING DEVICE
WD-0850-70 WD-0850-70 THREAD-PROTECTED BOARD I
WD-0850-71 WD-0850-71 THREAD-PROTECTED BOARD II
WD-6750-83 WD-6750-83 TIGHTEN SPRING LEFT
WD-6750-84 WD-6750-84 TIGHTEN SPRING RIGHT
0030808198 0030808198 TRUNK
WD-0550-04 WD-0550-04 WHISK LEAF
WD-3150-02 WD-3150-02 WINDOW SHADE
WE01X27385 WE01X27385 WOOL I
WE01X27386 WE01X27386 WOOL II
0030200405B 0030200405B WORM SHELL
00330308077C 00330308077C WORM SHELL COVER
