Model Image
Manufacturer

Haier

Model Number

CWCH30B

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
RF-0140-06 RF-0140-06 AXLE - TOP HINGE
RF-0140-12 RF-0140-12 AXLE-BOTTOM HINGE
RF-0668-04 RF-0668-04 BOARD-CONTROL CIRCUI
RF-1640-18 RF-1640-18 BRACKET
RF-6050-05 RF-6050-05 BUSHING
RF-1302-10 RF-1302-10 CABLE - GROUNDING
RF-1750-284 RF-1750-284 COMPRESSOR-W/ACCESSO
RF-1900-17 RF-1900-17 CORD-POWER
RF-1950-A4 RF-1950-A4 COVER
RF-1950-A3 RF-1950-A3 COVER-BULB
RF-1950-A2 RF-1950-A2 COVER-TEMP DISPLAY
RF-4150-17 RF-4150-17 CROSS-CHANNEL PAN-HEAD SCREW
RF-2400-10 RF-2400-10 DRIER
RF-2650-48 RF-2650-48 EVAPORATOR
RF-3100-76 RF-3100-76 GASKET
WR01X28053 WR01X28053 KEY
WR01X29916 WR01X29916 LOCK ONLY
RF-5200-43 RF-5200-43 PANEL-DISPLAY
RF-6150-131 RF-6150-131 SCREW
RF-6150-260 RF-6150-260 SCREW
RF-6150-44 RF-6150-44 SCREW
RF-6150-141 RF-6150-141 SCREW - PHILLIPS SEL
RF-6250-01 RF-6250-01 SENSOR
RF-6600-03 RF-6600-03 SOCKET-BULB
RF-7350-101 RF-7350-101 THERMOSTAT
RF-7600-56 RF-7600-56 TRAY-EVAP DRIP [ASSY
RF-7950-12 RF-7950-12 WASHER
RF-7950-11 RF-7950-11 WASHER
RF-7950-26 RF-7950-26 WASHER - SPRING
RF-8070-02 RF-8070-02 WIRE-BULB

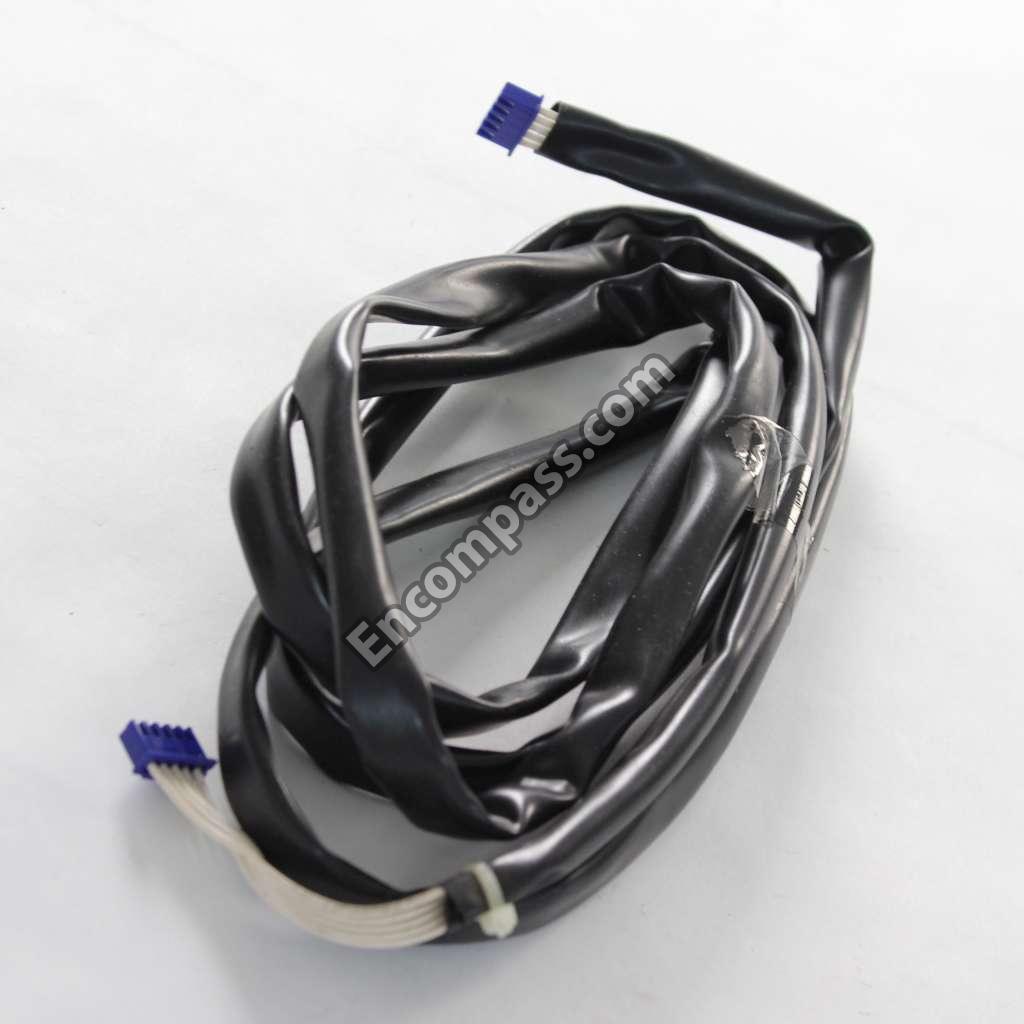

RF-8070-01 RF-8070-01 WIRE-SIGNAL
