Model Image
Manufacturer

Haier

Model Number

D970EP

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

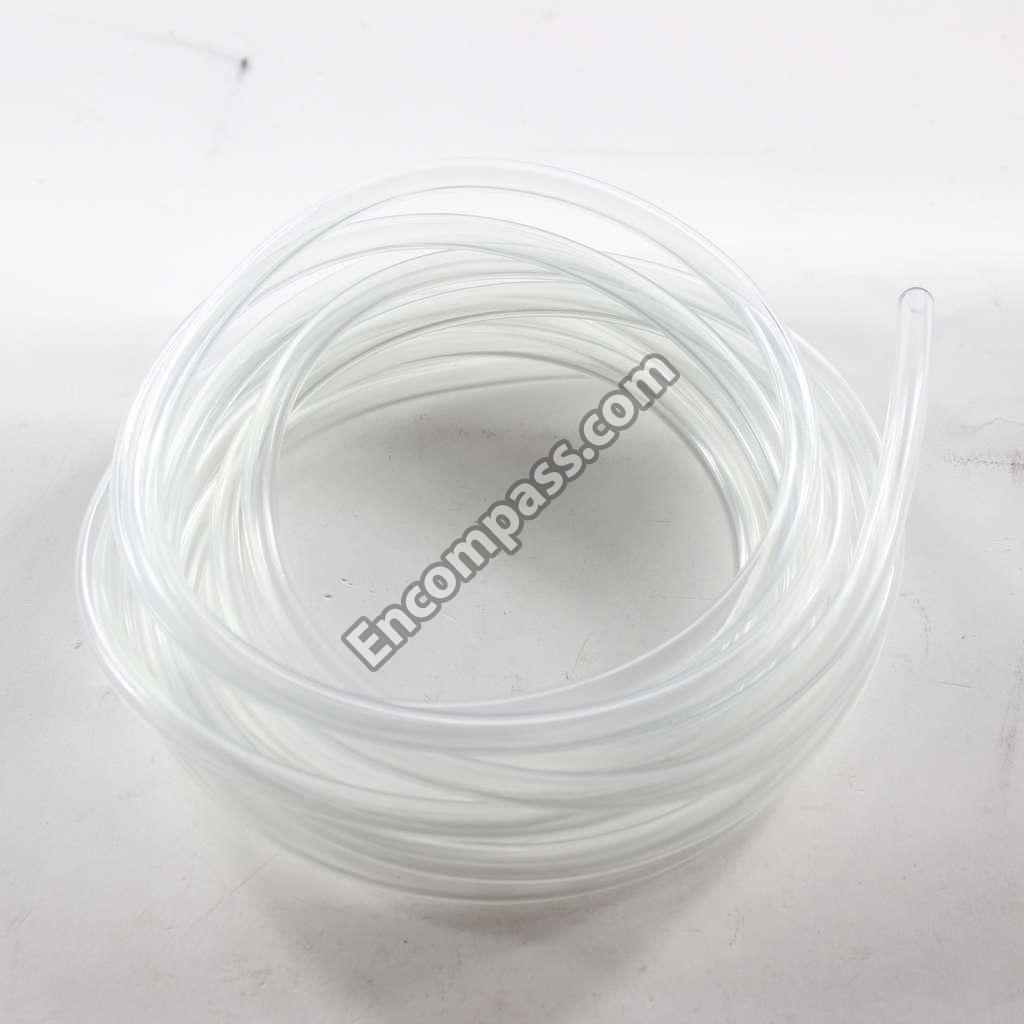

AC-5255-688 AC-5255-688 16 FOOT CLEAR DRAIN TUBE
AC-0600-16 AC-0600-16 BLOWER-WHEEL
AC-0800-142 AC-0800-142 BOX-ELECTRIC
AC-0850-222 AC-0850-222 BRACKET
AC-0850-126 AC-0850-126 BRACKET-METAL

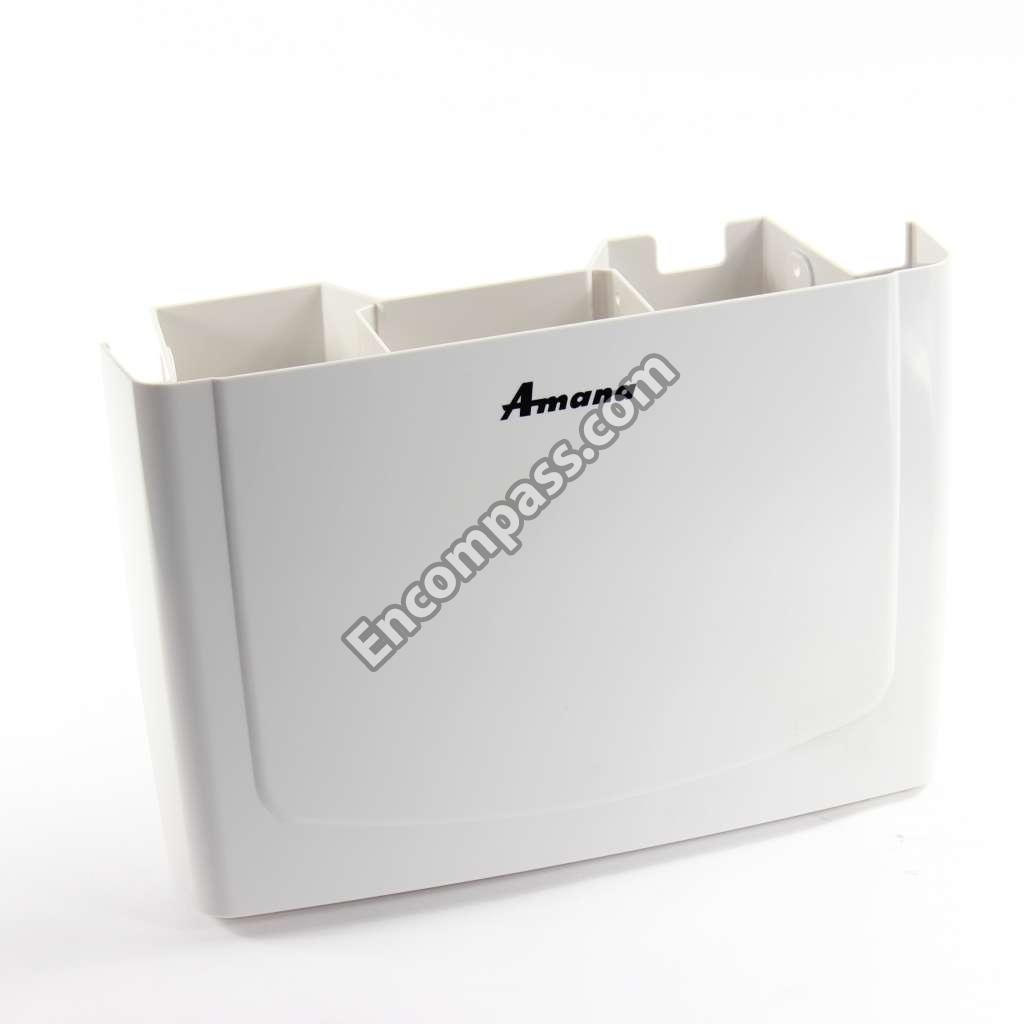

AC-0990-015 AC-0990-015 BUCKET
AC-4000-054 AC-4000-054 BUTTON
AC-4000-053 AC-4000-053 BUTTON
AC-7100-096 AC-7100-096 BUTTON - PUMP
AC-1300-105 AC-1300-105 CABINET - REAR
AC-1400-163 AC-1400-163 CAPACITOR-40UF 300V
AC-1400-164 AC-1400-164 CAPACITOR-6UF 250V
AC-1480-58 AC-1480-58 CASING-FAN FRONT
AC-1480-57 AC-1480-57 CASING-FAN REAR
WJ01X22291 WJ01X22291 CASTER
AC-1750-214 AC-1750-214 COMPRESSOR
AC-1800-256 AC-1800-256 CONDENSER
AC-1830-022 AC-1830-022 CONNECTOR
AC-1900-090 AC-1900-090 CORD
AC-1950-476 AC-1950-476 COVER
AC-1950-348 AC-1950-348 COVER
AC-1950-346 AC-1950-346 COVER
AC-1950-344 AC-1950-344 COVER
AC-1950-349 AC-1950-349 COVER-DRAIN PLUG
AC-1950-350 AC-1950-350 COVER-LIGHT
AC-2650-220 AC-2650-220 EVAPORATOR
AC-2800-105 AC-2800-105 FILTER-AIR
AC-2868-06 AC-2868-06 FOAM-FLOAT
AC-2900-003 AC-2900-003 FOOT
AC-2950-148 AC-2950-148 FRAME
AC-3150-118 AC-3150-118 GRILL-DISCHARGE
AC-3350-29 AC-3350-29 HANDLE - BUCKET

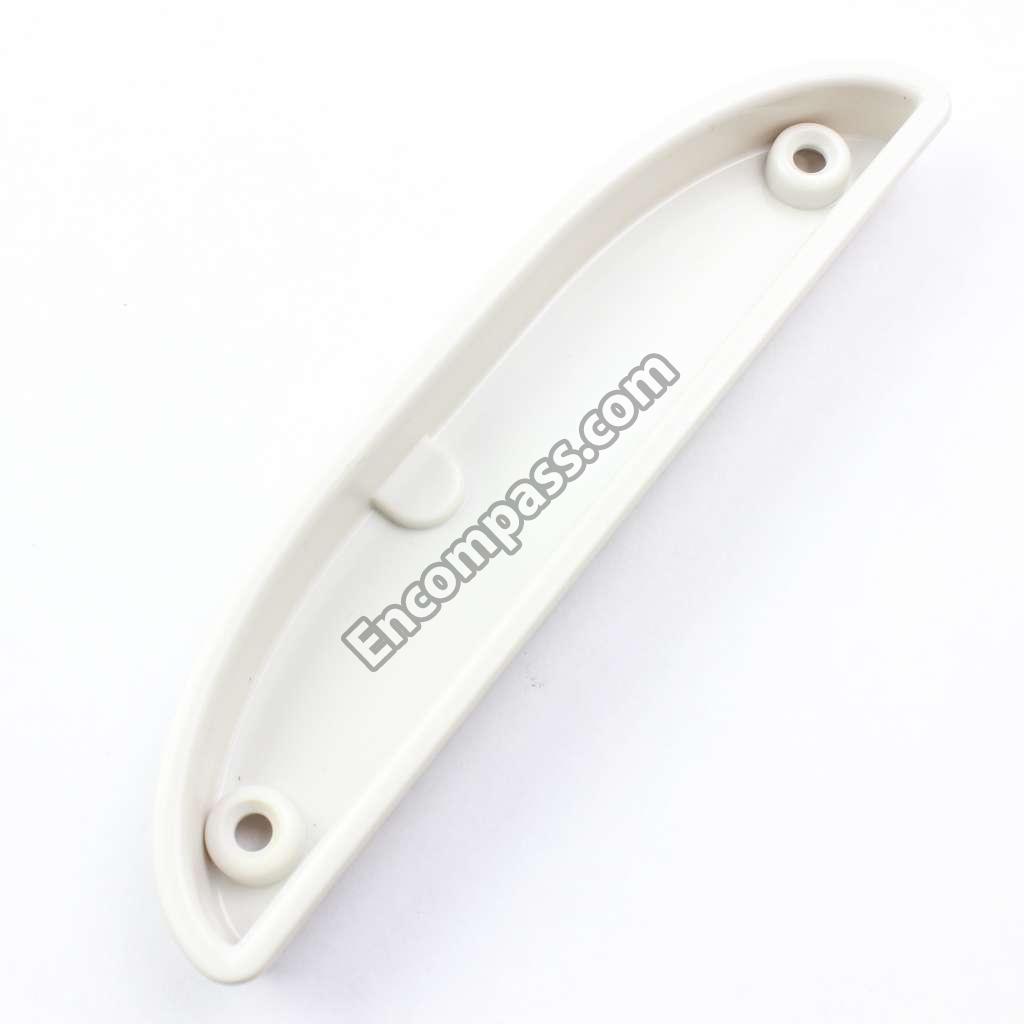

AC-3350-31 AC-3350-31 HANDLE - SIDE
AC-3350-30 AC-3350-30 HANDLE - SIDE
AC-3500-169 AC-3500-169 HOLDER
AC-3500-168 AC-3500-168 HOLDER
WJ71X24133 WJ71X24133 HOSE-DRAIN

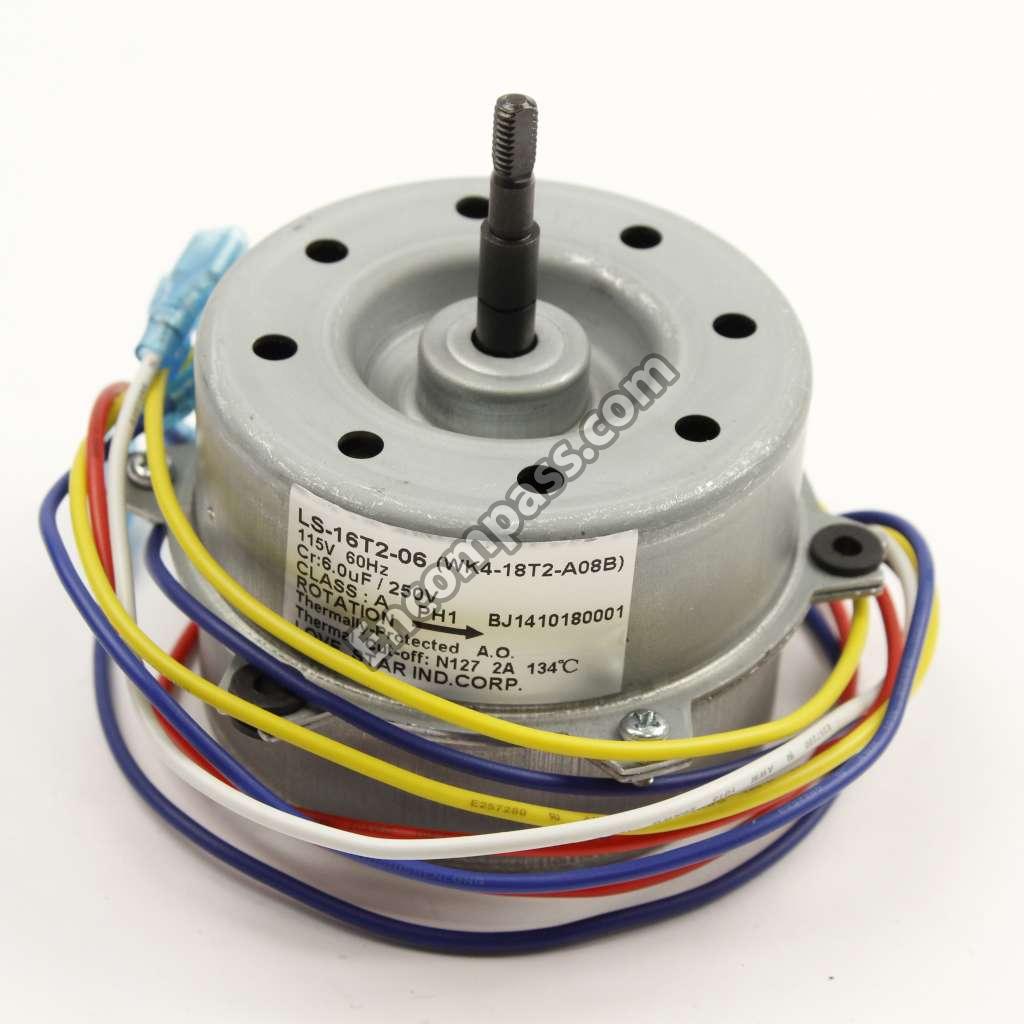

AC-4550-417 AC-4550-417 MOTOR
AC-5210-235 AC-5210-235 P.C.B. - BUTTON BOARD
AC-5210-209 AC-5210-209 P.C.B. - POWER BOARD
AC-5150-98 AC-5150-98 PAN-BASE

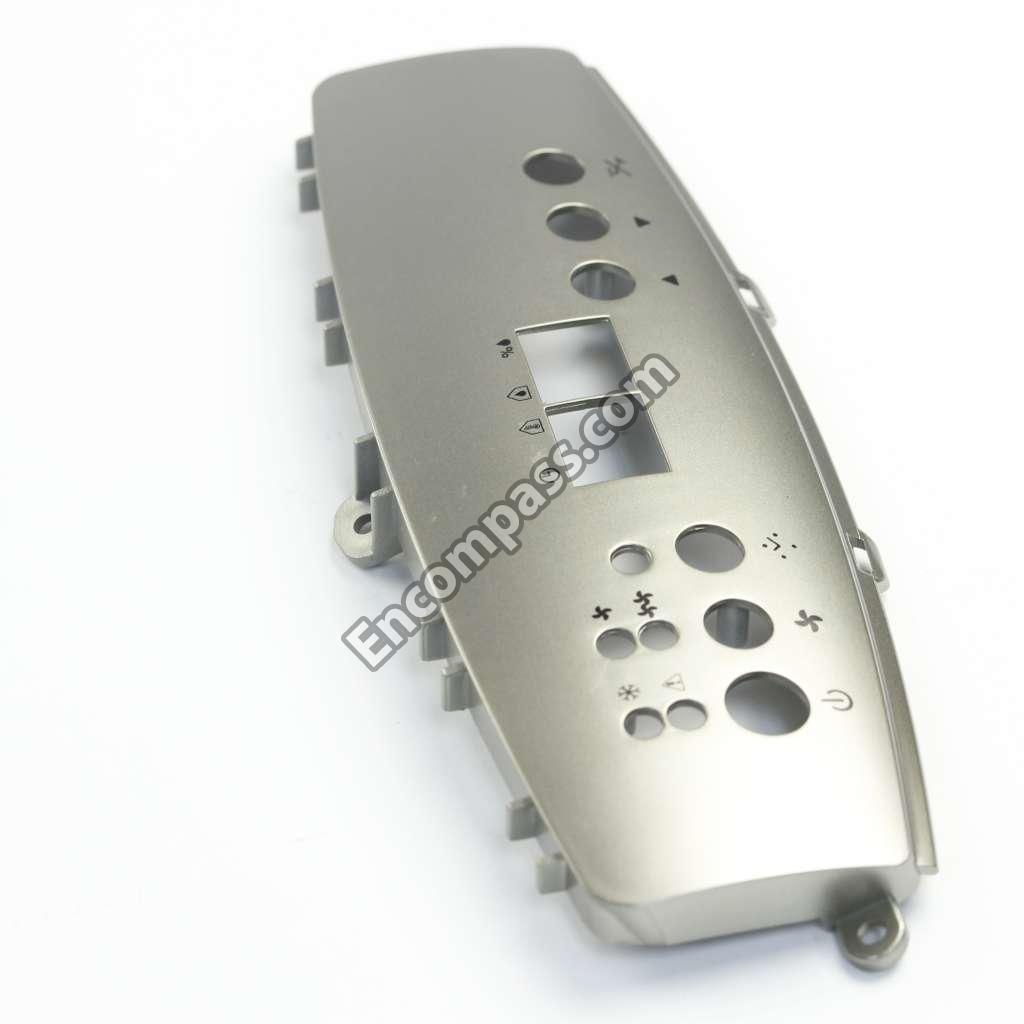

AC-5200-622 AC-5200-622 PANEL
AC-5200-455 AC-5200-455 PANEL-FRONT
AC-5255-689 AC-5255-689 PIPE
AC-5300-48 AC-5300-48 PLATE-METAL
WJ01X24010 WJ01X24010 PLUG-DRAIN
AC-5470-002 AC-5470-002 PUMP
AC-5550-21 AC-5550-21 RAIL
AC-6250-057 AC-6250-057 SENSOR - EVAP
AC-6250-050 AC-6250-050 SENSOR - HUMIDITY
AC-7100-097 AC-7100-097 SWITCH
WJ27X22317 WJ27X22317 SWITCH - PUMP
AC-7750-307 AC-7750-307 TUBE
AC-7750-102 AC-7750-102 TUBE-CAPILLARY

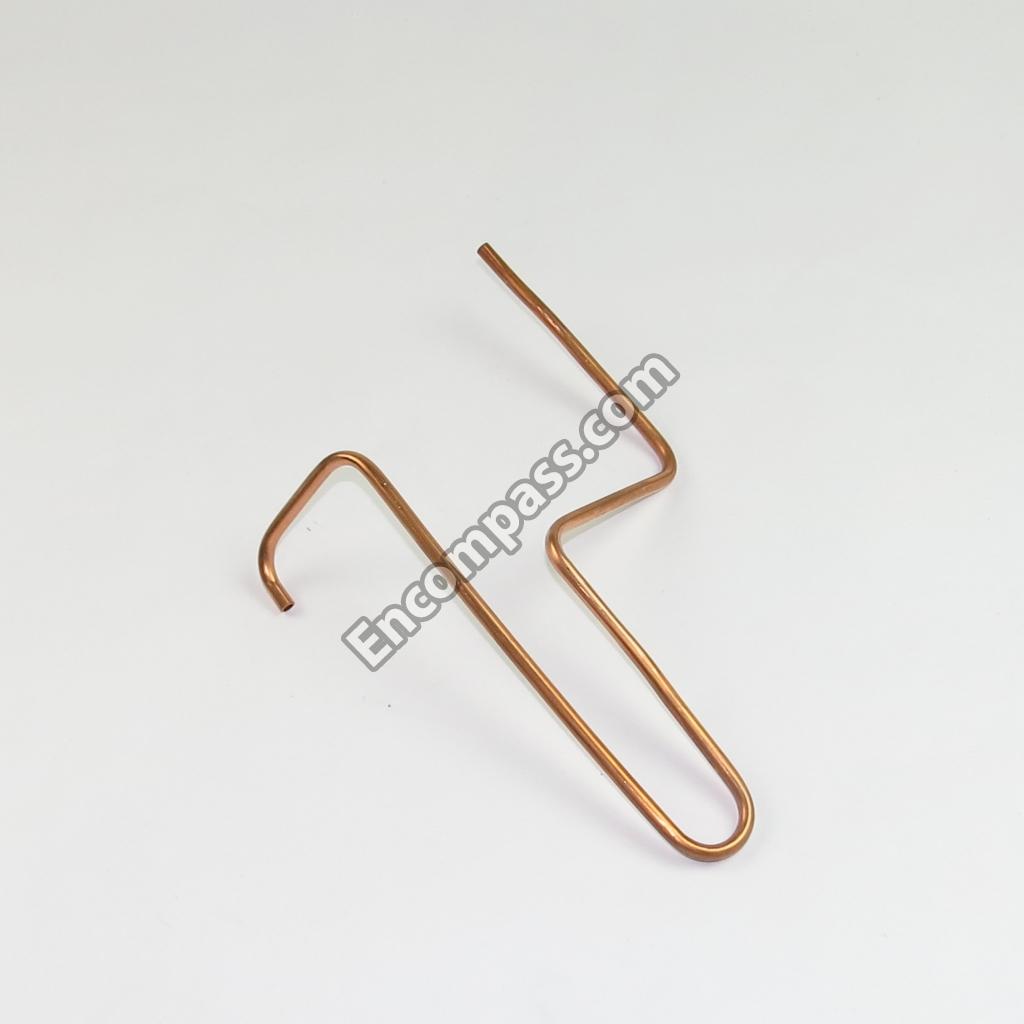

AC-7750-216 AC-7750-216 TUBE-DISCHARGE
AC-7750-215 AC-7750-215 TUBE-SUCTION

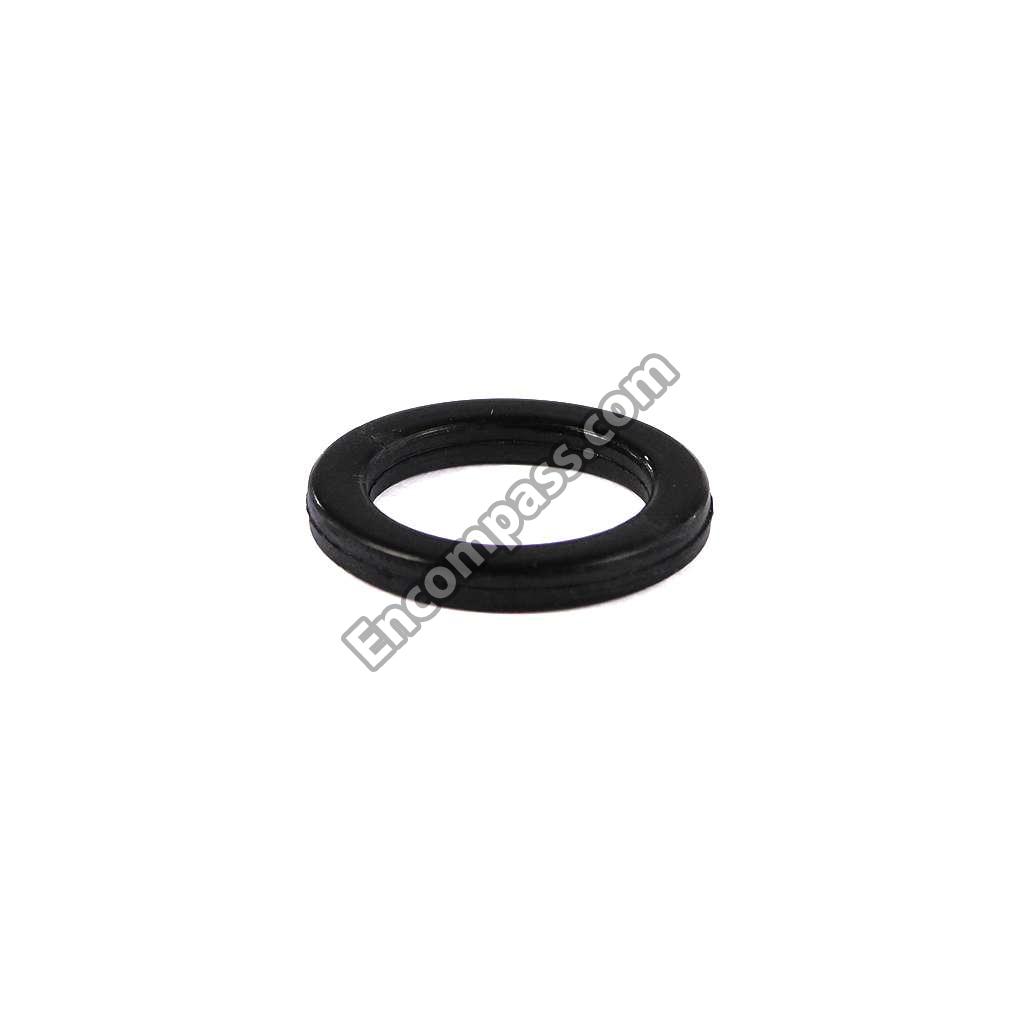

WJ71X24132 WJ71X24132 WASHER
