Model Image
Manufacturer

GE

Model Number

DE65EML

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

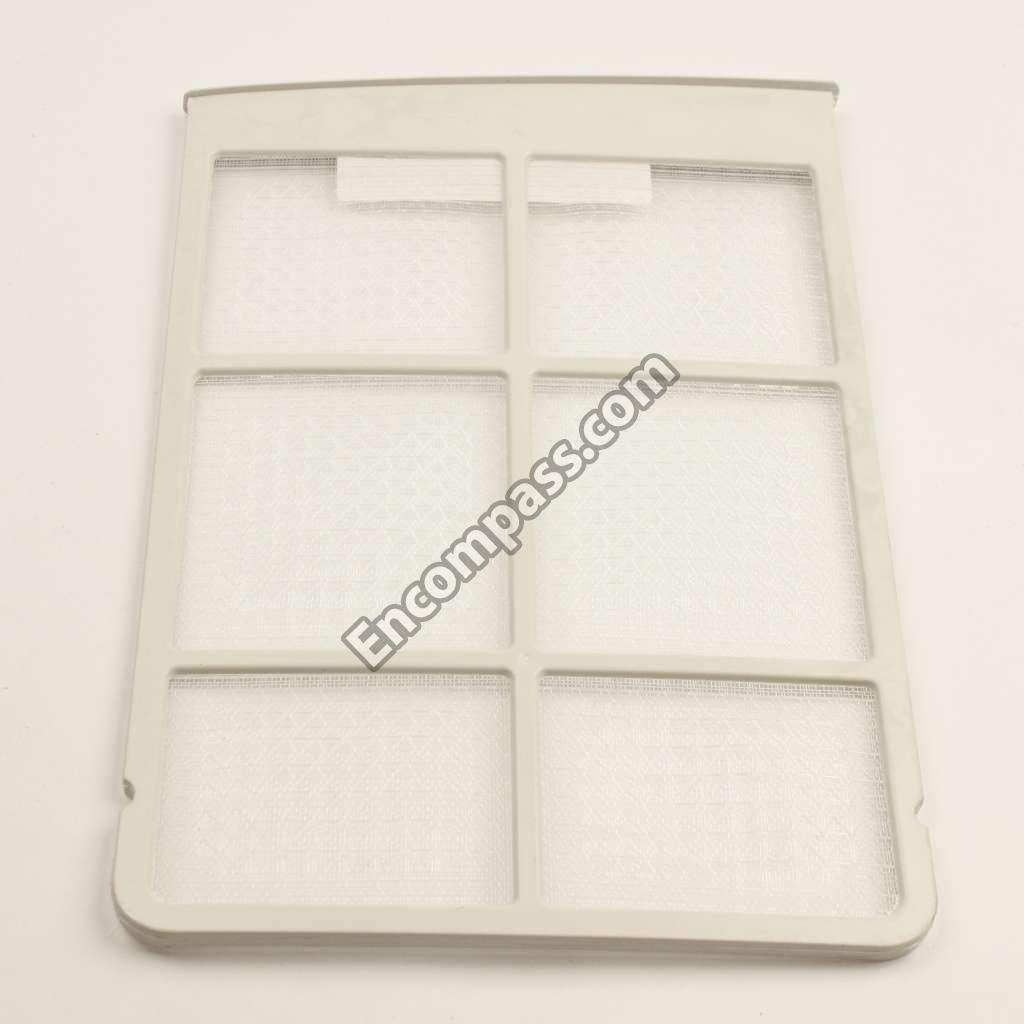

WJ85X24137 WJ85X24137 AIR FILTER
A0010206270 A0010206270 AIR FLOW DUCT
AC-2450-020 AC-2450-020 AIR FLOW DUCT
A0010206256 A0010206256 AIR FLOW DUCT
A0010206263 A0010206263 AIR OUTLET
AC-1620-042 AC-1620-042 BOTTOM PLATE ASSY.
AC-0850-202 AC-0850-202 BRACKET
AC-1400-166 AC-1400-166 CAPACITOR
A0010401722 A0010401722 CAPACITOR
WJ03X10093 WJ03X10093 CAPACITOR CLAMP
A0010206277 A0010206277 CASING
A0010206264 A0010206264 CASING
AC-2750-137 AC-2750-137 CENTRIFUGAL FAN
AC-1750-305 AC-1750-305 COMPRESSOR
A0010716859 A0010716859 COMPRESSOR
AC-1800-223 AC-1800-223 CONDENSER ASSY.
A0010712406A A0010712406A CONDENSER SUCTION TUBE
A0010102116 A0010102116 CONNECTING
A0010713385 A0010713385 CONNECTING PIPE
A0010206250 A0010206250 COVER FOR CONTROL BOX
A0010206262 A0010206262 DIAL
A0010712577 A0010712577 DISCHARGING TUBE
AC-0012-008 AC-0012-008 DRIVER
A0010206251 A0010206251 ELECTRRICAL BOX
A0010718507 A0010718507 EVAPORATOR ASSY-MAIN BODY
A0010712405A A0010712405A EVAPORATOR DISCHARGE TUBE
A0010718506 A0010718506 EVAPORATOR SPLIT-FLOW ASSY
AC-5200-586 AC-5200-586 FRONT PANEL ASSY.
A0010206261 A0010206261 FRONT PANEL ASSY.
AC-6250-37 AC-6250-37 HUMIDITY SENSOR
A0010403871A A0010403871A MICROSWITH
AC-4550-386 AC-4550-386 MOTOR
AC-5210-207 AC-5210-207 PCB

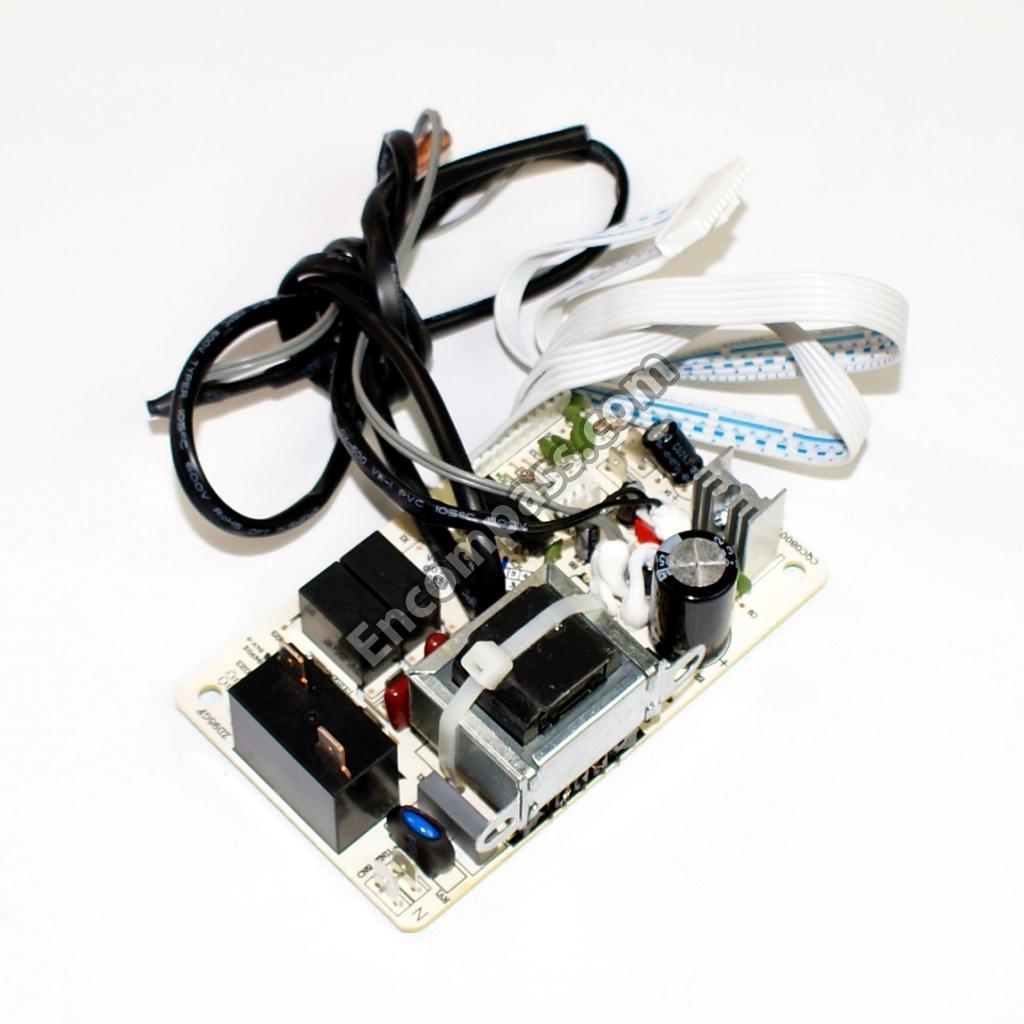

WJ26X24138 WJ26X24138 POWER CONTROL BOARD
AC-1900-083 AC-1900-083 POWER CORD
A0010712578 A0010712578 SUCTION TUBE
A0010206268 A0010206268 TOP PARTITION BOARD
AC-5211-068 AC-5211-068 TOP PARTITION BOARD
WJ76X23673 WJ76X23673 WATER BOX ASSY
AC-7100-42 AC-7100-42 WATER LOCATION SWITCH
WJ01X23779 WJ01X23779 WHEEL
