Model Image
Manufacturer

GE

Model Number

ESA3069

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WJ01X23761 WJ01X23761 BAG-SCREW ASSY
AC-2750-125 AC-2750-125 BLADE-FAN
AC-0750-33 AC-0750-33 BOLT-BOTTOM
AC-0800-117 AC-0800-117 BOX-CONTROL
AC-0850-75 AC-0850-75 BOX-PHOTOCATALYST FI
AC-1400-236 AC-1400-236 CAPACITOR-FAN MOTOR
AC-1480-55 AC-1480-55 CASING-MIDDLE SCROLL
AC-1480-54 AC-1480-54 CASING-TOP SCROLL
AC-1750-205 AC-1750-205 COMPRESSOR
AC-1800-158 AC-1800-158 CONDENSER-ASSY
AC-2650-128 AC-2650-128 EVAPORATOR-ASSY
AC-0600-23 AC-0600-23 FAN-BLOWER WHEEL
WJ85X23968 WJ85X23968 FILTER-STATIC
WJ86X22905 WJ86X22905 FRAME-LEFT
WJ86X22904 WJ86X22904 FRAME-RIGHT
AC-7800-178 AC-7800-178 GASKET-WINDOW SEAL
AC-3363-15 AC-3363-15 HARNESS-WIRE

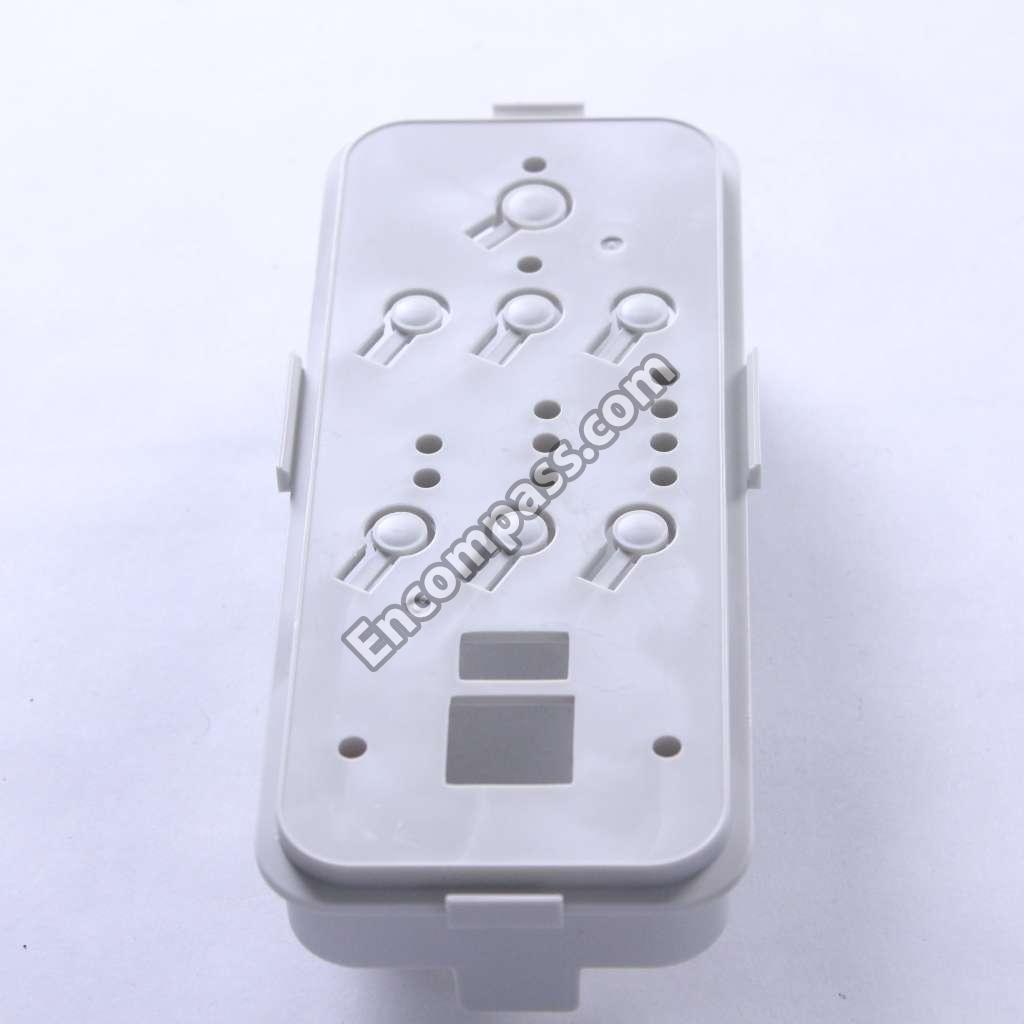

AC-2175-01 AC-2175-01 KEYPAD - CONTROL
AC-4550-299 AC-4550-299 MOTOR-FAN
AC-5211-46 AC-5211-46 PARTITION-REAR BOAR
AC-5300-350 AC-5300-350 PLATE-BOTTOM ASSY.
AC-5300-366 AC-5300-366 PLATE-ELECTRICAL BOX
WJ65X22104 WJ65X22104 RAIL-TOP
RH-5800-01 RH-5800-01 RING
WJ86X22903 WJ86X22903 SCREEN-LEFT AND RIGH
WJ27X23476 WJ27X23476 TRANSFORMER
