Manufacturer

Haier

Model Number

ESA406J

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

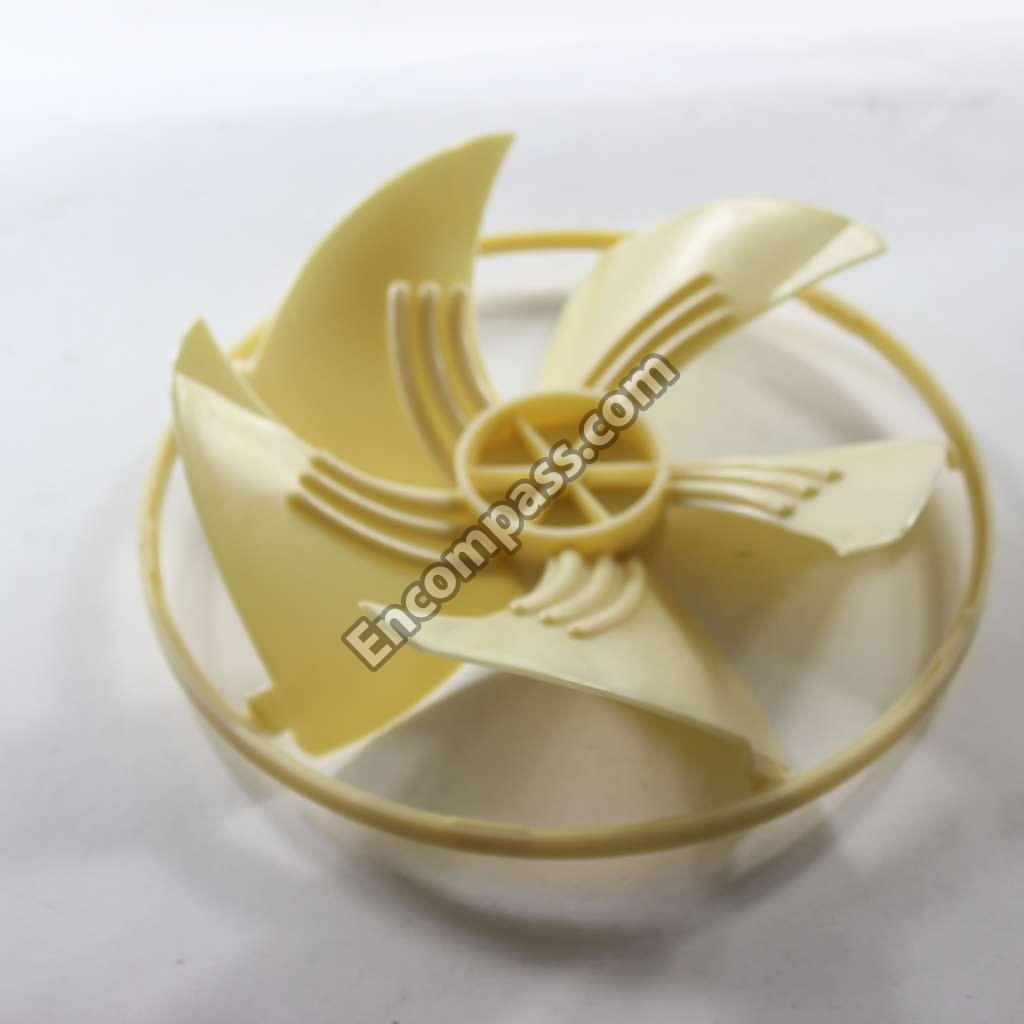

AC-2750-125 AC-2750-125 BLADE-FAN

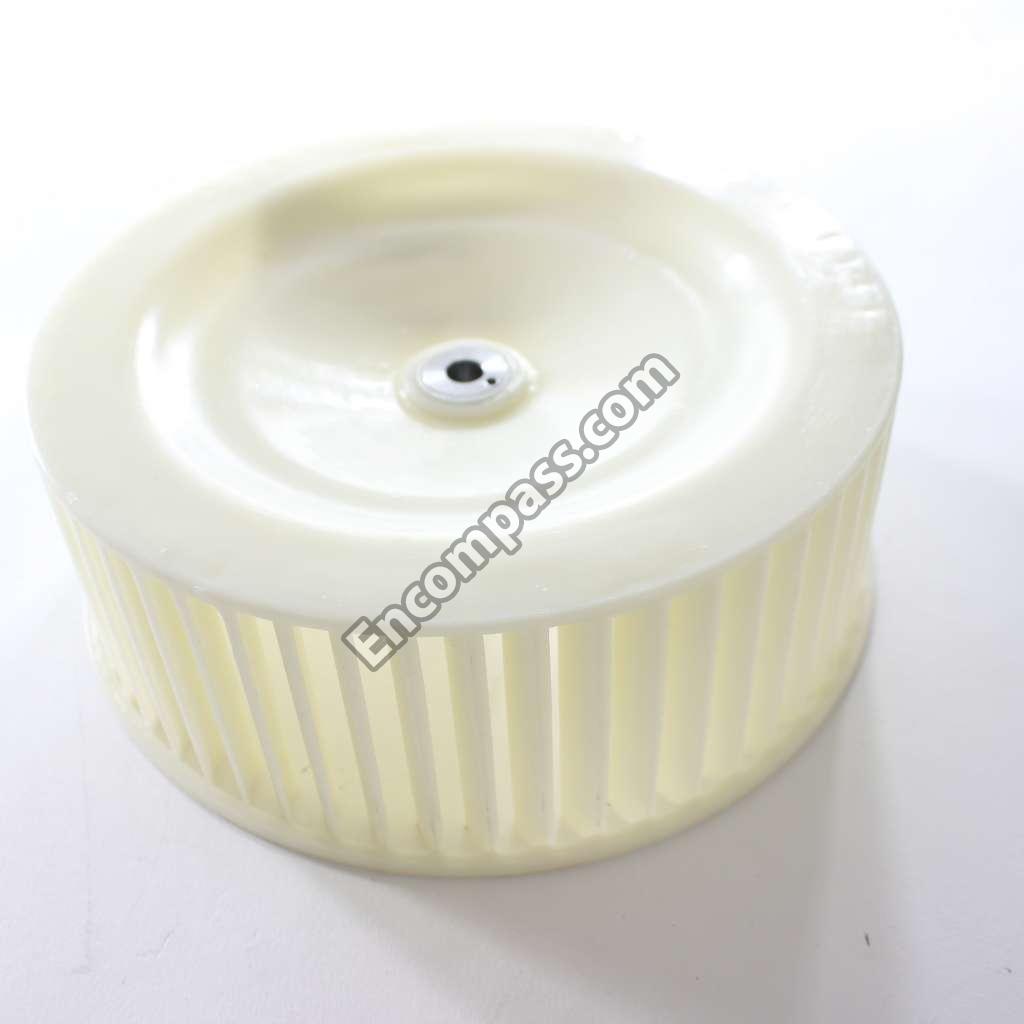

AC-0600-23 AC-0600-23 BLOWER-WHEEL
AC-0750-050 AC-0750-050 BOLT
AC-0850-162 AC-0850-162 BRACKET-FAN MOTOR

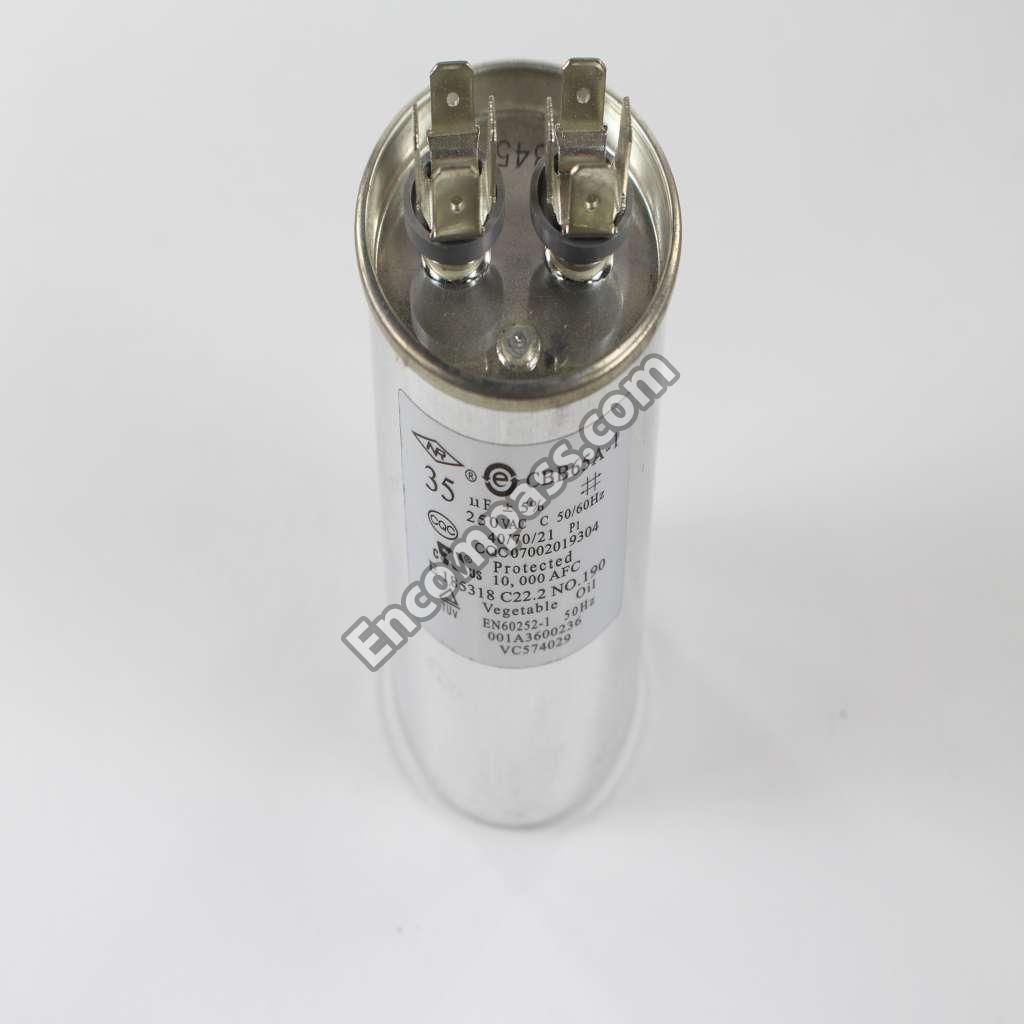

AC-1400-155 AC-1400-155 CAPACITOR-COMPRESSOR

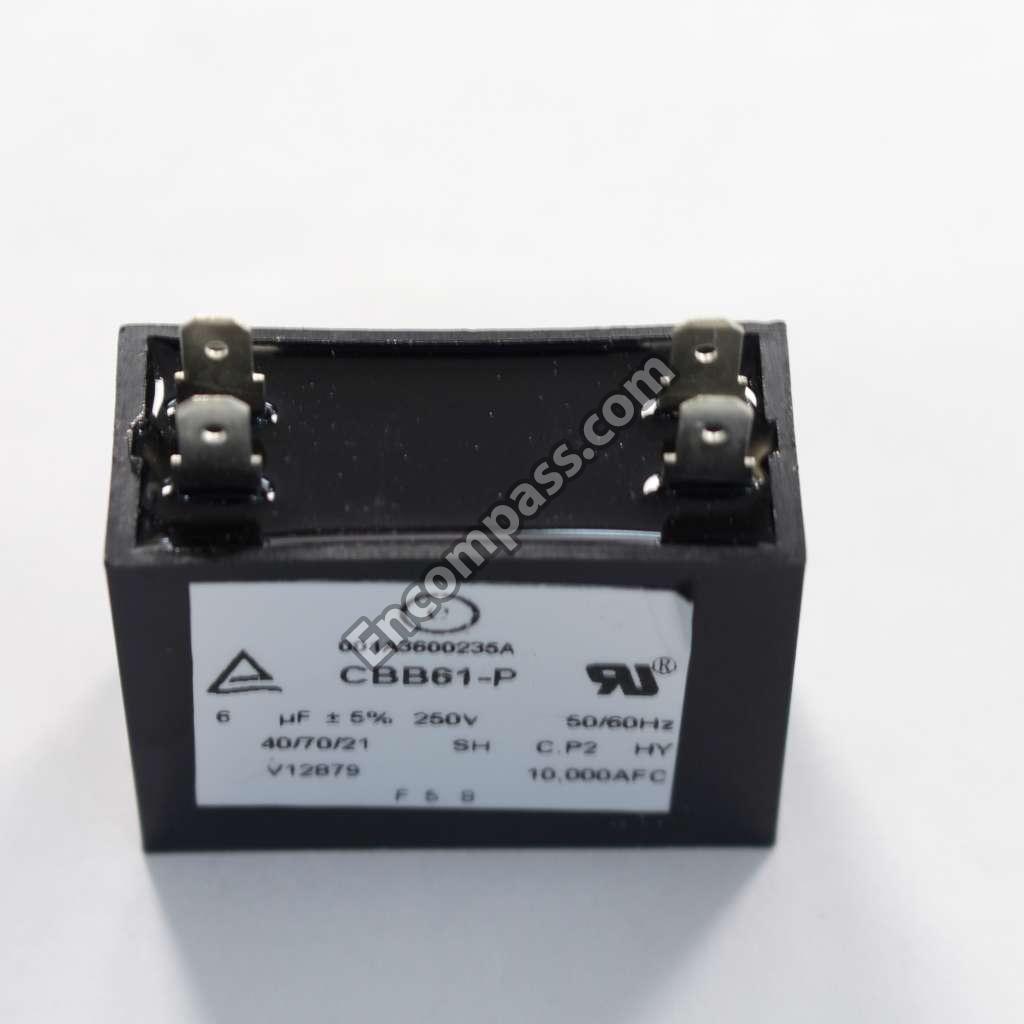

AC-1400-236 AC-1400-236 CAPACITOR-FAN MOTOR
AC-1405-49 AC-1405-49 CAPILLARY

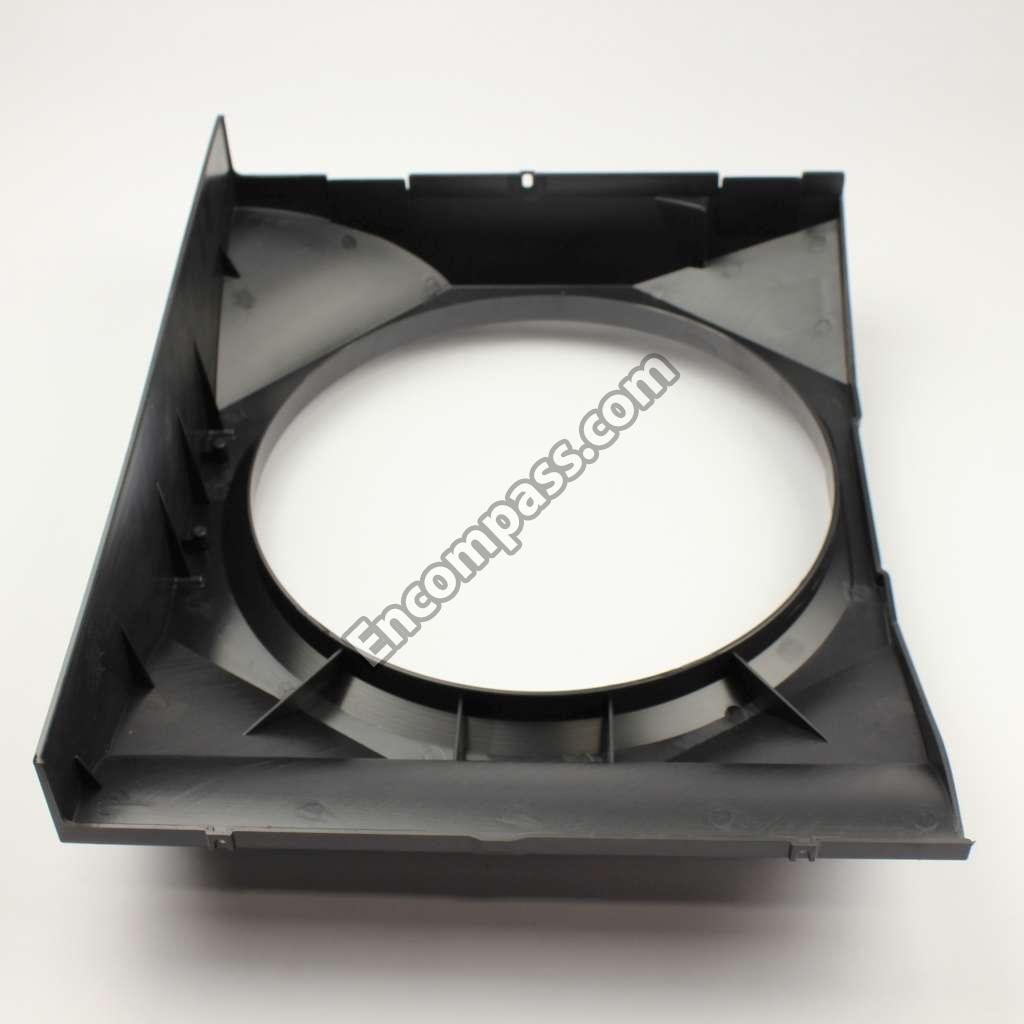

AC-1480-55 AC-1480-55 CASING-MIDDLE SCROLL
AC-1480-54 AC-1480-54 CASING-TOP SCROLL

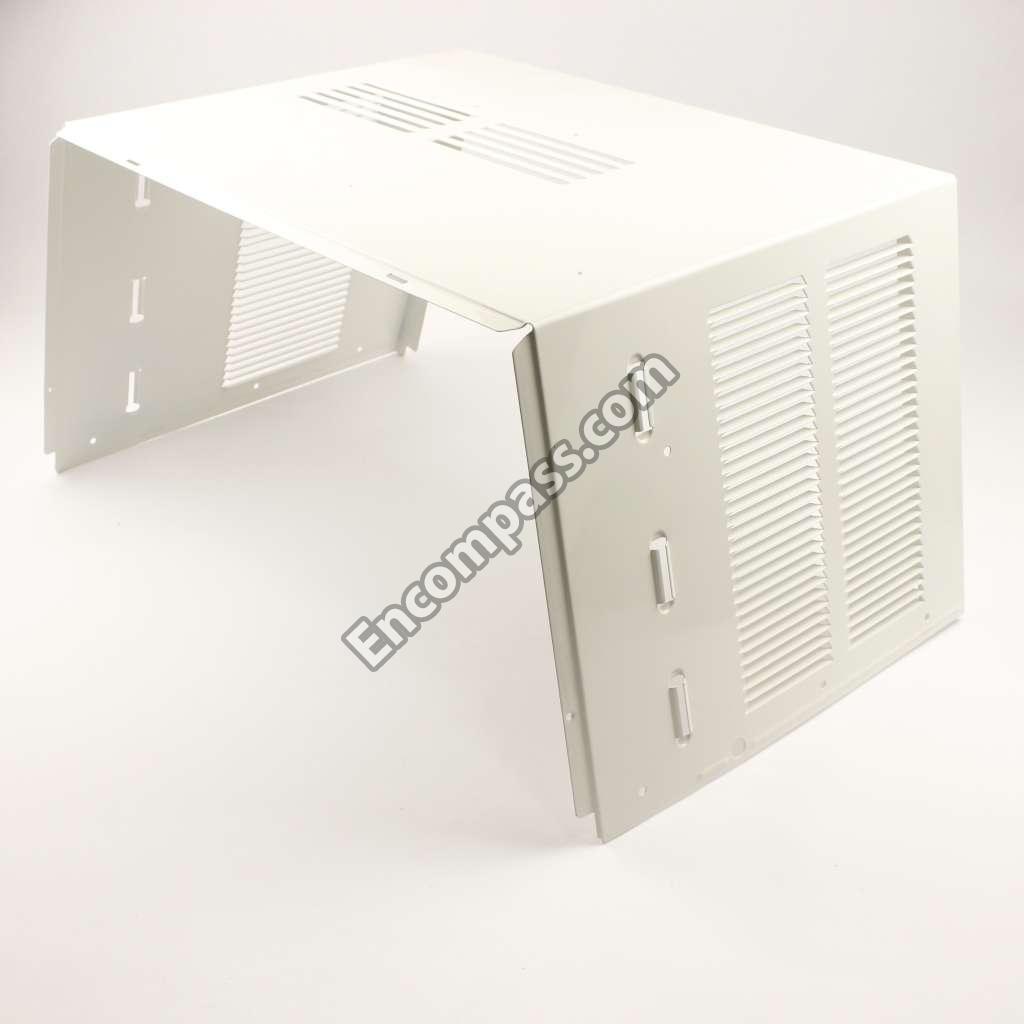

AC-1620-30 AC-1620-30 CHASSIS
AC-1620-31 AC-1620-31 CHASSIS-BOTTOM
AC-1750-234 AC-1750-234 COMPRESSOR
AC-1800-184 AC-1800-184 CONDENSER
AC-2650-155 AC-2650-155 EVAPORATOR

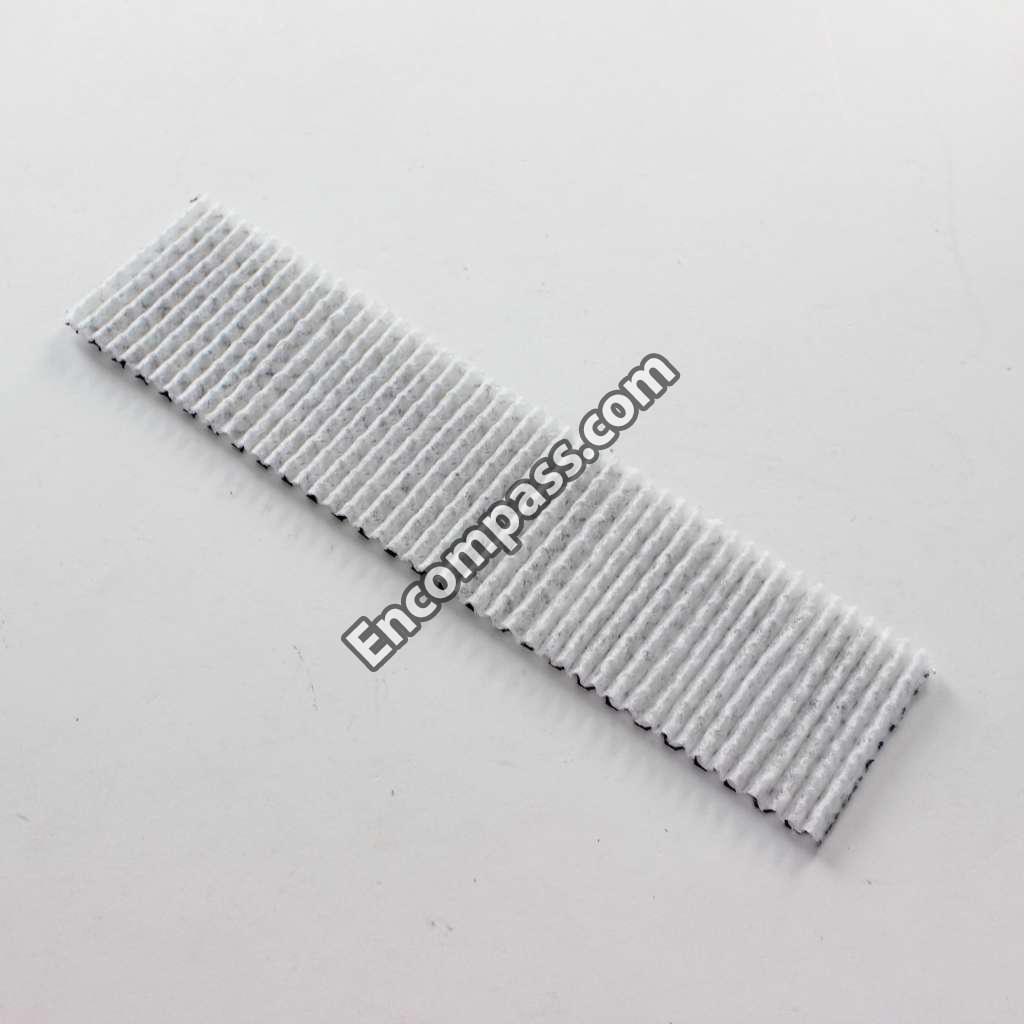

WJ85X23968 WJ85X23968 FILTER-UV

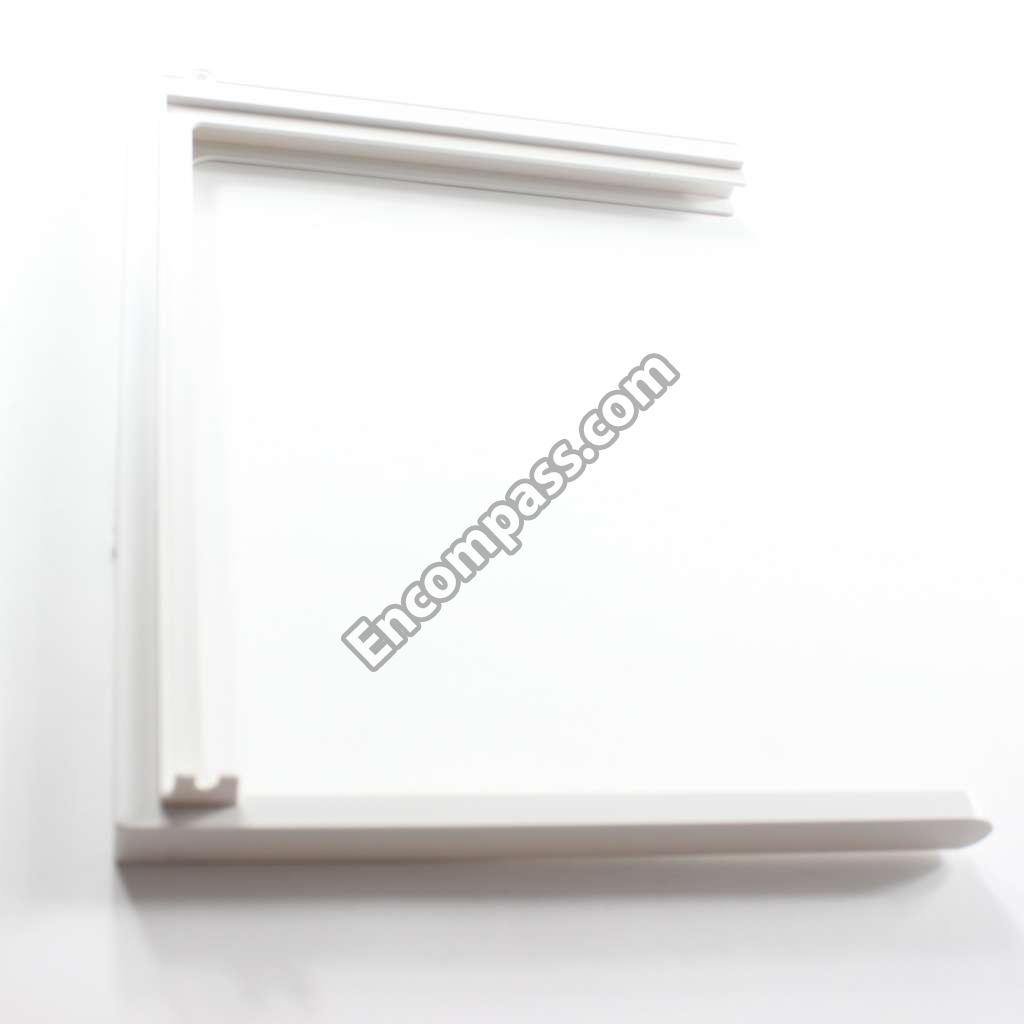

WJ86X22905 WJ86X22905 FRAME-LEFT
WJ86X22904 WJ86X22904 FRAME-RIGHT
WJ43X22906 WJ43X22906 GASKET-WINDOW
AC-3363-15 AC-3363-15 HARNESS
AC-0850-75 AC-0850-75 HOLDER-FILTER

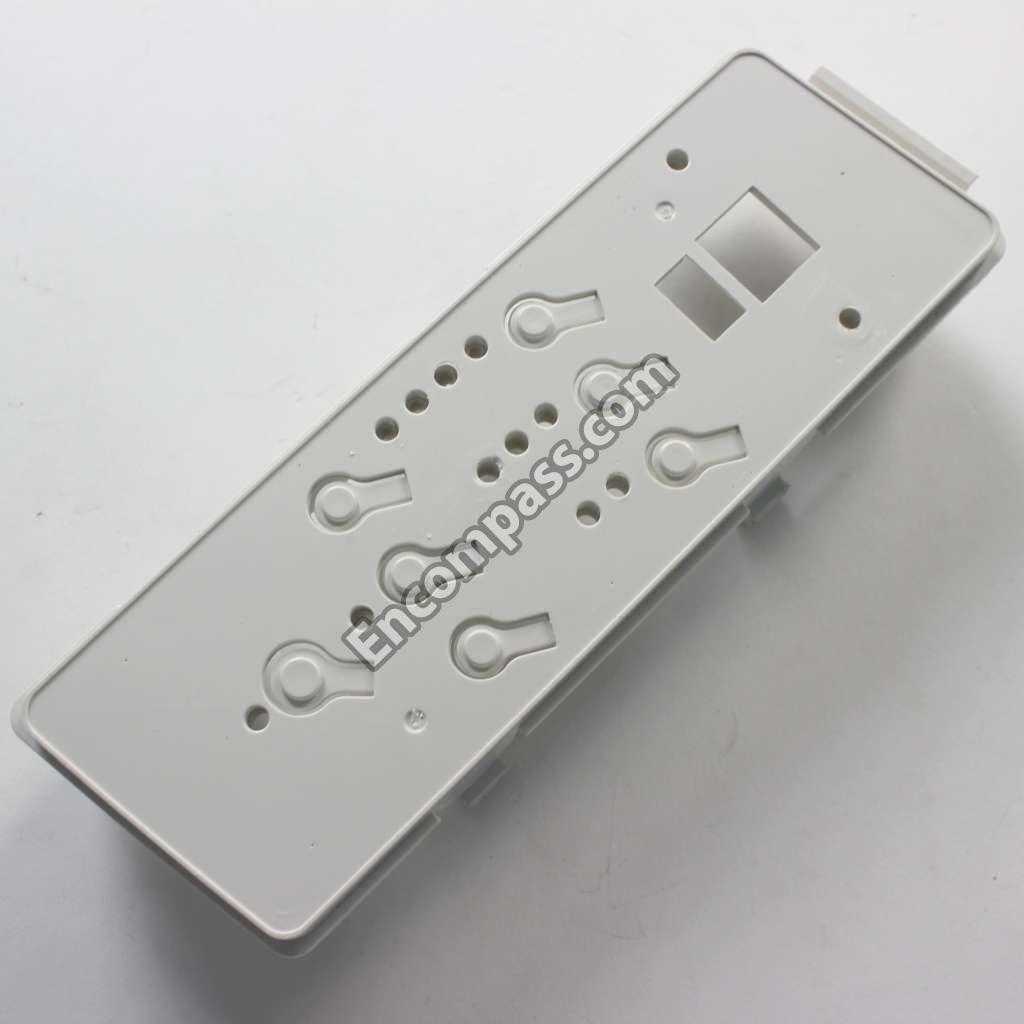

AC-3899-10 AC-3899-10 KEYPAD
AC-4550-299 AC-4550-299 MOTOR-FAN
AC-5211-46 AC-5211-46 PARTITION-REAR
AC-5300-366 AC-5300-366 PLATE
WJ65X22104 WJ65X22104 RAIL-TOP

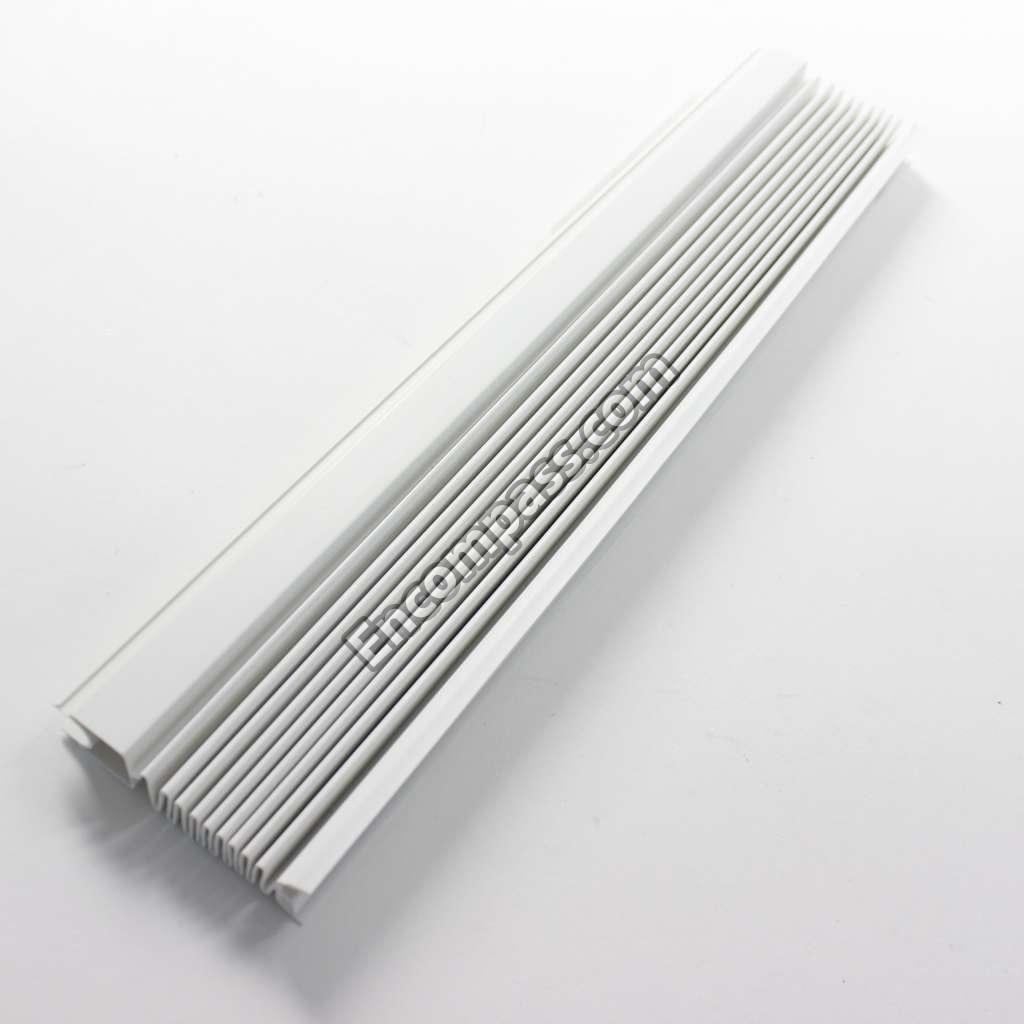

WJ86X22903 WJ86X22903 SCREEN-ACCORDIAN
WJ01X23761 WJ01X23761 SCREW-BAG
WJ27X23476 WJ27X23476 TRANSFORMER
AC-7750-261 AC-7750-261 TUBE-DISCHARGE
AC-7750-260 AC-7750-260 TUBE-SUCTION
