Model Image
Manufacturer

GE

Model Number

ESA406KL

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WJ01X23761 WJ01X23761 BAG-SCREW ASSY
AC-0750-050 AC-0750-050 BOLT

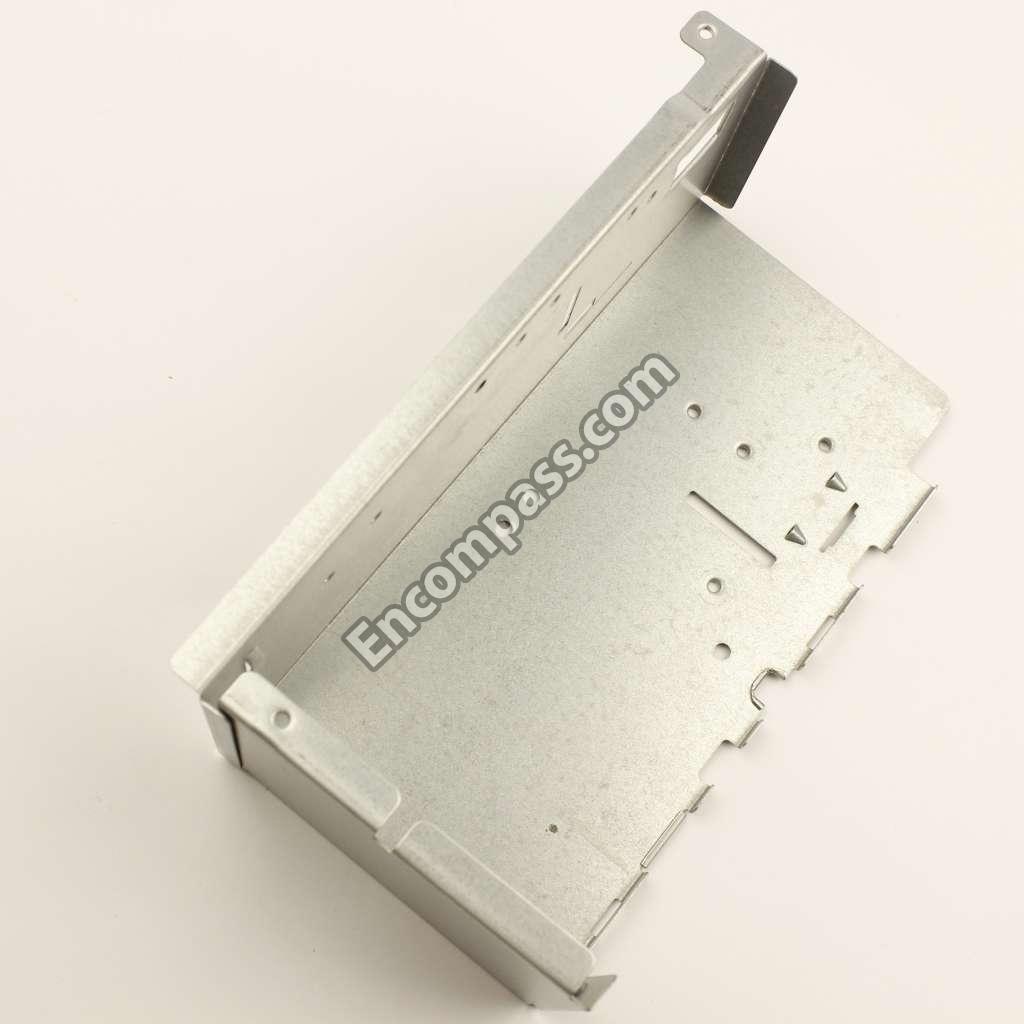

AC-0800-117 AC-0800-117 BOX-CONTROL
AC-1400-155 AC-1400-155 CAPACITOR-COMPRESSOR
AC-1405-082 AC-1405-082 CAPILLARY
AC-1450-196 AC-1450-196 CARTON - PACKAGING B
AC-1480-55 AC-1480-55 CASING-MIDDLE SCROLL
AC-1480-54 AC-1480-54 CASING-TOP SCROLL
AC-1620-30 AC-1620-30 CHASSIS
AC-1620-31 AC-1620-31 CHASSIS-BOTTOM
AC-1750-234 AC-1750-234 COMPRESSOR
AC-1800-219 AC-1800-219 CONDENSER
AC-2650-188 AC-2650-188 EVAPORATOR
AC-2750-125 AC-2750-125 FAN-AXIAL
WJ85X23968 WJ85X23968 FILTER-STATIC
WJ86X22905 WJ86X22905 FRAME-LEFT
WJ86X22904 WJ86X22904 FRAME-RIGHT
WJ43X22906 WJ43X22906 GASKET-WINDOW
AC-3363-15 AC-3363-15 HARNESS
AC-0850-75 AC-0850-75 HOLDER-FILTER
AC-3899-10 AC-3899-10 KEYPAD
AC-4550-299 AC-4550-299 MOTOR-FAN
AC-5211-46 AC-5211-46 PARTITION-REAR

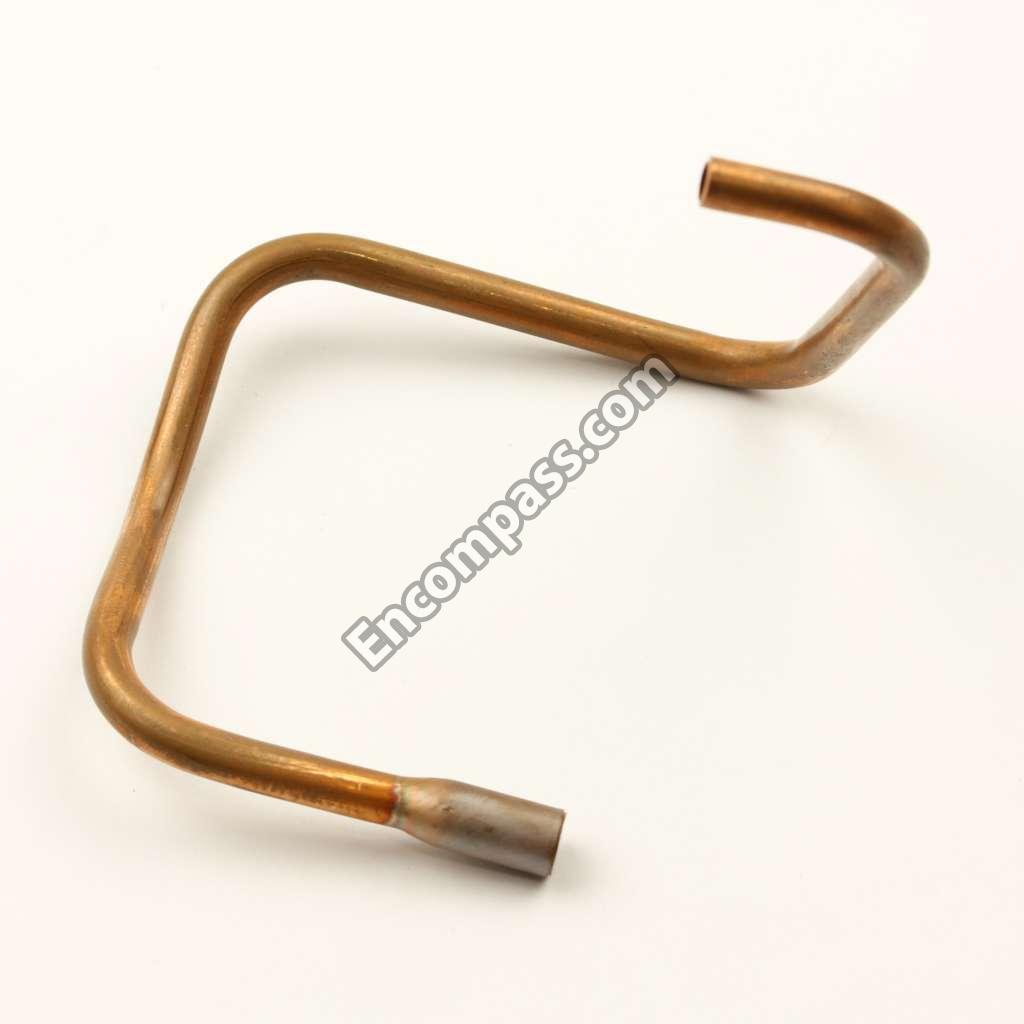

AC-5255-608 AC-5255-608 PIPE
AC-5300-366 AC-5300-366 PLATE
WJ65X22104 WJ65X22104 RAIL-TOP
WJ86X22903 WJ86X22903 SCREEN-LEFT AND RIGH
WJ27X23476 WJ27X23476 TRANSFORMER
AC-7750-260 AC-7750-260 TUBE-SUCTION
