Model Image
Manufacturer

Haier

Model Number

ESA406MT

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AC-2750-125 AC-2750-125 AXIAL FAN
A0010206848 A0010206848 AXIAL FAN
AC-0750-28 AC-0750-28 BOTTOM BLOT
AC-3300-047 AC-3300-047 BOTTOM GUIDE
AC-5550-11 AC-5550-11 BOTTOM GUIDE
AC-0850-75 AC-0850-75 BRACKET
AC-0850-162 AC-0850-162 BRACKET FOR FAN MOTOR
AC-1300-086 AC-1300-086 CABINET
A0010101917 A0010101917 CABLE CLAMP

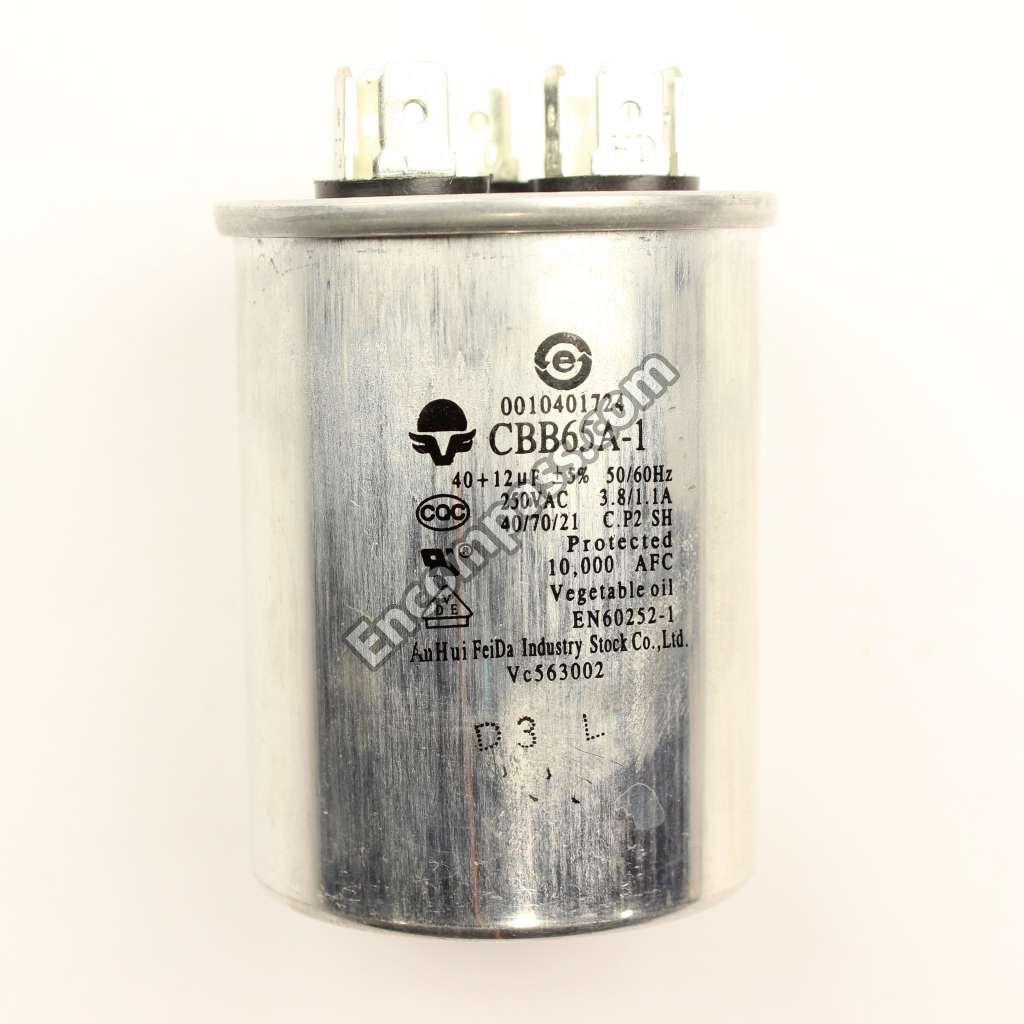

A0010401724 A0010401724 CAPACITOR
WJ03X10093 WJ03X10093 CAPACITOR CLAMP
AC-1400-177 AC-1400-177 CAPACITOR FOR COMPRESSOR
AC-1400-236 AC-1400-236 CAPACITOR FOR MOTOR
AC-1405-49 AC-1405-49 CAPILLARY ASSY.
A0010717461 A0010717461 CAPILLARY TUBE ASSY.
A0010206847 A0010206847 CENTRIFUGAL FAN
AC-1750-234 AC-1750-234 COMPRESSOR
A0010716854 A0010716854 COMPRESSOR
AC-1800-184 AC-1800-184 CONDENSER ASSY.
A0010718548 A0010718548 CONDENSER LIQUID-IN PIPE
A0010717465 A0010717465 CONDENSER LIQUID-OUT PIPE
A0010717466 A0010717466 CONDENSOR ASSY.
A0010713253 A0010713253 CONFLUX TAKE-OVER
AC-0800-117 AC-0800-117 CONTROL BOX
AC-5300-366 AC-5300-366 CONTROL BOX BOARD
AC-2175-01 AC-2175-01 DIAL
AC-3899-10 AC-3899-10 DIAL
A0010709289 A0010709289 DISCHARGING TUBE
A0010717625 A0010717625 DISCHARGING TUBE
WJ85X23968 WJ85X23968 ELECTROSTATIC FILTER
AC-2650-155 AC-2650-155 EVAPORATOR ASSY.
A0010716831 A0010716831 EVAPORATOR ASSY.
A0010716815 A0010716815 EVAPORATOR GAS-IN PIPE ASSY?
A0010716816 A0010716816 EVAPORATOR GAS-OUT PIPE ASSY?
A0010716817 A0010716817 EVAPORATOR GAS-OUT PIPE ASSY?
A0010717202 A0010717202 EVAPORATOR GAS-OUT PIPE ASSY?
A0010400916C A0010400916C FAN MOTOR
A0010858384 A0010858384 FRONT PANEL ASSY.
WJ65X22104 WJ65X22104 GUIDE
WJ86X22903 WJ86X22903 LEFT AND RIGHT SIDE CURTAINS
WJ86X22905 WJ86X22905 LEFT FRAME
AC-1480-55 AC-1480-55 MIDDLE SCROLL CASING
AC-0750-050 AC-0750-050 NUT
A0011800279G A0011800279G PCB
AC-5211-46 AC-5211-46 REAR PARTITION BOARD ASSY.
WJ26X22480 WJ26X22480 REMOTE CONTROL
WJ86X22904 WJ86X22904 RIGHT FRAME
WJ01X23761 WJ01X23761 SCREW ASSY
A0010716818 A0010716818 SUCTION TUBE
WJ27X23476 WJ27X23476 TRANSFORMER
WJ43X22906 WJ43X22906 WINDOW SEAL GASKET
AC-7800-178 AC-7800-178 WINDOW SEAL GASKET
AC-3363-15 AC-3363-15 WIRING HARNESS
