Model Image
Manufacturer

Haier

Model Number

ESA408ML

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

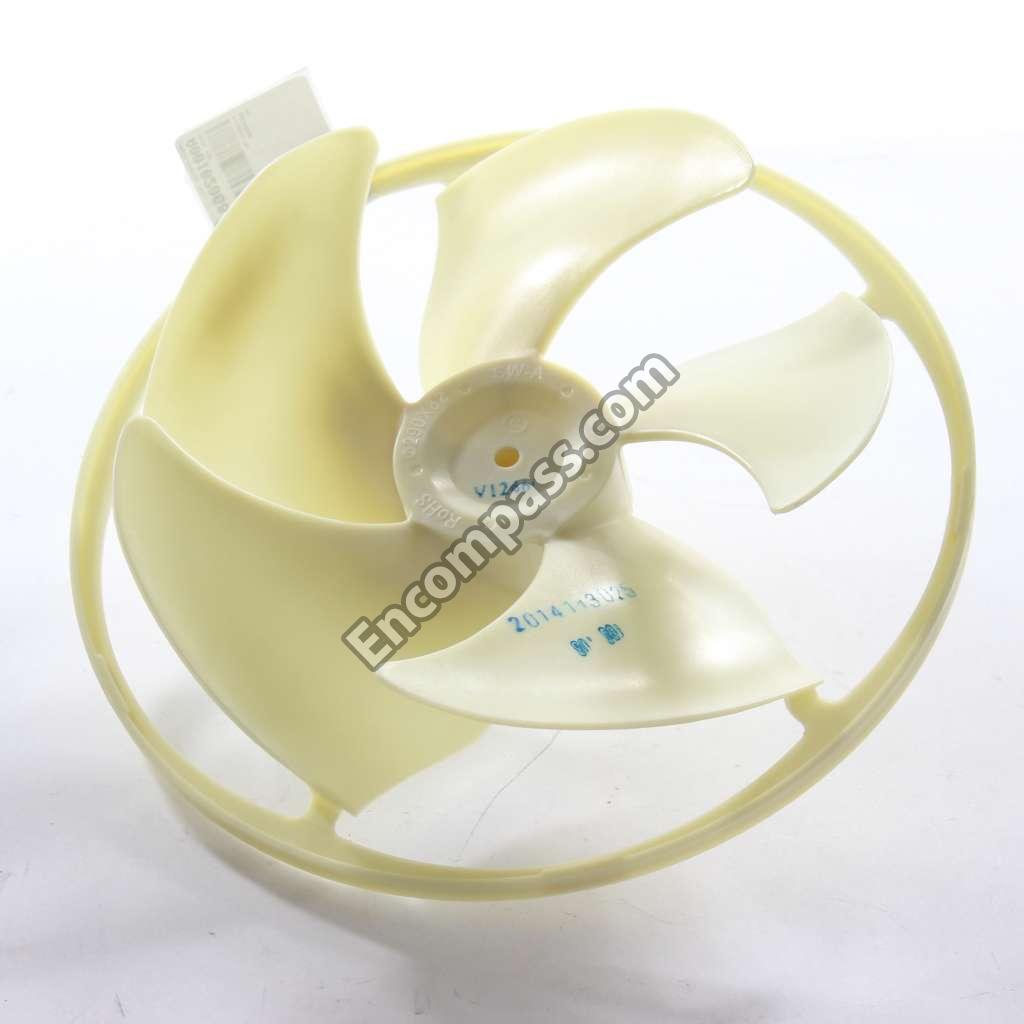

A0010206848 A0010206848 AXIAL FAN
AC-3300-28 AC-3300-28 BOTTOM GUIDE
AC-1620-31 AC-1620-31 BOTTOM PLATE ASSY.
AC-0850-201 AC-0850-201 BRACKET FOR FAN MOTOR
AC-1300-086 AC-1300-086 CABINET
AC-1650-75 AC-1650-75 CABLE CLAMP
AC-1400-155 AC-1400-155 CAPACITOR FOR COMPRESSOR
AC-1400-37 AC-1400-37 CAPACITOR FOR FAN MOTOR
AC-1405-086 AC-1405-086 CAPILLARY TUBE ASSY.
A0010206847 A0010206847 CENTRIFUGAL FAN
AC-1650-80 AC-1650-80 CLIP OF CAPACITOR
AC-1750-301 AC-1750-301 COMPRESSOR
A0010716733 A0010716733 CONDENSER LIQUID-OUT PIPE
A0010718081 A0010718081 CONDENSOR ASSY.
A0010713253 A0010713253 CONFLUX TAKE-OVER
AC-0800-117 AC-0800-117 CONTROL BOX
AC-5300-366 AC-5300-366 CONTROL BOX BOARD
AC-3899-10 AC-3899-10 DIAL
A0010716727 A0010716727 DISCHARGING TUBE
A0010718066 A0010718066 EVAPORATOR ASSY.
A0010716815 A0010716815 EVAPORATOR GAS-IN PIPE ASSY?
A0010716816 A0010716816 EVAPORATOR GAS-OUT PIPE ASSY?
A0010716817 A0010716817 EVAPORATOR GAS-OUT PIPE ASSY?
A0010717202 A0010717202 EVAPORATOR GAS-OUT PIPE ASSY?
WJ65X22104 WJ65X22104 GUIDE
WJ86X22903 WJ86X22903 LEFT AND RIGHT SIDE CURTAINS
WJ86X22905 WJ86X22905 LEFT FRAME
AC-1480-55 AC-1480-55 MIDDLE SCROLL CASING
AC-4550-301 AC-4550-301 MOTOR
AC-0750-050 AC-0750-050 NUT
A0011800279G A0011800279G PCB
AC-5211-46 AC-5211-46 REAR PARTITION BOARD ASSY.
WJ26X22480 WJ26X22480 REMOTE CONTROL
WJ86X22904 WJ86X22904 RIGHT FRAME
WJ01X23761 WJ01X23761 SCREW ASSY
A0010716818 A0010716818 SUCTION TUBE
AC-1480-54 AC-1480-54 TOP SCROLL CASING
WJ27X23476 WJ27X23476 TRANSFORMER
WJ43X22906 WJ43X22906 WINDOW SEAL GASKET
